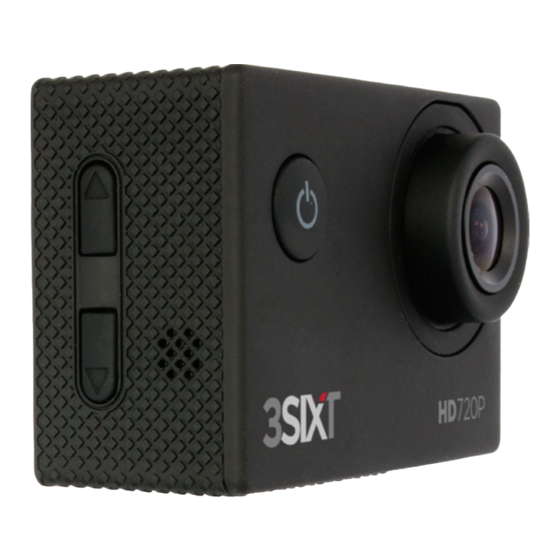

- Page 1 HD SPORTS ACTION CAMERA 3S-0683 USER GUIDE...
- Page 2 IMPORTANT SAFETY INFORMATION Please read the instructions carefully before using this camera for proper and safe operation. • Using a wall/car charger other than a 5V 1A Charger can damage the camera battery and could result in fire or leakage. Only use chargers marked: Output 5V 1A. •...
-
Page 3: Table Of Contents
TABLE OF CONTENTS The Basics .....................4 Installing and Charging the Battery ..........6 Installing the microSD Card ..............8 Turning the Camera ON/OFF ...............9 Capture/Playback Modes ..............10 Camera Settings Menu ................14 In-Vehicle Settings ..................16 Connecting to a PC or MAC ..............17 Included Accessories ................18 System Requirements ................22 Technical Specifications ..............22... -
Page 4: The Basics
THE BASICS Power/Mode Button microSD Slot Lens Micro USB Port Microphone... - Page 5 Screen Charge Status Light Shutter/Select Button Down Indicator Light Speaker Battery Door...
-
Page 6: Installing And Charging The Battery
INSTALLING AND CHARGING THE BATTERY INSTALLING THE BATTERY 1. First, make sure that the camera is OFF when inserting or removing the battery. 2. Remove the camera from it’s housing. 3. Lift up the battery door with your fingernail. Remove the battery door and place the battery door in a safe location. - Page 7 CHARGING THE BATTERY 1. Make sure that the camera is switched OFF. 2. To start charging the battery, connect the supplied micro USB cable into the camera’s micro USB port into a PC, MAC or wall adaptor’s USB 2.0 port only).
-
Page 8: Installing The Microsd Card
INSTALLING THE MICROSD CARD It is recommended to use 32GB Class 10 microSD cards for maximum performance. microSD Slot 1. Make sure the camera is OFF when inserting or removing the microSD card. 2. Make sure the memory card is inserted in the correct direction (the gold contacts of the microSD card should face the front of the camera) -
Page 9: Turning The Camera On/Off
TURNING THE CAMERA ON/OFF Install the battery, charge fully and insert the microSD card as described on page 8. TURNING ON THE CAMERA Power/Mode Button • Press and hold the Power/Mode Button for 2 seconds until the LCD Screen displays ON and a sound is heard. -
Page 10: Capture/Playback Modes
CAPTURE/PLAYBACK MODES Cycling through and selecting capture and playback modes VIDEO PHOTO PLAYBACK Turn camera ON and repeatedly press the Power/Mode Button cycle through camera modes and settings. The modes will appear in the following order: VIDEO PHOTO 9999 720P 2016/01.01 17:51:34 2016/01.01 17:51:34 SETUP... - Page 11 VIDEO MODE To record a video, make sure the camera 720P is in Video mode which should be displayed on the LCD Screen . If not, short press the Power/Mode Button repeatedly until appears. 2016/01.01 17:51:34 TO START RECORDING • LCD Screen in ‘Video’...
- Page 12 TO STOP RECORDING • Short press the Shutter/Select Button • The red recording icon on the LCD Screen will disappear. The Indicator Light will also stop flashing which indicates that a recording has ceased. • When the microSD card is full or the battery is drained, recording will cease automatically.
- Page 13 • While in Single Image mode, the LCD 9999 Screen will display: ∙ number of images taken (top right); ∙ image resolution 2016/01.01 17:51:34 (below number of images taken); LCD Screen in ‘Single Image’ ∙ date and time stamp photo mode (bottom centre);...
-
Page 14: Camera Settings Menu
CAMERA SETTINGS Turn camera ON and repeatedly press the Power/Mode Button to cycle through camera modes and stop at the Settings screen. • To scroll through the main settings menu, press the Up Down Buttons. LCD Screen when ‘Settings’ is selected •... - Page 15 CAMERA SETTINGS MENU GUIDE Setting Description Options Default Video Set the Video Resolution to your 720P/VGA 720P Resolution preferred output Time Stamp Turn the Date & Time Stamp ON/OFF OFF/ON Turn the Motion Detection function Motion Detect OFF/High/Normal/Low ON/OFF Set the recording time for Looping Video Looping Video 1/3/5/10min when used in car...
-
Page 16: In-Vehicle Settings
IN-VEHICLE SETTINGS To set your camera up for in-vehicle crash cam recording: • In the settings menu turn on the “Loop Recording” setting and choose the looping recording time. • Join the Suction Mount and the LCD Screen when ‘Loop Recording’ Camera Clip Housing together. -
Page 17: Connecting To A Pc Or Mac
CONNECTING TO A PC OR MAC USING SUPPLIED MICRO USB CABLE • Turn the camera ON and connect it to a PC or MAC’s USB 2.0 port via the supplied micro USB cable. For PC: Your captured videos and images will be located in My Computer >... -
Page 18: Included Accessories
INCLUDED ACCESSORIES WATERPROOF WATERPROOF SUCTION MOUNT HOUSING HOUSING MOUNT ADHESIVE CLIP HANDLEBAR/ HANDLEBAR/ BASE POLE MOUNT HELMET MOUNT ADAPTER CAMERA CLIP CLIP HOUSING HELMET STRAPS HOUSING MOUNT... - Page 19 WATERPROOF HOUSING The camera is submersible up to 30m if the camera is correctly sealed in the Waterproof Housing. To fit and test Waterproof Housing: 1. Release the secure clasp of the Waterproof Housing. 2. Inspect the water sealing gasket (the rubberised material) to be sure it’s in good condition.
- Page 20 ACCESSORY ASSEMBLY WATERPROOF HOUSING CLIP HOUSING HANDLE BAR MOUNT Option 1 Option 2...
- Page 21 HELMET MOUNT Option 1 Option 2...
-
Page 22: System Requirements
SYSTEM REQUIREMENTS WINDOWS Microsoft® Windows XP with Service Pack 3, Windows Vista with Service Pack 1 or Windows 7 or later Pentium® 4 processor (or above) 1 GB of RAM, 250 MB available hard disk space QuickTime® 6 or higher Microsoft® Internet Explorer 7 or higher Windows Media Player 10 or higher DirectX 9 or higher MACINTOSH Intel processor running Mac OS X v10.5.x or later... -
Page 23: Limitation Of Liability And Indemnity
(including, without limitation, loss of data, revenue, profits, use or other economic advantage) however arising, whether for breach of contract or in tort, even if 3SIXT has been previously advised of the possibility of such damage. You agree that you have sole responsibility... -
Page 24: Warranty
1 YEAR WARRANTY 3SIXT will replace the faulty product at no cost to the consumer. The warranty does not extend to any consequential damages or costs that may be incurred and is valid for 1 year from date of purchase. The consumer must return the faulty product to the retail store it was purchased from together with proof of purchase. - Page 25 For more information, visit www.3sixtgear.com or visit www.3sixtgear.com/support...
