Summary of Contents for 3SIXT FULL HD 1080P

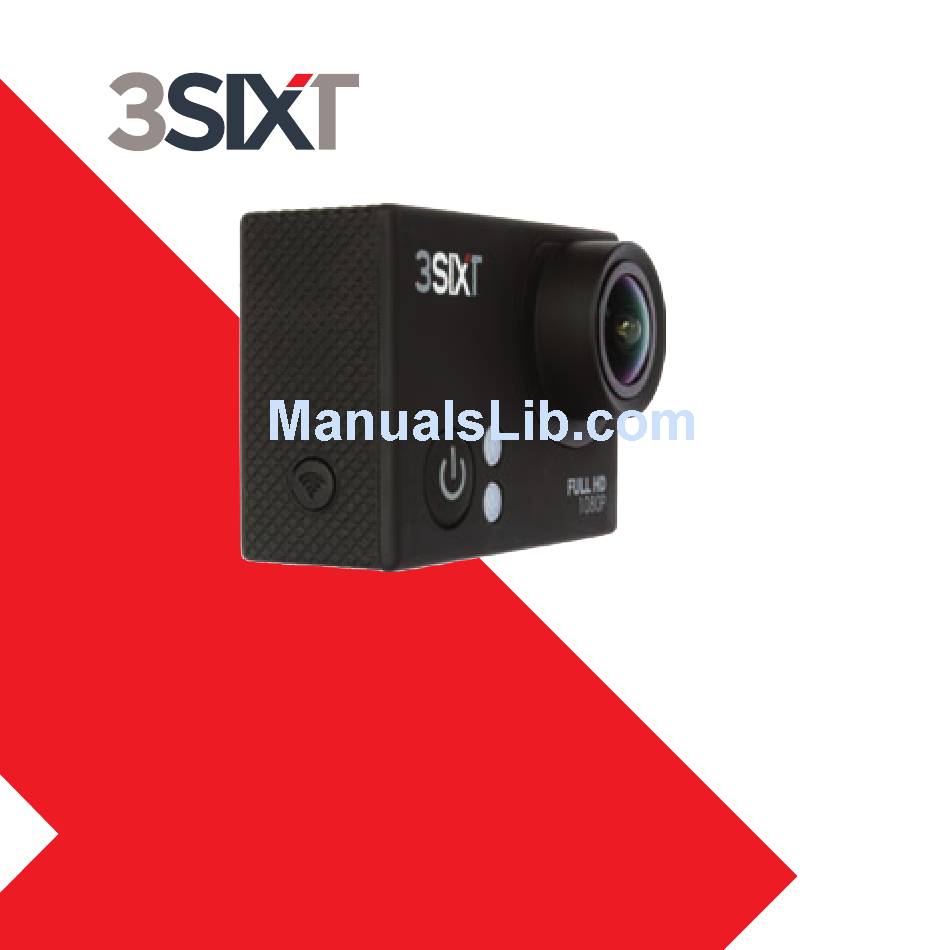

- Page 1 FULL HD SPORTS ACTION CAMERA with Wi-Fi QUICK START GUIDE...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION Please read the instructions carefully before using this camera for proper and safe operation. • Please check the camera operates normally before use. • Do not expose the camera to direct sunlight, or point its lens to sunlight - the image sensor may get damaged. •... - Page 3 Welcome This Quick Start Guide will give you the basics on how to enjoy your 3SIXT Action Camera. For more information, visit www.3sixtgear.com...
-
Page 4: The Basics
THE BASICS Power/Mode Button Micro USB Port Status Indicator Light Screen Charging Status Light Wi-Fi Button Lens Shutter/ Select Button Microphone Speaker microSD Slot Battery Door Micro HDMI Port... - Page 5 SET UP Insert a compatible microSDHC card (requires at least a Class 10 or microSDHC card up to 32GB- not included). 2. Charge using the included USB cable. The LED status light turns off when fully charged. 3. Before use, gently remove the plastic film on the lens and screen.
-
Page 6: Capture Mode
CAPTURE MODE Changing the capture mode VIDEO PHOTO BURST TIME LAPSE SETTINGS Turn camera ON and repeatedly press the Power/Mode Button to cycle through camera modes and settings. The modes will appear in following order: VIDEO PHOTO BURST SETTINGS TIME LAPSE... -
Page 7: Changing The Settings
SETTINGS Changing the settings Press the Power/Mode Button to enter the settings menu. Repeatedly press the Power/Mode Button to cycle through the options and press the Shutter/Select Button to select the desired option. -
Page 8: Downloading The App
DOWNLOADING THE APP or search on the App or search on Google Store for ‘iSmart DV*’ Play for ‘iSmart DV*’ Requires iOS 8.0 or later. Requires Android 4.1 Compatible with iPhone, iPad, or later. and iPod touch. *Playback may not be supported on some devices. iSmartDV is a third-party App that is supported by the developer. -
Page 9: Connecting To The App
Apple or Android device. Do not launch the APP. 2. Press the Wi-Fi connect button on the camera. 3. Connect your device to the Camera via Wi-Fi. Wi-Fi Name is 3SIXT-0684. 4. APP Wi-Fi password is 1234567890. 5. Once connected launch the APP. - Page 10 ACCESSORIES WATERPROOF WATERPROOF SUCTION HOUSING + HOUSING MOUNT MOUNT REPLACEMENT DOOR ADHESIVE CLIP HANDLEBAR/ HANDLEBAR/ BASE (X2) POLE MOUNT HELMET MOUNT ADAPTER (X3)
- Page 11 CURVED MOUNT CAMERA CLIP CLIP HOUSING HOUSING MOUNT CLIP HOUSING CLIP HOUSING HELMET ADAPTER BELT CLIP STRAPS (X2)
-
Page 12: Waterproof Housing
ACCESSORIES Waterproof Housing CAMERA IS SUBMERSIBLE UP TO 30M IF THE CAMERA IS CORRECTLY SEALED IN THE WATERPROOF HOUSING Release the secure clasp of the waterproof housing. 2. Inspect the water sealing gasket to be sure it’s in good condition. 3. - Page 13 ACCESSORIES Camera Housing Assembly Clip Housing Assembly...
- Page 14 ACCESSORIES Helmet Mount Assembly Option 1 Option 2 Option 3 Option 4...
- Page 15 ACCESSORIES Handle Bar Mount Assembly Option 1 Option 2...
- Page 16 ACCESSORIES Camera Mount Assembly Option 1 Option 2 Option 3 Option 4...
-
Page 17: Memory Cards
MEMORY CARDS This camera supports a Class 10 microSDHC Memory Card (up to 32GB). Please insert a compatible microSDHC Memory card before use. Memory cards are not included and need to be purchased separately. Please back up data stored on the memory card. Memory cards are manufactured from precise electronic components. -
Page 18: System Requirements
SYSTEM REQUIREMENTS Windows • Microsoft® Windows XP with Service Pack 3, Windows Vista with Service Pack 1 or Windows 7 or later • Pentium® 4 processor (or above) 1 GB of RAM, 250 MB available hard disk space • QuickTime® 6 or higher Microsoft®... -
Page 19: Tech Specs
TECH SPECS Image Settings Auto ISO Lens 140° (wide) Viewing Angle Video 1080p@30fps (1920 x 1080) Resolution 720p@30fps (1280 x 720) Picture 12MP Resolution Features Loop Recording, Burst, Time-Lapse, Exposure Adjustment, Time-delay, Power Frequency Adjustment Storage Media microSD / microSDHC (up to 32GB) (not included) File Format... - Page 20 3S-0684 For more information, visit www.3sixtgear.com or visit www.3sixtgear.com/support...
