INSTALLATION
INSTRUCTIONS
PARTS LIST

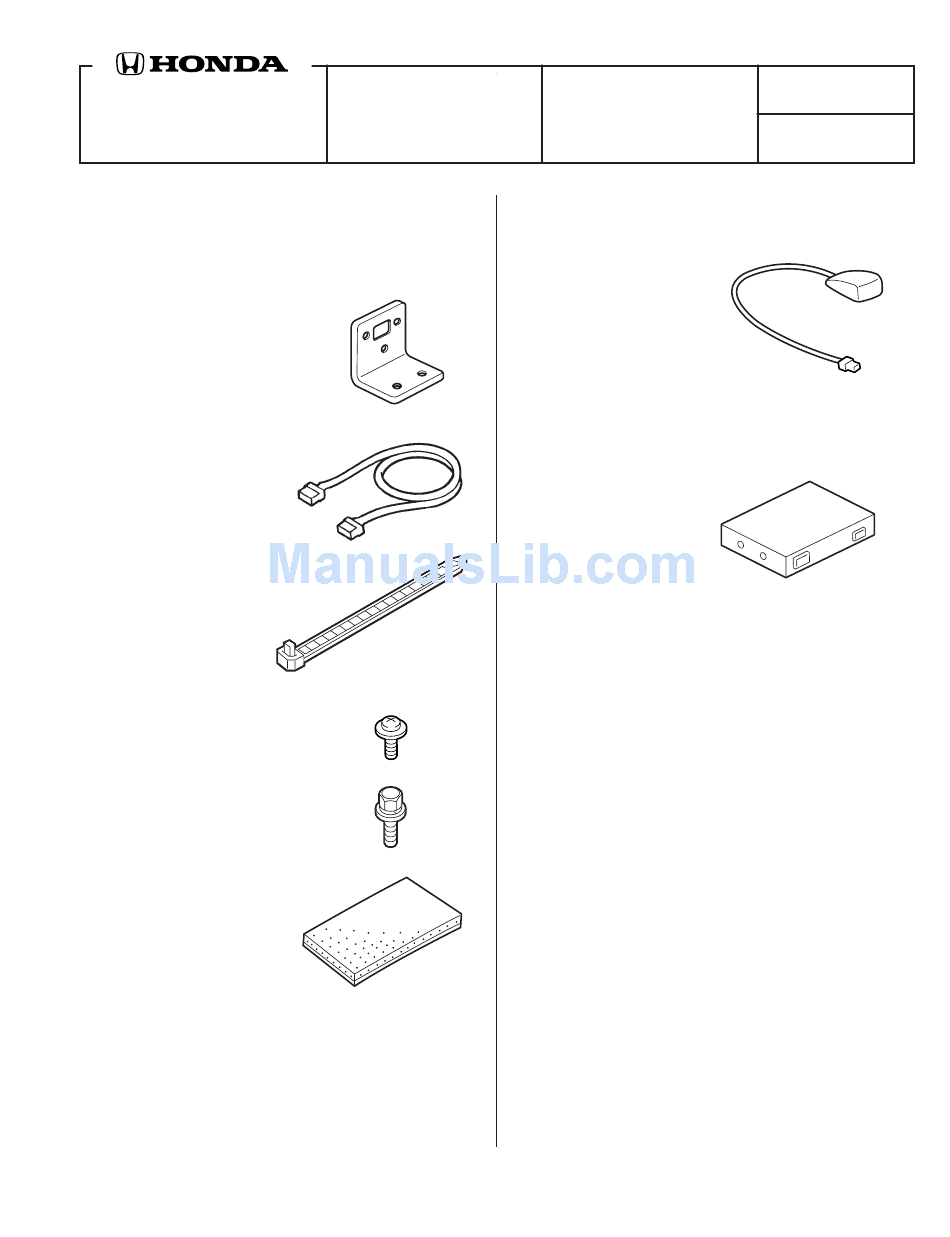

XM Radio Attachment (sold separately):
P/N 08B15-SHJ-100A
2 Tuner brackets
Bus cable
14 Wire ties
4 Washer-screws, 5 x 8 mm
4 Washer-bolts, 6 x 12 mm
3 EPT seals
© 2007 American Honda Motor Co., Inc. - All Rights Reserved.
Accessory
XM
SATELLITE RADIO
®
SYSTEM
XM Antenna (sold separately):
P/N: 08A15-0J1-100
Antenna
Unit kit (sold separately):
P/N 08A15-3J1-000
XM Tuner
TOOL AND SUPPLIES REQUIRED
#2 Phillips screwdriver
Flat-tip screwdriver
Tape measure
Shop towel
Ratchet
8 mm, 10 mm Socket
Isopropyl alcohol
AII 38163 (0710)
Application
2008 ODYSSEY
08B15-SHJ-1A00-91
Publications No.
All 38163
Issue Date
OCT 2007
1 of 8

Advertisement

loading

Related Manuals for Honda 2008 ODYSSEY

Summary of Contents for Honda 2008 ODYSSEY

  • Page 1 4 Washer-screws, 5 x 8 mm Shop towel Ratchet 8 mm, 10 mm Socket 4 Washer-bolts, 6 x 12 mm Isopropyl alcohol 3 EPT seals 1 of 8 © 2007 American Honda Motor Co., Inc. - All Rights Reserved. AII 38163 (0710) 08B15-SHJ-1A00-91...

  • Page 2: Installation

    5 x 8 mm BOLTS LEFT MAP 4713010B LIGHT LENS COVER BUS CABLE Disconnect the two vehicle connectors and remove the roof console. 6402010B 2 of 8 AII 38163 (0710) © 2007 American Honda Motor Co., Inc. - All Rights Reserved.
  • Page 3 “A” pillar trim. Remove the left front “A” pillar (two clips). CLIP 4301210B DOOR OPENING TRIM LEFT FRONT A PILLAR TRIM CLIP 4310013B 3 of 8 © 2007 American Honda Motor Co., Inc. - All Rights Reserved. AII 38163 (0710)
  • Page 4 5 mm CLIP FRONT WINDOW DRIVER’S SEAT REAR RAIL COVER 30 mm CLIP ADHESIVE 6619170Y BACKING CLIP ANTENNA RIGHT FRONT PILLAR TRIM 4520011B 4 of 8 AII 38163 (0710) © 2007 American Honda Motor Co., Inc. - All Rights Reserved.
  • Page 5 ANTENNA CABLE VEHICLE HARNESS VEHICLE BRACKET 4310052B BOLT FUSE BOX 4310072B 20. Remove the bottom bolt from the driver’s under- dash fuse box. 5 of 8 © 2007 American Honda Motor Co., Inc. - All Rights Reserved. AII 38163 (0710)
  • Page 6 DRIVER’S SEAT (Turn up the Turn up the floor carpet.) floor carpet. ANTENNA CABLE 4311011B WIRE TIE VEHICLE HARNESS ANTENNA 6402030B CABLE CABLE 6 of 8 AII 38163 (0710) © 2007 American Honda Motor Co., Inc. - All Rights Reserved.
  • Page 7 28. Secure the antenna cable and the bus cable to the vehicle harness with two wire ties, and reinstall the driver’s under-dash fuse box bolt. 7 of 8 © 2007 American Honda Motor Co., Inc. - All Rights Reserved. AII 38163 (0710)
  • Page 8 39. Pull up on the driver’s window switch to close the window completely, then hold the switch for 2 second or more. 40. Test the AUTO window function. 8 of 8 AII 38163 (0710) © 2007 American Honda Motor Co., Inc. - All Rights Reserved.
