Owner's Manual

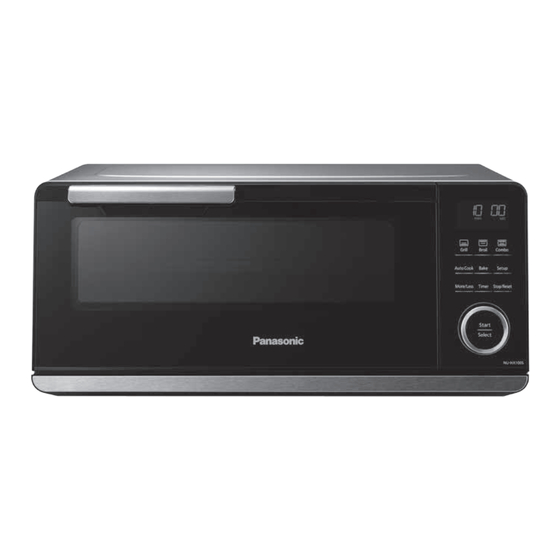

Countertop Induction Oven
Household Use Only
Model No.
NU-HX100S
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT,
AND SAVE THIS MANUAL FOR FUTURE USE.
To register your product and for all other assistance, please contact us via the web at:
http://shop.panasonic.com/support
(U.S.A Only)
Para obtener instrucciones en español, por favor visite la página web en:
http://shop.panasonic.com/support
F0003BV00AP
PA0716-0
Printed in China
© Panasonic Appliances Microwave Oven (Shanghai) Co., Ltd. 2016
Advertisement
Table of Contents
Related Manuals for Panasonic NU-HX100S
Summary of Contents for Panasonic NU-HX100S
-
Page 1: Household Use Only
To register your product and for all other assistance, please contact us via the web at: http://shop.panasonic.com/support (U.S.A Only) Para obtener instrucciones en español, por favor visite la página web en: http://shop.panasonic.com/support F0003BV00AP PA0716-0 Printed in China © Panasonic Appliances Microwave Oven (Shanghai) Co., Ltd. 2016... -
Page 2: Table Of Contents
CONTENTS Safety Information IMPORTANT SAFETY INSTRUCTIONS ............................1 IMPORTANT SAFEGUARDS ................................2 SAFEGUARDS .....................................3 Safety Precautions ....................................4 Grounding Instructions ..................................4 Installation ......................................5 General Use .....................................5-6 Food Preparation ....................................6 Operation Location of Controls ..................................8 Grill Pan ........................................9 Control Panel ....................................10 Display Window ..................................... 10 Cook Mode ....................................... -
Page 3: Important Safety Instructions
Thank you for purchasing a Panasonic Countertop Induction Oven Your oven is a cooking appliance and you should use as much care as you use with a stove or any other cooking appliance. When using this electric appliance, basic safety precautions should be followed, including the following: Inspection for Damage —... -
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS WARNING To reduce the risk of burns, electric shock, fire or injury to persons: Read all instructions before using this appliance. DO NOT touch hot surfaces. Use handles or knobs. To protect against electrical shock DO NOT immerse cord, plugs in water or other liquid. Close supervision is necessary when any appliance is used by or near children. -
Page 5: Safeguards
To prevent burns, care should be taken to avoid touching the inside surfaces of the oven. 37. DO NOT use the Grill Pan in a microwave oven, conventional oven or open flame burner. The Grill Pan is designed for use only with NU-HX100S oven. Attention: Hot Surfaces... -
Page 6: Safety Precautions
DO NOT remove ground prong. • may result in a fire or oven damage. Using a lower voltage will cause slow cooking. Panasonic is NOT responsible for • DO NOT use an adapter. any damages resulting from the use of the oven with any... -
Page 7: Installation
13. DO NOT use a steam cleaner to clean this appliance. The steam from the cleaning appliance could penetrate live components and permanently damage the oven or cause injury. 14. The use of accessories not recommended by Panasonic may cause injury. -
Page 8: Food Preparation
(with the exception of preheating on Bake and Grill feature) Oven Light Not User Replaceable. When it becomes necessary to replace the oven light, please consult Panasonic for the nearest authorized service centre for examination or repair. Contact information is provided in the warranty page 35. -
Page 9: Cookware Guide
Cookware Guide Caution: Place all cookware on the Grill Pan when you are cooking. It is dangerous to use cookware (specifically for metal ware) directly on the oven cavity floor. Do not use commercial IH containers directly on the oven cavity floor. Plastic wrap Wax Paper Plastic wrap will melt under a high... -
Page 10: Location Of Controls
Location of Controls Oven Cavity Floor Oven Light Upside Stopper (Left side) Warning Label (Hot surface) Downside Stopper Door Safety Lock System (Left side) Control Panel External Air Vent Door Hinges Broil Heater Caution: When opening or closing the oven door, do not allow your fingers to rub against the hinges. -
Page 11: Grill Pan
The Grill Pan is designed for use only with NU-HX100S oven. For there are two upside stoppers on the both sides of the oven, care should be taken when you put the Grill Pan into the oven. -
Page 12: Control Panel
When a pad is pressed correctly, a beep will be heard. If a pad is pressed and no beep is heard, the unit did not or cannot accept the instruction. At the end of any complete program, the oven will NU-HX100S beep 5 times. NOTE: 1. -
Page 13: Cook Mode
Cook Mode Cooking modes Uses Accessary to use Containers Grill • • Grill „ Grill beef steak „ Grill lamb steak „ Grill pork steak „ Grill patties Preheating is required. • • Keep Warm „ Keep warm cooked food. No Preheating Broil „... -
Page 14: Operation
Plug into a properly grounded electrical Rotate Start/Select Dial clockwise to oven. Press Setup Pad once. NU-HX100S outlet. “WELCOME TO PANASONIC REFER select metric unit (kg ). Rotate Start/ TO OWNER’S MANUAL BEFORE USE” Select Dial counterclockwise to select scrolls across display window. -
Page 15: Setup Feature
Operation (continued) Setup Feature (continued) LB/KG CHOICE The oven has both imperial and metric weight units. The oven displays the weight in imperial when you plug-in. LB * Rotate Start/Select Dial counterclockwise to select imperial unit (lb). Rotate Start/Select Dial clockwise to select metric unit (kg). TEMPERATURE CHOICE The oven has both imperial and metric temperature units. -
Page 16: Demo Mode
DEMO MODE feature. The oven appear in the display. Keypads may be automatically defaults to the DEMO Press Stop/Reset Pad 3 times; a “0“ will pressed but the oven will not start. NU-HX100S MODE OFF. appear in the display window. NU-HX100S NOTES: NOTES: 1. -
Page 17: Grill Feature
When using Grill feature, please follow flash. Then open the oven door and the guidelines below: place the food inside. NU-HX100S 1. After cooking, please clean the oven when it cools down. See “Care and cleaning of your oven” on page 32. -
Page 18: Keep Warm Feature
Add Time feature. Warm time. Max Keep Warm time is 60 (See page 21) min. NU-HX100S Press Start/Select Dial. Keep Warm begins and the time will count down. At the end of the cooking time, 5 beeps will sound. -
Page 19: Broil Feature
See “Care and cleaning of your oven” on page 32 2. After cooking, the accessories and surrounding oven will get very hot. NU-HX100S Use oven gloves. 3. After cooking, verify food is done to your liking. Adjust time using Add Time feature. -
Page 20: Combo Feature
Adjust time using Add Time feature. (See page 21) Special instructions NU-HX100S After cooking vegetable, hot water will be on the oven cavity floor. Clean with a dry cloth, after it cools down. Press Start/Select Dial. Cooking begins and the time will count down. - Page 21 Press Grill Pad to select the preheat. Press Combo Pad to select the Combo time. Max cooking time is 60 min. feature. NU-HX100S NU-HX100S Rotate Start/Select Dial to select the preheat Power Level. (see page 15 for Press Start/Select Dial. Cooking begins reference) and the time will count down.
-
Page 22: Bake Feature
Then, open the oven door and the selected temperature can be place the food inside. recalled and changed. Press Bake NU-HX100S Pad once to indicate the temperature in the display window. While the temperature is recalled in the... -
Page 23: Setting The Timer
This feature allows you to program the oven as a kitchen timer. Press Timer Pad. NU-HX100S Rotate Start/Select Dial to set cooking time. Max added time is 30 min. This example shows the cooking after Combo... -
Page 24: Auto Cook
Cook feature. and the time will count down. At the end of the cooking time, 5 beeps will sound. NU-HX100S NOTES: 1. After cooking, please clean the oven when it cools down. See “Care and cleaning of your oven” on page 32. -
Page 25: Auto Cook Chart
Operation—Auto Cook (continued) Auto Cook Chart See the chart below for Auto Cook categories. Accessory Recipe Serving/Weight 1. Poultry with vegetables 0.5 lb 1.0 lb 1.5 lb 2.0 lb 2. Fish with vegetables 0.5 lb 1.0 lb 3. Fish 0.5 lb 1.0 lb 1.5 lb Grill Pan... - Page 26 Operation—Auto Cook (continued) 2. Fish with vegetables Ingredients: Method: Boneless salmon 1 inch thickness 1. Cut red bell pepper into 3/4 inch slices; cut zucchini into 3/4 inch rounds; cut potato with skin 1 piece into 0.5 oz. pieces; cut onion into 1 inch pieces. (0.5 lb/1.0 lb) 2.
- Page 27 Operation—Auto Cook (continued) 4. Frozen Pizza Ingredients: Method: Frozen pizza (thin crust) 1 (12”/9”) 1. Put the frozen pizza on center of the Grill Pan. See the illustration on left side. 2. Put the Grill Pan on the Oven Cavity Floor, then select auto program and size, press Start/Select Dial to cook.
-
Page 28: Cooking Chart
Cooking Chart Weight/ Time to Select Food Function Standing Time Instructions/Guidelines Quantity (approx) Beef For grilling a steak with a light char on surface and cooking the inside juicy, the Steak (1 inch)* starting temperature of the uncooked - Rare 4 - 5 min Grill meat should be 60 °F. - Page 29 Cooking Chart (continued) Weight/ Time to Select Food Function Standing Time Instructions/Guidelines Quantity (approx) Beef For grilling patties with a light char on surface and cooking the inside juicy, 2 pcs the starting temperature of the un- 6 - 7 min (5 - 6 oz each) Grill cooked meat should be 60 °F.
- Page 30 Cooking Chart (continued) Weight/ Time to Select Food Function Standing Time Instructions/Guidelines Quantity (approx) Lamb Lamb steak Bone-in* - Medium 5.0 - 6.0 oz Grill 7 - 8 min The max thickness should be 1 inch. MED-HIGH 5 min After preheating, cook directly on the Grill Pan.
- Page 31 Cooking Chart (continued) Weight/ Time to Select Food Function Standing Time Instructions/Guidelines Quantity (approx) Seafood Toss with salt, pepper and olive oil. Shrimp 0.5 - 1.0 lb Combo 3 10 - 12 min Cook directly on the Grill Pan. Toss with salt, pepper and olive oil. Fish fillets 1 inch 0.5 - 1.0 lb Combo 3...
- Page 32 Cooking Chart (continued) Weight/ Time to Select Food Function Standing Time Instructions/Guidelines Quantity (approx) Prepared mix Follow manufacturers’ directions to 8”x 8” prepare brownie. Cover with aluminum Brownie mix* (1.1 lb mix Bake 350 °F 30 - 32 min foil before cooking, pierce several holes powder) on the foil.
-
Page 33: Food Characteristics
Food Characteristics Food Characteristics Cooking Time A range in heating time is given in each recipe. The time range Density compensates for the uncontrollable differences in food shapes, starting Porous, airy foods take less time to heat than temperature and personal preferences. Always cook food for the minimum heavy, dense foods cooking time given in the recipe and check for doneness. -
Page 34: Care And Cleaning Of Your Oven
Care and Cleaning of Your Oven Please see below and the following page for particular cleaning instructions for each section of the oven. BEFORE CLEANING: Unplug oven at the wall outlet. Outside Oven Surfaces: Clean with a damp cloth or paper towel. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into... -
Page 35: Before Requesting Service
Care and Cleaning of Your Oven (continued) Special instructions 1. After using Grill function for cooking beef (steak, patty)/pork/lamb (including oily fat), clean the oven cavity completely every time. Operate the oven under Broil mode until smoke disappears, then wipe inside except ceiling after it cools down. 2. -
Page 36: Shop Accessories
KEY” or “D” appears in the 4 times and Stop/Reset Pad 4 times. display window. Shop Accessories Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at: shop.panasonic.com/support Parts Available to Order: Owner’s Manual (this book) .................. F0003BV00AP... -
Page 37: Limited Warranty (Only For U.s.a.)
If your product does not work properly because of a defect in materials or OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED workmanship, Panasonic Consumer Electronics Company (referred to as WARRANTY. “the warrantor”) will, for the length of the period indicated on the chart Some states do not allow the exclusion or limitation of incidental or below, which starts with the date of original purchase (“warranty period”),... -
Page 38: Specifications
Specifications Power Source ..........................................120 V, 60 Hz Power Consumption Grill ..........................................11.7 Amps, 1,400 W Broil ..........................................10.7 Amps, 1,280 W Combo ..........................................14.1 Amps, 1,710 W Bake ..........................................14.1 Amps, 1,710 W Outside Dimensions (W x H x D) ................................19 ⁄... - Page 39 Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America Two Riverfront Plaza Newark, New Jersey 07102 Panasonic Appliances Microwave Oven (Shanghai) Co., Ltd. Website: http://shop.panasonic.com/support...
