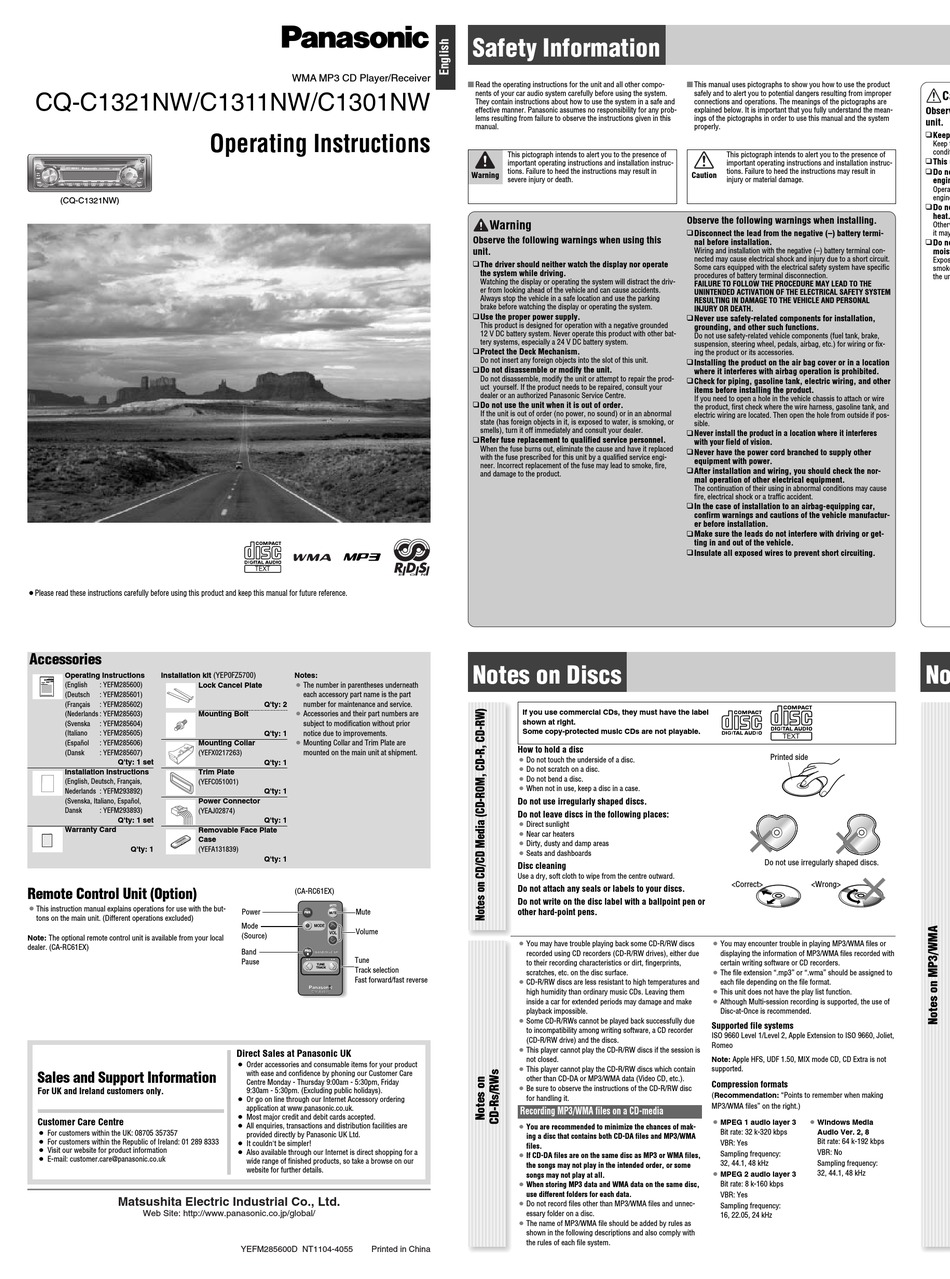

Panasonic CQ-C1301NW Operating Instructions Manual

CQ-C1321NW/C1311NW/C1301NW
BAND CQ-C1321N
APM
PWR
PTY
MUTE/SQ SCROLL RANDOM SCAN REPEAT TA/AF
SRC DISP
1 2 3 4 5 6
(CQ-C1321NW)
¡Please read these instructions carefully before using this product and keep this manual for future reference.
Accessories

Operating Instructions

Installation kit (YEP0FZ5700)
(English : YEFM285600) Lock Cancel Plate
(Deutsch : YEFM285601)
(Français : YEFM285602)
(Nederlands : YEFM285603) Mounting Bolt
(Svenska : YEFM285604)
(Italiano : YEFM285605)
(Español : YEFM285606) Mounting Collar
(Dansk : YEFM285607) (YEFX0217263)
Q'ty: 1 set
Installation Instructions Trim Plate
(English, Deutsch, Français, (YEFC051001)
Nederlands : YEFM293892)
(Svenska, Italiano, Español,
Power Connector
Dansk : YEFM293893) (YEAJ02874)
Q'ty: 1 set
Warranty Card Removable Face Plate
Case
Q'ty: 1 (YEFA131839)
Remote Control Unit (Option)
¡
This instruction manual explains operations for use with the but-
tons on the main unit. (Different operations excluded)
Note: The optional remote control unit is available from your local
dealer. (CA-RC61EX)
Sales and Support Information
For UK and Ireland customers only.
Customer Care Centre
¡ For customers within the UK: 08705 357357
¡ For customers within the Republic of Ireland: 01 289 8333
¡ Visit our website for product information
¡ E-mail: customer.care@panasonic.co.uk
Matsushita Electric Industrial Co., Ltd.
Web Site: http://www.panasonic.co.jp/global/
WMA MP3 CD Player/Receiver
Operating Instructions
TEXT
Notes:
¡ The number in parentheses underneath
each accessory part name is the part
Q'ty: 2 number for maintenance and service.
¡ Accessories and their part numbers are
subject to modification without prior
notice due to improvements.
Q'ty: 1
Mounting Collar and Trim Plate are
¡
mounted on the main unit at shipment.
Q'ty: 1
Q'ty: 1
Q'ty: 1
Q'ty: 1
(CA-RC61EX)
(ATT) (ATT)
Power Mute
PWR
MUTE
Mode
MODE
Volume
VOL
(Source)
Band
PRG
BAND/DISC UP
Tune
Pause
TUNE
TRACK Track selection
Fast forward/fast reverse
Car Audio Car Audio
Direct Sales at Panasonic UK
¡ Order accessories and consumable items for your product
with ease and confidence by phoning our Customer Care
Centre Monday - Thursday 9:00am - 5:30pm, Friday
9:30am - 5:30pm. (Excluding public holidays).
¡ Or go on line through our Internet Accessory ordering
application at www.panasonic.co.uk.
¡ Most major credit and debit cards accepted.
¡ All enquiries, transactions and distribution facilities are
provided directly by Panasonic UK Ltd.
¡ It couldn't be simpler!
¡ Also available through our Internet is direct shopping for a
wide range of finished products, so take a browse on our
website for further details.
YEFM285600D NT1104-4055 Printed in China

Safety Information

■
Read the operating instructions for the unit and all other compo-
nents of your car audio system carefully before using the system.
They contain instructions about how to use the system in a safe and
effective manner. Panasonic assumes no responsibility for any prob-
lems resulting from failure to observe the instructions given in this
manual.
This pictograph intends to alert you to the presence of
important operating instructions and installation instruc-
tions. Failure to heed the instructions may result in
Warning
severe injury or death.
Warning
Observe the following warnings when using this
unit.
❑ The driver should neither watch the display nor operate
the system while driving.
Watching the display or operating the system will distract the driv-
er from looking ahead of the vehicle and can cause accidents.
Always stop the vehicle in a safe location and use the parking
brake before watching the display or operating the system.
❑ Use the proper power supply.
This product is designed for operation with a negative grounded
12 V DC battery system. Never operate this product with other bat-
tery systems, especially a 24 V DC battery system.
❑ Protect the Deck Mechanism.
Do not insert any foreign objects into the slot of this unit.
❑ Do not disassemble or modify the unit.
Do not disassemble, modify the unit or attempt to repair the prod-
uct yourself. If the product needs to be repaired, consult your
dealer or an authorized Panasonic Service Centre.
❑ Do not use the unit when it is out of order.
If the unit is out of order (no power, no sound) or in an abnormal
state (has foreign objects in it, is exposed to water, is smoking, or
smells), turn it off immediately and consult your dealer.
❑ Refer fuse replacement to qualified service personnel.
When the fuse burns out, eliminate the cause and have it replaced
with the fuse prescribed for this unit by a qualified service engi-
neer. Incorrect replacement of the fuse may lead to smoke, fire,
and damage to the product.
Notes on Discs
If you use commercial CDs, they must have the label
shown at right.
Some copy-protected music CDs are not playable.
How to hold a disc
¡ Do not touch the underside of a disc.
¡ Do not scratch on a disc.
Do not bend a disc.
¡
¡ When not in use, keep a disc in a case.
Do not use irregularly shaped discs.
Do not leave discs in the following places:
¡ Direct sunlight
¡ Near car heaters
¡ Dirty, dusty and damp areas
Seats and dashboards
¡
Disc cleaning
Use a dry, soft cloth to wipe from the centre outward.
Do not attach any seals or labels to your discs.
Do not write on the disc label with a ballpoint pen or
other hard-point pens.
¡ You may have trouble playing back some CD-R/RW discs
recorded using CD recorders (CD-R/RW drives), either due
to their recording characteristics or dirt, fingerprints,
scratches, etc. on the disc surface.
¡ CD-R/RW discs are less resistant to high temperatures and
high humidity than ordinary music CDs. Leaving them
inside a car for extended periods may damage and make
playback impossible.
¡ Some CD-R/RWs cannot be played back successfully due
to incompatibility among writing software, a CD recorder
(CD-R/RW drive) and the discs.
¡ This player cannot play the CD-R/RW discs if the session is
not closed.
¡ This player cannot play the CD-R/RW discs which contain
other than CD-DA or MP3/WMA data (Video CD, etc.).
¡ Be sure to observe the instructions of the CD-R/RW disc
for handling it.
Recording MP3/WMA files on a CD-media
¡ You are recommended to minimize the chances of mak-
ing a disc that contains both CD-DA files and MP3/WMA
files.
¡ If CD-DA files are on the same disc as MP3 or WMA files,
the songs may not play in the intended order, or some
songs may not play at all.
¡ When storing MP3 data and WMA data on the same disc,
use different folders for each data.
Do not record files other than MP3/WMA files and unnec-
¡
essary folder on a disc.
¡ The name of MP3/WMA file should be added by rules as
shown in the following descriptions and also comply with
the rules of each file system.
■
This manual uses pictographs to show you how to use the product
safely and to alert you to potential dangers resulting from improper
connections and operations. The meanings of the pictographs are
explained below. It is important that you fully understand the mean-
ings of the pictographs in order to use this manual and the system
properly.
This pictograph intends to alert you to the presence of
important operating instructions and installation instruc-
tions. Failure to heed the instructions may result in
Caution
injury or material damage.
Observe the following warnings when installing.
❑ Disconnect the lead from the negative (–) battery termi-
nal before installation.
Wiring and installation with the negative (–) battery terminal con-
nected may cause electrical shock and injury due to a short circuit.
Some cars equipped with the electrical safety system have specific
procedures of battery terminal disconnection.
FAILURE TO FOLLOW THE PROCEDURE MAY LEAD TO THE
UNINTENDED ACTIVATION OF THE ELECTRICAL SAFETY SYSTEM
RESULTING IN DAMAGE TO THE VEHICLE AND PERSONAL
INJURY OR DEATH.
❑ Never use safety-related components for installation,
grounding, and other such functions.
Do not use safety-related vehicle components (fuel tank, brake,
suspension, steering wheel, pedals, airbag, etc.) for wiring or fix-
ing the product or its accessories.
❑ Installing the product on the air bag cover or in a location
where it interferes with airbag operation is prohibited.
❑ Check for piping, gasoline tank, electric wiring, and other
items before installing the product.
If you need to open a hole in the vehicle chassis to attach or wire
the product, first check where the wire harness, gasoline tank, and
electric wiring are located. Then open the hole from outside if pos-
sible.
❑ Never install the product in a location where it interferes
with your field of vision.
❑ Never have the power cord branched to supply other
equipment with power.
❑ After installation and wiring, you should check the nor-
mal operation of other electrical equipment.
The continuation of their using in abnormal conditions may cause
fire, electrical shock or a traffic accident.
❑ In the case of installation to an airbag-equipping car,
confirm warnings and cautions of the vehicle manufactur-
er before installation.
❑ Make sure the leads do not interfere with driving or get-
ting in and out of the vehicle.
❑ Insulate all exposed wires to prevent short circuiting.
TEXT
Printed side
Do not use irregularly shaped discs.
<Correct> <Wrong>
¡ You may encounter trouble in playing MP3/WMA files or
displaying the information of MP3/WMA files recorded with
certain writing software or CD recorders.
¡ The file extension ".mp3" or ".wma" should be assigned to
each file depending on the file format.
¡ This unit does not have the play list function.
¡ Although Multi-session recording is supported, the use of
Disc-at-Once is recommended.
Supported file systems
ISO 9660 Level 1/Level 2, Apple Extension to ISO 9660, Joliet,
Romeo
Note: Apple HFS, UDF 1.50, MIX mode CD, CD Extra is not
supported.
Compression formats
(Recommendation: "Points to remember when making
MP3/WMA files" on the right.)
¡ MPEG 1 audio layer 3 ¡ Windows Media
Bit rate: 32 k-320 kbps Audio Ver. 2, 8
Bit rate: 64 k-192 kbps
VBR: Yes
VBR: No
Sampling frequency:
32, 44.1, 48 kHz Sampling frequency:
32, 44.1, 48 kHz
¡ MPEG 2 audio layer 3
Bit rate: 8 k-160 kbps
VBR: Yes
Sampling frequency:
16, 22.05, 24 kHz
