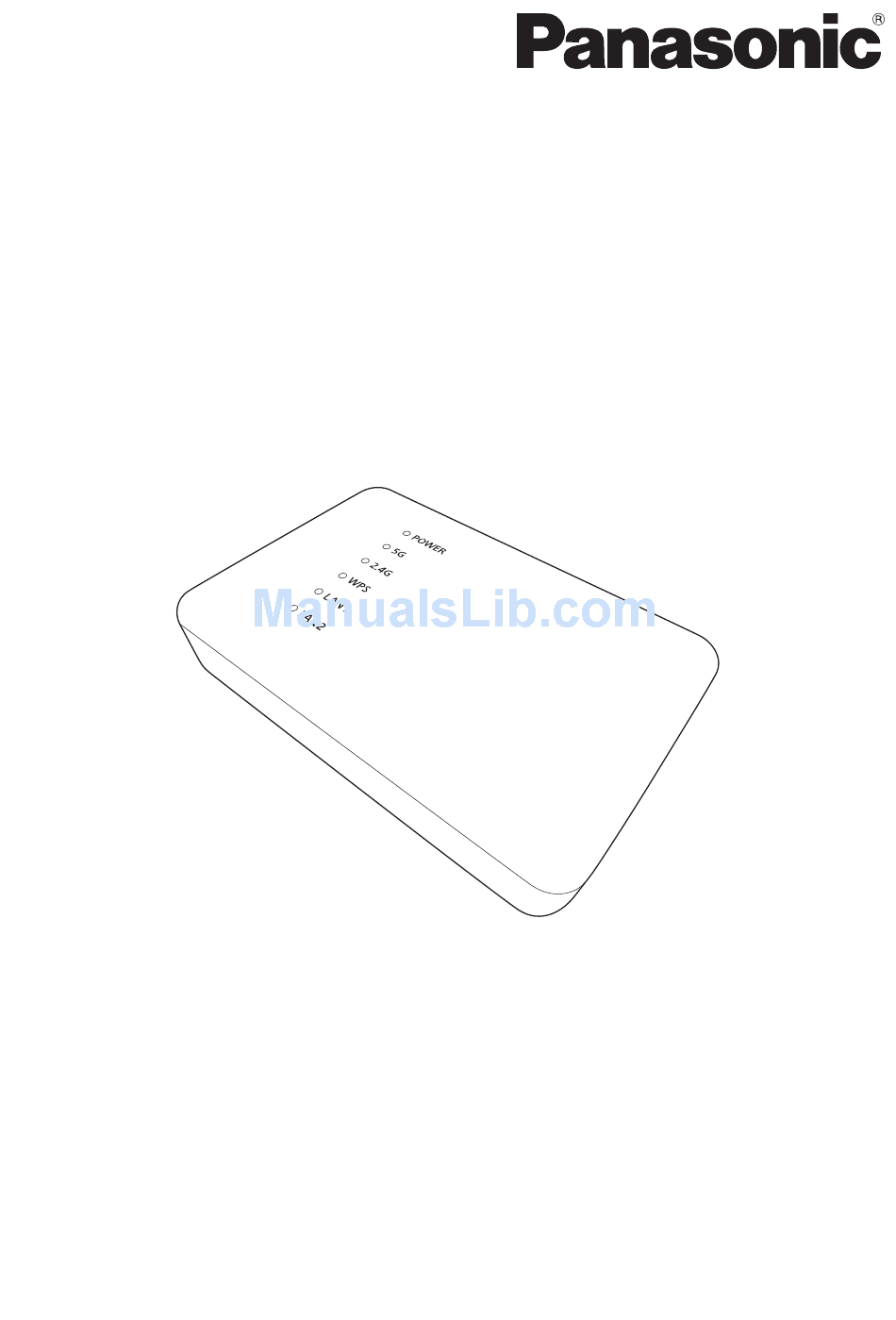

- Page 1 Operating Instructions <Full version> Access Point Adaptor Model No. SH-WL30 Thank you for purchasing Panasonic ALL series product. Please read these instructions carefully before using this product, and save this manual for future use. SQW0709...
-
Page 2: Table Of Contents
Table of contents Features ..............3 Unit care ..............4 Accessories .............5 Control reference guide...........6 Connections ............8 Network settings............10 To make network-related settings......17 Firmware updates..........28 Troubleshooting.............30 Specifications ............33 How to use this manual Click/Tap this icon to jump to “Table of contents”. ≥... -
Page 3: Features
Features This unit allows you to convert the security type of your home Wi-Fi ® environment from WPA to WPA2 Broadband router, etc. This unit PC, smartphone, etc. your ALL speakers WPA2 WPA2 - 3 -... -
Page 4: Unit Care
Unit care Clean this unit with a soft, dry cloth. ≥ Never use alcohol, paint thinner or benzine to clean this unit. ≥ Before using chemically treated cloth, carefully read the cloth’s instructions. ∫ To dispose or transfer this unit The unit may keep the user settings information in the unit. -
Page 5: Accessories
Accessories Check the supplied accessories before using this system. ∏ 1 AC adaptor ∏ 1 DC cable ∏ 1 LAN cable ≥ Do not use any other AC adaptors except the supplied one. ≥ The supplied DC cable is for use with this system only. Do not use it with other equipment. -
Page 6: Control Reference Guide
Control reference guide Power indicator WPS indicator Lights up Blinks This unit is on. The WPS feature is enabled. ≥ The unit is in the standby LAN1 indicator condition when the AC adaptor Lights up is connected. The primary A LAN cable is connected to the circuit is always “live”... - Page 7 Rear DC IN terminal RESET button DC 5 V 1.8 A Resets this unit to the factory default settings. LAN2 terminal Use a paper clip or similar to press this button when this unit is not LAN1 terminal working correctly, for example. WPS button QR code ≥...
-
Page 8: Connections
Connections ※ ※ A LAN cable (supplied) C LAN cable (not supplied) Use category 5 or above straight Do not use any other LAN cable LAN cables (STP) when except the supplied one. connecting to peripheral devices. B Broadband router, etc. - Page 9 E DC cable (supplied) Check the directions of the connectors, and plug them straight in or unplug them straight out. (Otherwise the connectors may bend out of shape, which may cause malfunction.) F AC adaptor (supplied) G To power outlet The indicators (*) light up in blue after approximately 60 seconds.
-
Page 10: Network Settings
® Experiences, Inc. Choose a network setting method from the following. “Using the app “Panasonic Music Streaming”” (l 11) ≥ You can make the wireless network settings with the app, “Panasonic Music Streaming” (free of charge). “Using an Internet browser” (l 13) ≥... - Page 11 Using the app “Panasonic Music Streaming” ≥ Do not connect a LAN cable to ALL speaker. Doing so will disable the Wi-Fi function. Download and start the app “Panasonic Music Streaming” (free of charge) on your smartphone. ≥ [iOS] : App Store ≥...
- Page 12 ≥ In case you are not connected automatically, please re-select your Wi-Fi network from the settings / Wi-Fi settings menu on your device. The operations and on-screen display items, etc. of the app “Panasonic Music Streaming” are subject to change. For the latest information, visit http://panasonic.jp/support/global/cs/audio/app/...
- Page 13 Using an Internet browser ≥ The following steps are based on a smartphone. Turn on your ALL speaker. ≥ You may need to configure the ALL speaker manually. For details, refer to the Operating Instructions for the ALL speaker. Go to Wi-Fi settings on the device. Settings Wi-Fi Settings Select “AllPlay...
- Page 14 ≥ The device name is set when “Next” is selected. ≥ You can also change the device name after the network connection is set up. (l 17) Change the network name (SSID) to “SH-WL30-5G- ” or “SH-WL30-2G- ”and input the password (Key) for this unit (refer to the bottom side of the unit).
- Page 15 Select “Connect” to apply the settings. ≥ Refer to the Operating Instructions for your ALL speaker for information on how it operates when the connection is complete. ≥ Depending on the device, the connection complete screen may not be displayed. If the network indicator does not light up, check the network name (SSID) and the password, and then try the setting again.
- Page 16 Using WPS (Wi-Fi Protected Setup ≥ Do not connect a LAN cable to ALL speaker. Doing so will disable the Wi-Fi function. Set your ALL speaker to WPS Connection mode. ≥ For details, refer to the Operating Instructions for the ALL speaker. Press and hold the WPS button on this unit for at least 3 seconds.
-
Page 17: To Make Network-Related Settings
You can change this unit’s name on the network, and use specific IP address, etc. You can also change the name of this unit by changing a setting in the app “Panasonic Music Streaming” (version 3.1.0 or later) (l 11). For details on the app, refer to the site below. -
Page 18: Basic Settings
Wireless Select either “2.4G” or “5G”. Basic Settings This page is used to configure the parameters for wireless LAN clients that may connect to this unit. Here you may change wireless relative settings as well as wireless network parameters. When the settings are complete, click “Apply”. ≥... - Page 19 Encryption This page allows you setup the wireless security. Turn on WPA2 by using encryption keys could prevent any unauthorized access to your wireless network. When the settings are complete, click “Apply”. ≥ The settings will be applied after you click “Refresh” and wait for a while. ≥...
-
Page 20: Access Control
Access Control If you enable wireless access control, only those clients whose wireless MAC addresses are in the access control list will be able to connect to this unit. When this option is enabled, no wireless clients will be able to connect if the list contains no entries. - Page 21 This page allows you to change the setting for WPS (Wi-Fi Protected Setup). Using this feature could let your wireless client automically syncronize its setting and connect to the access point in a minute without any hassle. When the settings are complete, click “Start”. ≥...
-
Page 22: Lan Interface
TCP/IP Settings LAN Interface This page is used to configure the parameters for local area network that connects to the LAN ports of this unit. Here you may change the setting for IP address. When the settings are complete, click “Apply”. ≥... -
Page 23: Lan Configuration
Management Status This page shows the current status and some basic settings of the device, includes system, wireless, Ethernet LAN and WAN configuration information. System Item Description It shows the duration since this unit is Uptime powered on. It shows the firmware version of this Firmware Version unit. - Page 24 Wireless 2.4G Configuration Wireless 5G Configuration Item Description It shows the SSID of this unit. The SSID is the unique name of this unit and shared among its service SSID area, so all devices attempts to join the same wireless network can identify it.
- Page 25 Upgrade Firmware (l 28) This page allows you upgrade the firmware to new version. Please note, do not turn off the unit during the upgrade because it may crash the system. Select the firmware file, and click “Upgrade”. Item Description Firmware Version It show the current firmware version.
- Page 26 Reset Click “Reset” to restore the factory default settings. ≥ The settings will be applied after you click “OK” and wait for a while. Password When the settings are complete, click “Apply”. ≥ A login screen is displayed. Enter a new “User Name” and “Password”. Item Description Input a user name used for...
-
Page 27: Wps Setting
WPS Setting When the settings are complete, click “Apply”. This page allows you set physical WPS button connect to 2.4 G or 5 G band. ∫ Characteristics of radio wave frequency bands 5 GHz frequency band ≥ Normally not used by devices other than routers. As a result, it provides very reliable connections and stable performance. -
Page 28: Firmware Updates
Firmware updates Panasonic may release updated software for this unit that may add or improve the way a feature operates. These updates are available free of charge. For details on the app, refer to the site below. http://panasonic.jp/support/global/cs/audio/app/ (This site is in English only.) DO NOT DISCONNECT the AC adaptor or LAN cable during the update. - Page 29 Input user name and password and select “OK”. ≥ For the first time, input “admin” into the ID and password field. ≥ It may take a few minutes until the settings page is displayed depending on the environment. In that case, reload the browser. Select “Management”, and then “Upgrade Firmware”.
-
Page 30: Troubleshooting
If the problem remains unresolved, consult your dealer for instructions. Do you have the latest firmware installed? ≥ Panasonic is constantly improving the unit’s firmware to ensure that our customers are enjoying the latest technology. (l 28) For further dedicated help, support and advice about your ALL Series product please visit: http://panasonic.jp/support/global/cs/audio/ALL/... - Page 31 Cannot connect to the ALL speaker. ≥ Check that this unit is on. ≥ Check that the ALL speaker is on. For details, refer to the Operating Instructions for the ALL speaker. ≥ Check to see if this unit is correctly connected to the router with the supplied LAN cable.
- Page 32 ≥ Is the channel fixed to a particular setting by the Wi-Fi router? We recommend that you set the channel to AUTO. ≥ Is the maximum communication speed limited to a particular setting by the Wi-Fi router? If this is the case, it may not achieve optimal performance. ≥...
-
Page 33: Specifications
Specifications ∫ Wi-Fi SECTION WLAN Standard IEEE802.11a/b/g/n Frequency range 2.4 GHz band (1 to 11 ch) 5 GHz band (36 ch, 40 ch, 44 ch, 48 ch) Security WPA2 WPA2 /WPA mixedmode WPS version Version 2.0 ∫ TERMINALS SECTION LAN port 10 Base-T/100 Base-TX DC IN 5 V 1.8 A... - Page 34 All other trademarks are trademarks of their respective owners. Declaration of Conformity (DoC) Hereby, “Panasonic Corporation” declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Customers can download a copy of the original DoC to our R&TTE products from our DoC server: http://www.doc.panasonic.de...
- Page 35 Manufactured by: Panasonic Corporation Kadoma, Osaka, Japan Importer for Europe: Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 11, 22525 Hamburg, Germany Panasonic Corporation Web Site: http://www.panasonic.com SQW0709 C Panasonic Corporation 2016 F0316SB0...
