Sony BVM-E250 Manual

Oled monitors
Hide thumbs Also See for BVM-E250:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
BVM-E / BVM-F / PVM Series
TRIMASTER EL OLED Monitors
BVM-E250 / BVM-E170
Professional OLED Master Monitor
BVM-F250 / BVM-F170
Professional OLED Master Monitor
PVM-2541 / PVM-1741 / PVM-740
Professional OLED Picture Monitor

Advertisement

Table of Contents
loading

Related Manuals for Sony BVM-E250

Summary of Contents for Sony BVM-E250

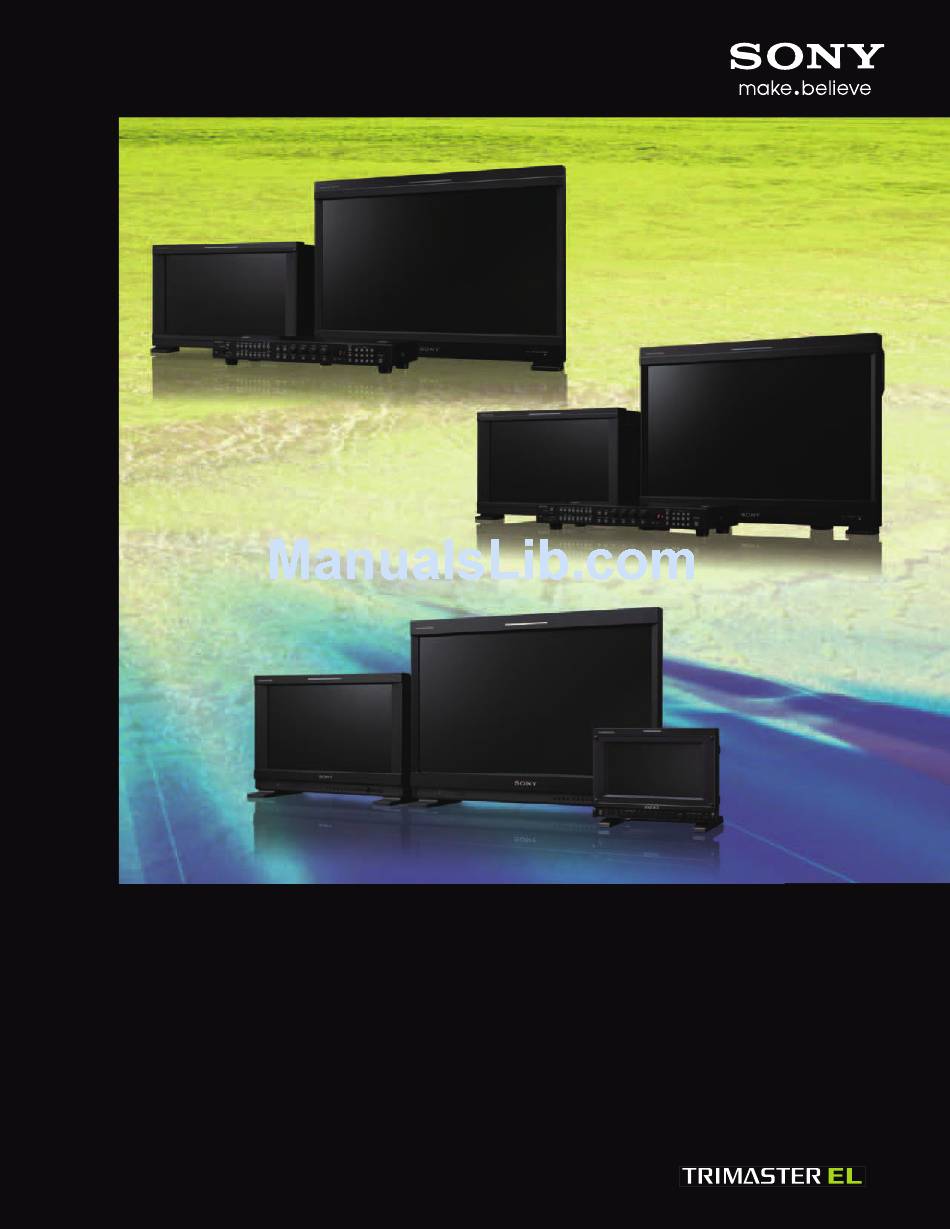

  • Page 1 BVM-E / BVM-F / PVM Series TRIMASTER EL OLED Monitors BVM-E250 / BVM-E170 Professional OLED Master Monitor BVM-F250 / BVM-F170 Professional OLED Master Monitor PVM-2541 / PVM-1741 / PVM-740 Professional OLED Picture Monitor...
  • Page 2 PVM series offers features and performance for general usages. Only Sony has the capability to develop products such as these, as the company builds on over 30 years of CRT and LCD master monitor experience in the production industry, and has created its own sophisticated OLED display devices and signal processing engines.
  • Page 3 EL (Electro-Luminescence) is an ideal self-emission display device with a wide dynamic range and high picture accuracy. By refining TRIMASTER technology with the new EL device, Sony effectively boosts the performance expectations of the professional industry.

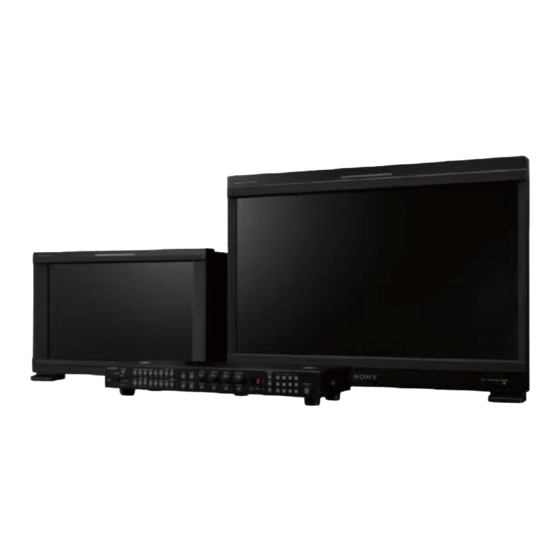

  • Page 4 BVM-E Series BVM-E250 BVM-E170 The groundbreaking BVM-E250 and BVM-E170 are top of the line Sony OLED reference monitors, incorporating leading-edge technologies to bring out the full performance capabilities required for critical picture evaluation, where accuracy, stability, and consistency are everything.
  • Page 5 Picture Monitor Reference Monitor Quality / Performance BVM-E Series BVM E Panel Designed as the highest Sony BVM-F Series performance panel. Used for the most critical picture evaluation needs. BVM F Panel Strictly controlled tolerance in PVM Series addition to the standard panel performance.
  • Page 6 Sony’s OLED creates light by recombining an electron and a hole within certain organic materials. The process of emitting light Sony OLED creates light by recombining an electron and a hole within certain organic materials. The process of emitting light is is extremely ef cient when compared to other technologies currently used for display.
  • Page 7 Input Signal [%] Superb uniformity control The Sony OLED processor offers superb uniformity across all signal levels at every point of the screen. At the factory, OLED-panel uniformity is precisely measured and corrected using a proprietary RGB LUT (look-up table) adjustment system.

  • Page 8: Accurate Color Reproduction

    Accurate Color Reproduction Sony Super Top Emission technology not only offers a wide color gamut with its purity of the three primary colors, but also maintains this wide color gamut throughout the entire luminance range. While all other display devices have limitations in reproducing accurate colors, especially in the low signal levels, Sony OLED system is truly an ideal display device for picture evaluation.

  • Page 9: Wide Dynamic Range

    Quick Response with Virtually No Motion Blur The Sony OLED gray-to-gray switching speed (measured in microseconds, s) is much faster than that of the LCD (measured in milliseconds, ms).* This fast response benefits a variety of applications and uses. For example, in sports broadcasting, when camera pans would become blurred with an LCD, they remain sharp and clear with OLED.
  • Page 10 The Sony OLED uses the Sony Super Top Emission technology with 10-bit RGB panels and OLED processing Professional display engine • Nonlinear Cubic Conversion color management system •...
  • Page 11 F i e Cutting-edge interlaced to progressive conversion with low process delay Original source The Sony original interlaced to progressive conversion 1/60=16.6 ms technology used in the BVM Series minimizes processing BVM-L 11.9 ms artifacts found in typical up-conversion processes. This has BVM-E / BVM-F 6.2 ms...
  • Page 12 BVM Series BVM-E Series Digital Cinema Features The BVM-E Series – comprising BVM-E250 and BVM-E170 master monitors – offers digital cinema features which are indispensable and ideal for high-quality creative digital cinema onset and post-production workflow. 2K (2048 x 1080, RGB/XYZ) Input...
  • Page 13 Input Versatility Input Versatility Multi-format signal support BVM-E250 and BVM-E170 monitors support various input Multi-format signal support signals ranging from 720 x 76/ 0i to 1920 x 1080/ 0P , 60P , BVM-E and BVM-F Series monitors support various input...
  • Page 14 BVM Series Signal Analyzing Functions Picture & Picture The unique Picture & Picture function of the BVM-E and BVM-F Series allows simultaneous display of two input signals on the monitor’s screen. This function is extremely convenient for making instant adjustments to two input sources, because there is no need to individually adjust the different characteristics of two monitors.

  • Page 15: Checker Board

    BVM Series 3D Signal Analyzing Functions By installing the optional BKM-2 0TG 3G/HD-SDI input adaptor*, the BVM-E and BVM-F Series monitors can support a variety of 3D signal analyses. The 3D signals are displayed in 2D mode. * Difference display” function require the BKM-2 0TG serial No. 7300001 or higher, and other functions require the BKM-2 0TG serial No. 7100001 or higher. Difference Display L/R Switch This function displays the difference between the luminance...

  • Page 16: Convenient Features

    Aspect Correction SD 4:3 SD 16:9 (Squeeze) Example of NTSC signal on the 16:9 aspect panel – BVM-E250 Scan Switch The Scan Switch function allows switching between under scan (-3%), normal scan (0%), and over scan (mask of the 5% over scan portion in the normal scan).

  • Page 17: Aspect Switch

    BVM Series Aspect switch Wide Variety of Functions The aspect ratio can be switched The user has a wide variety of over 40 functions to choose 16:9 between 4:3, 16:9, 2.39: 1, and 1.896:1 from. 16:9 2.39:1 depending on the input signal. Each of these can be assigned to any of the 16 function 1.896:1 2.39:1...

  • Page 18: Copy Function For Monitor Setup And Adjustment Data

    This BKM-16R control unit can be attached beneath the monitor using the optional controller attachment stand*, or connected remotely via an Ethernet cable. * The BVM-E2 0 and BVM-F2 0 use the BKM-37H and BKM-38H Attachment Stands. The BVM-E170 and BVM-F170 use the BKM-39H Attachment Stand. BVM-E250 monitor BVM-E170 monitor BVM-F250 monitor...

  • Page 19: Other Features

    Calibration tools and connectors are sold separately. BVM-E170 rear view Tilt stand for BVM-E250 / F250 10° 5° BVM-E250 with the optional BKM-37H tilt stand Other features “Monitor_AutoWhiteAdjuestment” GUI image VESA™ Mounting (200 x 100 mm pitch)* Built-in Color Sensor for Auto White Adjustment...
  • Page 20 TRIMASTER EL OLED picture monitors, delivering unparalleled picture quality with the performance features and functions found in more expensive monitors, all contained in a compact, robust, one piece design. Sony Super Top Emission OLED display panel with 10-bit RGB: • 24. -inch* and 16.5-inch* (Full HD 1920 x 1080 pixels) •...

  • Page 21: Main Features

    The Sony OLED technology shows the largest color range resolution (1920 x 1080) and a 10-bit RGB driver, together of any Sony monitor ever offered. Color standards such as with the Sony Super Top Emission OLED display panel, creates ITU-R BT.709, EBU, and SMPTE-C are displayed more accurately lifelike and smoother-than-ever gradation from dark to bright and, if desired, the OLED panel’s native color gamut can be...
  • Page 22 Superb Uniformity The PVM-2541 and PVM-1741 monitors incorporate a newly developed OLED process to bring out the full performances of the Sony OLED panels. This OLED processor offers superb uniformity across all signal Interlaced levels at every point of the screen. At the factory, the OLED...
  • Page 23 PVM Series Lightweight Compact Design Easy-to-use Control Panel – Flexible Mounting For Picture A rotary-type switch and seven function-assignable buttons Monitoring allow users quick and intuitive operation. Operation buttons with LED indicators enable error-free operation, even in dark The PVM-2541 and PVM-1741 incorporate a lightweight, environments.* compact metal body.
  • Page 24 PVM Series Waveform Monitor, Audio Level External Remote Control Function Meter, and Time Code Display The PVM-2541 and PVM-1741 have an external remote control capability for input/output signal selection and adjustment Input signal waveform with a 2-channel audio level meter of various items via an Ethernet (10BASE-T/100BASE-TX) can be displayed on screen.
  • Page 25 The PVM-740 is a portable monitor in the PVM Series of OLED monitors. It packs high performance and a variety of features and functions in its robust and compact body. Sony Super Top Emission OLED panel with a 10-bit RGB driver Deep black and high contrast, high-purity deep color reproduction, PVM-740...
  • Page 26 10 bit/12 bit 4:4:4 RGB 2048 x 1080/25p* 12 bit 4:4:4 XYZ 2048 x 1080/30PsF* 2048 x 1080/30p* *1 Also compatible with 1/1.001 frame rates. *2 Two BKM-243HS or BKM-244CC are used. *3 Supported with the BVM-E250 and BVM-E170 only. *4 Untested.
  • Page 27 BVM-E / BVM-F Series HDMI Input Signal Formats HDMI Interface sampling freq RGB 4:4:4 8/10/12 bit System Aspect Ratio Standard (MHz) 4:4:4 8/10/12 bit 4:2:2 12 bit Viedo Signals 640 x 480/60p* 25.200* 720 x 480/60p* 27.027* 4:3/16:9 CEA-861 1280 x 720/60p* 74.250* 16:9 16:9...

  • Page 28: Specifications

    ITU-R BT.709, EBU, SMPTE-C, D-Cine* , E250 / E170 Native* , S-GAMUT* The BVM-E250 / BVM-E170 individual chromaticity points: R (x = 0.681, y = 0.319) / G (x = 0.189, y = 0.724) / B (x= 0.141, y= 0.051) (typical) Input BNC (x2)
  • Page 29 BVM-F Series BVM-F250 BVM-F170 Picture Performance Panel OLED panel Picture size (diagonal) 24 5/8 inches 16 1/2 inches 623.4 mm 419.7 mm Effective picture size (H x V) 21 1/2 x 12 1/8 inches 14 1/2 x 8 1/8 inches 543.4 x 305.6 mm 365.8 x 205.7 mm Resolution (H x V)
  • Page 30 PVM Series PVM-2541 PVM-1741 PVM-740 Picture Performance Panel OLED panel Picture size (diagonal) 24 5/8 inches 16 1/2 inches 7 1/2 inches 623.4 mm 419.7 mm 188.0 mm Effective picture size (H x V) 21 1/2 x 12 1/8 inches 14 1/2 x 8 1/8 inches 6 1/2 x 3 5/8 inches 543.4 x 305.6 mm...
  • Page 31 Optional Accessories BKM-250TG BKM-244CC INPUT/OUTPUT INPUT/OUTPUT Serial digital interface BNC (x2), Serial digital interface BNC (x2), Digital component signals sampling frequency: Digital component signals sampling frequency: 3G-SDI: Y/C : 148.5 MHz/74.25 MHz/74.25 MHz, SD-SDI: Y/R-Y/B-Y: 13.5 MHz, G/B/R: 148.5 MHz/148.5 MHz/148.5 MHz HD-SDI: Y/C : 74.25 MHz HD-SDI: Y/C...
  • Page 32 BKM-227W BKM-220D INPUT/OUTPUT INPUT/OUTPUT Composite input BNC (x1), Serial digital interface BNC (x2), 1 Vp-p ±3 dB sync negative Digital component signals sampling frequency: Y/R-Y/B-Y: 13.5 MHz Y/C input Mini DIN 4-pin (x1) Y: 1 Vp-p ±3 dB sync negative Quantization: 10 bits/sample C: 0.286 Vp-p ±3 dB (NTSC burst signal level), Monitor out...

  • Page 33: Optional Accessories

    Optional Accessories For BVM-E250, BVM-E170, BVM-F250, and BVM-F170 BKM-16R/7 BKM-250TG BKM-244CC BKM-243HS Monitor Control Unit 3G/HD/SD-SDI Input Adaptor HD/SD-SDI Closed Caption Adaptor HD/SD-SDI Input Adaptor BKM-220D BKM-229X BKM-227W VMM-4SNY SD-SDI 4:2:2 Input Adaptor Analog Component Adaptor NTSC/PAL Input Adaptor Integrated Test and Measurement Module...
  • Page 34 (334.2) (148) (200) (551) 10 (254) (60) (55) (15) 20 (508) (34.4) (40) BVM-E250 / BVM-F250 with the optional BKM-16R and BKM-37H with a tilt Front Bottom Side (489.8) 4-M5 6- 8 (30) (30) (30) (266) BVM-E250 / BVM-F250 with the optional BKM-16R and BKM-38H...
  • Page 35 PVM Series Unit: inches (mm) PVM-2541 PVM-2541 with the optional SU-561 stand Front Rear Side Front Side (110) (80) (400) (576) 4 (100) (40) (442) (40) (320) (50) (76.2) (171.4) (269.9) PVM-1741 PVM-1741 with the optional SU-561 stand Front Rear Side Front Side...
  • Page 36 Memory Stick PRO, Memory Stick Duo, Memory Stick PRO Duo, Memory Sony Electronics Inc. under control of the Sony EMCS Corporation Tokai Tec. Stick Micro and the Sony make.believe logo are trademarks of Sony. 1 Sony Drive HDMI is a trademark of HDMI Licensing, LLC.
