Sony VAIO CPD-201VS Service Manual

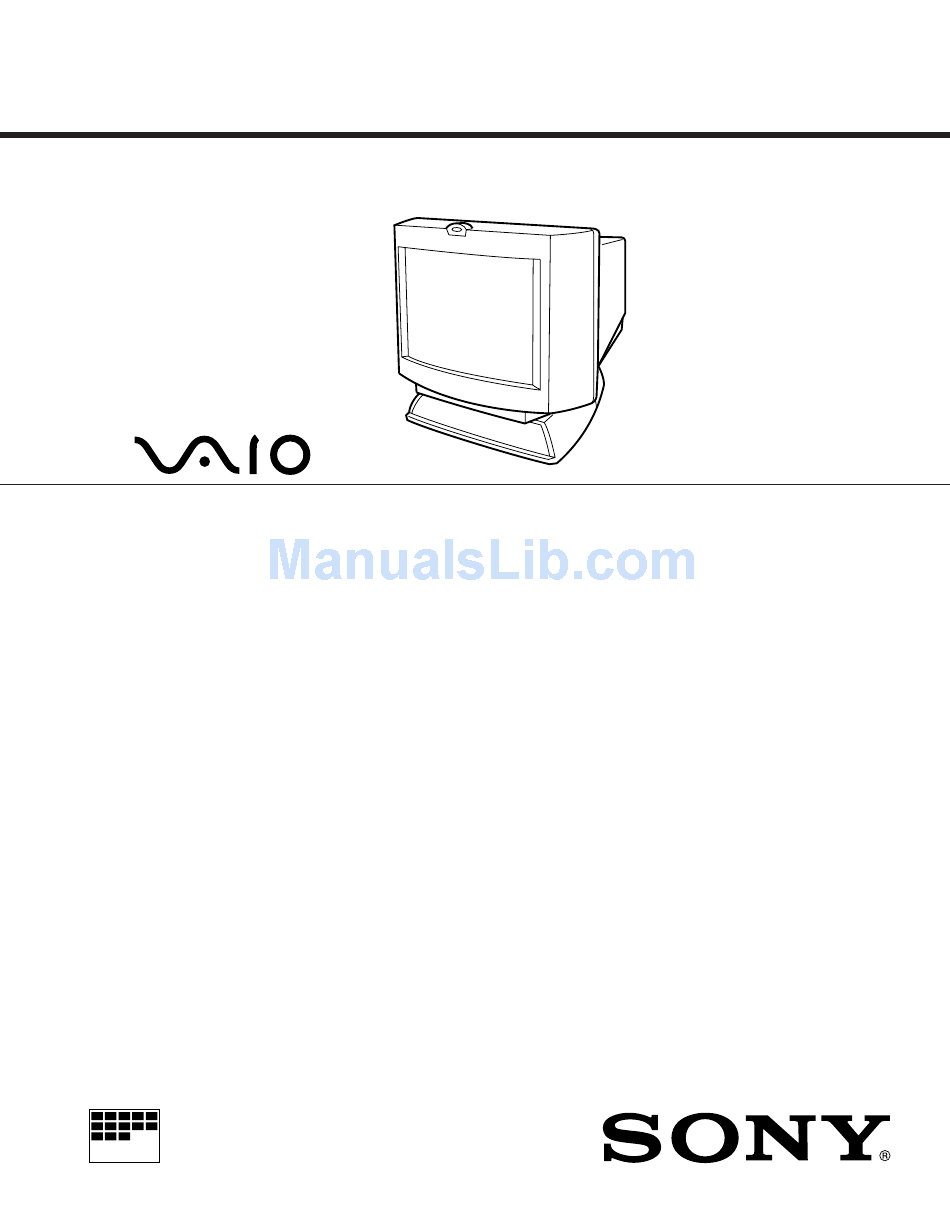

SERVICE MANUAL

Picture tube 0.25 mm aperture grille pitch,
17 inches measured diagonally
(16.0" viewable),
90-degree deflection,
AR coating
Viewable image size
Approx. 327 × 241 mm (w/h)
(12
16.0" viewing image
(measured diagonally)
Max. resolution Horizontal: Max. 1280 dots
Vertical: Max. 1024 lines
640 × 480 at 85 Hz
VESA standards
800 × 600 at 85 Hz
1024 × 768 at 85 Hz
1280 × 1024 at 60 Hz
Deflection frequency
Horizontal: 30 to 70 kHz
Vertical: 50 to 120 Hz
Left, right: 3.0 W × 2
Speaker
50 Hz – 20 kHz
Microphones Uni-directional, electret condenser
microphone
Microphones output
3.5 mm miniplug
Audio input 3.5 mm Stereo miniplug,
input impedance 47 kΩ,
input level 0.7 Vrms typical
TRINITRON
MICROFILM
SPECIFICATIONS
× 9
7 1
/ / inches)
8 2

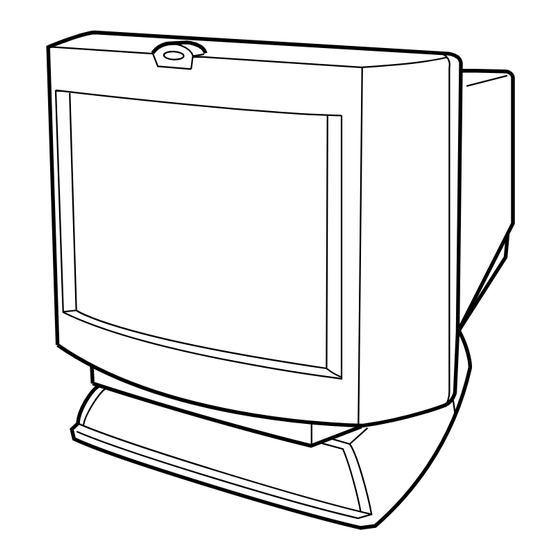

MULTIMEDIA COMPUTER DISPLAY
®
CPD-201VS
Canadian Model
Chassis No. SCC-L21A-A
V-3
Headphones output
Stereo minijack, 15 mW + 15 mW at
16 Ω
Subwoofer output 3.5 mm miniplug, volume variable
Controls Front panel direct:
Audio volume/Contrast/Audio
mute/GPE (AUTO/off/mode 1/
mode 2)
OSD menu:
Brightness/Contrast/Picture size/
Picture zoom/Picture centering/
Sceen moiré/Color temperature
(5000K/6500K/9300K/11000K)/
Rotation/Pincushion/Pin balance/
Keystone/Key balance/Bass boost/
Manual Degauss/OSD position/
OSD language
AC input voltage/current
100 to 240 V, 50 – 60 Hz, 1.5 – 0.6 A
Power consumption
Max. 120 W
Approx. 415 × 451 × 423 mm
Dimensions
(w/h/d)
× 17
3
(16 /
8
Mass Approx. 19.6 kg (43 lb 3 oz)
Design and specifications are subject to change without
notice.
US Model
CHASSIS
× 16
5 3
/ / inches)
8 4
