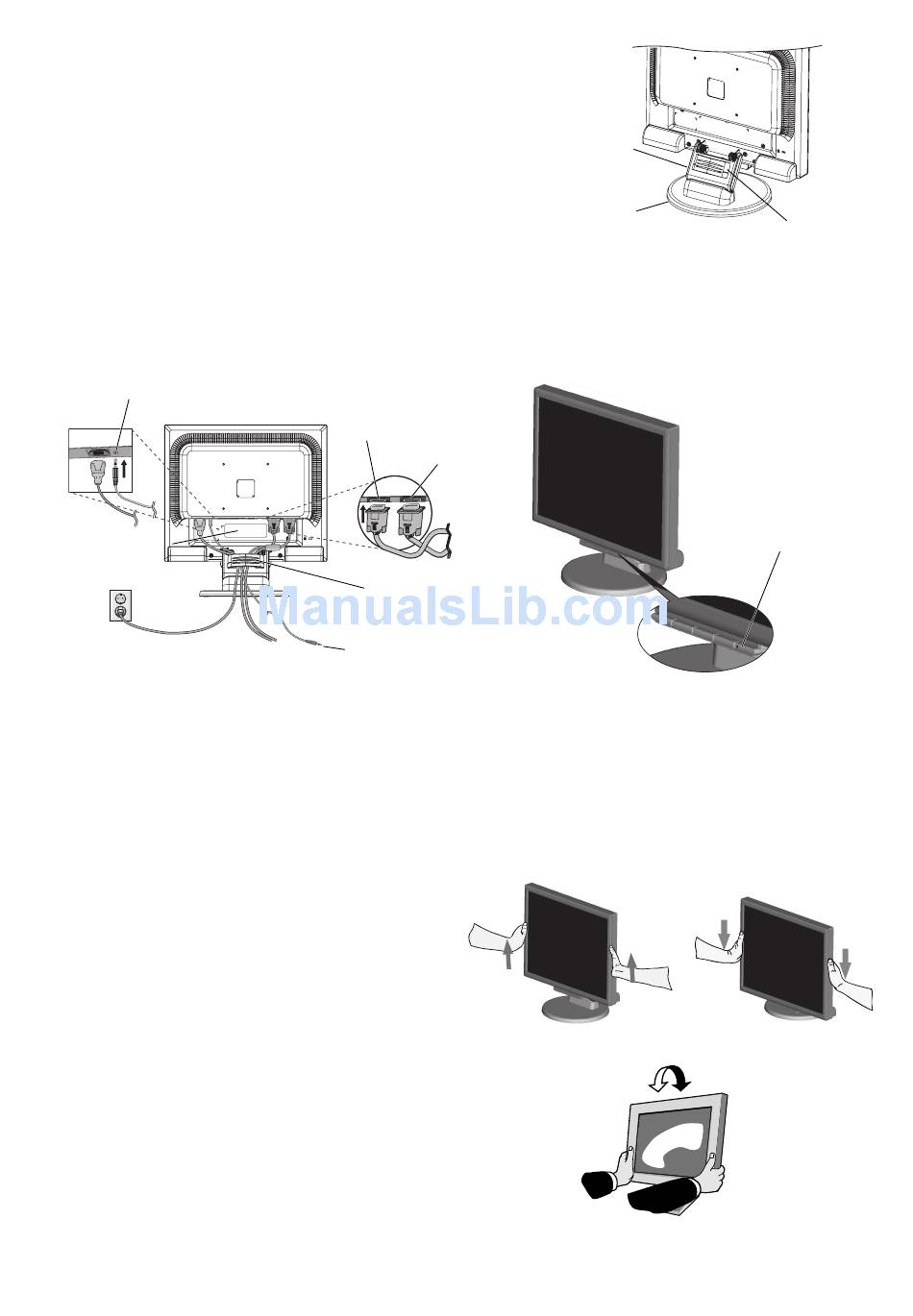

3. To attach the Cable management cover:
Insert the tabs of the Cable management cover into the holes of Stand neck and
slide the Cable management cover downward into place (Figure A.4).
NOTE: Please confi rm that the tabs are completely secure.
4. Connect all cables to the appropriate connector on the back of the monitor
(Figure B.1). Connect the Headphone to the appropriate connector at the rear
side of the monitor (Figure C.1).
NOTE: Adjustment of the volume control as well as the equalizer to other
settings than the center position may increase the ear-/headphones
output voltage and therefore the sound pressure level.
5. Connect one end of the power cord to the monitor and the other end to the power
outlet. Place the Video Signal Cable, Audio cable and power cord to the Cable management cover (Figure B.1).
NOTE: Adjust position of cable that place under the Cable management cover to avoid damage for cable or monitor.
NOTE: Please refer to Caution section of this manual for proper selection of power cord.
6. Turn on the monitor with the front power button and the computer (Figure C.1).
AUDIO INPUT
The model name is on the label.
Rating label on the Rating label on the
back of the display. back of the display.
Figure B.1
7. No-touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup for most timings.
For further adjustments, use the following OSD controls:
• Auto Adjust Contrast
• Auto Adjust
Refer to the Controls section of this User's Manual for a full description of these OSD controls.
NOTE: If you have any problem, please refer to the Troubleshooting section of this User's Manual.

Raise and Lower Monitor Screen

The monitor may be raised or lowered. To raise or lower screen,
place hands on each side of the monitor and lift or lower to the
desired height (Figure RL.1).
NOTE: Handle with care when raising or lowering the monitor
screen.
Tilt
Grasp both sides of the monitor screen with your hands and adjust the tilt as
desired (Figure TS.1).
DVI-D (Input2)
D-Sub (Input1)
Cable management cover
Connect to
Computer audio output
English-6
Stand
Base
Cable management cover
Figure A.4
Power Button
Figure C.1
Figure RL.1
Figure TS.1
