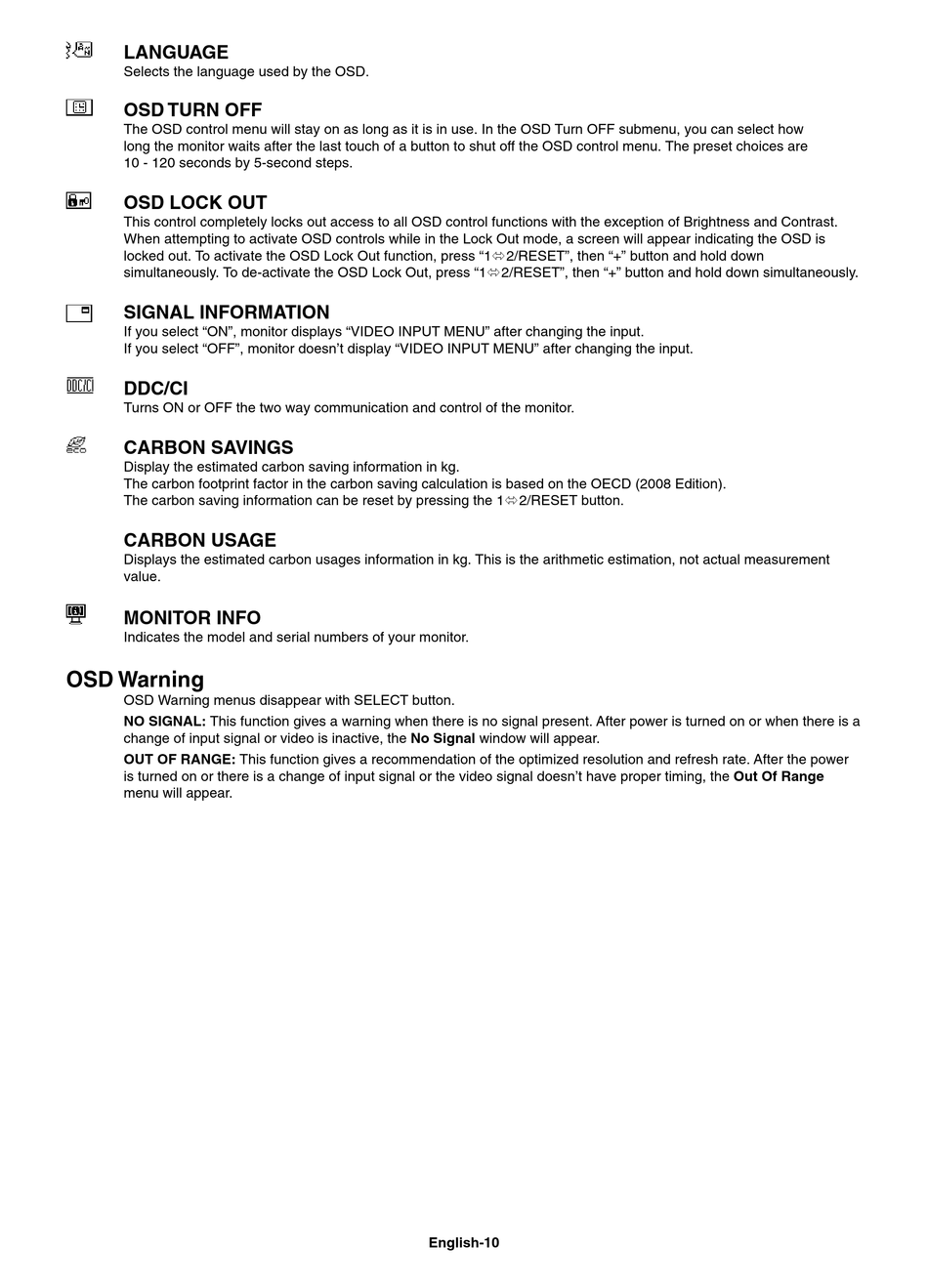

LANGUAGE
Selects the language used by the OSD.
OSD TURN OFF
The OSD control menu will stay on as long as it is in use. In the OSD Turn OFF submenu, you can select how
long the monitor waits after the last touch of a button to shut off the OSD control menu. The preset choices are
10 - 120 seconds by 5-second steps.
OSD LOCK OUT
This control completely locks out access to all OSD control functions with the exception of Brightness and Contrast.
When attempting to activate OSD controls while in the Lock Out mode, a screen will appear indicating the OSD is
locked out. To activate the OSD Lock Out function, press "1!2/RESET", then "+" button and hold down
simultaneously. To de-activate the OSD Lock Out, press "1!2/RESET", then "+" button and hold down simultaneously.

SIGNAL INFORMATION

If you select "ON", monitor displays "VIDEO INPUT MENU" after changing the input.
If you select "OFF", monitor doesn't display "VIDEO INPUT MENU" after changing the input.
DDC/CI
Turns ON or OFF the two way communication and control of the monitor.
CARBON SAVINGS
Display the estimated carbon saving information in kg.
The carbon footprint factor in the carbon saving calculation is based on the OECD (2008 Edition).
The carbon saving information can be reset by pressing the 1!2/RESET button.
CARBON USAGE
Displays the estimated carbon usages information in kg. This is the arithmetic estimation, not actual measurement
value.

MONITOR INFO

Indicates the model and serial numbers of your monitor.
OSD Warning
OSD Warning menus disappear with SELECT button.
NO SIGNAL: This function gives a warning when there is no signal present. After power is turned on or when there is a
change of input signal or video is inactive, the No Signal window will appear.
OUT OF RANGE: This function gives a recommendation of the optimized resolution and refresh rate. After the power
is turned on or there is a change of input signal or the video signal doesn't have proper timing, the Out Of Range
menu will appear.
English-10
