Summary of Contents for D-Link DCS-6513

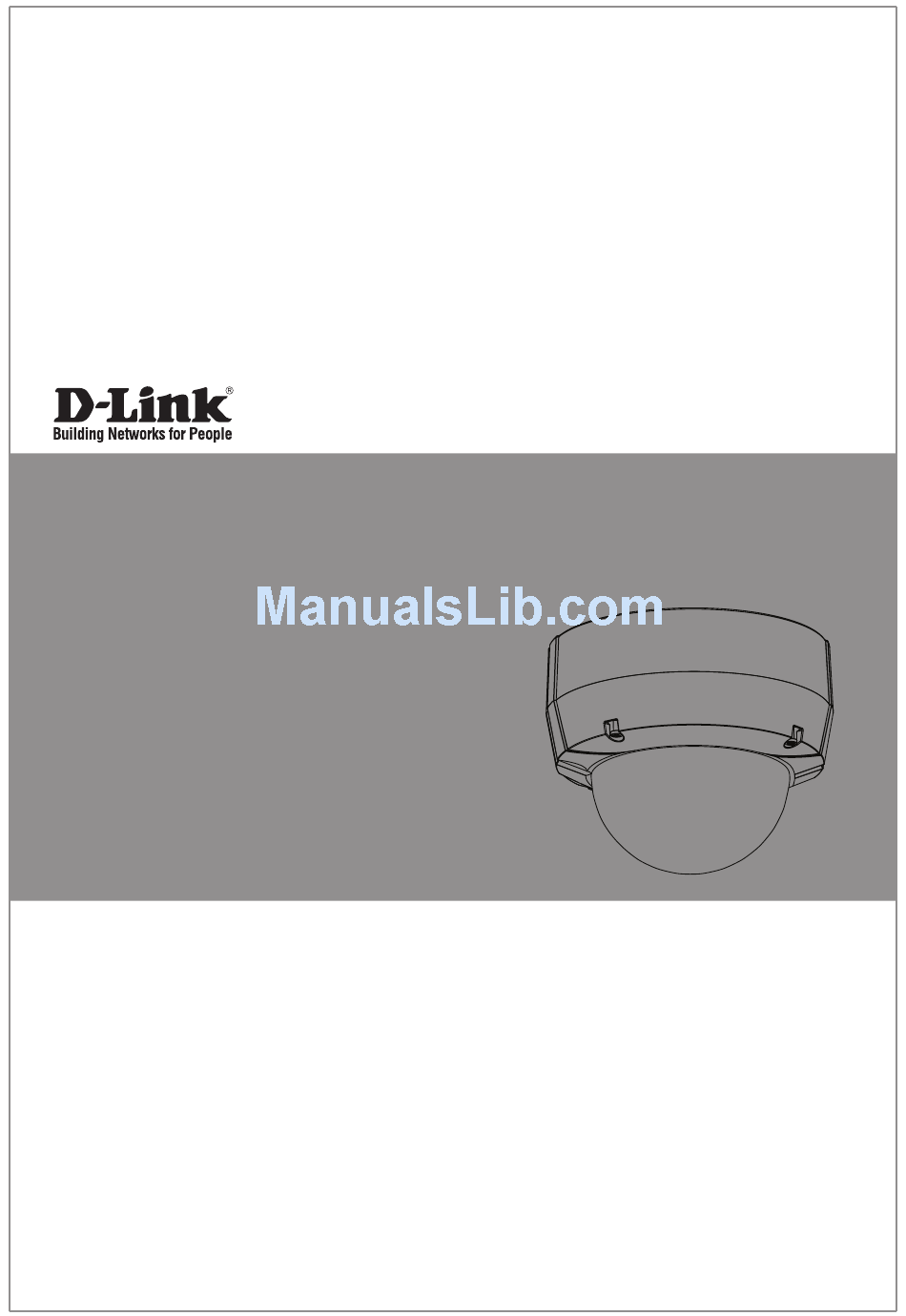

- Page 1 Quick Install Guide Full HD WDR Day & Night Outdoor Dome Network Camera This document will guide you through the basic installation process for your D-Link Network Camera. DCS-6513...
-
Page 2: Installation Steps
DCS-6513 Quick Install Guide The install guide provides basic instructions for installing the DCS-6513 Network Camera. For additional information about how to use the camera, please see the User Manual which is available on the CD included in this package or from the D-Link support website. -
Page 3: Hardware Overview
Install the microSD Card Push the microSD card* into the camera with the gold contacts oriented towards the base of the camera. To eject, push the microSD card into the slot. * microSD card is sold separately D-Link DCS-6513 Quick Install Guide... -
Page 4: Standard Mounting Instructions
Style 1 - Concealed Cable Installation ƒ Height: 23mm (0.9 inches) ƒ Diameter: 183mm (7.2 inches) ƒ Weight: 400g (0.9lbs) Figure 2.2 Figure 2.1 Weather Shield Weather shield 37mm screw D-Link DCS-6513 Quick Install Guide... - Page 5 Style 2 - Exposed Cable Installation ƒ Height: 23mm (0.9 inches) ƒ Diameter: 183mm (7.2 inches) ƒ Weight: 400g (0.9 lbs) Figure 2.3 Figure 2.4 Figure 2.5 Figure 2.6 D-Link DCS-6513 Quick Install Guide...
-
Page 6: Pendant Mount (Dcs-34-2)
Pendant Mount (DCS-34-2) ƒ Height: 201mm (7.9 inches) ƒ Diameter: 150mm (5.9 inches) ƒ Weight: 665g (1.45lbs) Rubber Seal Bracket Pendant Bracket Mounting Plate Figure 3.1 Bracket Cap Figure 3.2 Figure 3.4 Figure 3.3 D-Link DCS-6513 Quick Install Guide... - Page 7 Wall Mount (DCS-34-3) ƒ Height: 253mm (9.96 inches) ƒ Diameter: 150mm (5.9 inches) ƒ Weight: 770g (1.7lbs) Bracket Bent Bracket Mounting Plate Figure 4.1 Bracket Cap Figure 4.2 Bent Bracket Dome Camera Figure 4.3 Figure 4.4 D-Link DCS-6513 Quick Install Guide...
- Page 8 Connection with a PoE Switch If you are using a PoE switch, connect the IP camera to the switch via an Ethernet cable, which will provide transmission of both power and data over a single cable. D-Link DCS-6513 Quick Install Guide...
-
Page 9: Configuration With Wizard
5. Configuration with Wizard Insert the DCS-6513 CD into your computer's CD-ROM drive to begin the installation. If the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive letter of your CD-ROM drive. - Page 10 Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu. Start > D-Link > Setup Wizard SE The Setup Wizard will appear and display the MAC address and IP address of your camera(s). If you have a DHCP server on your network, a valid IP Address will be displayed.
-
Page 11: Viewing Camera Via Web Browser
Viewing Camera via Web Browser Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu. Start > D-Link > Setup Wizard SE Select the camera and click the Link button to access the web configuration. -
Page 12: Adjusting The 3-Axis Gimbal
Turn the lens to adjust the IP camera’s image until the desired orientation is achieved, tighten the image adjustment screw once completed. D-Link DCS-6513 Quick Install Guide... - Page 13 Notes D-Link DCS-6513 Quick Install Guide...
- Page 14 Notes D-Link DCS-6513 Quick Install Guide...
- Page 15 Notes D-Link DCS-6513 Quick Install Guide...
-
Page 16: Technical Support
Copyright ©2013 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and other countries. Other trademarks are the property of their respective owners. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead lower actual data throughput rate.
