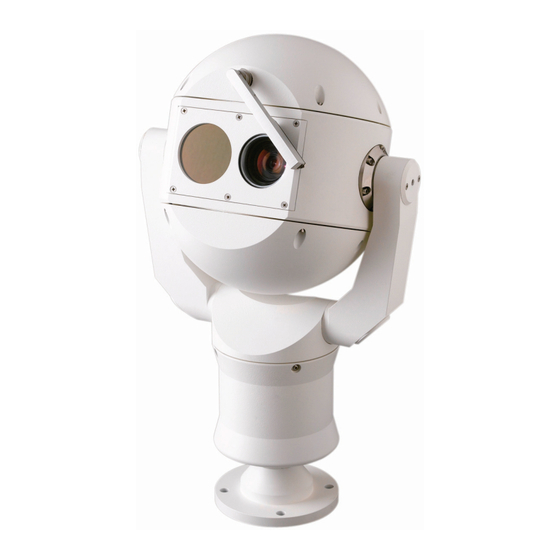

MIC612 Thermal Camera
MIC612
en
Operation Manual

Advertisement

Table of Contents
loading

Related Manuals for Bosch MIC612

Summary of Contents for Bosch MIC612

  • Page 1 MIC612 Thermal Camera MIC612 Operation Manual...

  • Page 3: Table Of Contents

    7.1.2 Establishing Control of the Camera via RS-485 Protocol Powering On About Setting the Camera Address via FastAddress Setting the Addresses of the Two Cameras of the MIC612 FastAddress, Bosch Protocol FastAddress, Pelco Protocols Active Commands in FastAddress Setting Passwords 7.8.1...
  • Page 4 | Table of Contents MIC612 Thermal Camera On-Screen Display (OSD) Menus (Bosch Protocol) Camera Setup Menu Thermal Camera Setup Menu Lens Setup Menu PTZ Setup Menu Display Setup Menu Communication Setup Menu Alarm Setup Language Menu Diagnostics Menu On-Screen Display (OSD) Menus (Pelco Protocol) 10.1...

  • Page 5: Safety

    Legal Information Copyright This manual is the intellectual property of Bosch Security Systems, Inc. and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly.
  • Page 6 – Do not point the camera at the sun. Bosch Security Systems will not be liable for any damage to cameras that have been pointed directly at the sun. –...

  • Page 7: Customer Support And Service

    MIC612 Thermal Camera Safety | en Customer Support and Service If this unit needs service, contact the nearest Bosch Security Systems Service Center for authorization to return and shipping instructions. Service Centers Telephone: 800-366-2283 or 585-340-4162 Fax: 800-366-1329 Email: cctv.repair@us.bosch.com...

  • Page 8: Unpacking

    The original packing carton is the safest container in which to transport the unit and must be used if returning the unit for service. Save it for possible future use. Caution! Take extra care lifting or moving MIC612 cameras because of their weight (10.66 kg (23.5 lb)). Parts List...

  • Page 9: Additional Tools Required

    Power Supply Unit (PSU) for MIC cameras MIC-115PSU-2, MIC-24PSU-2 Additional Tools Required The following table lists additional tools (not supplied by Bosch) that are or may be required to install a MIC camera: Quantity Part 13 mm wrench for the mounting bolts...

  • Page 10: Product Description

    PTZ cameras that have been designed to offer a reliable, robust, and high-quality surveillance solution for extreme security applications. MIC612 models have a 36x optical zoom (12x digital) and flexible mounting options (upright or inverted) to achieve the perfect field of view.

  • Page 11: Electrical Connections

    25 m between the MIC camera and the MIC power supply. For installations that require the camera to be more than 25 m from the power supply, Bosch recommends that a 2 m cable be connected to a junction box (Exd rated for MIC440) from which telemetry, video, and power can be broken out into separate cables and appropriate wiring used to extend the distance to suit.

  • Page 12: Composite Cable Color-Coding

    | Electrical Connections MIC612 Thermal Camera Figure 4.2: MIC shielded composite cable connected to a MIC612 camera Composite Cable Color-coding The standard color coding used in MIC composite cables is as follows: Figure 4.3: Exploded View of Composite Cable Connections...
  • Page 13 MIC612 Thermal Camera Electrical Connections | en Camera Signal Name Description Cable Wire Cable Color Connector Full Duplex Rx B+ Telemetry I/O to RS-422/485 White Half Duplex Tx/Rx B Power Input 2 Low Voltage Power Input Green Power Input 1...

  • Page 14: Install The Mic (Standard) Psu

    Use only the power supply specified for your specific model of camera. Bosch provides a range of power supply units (PSUs) for MIC Series cameras. These units have a variety of common voltages and provide all the connections needed for power, telemetry and video.

  • Page 15: Composite Cable Color-Coding

    25 m between the MIC camera and the MIC power supply. For installations that require the camera to be more than 25 m from the power supply, Bosch recommends that a 2 m cable be connected to a junction box (Exd rated for MIC440) from which telemetry, video, and power can be broken out into separate cables and appropriate wiring used to extend the distance to suit.

  • Page 16: Earth Link On Pcb

    | Install the MIC (standard) PSU MIC612 Thermal Camera Figure 5.3: Exploded View of Composite Cable Connections Camera Signal Name Description Cable Wire Cable Color Connector Washer Drive Rtn Auxiliary Connection Grey Tamper Sw Rtn Auxiliary Connection Brown Washer Drive...

  • Page 17: Fuse Ratings

    Install the MIC (standard) PSU | en Fuse Ratings The MIC PSUs for MIC612 cameras have four (4) off 20 mm fuses (numbers 13 - 16 in the figure “Layout of MIC-240PSU-2 and MIC-115PSU-2”) in fuse holders. The ratings for these fuses are fixed on the low voltage secondary side but change with input voltage on the high voltage primary side.
  • Page 18 | Install the MIC (standard) PSU MIC612 Thermal Camera Figure 5.4: Layout of MIC-240PSU-2 and MIC-115PSU-2 Description/Function of Type of Connection/ Marking Connection / Terminal Terminal AC Power input connector Screw terminal Live (HD1-1); Neutral (HD1-2) [Ground wire connects to earth termination post...

  • Page 19: Installation Warnings And Prerequisites

    MIC612 Thermal Camera Install the MIC (standard) PSU | en Description/Function of Type of Connection/ Marking Connection / Terminal Terminal Fuse 2 - Primary protection Fuse 1 - MIC camera protection Fuse 3 - Heater protection 1 Fuse 5 - Heater protection 2...

  • Page 20: Installation Instructions (Power Supply)

    Ensure that an IR power supply is used with a MIC IR camera unit. Heaters are available for MIC612 cameras only. Caution! Bosch recommends using an uninterruptible power supply (UPS) in connection with a MIC camera/PSU installation. Notice!
  • Page 21 MIC612 Thermal Camera Install the MIC (standard) PSU | en 5. Secure the enclosure to the mounting surface using four (4) M6 stainless steel screws and washers (not supplied), which fit through the large holes in the enclosure. Notice! If you are securing the power supply enclosure in a vertical position (for example, on a wall), one person should hold the enclosure lid while another secures the enclosure body in place, to avoid damage to any part of the enclosure, and/or injury to the installer(s).
  • Page 22 | Install the MIC (standard) PSU MIC612 Thermal Camera PCB Marking Description Live Neutral Earth / Ground 11. Remove the brass nut and copper washer from the earth termination post (item 3 in the figure “Mains input with shield removed…”); set these aside.
  • Page 23 MIC612 Thermal Camera Install the MIC (standard) PSU | en Figure 5.8: MIC PSU Enclosure, with cable glands identified Number Description Cable Gland Size Optical Video out Composite cable Optional switched video output Head-end / Telemetry controls 18. Connect the shielded composite cable to terminal block HD3 (and, if necessary, HD6 and HD7) following the color coding as shown in the figure below, and printed on the PCB.
  • Page 24 | Install the MIC (standard) PSU MIC612 Thermal Camera ID, Connection/ PCB Mark, Description/Function of Connection PCB Mark, Terminal + Pin Signal Cable Color HD6-1 AUX1 [Optional] Auxiliary Connection (heater) Brown HD6-2 AUX2 [Optional] Auxiliary Connection (heater) Grey HD7-1...
  • Page 25 MIC612 Thermal Camera Install the MIC (standard) PSU | en switched Video Out cable to BNC socket CN3. This second cable provides control for video from both the optical camera and the thermal camera; users can switch between the two cameras.
  • Page 26 | Install the MIC (standard) PSU MIC612 Thermal Camera Signal Number Washer Pump Washer Pump Warning! The washer pump terminal is rated only to 24 VAC or VDC maximum voltage and is not suitable for Mains-operated pumps. Test the washer by pressing the red button marked SW1 PUMP ON on the PCB.
  • Page 27 MIC612 Thermal Camera Install the MIC (standard) PSU | en Figure 5.9: Position of LEDs - MIC Series power supply PCB Bosch Security Systems Operation Manual 2016.03 | 2.2 | F.01U.249.416...

  • Page 28: Commissioning The Camera With Heater Option Fitted

    | Install the MIC (standard) PSU MIC612 Thermal Camera Figure 5.10: Position of LEDs - MIC Series IR power supply PCB Number LED Description LED 1 Indicates that 18 VAC is available from the power supply and that the LED 2 supply fuses are intact.
  • Page 29 MIC612 Thermal Camera Install the MIC (standard) PSU | en Figure 5.11: PCB links set to 0V Break the two solder links and remove any excess solder. Solder the links, using TCW link wire, from the left hand pads to the middle pads. The power supply will now deliver 18 VAC to terminal block HD6.

  • Page 30: Simultaneous Ip And Analog Video/Control ("Hybrid" Operation)

    | Install the MIC (standard) PSU MIC612 Thermal Camera Locate the Brown and Grey wires from the composite cable. Connect the heater wires Brown and Grey to terminal block HD6 as labelled on the PCB. The heaters are thermostatically controlled and will automatically turn on at +5 °C (+41 °F) and turn off at +15 °C (+59 °F).

  • Page 31: Fit The Sunshield (Mic612)

    (8) stainless steel M3 washers and retaining screws. The MIC612 stand-offs are slightly shorter than those for the MIC412 and have gnarled threads at one end. The MIC412 stand-offs are slightly longer and are smooth at one end.
  • Page 32 | Fit the Sunshield (MIC612) MIC612 Thermal Camera To fit the sunshield, follow these steps: Turn on the power to the camera so that you can rotate the camera head up to fit the bottom half of the sunshield (see step 8).

  • Page 33: Getting Started

    Establishing Control of the Camera The MIC Series 612 supports two communication protocols (Biphase and RS-485), and both Bosch and Pelco D and P (keyboard) controller protocols that allow you to send commands to the camera and to receive information from the camera.

  • Page 34: Powering On

    | Getting Started MIC612 Thermal Camera The MIC612 camera can be connected in a 2- or 4-wire mode. Available connection protocols are: Pelco, Bosch OSRD (via a keyboard with RS-485 output), Bicom over serial (via CTFID software; see the CTFID User Manual for installation details), and Forward Vision protocols.

  • Page 35: Setting The Addresses Of The Two Cameras Of The Mic612

    Setting the Addresses of the Two Cameras of the MIC612 After the MIC612 camera is on, you must set the camera address. The optical camera and the thermal camera of the MIC612 have different addresses. The address of the optical camera is set via the OSD and FastAddress.

  • Page 36: Fastaddress, Pelco Protocols

    FastAddress, Pelco Protocols This section provides instructions to set a FastAddress with a Pelco keyboard or controller. – The optical camera of the MIC612 with an address set to 0 responds to commands set to any address. – Pelco-P protocol must use addresses 1 to 32.

  • Page 37: Active Commands In Fastaddress

    MIC612 Thermal Camera Getting Started | en To set FastAddress with a Pelco Keyboard: Press and hold 95-PRESET for two seconds to open the Pelco Setup menu. Move the joystick to select the Command Lock menu. Press the FOCUS or the IRIS button to turn Command Lock to OFF.

  • Page 38: Controlling The Camera

    | Controlling the Camera MIC612 Thermal Camera Controlling the Camera The most common ways to control the MIC are: – Using a keyboard and on-screen display (OSD) menus. This method is the most common. See Basic Keyboard Operation, page 38.

  • Page 39: Keyboard Commands, Bosch Protocol

    For example, the keyboard command to make the camera pan 360º continuously is: ON-1-ENTER (Press the ON key, then press the number 1 key, and then press ENTER.) Refer to Keyboard Commands (Bosch Protocol) By Number for a complete list of commands. Keyboard Commands, Pelco Protocol Pelco control commands are composed of a sequence of two (2) keyboard inputs with the following convention: 1) a Command Number and 2) a Function key input.

  • Page 40: Special Preset Commands, Pelco Protocol

    8-input alarm card is installed in the PSU powering the camera. 5 - Aux On / Aux Off Press Toggle switchable video output of MIC612 camera between visible and thermal output. 91 - Aux On Press Activate Zone Scan (display zone titles).
  • Page 41 MIC612 Thermal Camera Controlling the Camera | en Preset Command Description 94-PRESET Initiates a Preset Tour. 95-PRESET Enables or disables Limit Stops in the Setup Menu for AutoScan. Invokes the Pelco main Setup Menu when pressed for 2 seconds. 96-PRESET Stops a scan.

  • Page 42: On-Screen Display (Osd) Menus (Bosch Protocol)

    On-Screen Display (OSD) Menus (Bosch Protocol) This chapter identifies and describes each OSD menu option, as well as the default setting for each option, for Bosch protocol. For step-by-step instructions, see Common User Commands, page 76 and Advanced Features, page 78.
  • Page 43 MIC612 Thermal Camera On-Screen Display (OSD) Menus (Bosch Protocol) | en Setup Menu Choices: Menu Description Exit Exits the menu. Camera Setup Accesses adjustable camera settings such as: white balance, gain, sharpness, sync, line lock, backlight, shutter, and night mode.

  • Page 44: Camera Setup Menu

    | On-Screen Display (OSD) Menus (Bosch Protocol) MIC612 Thermal Camera Camera Setup Menu The Camera Setup Menu contains settings that can be changed/customized for the optical (visible) camera. Camera Setup Exit... * White Bal: EXT ATW * Gain Control:...
  • Page 45 MIC612 Thermal Camera On-Screen Display (OSD) Menus (Bosch Protocol) | en White Bal Maintains proper color reproduction (white balance) as the color temperature of a scene changes (for example, from daylight to fluorescent lighting). Option Description Extended ATW (Default setting) Adjusts camera color using extended range.

  • Page 46: Thermal Camera Setup Menu

    | On-Screen Display (OSD) Menus (Bosch Protocol) MIC612 Thermal Camera Sets the limit for sensitivity when the shutter speed is set to Auto SensUP. Options: 2x, 4x, 7.5x, 15x (default setting). Night Mode Selects night mode (B/W) to enhance lighting in low light scenes. Options: ON, OFF, AUTO (default setting).
  • Page 47 MIC612 Thermal Camera On-Screen Display (OSD) Menus (Bosch Protocol) | en Adjusts the display mode for the thermal camera. Options: Option Description White (Default setting) Hot objects appear brighter than cold objects. Black Hot Hot objects appear darker than cold objects.

  • Page 48: Lens Setup Menu

    | On-Screen Display (OSD) Menus (Bosch Protocol) MIC612 Thermal Camera Lens Setup Menu The Lens Setup Menu contains lens settings that can be changed/customized. Lens Setup Exit... * Auto Focus: SPOT * Auto Iris: CONSTANT * Auto Iris Level:...
  • Page 49 MIC612 Thermal Camera On-Screen Display (OSD) Menus (Bosch Protocol) | en Focus Speed Adjusts the manual focus speed. Sliding scale: – (1 to 15) +. Default setting: 2. Iris Speed Adjusts the manual iris speed. Sliding scale: – (1 to 10) +. Default setting: 5.

  • Page 50: Ptz Setup Menu

    | On-Screen Display (OSD) Menus (Bosch Protocol) MIC612 Thermal Camera PTZ Setup Menu The PTZ Setup Menu contains pan/tilt/zoom settings that can be changed/customized. PTZ Setup Exit... * Autopan: 30 deg/sec * Tour 1 Period: 5 sec * Tour 2 Period:...
  • Page 51 MIC612 Thermal Camera On-Screen Display (OSD) Menus (Bosch Protocol) | en Inactivity Selects the mode to which the camera reverts after the period of inactivity set in the inactivity period. Options: Option Description Scene 1 Returns to Preset 1. Prev Aux Returns to previous activity, such as Aux commands 1, 2, 7, 8, 50, or 52.

  • Page 52: Display Setup Menu

    | On-Screen Display (OSD) Menus (Bosch Protocol) MIC612 Thermal Camera Display Setup Menu The Display Setup Menu contains display settings that can be changed/customized. Display Setup Exit... * Title OSD: MOMENTARY * Camera OSD: Display Adjust * Azimuth: * Compass: Sector Blanking...
  • Page 53 MIC612 Thermal Camera On-Screen Display (OSD) Menus (Bosch Protocol) | en Option Description Moves screen title up. Down Moves screen title down. Brighter Brightens the intensity of the on-screen text. Darker Darkens the intensity of the on-screen text. Azimuth Display azimuth/elevation values. Options: ON, OFF (default setting). For more details, refer to Azimuth, Elevation, and Compass Directions, page 80.

  • Page 54: Communication Setup Menu

    | On-Screen Display (OSD) Menus (Bosch Protocol) MIC612 Thermal Camera Communication Setup Menu The Communication Setup Menu contains baud rate and Bilinx control settings. Communication Setup Exit... * AutoBaud: * Baud Rate: 9600 Bilinx Restore Defaults * = Factory Setting...

  • Page 55: Alarm Setup

    MIC612 Thermal Camera On-Screen Display (OSD) Menus (Bosch Protocol) | en Alarm Setup The Alarm Setup Menu contains alarm inputs, outputs and rules. Notice! The maximum number of Alarm Inputs is eight (8), available only on the Alarm and Washer Pump Drive Card (MIC-ALM) (sold separately).
  • Page 56 | On-Screen Display (OSD) Menus (Bosch Protocol) MIC612 Thermal Camera Multi Alarm Setup Allows setup of multiple alarms. Options: On; Off. Checkbox button to "Select." Inputs Setup Submenu Choices: Inputs Setup Defines physical inputs or events and commands that can be used in a rule. There are twelve (12) alarm inputs available.
  • Page 57 MIC612 Thermal Camera On-Screen Display (OSD) Menus (Bosch Protocol) | en Outputs Setup Submenu Outputs Setup... Exit... 1. NONE 2. NONE 3. NONE 4. NONE 5. NONE 6. NONE 7. NONE 8. NONE 9. NONE 10. NONE 11. NONE 12. NONE...
  • Page 58 | On-Screen Display (OSD) Menus (Bosch Protocol) MIC612 Thermal Camera Outputs Setup Submenu Choices: Outputs Setup Defines physical outputs and keyboard commands for use in a rule. Outputs 1–2 Defines a physical output: N.O. (Normally Open circuit) (default setting) or N.C. (Normally closed circuit).
  • Page 59 MIC612 Thermal Camera On-Screen Display (OSD) Menus (Bosch Protocol) | en Rule Setup Submenu Notice! You can program a total of twelve rules. You must define the inputs and outputs before you program a rule. See Alarm Setup, page 55, to configure alarm inputs and outputs.
  • Page 60 | On-Screen Display (OSD) Menus (Bosch Protocol) MIC612 Thermal Camera Rule Setup Submenu Choices: Rule Setup Displays the status of rules and lets you add new rules or modify an existing rule. Rule 1-12 Displays the status of a rule on the right side of the menu. Rule status options:...

  • Page 61: Language Menu

    MIC612 Thermal Camera On-Screen Display (OSD) Menus (Bosch Protocol) | en Language Menu The Language Menu contains a list of languages in which the on-screen menus are available. Language Exit... English Spanish French German Portuguese Polish Italian Dutch Russian Czech...

  • Page 62: Diagnostics Menu

    | On-Screen Display (OSD) Menus (Bosch Protocol) MIC612 Thermal Camera Diagnostics Menu The Diagnostics menu contains a list of diagnostic tools and events. Most of these menu items are display items only; you cannot select different values to change.
  • Page 63 MIC612 Thermal Camera On-Screen Display (OSD) Menus (Bosch Protocol) | en Internal Temp. Displays the current temperature of the camera, in degress Fahrenheit and in degrees Celsius. High Temp Events Displays the number of times that the threshold of high temperature was exceeded.
  • Page 64 | On-Screen Display (OSD) Menus (Bosch Protocol) MIC612 Thermal Camera Option Description (Default setting) No test pattern is available. Ascending ramp A test pattern appears in the analog and digital data channels, to allow you verify the output of the digital data channel.
  • Page 65 MIC612 Thermal Camera On-Screen Display (OSD) Menus (Bosch Protocol) | en Alarm Status Alarm Input 6 Open Alarm Input 7 Open Alarm Input 8 Open Alarm Output 1 Open Focus / Iris: Save and Exit Alarm Input 1...8 Displays the status of alarm inputs 1 through 7.

  • Page 66: On-Screen Display (Osd) Menus (Pelco Protocol)

    | On-Screen Display (OSD) Menus (Pelco Protocol) MIC612 Thermal Camera On-Screen Display (OSD) Menus (Pelco Protocol) This chapter identifies and describes each OSD menu option, as well as the default setting for each option, for Pelco protocol. For step-by-step instructions, see Common User Commands, page 76 and Advanced Features, page 78.
  • Page 67 MIC612 Thermal Camera On-Screen Display (OSD) Menus (Pelco Protocol) | en Setup Menu Choices: Menu Description Exit Exits the menu. Command Lock Allows or prohibits accessing locked commands. (If password is set, you are prompted to enter the password. The default setting is Bosch Menu Accesses the full configuration menu and all camera settings.

  • Page 68: Bosch Menu

    | On-Screen Display (OSD) Menus (Pelco Protocol) MIC612 Thermal Camera 10.1 Bosch Menu The Bosch Menu allows full access to the main Setup Menu and all camera configuration settings. Pelco menu Bosch menu Setup Menu Setup Menu Exit... Command Lock: Exit...

  • Page 69: Camera Setup

    MIC612 Thermal Camera On-Screen Display (OSD) Menus (Pelco Protocol) | en 10.2 Camera Setup The Pelco Camera Setup Menu provides access to camera settings. Camera Setup Exit... * White Bal: OUTDOOR * Night Mode: AUTO * Wiper CONTINUOUS * = Factory Setting...

  • Page 70: Ptz Setup

    | On-Screen Display (OSD) Menus (Pelco Protocol) MIC612 Thermal Camera 10.3 PTZ Setup The Pelco PTZ Setup Menu provides access to the PTZ settings such as tours, scan speed, presets, limit stops, recording, and AutoPivot. PTZ Setup Exit... * Edit Tour 1...
  • Page 71 MIC612 Thermal Camera On-Screen Display (OSD) Menus (Pelco Protocol) | en PTZ Setup Menu Choices: Menu Description Sub-menu / Description Default Setting Exit Exits the menu. Edit Tour 1 Accesses the Add / Exit: Exits the menu. Remove Scenes On Scene (1 - 5): Adds or removes Standard Tour 1 Menu.

  • Page 72: Aux Setup Menu

    | On-Screen Display (OSD) Menus (Pelco Protocol) MIC612 Thermal Camera 10.4 AUX Setup Menu The AUX Setup menu provides an area to remain Aux commands. AUX Setup Exit... * WASH WIPE * Alarm Output 2: * Not Set Not Set...

  • Page 73: Other Menus

    MIC612 Thermal Camera On-Screen Display (OSD) Menus (Pelco Protocol) | en 10.5 Other Menus Menu Description Default Setting Edit Password Sets or displays the password. See Setting Passwords, page 37. FastAddress Sets or changes the address. Not Set Software Version Displays the camera software version.

  • Page 74: Operation Of The Thermal Camera

    The thermal camera can display its internal temperature on the video output with a SPOT meter (320 TVL models only). In Bosch protocol, in the OSD, enter "Aux ON + 463 + ENTER." The message, "SPOT meter Display: ON" should appear on-screen, and the SPOT meter should appear.

  • Page 75: Triggering Alarms On Detection Of Objects Outside Of Set Thermal Temperature

    MIC612 Thermal Camera Operation of the Thermal Camera | en 11.4 Triggering Alarms On Detection of Objects Outside of Set Thermal Temperature Threshold On models with the 35 mm thermal lens, you can set a High Temp Thermal Meter or Low Temp...

  • Page 76: Common User Commands

    | Common User Commands MIC612 Thermal Camera Common User Commands 12.1 Configuring Preposition Tours A Preposition Tour automatically moves the camera through a series of preset or saved shots. The MIC camera has one (1) standard preset tour and one (1) customized preset tour. Tour 1 is a standard tour that moves the camera through a series of shots in the sequence that they were set.

  • Page 77: Using The Wiper/Washer (Bosch Protocol)

    Common User Commands | en 12.3 Using the Wiper/Washer (Bosch Protocol) The "predefined position" for the wash/wipe function is preset 62. The installer must define preset 62 (preferably where the washer nozzle is located and can direct washer fluid towards the camera window) before using the wiper/washer function.

  • Page 78: Advanced Features

    | Advanced Features MIC612 Thermal Camera Advanced Features This chapter details advanced user commands, which are more complicated than those in Common User Commands, page 76. 13.1 Alarm Rules MIC cameras feature a powerful alarm rule engine. In its simplest form, an alarm rule defines those inputs that activate specific outputs.

  • Page 79: Pre-Position Tour

    MIC612 Thermal Camera Advanced Features | en Example 2: Advanced Alarm Rule Scenario: A MIC camera located at an airport is set to AutoPan Between Limits from the parking garage to the airport terminal. The gate entering the airport has an alarm contact connected to the camera, and the perimeter fence in the area of the gate has an infrared (IR) sensor for motion detection (motion detector) that is connected to the camera.

  • Page 80: Image Stabilization

    13.5 Azimuth, Elevation, and Compass Directions The MIC550 or the MIC612 allows a user to display the azimuth and elevation position, and the compass heading of the camera. The MIC550 or the MIC612 displays the position data in the lower-right corner of the image display. These readings are described as: Azimuth The pan angle from zero to 359 degrees in one degree increments.

  • Page 81: Setting The Azimuth Zero Point

    13.5.1 Setting the Azimuth Zero Point The MIC550 or the MIC612 uses the Azimuth Zero point, usually set to magnetic North, as the zero degree pan position and as the North compass heading. The MIC550 or the MIC612 then displays the azimuth reading and the compass heading based on the number of degrees from the Azimuth Zero point.

  • Page 82: Maintenance And Troubleshooting

    No User-serviceable Parts Except for the external wiper blade, the device contains no user-serviceable parts. Contact your local Bosch service center for device maintenance and repair. In the event of failure, the device should be removed from site for repair.
  • Page 83 – Check that the maximum Ethernet cable distance has not been exceeded. If O.K., then: – Restore all camera settings. Background is too bright to see Turn on backlight compensation. subject. Additional troubleshooting for MIC612 cameras. Bosch Security Systems Operation Manual 2016.03 | 2.2 | F.01U.249.416...
  • Page 84 | Maintenance and Troubleshooting MIC612 Thermal Camera Problem Explanation Solution A green square appears This is the Flat Field Imminent Do nothing; this is intermittently at the upper Symbol. It warns that FFC is about normal operation for right of the video output.

  • Page 85: Technical Data

    MIC612 Thermal Camera Technical data | en Technical data For product specifications, see the datasheet for your camera, available on the appropriate product pages of the Online Product Catalog at www.boschsecurity.com. Bosch Security Systems Operation Manual 2016.03 | 2.2 | F.01U.249.416...

  • Page 86: Appendices

    | Appendices MIC612 Thermal Camera Appendices 16.1 Keyboard Commands (Bosch Protocol) By Number 16.1.1 Commands, Optical Camera Locked Functio Command Command Description n Key On/Off Scan 360° / Auto Pan (Continuous) Activates/deactivates Autopan without limits. On/Off Autopan (within Limits) Activates/deactivates Autopan between limits.
  • Page 87 MIC612 Thermal Camera Appendices | en Locked Functio Command Command Description n Key On/Off Playback A, continuous Activates/Deactivates continuous playback On/Off Playback A, single Activates/Deactivates single playback A. On/Off Playback B, continuous Activates/Deactivates continuous playback On/Off Playback B, single Activates/Deactivates single playback B.
  • Page 88 | Appendices MIC612 Thermal Camera Locked Functio Command Command Description n Key On/Off Alarm Output 1 On–Activates output. Open Collector Off–Deactivates output. On/Off Alarm Output 2 On–Activates output. Open Collector Off–Deactivates output. On/Off Alarm Output 3 On–Activates output. Open Collector Off–Deactivates output.

  • Page 89: Commands, Thermal Camera

    MIC612 Thermal Camera Appendices | en Locked Functio Command Command Description n Key On/Off Wiper continuous Turns on/off continous wiper mode. On/Off Wiper intermittent Activates the wiper in Intermittent mode (the wiper wipes twice, then turns off after 15 seconds).
  • Page 90 | Appendices MIC612 Thermal Camera Locked Functio Command Command Description n Key On/Off Play Custom Pre-position Tour Activates/Deactivates the playback of a custom, pre-position tour. On/Off Play Pre-position Tour Activates/Deactivates the playback of a pre-position tour. On/Off AutoPivot Enable Enables/disables AutoPivot.
  • Page 91 MIC612 Thermal Camera Appendices | en Locked Functio Command Command Description n Key Wiper wipe Activates (On shot) to wipe five times, then turn off. Washer/Wiper Activates the washer/wiper. White Hot Activates thermal display mode White Hot. Black Hot Activates thermal display mode Black Hot.
  • Page 92 | Appendices MIC612 Thermal Camera Locked Functio Command Command Description n Key Set/ Unlock Commands Unlocks commands. Shot Set/ Pre-wash position Sets the camera in pre-wash position. Shot Factory P/T Home Position Recalibrates home position. 2016.03 | 2.2 | F.01U.249.416...
  • Page 94 Bosch Security Systems, Inc. 1706 Hempstead Road Bosch Sicherheitssysteme GmbH Lancaster, PA, 17601 Robert-Bosch-Ring 5 85630 Grasbrunn www.boschsecurity.com Germany © Bosch Security Systems, Inc., 2016 www.boschsecurity.com...
