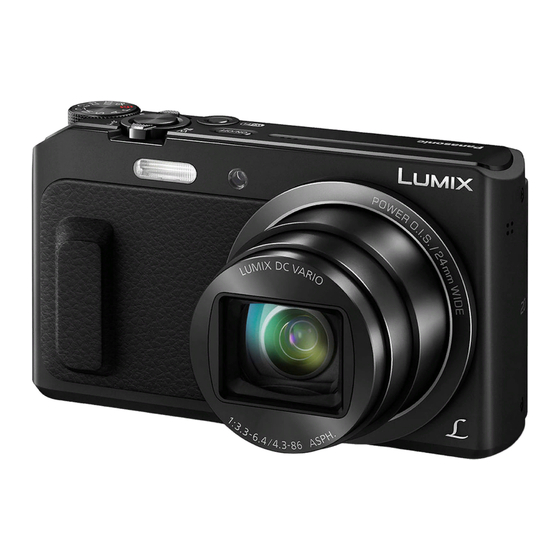

Panasonic DMC-TZ57 Basic Operating Instructions

Dear Customer,
We would like to take this opportunity to thank you for purchasing this Panasonic Digital
ENGLISH
Camera. Please read these Operating Instructions carefully and keep them handy for
future reference. Please note that the actual controls and components, menu items, etc.
Basic Operating
of your Digital Camera may look somewhat different from those shown in the
illustrations in these Operating Instructions.
Instructions
Carefully observe copyright laws.
• Recording of pre-recorded tapes or discs or other published or broadcast material for
Digital Camera
purposes other than your own private use may infringe copyright laws. Even for the purpose
of private use, recording of certain material may be restricted.
DMC-TZ57
Model No.
Information for Your Safety
Please read these instructions carefully before using this product, and save this manual
WARNING:
for future use.
To reduce the risk of fire, electric shock or product damage,
• Do not expose this unit to rain, moisture, dripping or splashing.
•
Use only the recommended accessories.
•
Do not remove covers.
• Do not repair this unit by yourself. Refer servicing to qualified service personnel.
Panasonic Corporation
SQT0609-1
The socket outlet shall be installed near the equipment and shall be easily
Web Site: http://panasonic.net
F0115HH1035
accessible.
 Panasonic Corporation 2015
∫ Product identification marking
GN
Digital Camera
∫ About the AC adaptor (supplied)
More detailed operating instructions are available in "Operating
Instructions for advanced features (PDF format)". To read it,
CAUTION!
download it from the website.
To reduce the risk of fire, electric shock or product damage,
http://panasonic.jp/support/dsc/oi/index.html?model=
•
Do not install or place this unit in a bookcase, built-in cabinet or in another
DMC-TZ57&dest=GN
confined space. Ensure this unit is well ventilated.
• Click the desired language.
•
The unit is in the standby condition when the AC adaptor is connected. The primary circuit is
¢ You will need Adobe Reader to browse or print the Operating
always "live" as long as the AC adaptor is connected to an electrical outlet.
Instructions (PDF format).
You can download and install a version of Adobe Reader that
you can use with your OS from the following website. (As of January 2015) ∫ About the battery pack
http://www.adobe.com/products/acrobat/readstep2.html
CAUTION
•
Danger of explosion if battery is incorrectly replaced. Replace only with the type
recommended by the manufacturer.
Limited Warranty (ONLY FOR AUSTRALIA)
•
When disposing of the batteries, please contact your local authorities or dealer and ask
for the correct method of disposal.
Panasonic Warranty
• Do not heat or expose to flame.
•
Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with
1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty
Panasonic or its Authorised Service Centre will perform necessary service on the product without charge for doors and windows closed.
parts or labour, if in the opinion of Panasonic, the product is found to be faulty within the warranty period.
2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or
its Authorised Distributors or Dealers and only where the products are used and serviced within Australia or
Warning
it's territories. Warranty cover only applies to service carried out by a Panasonic Authorised Service Centre
and only if valid proof of purchase is presented when warranty service is requested.
Risk of fire, explosion and burns. Do not disassemble, heat above 60 xC or
3. This warranty only applies if the product has been installed and used in accordance with the manufacturer's
recommendations (as noted in the operating instructions) under normal use and reasonable care (in the incinerate.
opinion of Panasonic). The warranty covers normal domestic use only and does not cover damage,
malfunction or failure resulting from use of incorrect voltages, incorrect installation, accident, misuse, neglect,
build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems, thunderstorm
activity, infestation by insects or vermin, tampering or repair by unauthorised persons (including unauthorised
alterations), introduction of sand, humidity or liquids, commercial use such as hotel, offi ce, restaurant, or other
Cautions for Use
business or rental use of the product, exposure to abnormally corrosive conditions or any foreign object or
matter having entered the product.
•
Do not use any other USB connection cables except the supplied one or a genuine
4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:
(a) Cabinet Part(s) (e) DVD, Blu-ray or Recordable Discs Panasonic USB connection cable (DMW-USBC1: optional).
(b) Video or Audio Tapes (f) Video / Audio Heads from wear and tear in normal use
•
Use a "High Speed HDMI micro cable" with the HDMI logo.
(c) SD cards or USB devices (g) Information stored on Hard Disk Drive, USB stick or SD card
(d) User replaceable Batteries (h) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s)
Cables that do not comply with the HDMI standards will not work.
etc
"High Speed HDMI micro cable" (Type D –Type A plug, up to 2 m long)
5. Some products may be supplied with Ethernet connection hardware. The warranty is limited on such products
and will not cover • Do not use any other AC adaptors except the supplied one.
(a) Internet and or DLNA connection / setup related problems
• Always use a genuine Panasonic AV cable (DMW-AVC1: optional).
(b) Access fees and or charges incurred for internet connection
(c) The use of incompatible software or software not specifi cally stipulated in the product operations manual;
•
Always use genuine Panasonic batteries (DMW-BCM13E).
and
(d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its •
If you use other batteries, we cannot guarantee the quality of this product.
connection to the internet or any other device.
• Keep the Memory Card out of reach of children to prevent swallowing.
6. To claim warranty service, when required, you should:
• Telephone Panasonic's Customer Care Centre on 132600 or visit our website referred to below and use
the Service Centre Locator for the name/address of the nearest Authorised Service Centre.
Keep this unit as far away as possible from electromagnetic equipment (such as
• Send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase
receipt as a proof of purchase date. Please note that freight and insurance to and / or from your nearest microwave ovens, TVs, video games etc.).
Authorised Service Centre must be arranged by you.
• Note that home or pick-up/delivery service is available for the following products in the major metropolitan
• If you use this unit on top of or near a TV, the pictures and/or sound on this unit may be
areas of Australia or the normal operating areas of the nearest Authorised Service Centres:
- Plasma/LCD televisions / displays (screen size greater than 103 cm)
disrupted by electromagnetic wave radiation.
7. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de- •
Do not use this unit near cell phones because doing so may result in noise adversely
installation or re-installation of a product, including costs related to the mounting, de-mounting or remounting
of any screen, (and any other ancillary activities), delivery, handling, freighting, transportation or insurance of affecting the pictures and/or sound.
the product or any part thereof or replacement of and do not extend to, and exclude, any damage or loss
• Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields
occurring by reason of, during, associated with, or related to such installation, de-installation, re-installation or
transit.
created by speakers or large motors.
Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of
•
Australia, however, coverage will vary dependant on product. For advice on exact Authorised Service Centre Electromagnetic wave radiation may adversely affect this unit, disturbing the pictures and/or
locations for your product, please telephone our Customer Care Centre on 132600 or visit our website and use
sound.
the Service Centre Locator.
• If this unit is adversely affected by electromagnetic equipment and stops functioning properly,
In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be
excluded under the Australian Consumer Law. If there is a major failure with the product, you can reject the
turn this unit off and remove the battery or disconnect AC adaptor. Then reinsert the battery
product and elect to have a refund or to have the product replaced or if you wish you may elect to keep the goods
and be compensated for the drop in value of the goods. You are also entitled to have the product repaired or
or reconnect AC adaptor and turn this unit on.
replaced if the product fails to be of acceptable quality and the failure does not amount to a major failure.
If there is a major failure in regard to the product which cannot be remedied then you must notify us within a
Do not use this unit near radio transmitters or high-voltage lines.
reasonable period by contacting the Panasonic Customer Care Centre. If the failure in the product is not a major
failure then Panasonic may choose to repair or replace the product and will do so in a reasonable period of time •
If you record near radio transmitters or high-voltage lines, the recorded pictures and/or sound
from receiving notice from you.
may be adversely affected.
THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES
•
Before cleaning the camera, remove the battery or disconnect the power plug from the
If you require assistance regarding warranty conditions or any other enquiries, please visit the
www.panasonic.com.au 132 600 outlet.
Panasonic Australia website or contact by phone on
If phoning in, please ensure you have your operating instructions available. •
Do not press the monitor with excessive force.
• Do not press the lens with excessive force.
Panasonic Australia Pty. Limited
•
Do not spray the camera with insecticides or volatile chemicals.
ACN 001 592 187 ABN 83 001 592 187
•
1 Innovation Road, Macquarie Park NSW 2113 Do not keep rubber or plastic products in contact with the camera for a long period of
PRO-031-F11 Issue: 4.0 01-01-2011
time.
• Do not use solvents such as benzine, thinner, alcohol, kitchen detergents, etc., to clean
the camera, since it may deteriorate the external case or the coating may peel off.
•
Do not leave the camera with the lens facing the sun, as rays of light from the sun may
cause it to malfunction.
•
Always use the supplied cords and cables.
• Do not extend the cords or the cables.
•
During access (image writing, reading and deleting, formatting etc.), do not turn this
unit off, remove the battery, card or disconnect the AC adaptor (supplied).
Furthermore, do not subject the camera to vibration, impact or static electricity.
• The data on the built-in memory or the card may be damaged or lost due to electromagnetic
waves, static electricity or breakdown of the camera or the card. We recommend storing
important data on a PC etc.
• Do not format the card on your PC or other equipment. Format it on the camera only to
ensure proper operation.
•
The battery is not charged when the camera is shipped. Charge the battery before use.
•
Charge the battery only when it is inserted in the camera.
• Do not remove or damage the external label on the battery.
•
The battery is a rechargeable lithium ion battery. If the temperature is too high or too
low, the operating time of the battery will become shorter.
•
The battery becomes warm after using and during and after charging. The camera also
becomes warm during use. This is not a malfunction.
•
Do not leave any metal items (such as clips) near the contact areas of the power plug
or near the batteries.
•
Store the battery in a cool and dry place with a relatively stable temperature: (Recommended
temperature: 15 oC to 25 oC, Recommended humidity: 40%RH to 60%RH)
•
Do not store the battery for a long time while fully charged. When storing the battery for
a long period of time, we recommend charging it once a year. Remove the battery from the
camera and store it again after it has completely discharged.
-If you see this symbol-
Product Location
Bottom
Standard Accessories
Check that all the accessories are supplied before using the camera.
Product numbers correct as of January 2015. These may be subject to change.
Battery Pack (DMW-BCM13E)
USB Connection Cable (K1HY08YY0037)
Hand Strap (VFC4737-A)
•
Consult the dealer or Panasonic if you lose the supplied accessories. (You can purchase the
accessories separately.)
Names of Main Parts
I Tripod mount
J Card/Battery door
K Release lever
∫ Adjusting the monitor angle
1 Flip up the bottom of 2 Adjust the angle of
the monitor lightly to the monitor.
open.
•
Be careful not to catch your finger, etc. in the monitor.
• When rotating the monitor, be careful not to apply too much force or drop the camera.
This may cause scratches and malfunctions.
•
If the monitor is rotated as shown in
the illustration, the Self Shot Mode
starts.
Disposal of Old Equipment and Batteries
Only for European Union and countries with
recycle systems
These symbols are only valid in the European
Union and countries with recycle systems.
If you wish to discard this product, please contact
Preparations
your local authorities or dealer and ask for the
correct method of disposal. •
Check that the camera is turned off.
Charging lamp
AC Adaptor (VSK0776)
Hand Strap
Battery Pack
[AV OUT/DIGITAL] socket
1 Shutter button
2 Mode dial SD Memory Card (optional)
•
The following cards, which conform to the SD standard, can be used with this unit.
3 Zoom lever
(These cards are indicated as card in the text.)
4 Flash
SD Memory Card (8 MB to 2 GB)
SDHC Memory Card (4 GB to 32 GB)
5 Self-timer indicator
SDXC Memory Card (48 GB, 64 GB)
AF Assist Lamp
6 [Wi-Fi] button
Charging time
7 Camera [ON/OFF] button
• When charging is complete, the charging lamp will go off - then you may disconnect
the camera from the power outlet or computer.
8 Microphone
9 Speaker
Tips for taking good pictures
: Lens
; Lens barrel
Hold the camera gently with
< Lens barrier
both hands, keep your arms
still at your side and stand
= Charging lamp
with your feet slightly apart.
Wi-Fi ® connection lamp • Be careful not to put your fingers
on the flash, AF assist lamp,
> Monitor
microphone, speaker or lens etc.
? [EXPOSURE] button
@ [MENU/SET] button A Tripod mount
It may not be possible to attach
A [DISP.] button
and securely fasten a tripod
B Strap eyelet with a screw length of 5.5 mm
or more to the camera. Doing
C [HDMI] socket
so may also damage the
camera.
D [AV OUT/DIGITAL] socket
It may not be possible to attach
certain types of tripods properly.
E Motion picture button
F [(] (Playback) button
Selecting the Recording Mode
G Cursor buttons
3(È)/4(#)/2(ë)/1(‰)
Switching the mode by rotating the mode dial.
H [Q.MENU] button
•
Rotate the mode dial slowly to select the desired
[ ] (Delete) button
mode.
[ ] (Cancel) button
∫ List of Recording Modes
¦ Intelligent Auto Mode
The subjects are recorded using settings automatically selected by the camera.
Programme AE Mode
The subjects are recorded using your own settings.
Aperture-Priority AE Mode
The shutter speed is automatically determined by the aperture value you set.
When closing
Shutter-Priority AE Mode
The aperture value is automatically determined by the shutter speed you set.
Manual Exposure Mode
The exposure is adjusted by the aperture value and the shutter speed which are
manually adjusted.
• Custom Mode
When not using this unit,
close the monitor
Use this mode to take pictures with previously registered settings.
completely back to the
Panorama Shot Mode
original position.
This mode allows you to take panorama pictures.
This mode allows you to select any of the 13 image effects including [Old Days],
[High Key], and [Dynamic Monochrome].
Û Scene Mode
This mode allows you to take pictures that match the scene being recorded.
This mode allows you to select any of the 16 scenes including [Portrait],
[Scenery], and [Starry Sky].
Creative Control Mode
Record while checking the image effect.
This mode allows you to select any of the 15 image effects including [Old Days],
[High Key], and [Dynamic Monochrome].
Taking pictures using the automatic function
(Intelligent Auto Mode)
We recommend this mode for beginners or those who want to leave the settings to the
camera and record casually.
Strap eyelet
Mode dial
•
To prevent
•
To power outlet Set the mode dial to [
dropping, be
sure to attach
the supplied
strap and fit it
Shutter button
to your wrist.
•
Press the shutter button halfway to focus, and
AC Adaptor
then press the shutter button fully (push it in
further), and take the picture.
∫ Scene Detection
USB
Connection When the camera identifies the optimum scene, the icon of the scene concerned is displayed
in blue for 2 seconds, after which its colour changes to the usual red.
Cable
[i-Portrait] [i-Scenery]
[i-Macro] [i-Night Portrait]
[i-Night Scenery] [iHandheld Night Shot]
[i-Sunset]
¢1 Only displayed when the flash is set to [ ].
¢2 Only displayed when [iHandheld Night Shot] is set to [ON].
Approx. 210 min
Using the Zoom
To make subjects appear further away use (Wide):
Rotate the zoom lever towards Wide.
Flash
To make subjects appear closer use (Tele):
AF Assist Lamp
Rotate the zoom lever towards Tele.
Microphone
Speaker
Optical Zoom
Zooms in without deteriorating the image quality.
Maximum magnification: 20k
Extra Optical Zoom (EZ)
Lens
This function works when any of the picture sizes indicated with
You can zoom in further than you can with the Optical Zoom without deteriorating the image quality.
Maximum magnification: 45k
(This includes the optical zoom magnification. The magnification level differs depending on
[Picture Size] setting.)
Intelligent Zoom
Enabled when [i.Zoom] in the [Rec] menu is set to [ON].
You can zoom in up to twice the original zoom magnification while minimising the deterioration
of the image quality.
Digital Zoom
This function works when [Digital Zoom] in the [Rec] menu is set to [ON].
Although the image quality deteriorates every time you zoom in further, you can zoom in up to
four times the original zoom magnification.
Changing Functions and Settings
Functions and settings can be changed using 3/4/2/1
and [MENU/SET]. (Some functions and settings will not be
available for selection depending on the Recording Mode.)
The exposure compensation or Auto Bracket setting screen is displayed.
3(È)
The macro setting screen is displayed.
4(#)
[ ]([AF Macro])/[ ]([Macro Zoom])/[OFF]
The Self-Timer setting screen is displayed.
2(ë)
[ ]([10sec.])/[ ]([2sec.])/[OFF]
The flash setting screen is displayed.
1(‰) [‡]([Auto])/[ ]([iAuto])/[ ]([Auto/Red-Eye])/[‰]([Forced Flash On])/
[ ]([Slow Sync./Red-Eye])/[Œ]([Forced Flash Off])
The menu screen is displayed.
This operation is also available during playback.
Menus convenient for taking pictures
∫ [Picture Size]
A picture taken with the camera is saved as picture data of up to approximately 16 million pixels.
The smaller the number of pixels is, the greater the number of recordable pictures will be.
•
Quality [A]
Save location 16 M (4:3) 3 M (4:3) 0.3 M (4:3)
Built-in Memory (Approx. 78 MB) 14 50 155
Card (
8 GB) 1300 5700 15400
∫ [Quality]
Set the compression rate at which the pictures are to be stored.
Settings Description of settings
[A] ([Fine]) When giving priority to the picture quality
When using the standard picture quality and increasing the number
[›] ([Standard])
of pictures to be recorded without changing the number of pixels
∫ [Sensitivity]
This allows the Sensitivity to light (ISO sensitivity) to be set. Setting to a higher figure enables
pictures to be taken even in dark places without the resulting pictures coming out dark.
].
[100] [3200]
Recording location
When it is light (outdoors) When it is dark
(recommended)
Shutter speed Slow Fast
Noise Less Increased
Jitter of the subject Increased Less
∫ [Date Stamp]
You can take a picture with date and time of recording.
Settings Description of settings
[W/O TIME] Stamp the year, month, and day.
[WITH TIME] Stamp the year, month, day, hour, and minutes.
[OFF] —
¢1
¢2
Recording Motion Pictures
This unit can record motion pictures in MP4 format.
Mode dial
•
You can record motion pictures fitting each
Recording Mode.
(Motion pictures cannot be recorded in
Panorama Shot Mode.)
Motion picture button
• The recording state indicator (red) will flash
while recording motion pictures.
•
Stop the recording by pressing the motion
picture button again.
•
Still pictures can be taken during motion picture recording by pressing the shutter button.
(Simultaneous recording) ¢
¢ Simultaneous recording is not possible in the following cases:
–
When [Rec Quality] is set to [VGA]
–
[Miniature Effect] (Creative Control Mode)
∫ About the recording quality setting
The recording quality for motion pictures can be changed in [Rec Quality] of the [Motion Picture] menu.
is selected.
Settings Size Frame rate Bit rate Aspect ratio
[FHD] 1920k1080 20 Mbps
16:9
25p
[HD] 1280k720 10 Mbps
[VGA] 640k480 4 Mbps
• When recording to the built-in memory, [Rec Quality] is fixed to [VGA].
• The maximum continuous recordable time of a motion picture is 29 minutes and 59 seconds,
which is equivalent to a file size of approximately 4 GB.
You can check the recordable time on the screen. (With [FHD], the file size becomes larger,
causing the recordable time to become shorter than 29 minutes and 59 seconds)
∫ About zooming while recording motion pictures
•
The Extra Optical Zoom and Intelligent Zoom cannot be used during the motion picture recording.
•
If you use Extra Optical Zoom or Intelligent Zoom, the angle of view may change drastically when
you start or finish recording a motion picture.
4:3
