Page 1

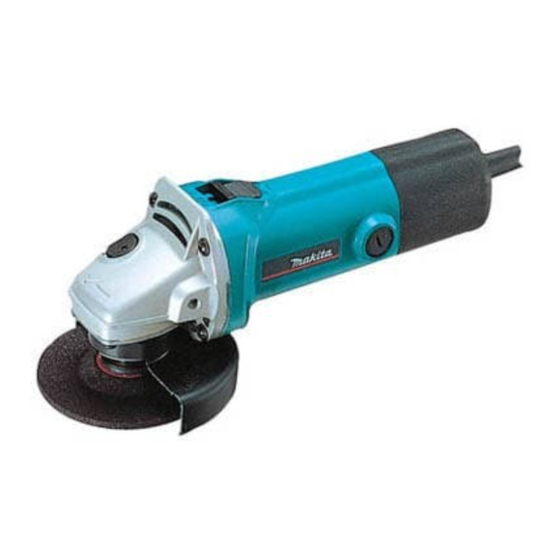

Description 100 mm Ang1e Grinder ONCEPTION AND MAIN APPLICATIONS 10-1/8" Model 9523NB is the angle grinder designed for professional users and its brief benefits are; *Slimmer body loaded with more endurable new motor (type S55) *Labyrinth structure seals out dust from ball bearings *Comfortable slide switch This model is manufactured in MCC.
Page 2
Extremely quiet (to see the following comparison of no load noise) Makita 9523NB:83dB Hitachi G10SF :88dB (total noise of three 9523MB's = noise of one G10SF Slim/trim body 56mm wide for easy, comfortable gripping thanks to the slim but Diameter of field core endurable S55-type motor ø...
Page 3
epair (1) Replacing of armature 1) Disconnect the wheel and wheel cover, respectively. 2) Disconnect the carbon brush. 3) Disconnect the tapping screw PF5x25 for holding the gear housing and motor housing and then remove the armature. Gear housing Bearing retainer Motor housing Carbon brush Tapping screw PF5X25...
Page 4
(2) Replacing of the spiral bevel gear 36 1) Disconnect the wheel and wheel cover, respectively. 2) Disconnect the tapping screw CT4x16 for holding the bearing box. 3) Since the spiral bevel gear is just inserted into the spindle, assemble/disassemble as shown on the below figure.
