Chapter 7
[3]
[3]
3) Free the harness from the wire saddle [2].
- 1 connector [1]
[2]
4) Remove the hopper stirring motor [2] together with the mount.
- 2 screws [1]
[1]
5) Remove the hopper stirring motor [2].
- 1 screw [1]
7-28
[4]
[1]
[3]
[2]
F-7-73
[1]
F-7-74
[2]
[1]
F-7-75
[1] [2]
F-7-76

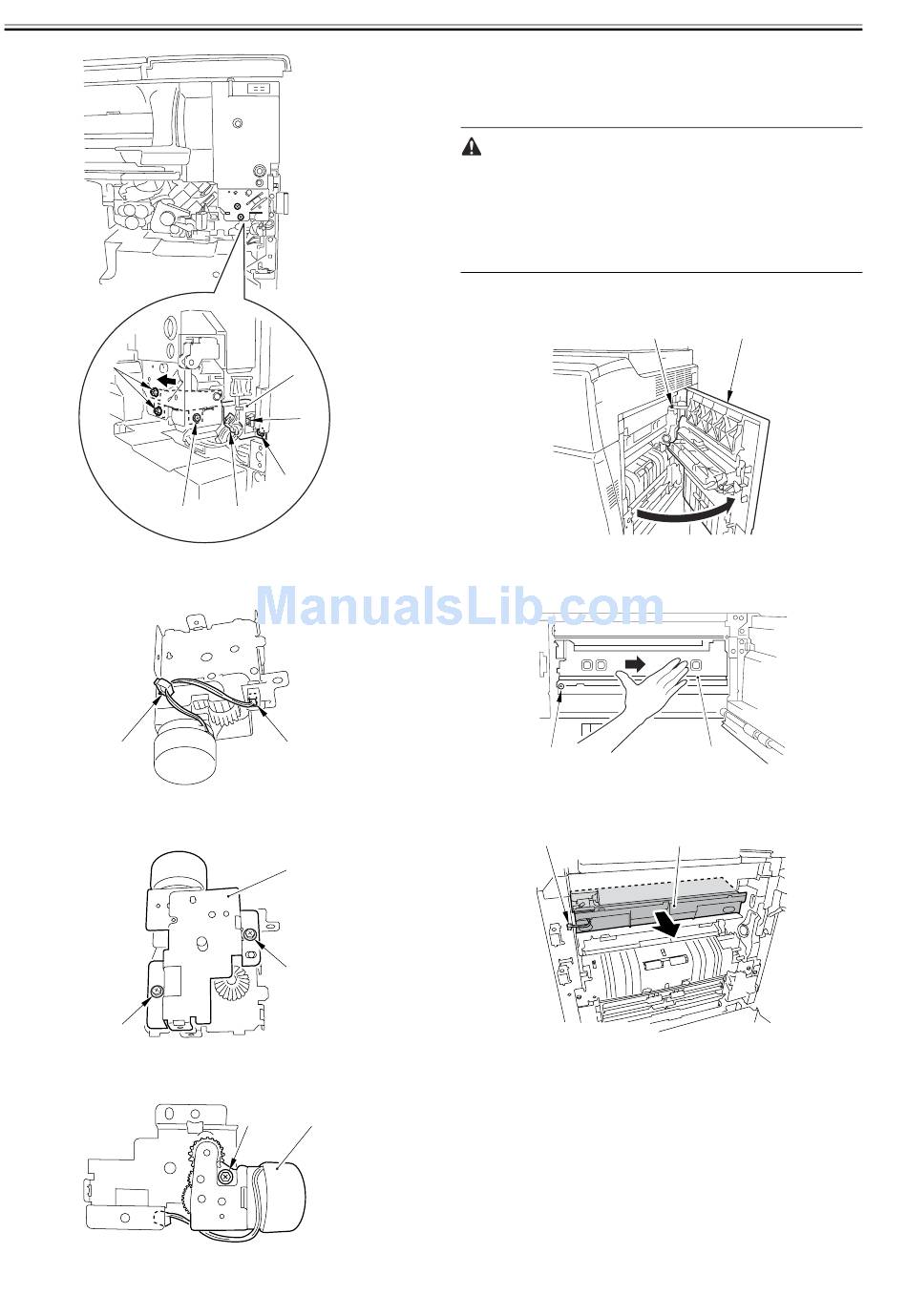

7.10.14 Developing Assembly

7.10.14.1 Removing Developing Assembly

iR5065 / iR 5055 / iR5075 / iR5075N / iR5065N / iR5055N
The machine's developing assembly is not equipped with a cover to protect
the developing cylinder.
If you must remove the developing assembly, be sure not to damage the de-
veloping cylinder.
When the developing assembly is outside the machine, be sure not to mount
the developing assembly locking assembly. The toner collecting in the path
from the hopper to the developing assembly may be strayed because of the
vibration occurring during the inspection or repair work.
1) Open the right door unit (upper) [1], and remove the screw [2] from the
door tape; then, open the unit fully.
2) Remove the developing locking assembly [2] by pushing it in the direction
of the arrow.
- 1 screw [1]
[1]
3) Remove the developing assembly [2] from the machine slowly.
- 1 connector [1]
[1]

7.10.14.2 Cleaning Developing Toner Blocking Sheet

iR5065 / iR 5055 / iR5075 / iR5075N / iR5065N / iR5055N
1) Remove the developing assembly, and clean the developing toner block-
ing sheet [1].
[2] [1]
F-7-77
[2]
F-7-78
[2]
F-7-79
