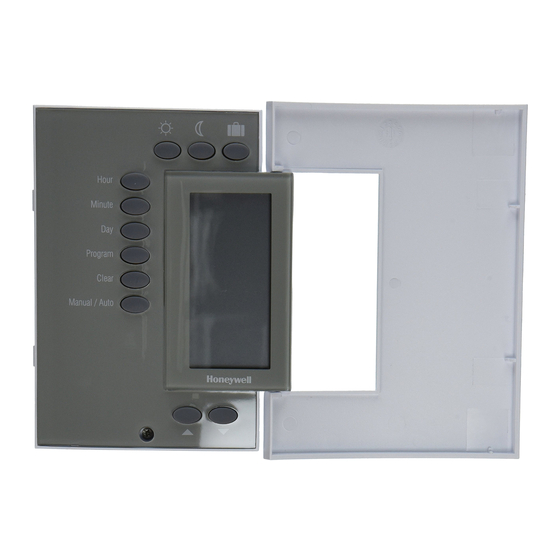

Honeywell TL8100 Manual

7 day programmable hydronic thermostat
Hide thumbs Also See for TL8100:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

See also: User Manual , Instruction and Installation Manual
TL8100
7 DAY PROGRAMMABLE HYDRONIC THERMOSTAT
GUIDELINES
TURN OFF POWER TO THE HEATING SYSTEM AT
THE MAIN POWER PANEL TO AVOID ELECTRICAL
SHOCK. INSTALLATION SHOULD BE CARRIED OUT
BY AN ELECTRICIAN.
• For a new installation, choose a location about 5 ft.
(1.5 m) above the floor.
• The thermostat must be installed on an inside wall.
• Avoid locations where there are air drafts (top of
staircase, air outlet), dead air spots (behind a door),
direct sunlight, or concealed chimneys or stove pipes.
PROCEDURE
1. Loosen the captive screw securing the front mod-
ule to the rear module as shown in Fig. 1.
2. Lift the lower part of the front module to remove it
from the rear module.
3. Loosen the captive screw holding the terminal
cover and remove the cover.
4. Pass the wires through the opening to the right of
the terminals. See Fig. 2. Secure the rear module
to an electrical box or to the wall using the supplied
wall anchors and screws.
5. Connect the wires (see section "Thermostat Wir-
ing" on page 2). Use 12 AWG or smaller wire. 14
AWG is recommended for line voltage, 18 AWG is
recommended for 24 VAC.
6. Install the terminal cover and tighten the screw.
7. Configure the thermostat using the switches
located on the back of the front module (see sec-
tion "Thermostat Configuration" on page 3).
8. Install the batteries (see section "Power-up" on
page 3).
9. Mount the front module onto the rear module and
tighten the screw.

INSTALLATION INSTRUCTIONS

2
1
4
5
8
7
Fig. 1. Installation steps.
Fig. 2. Routing wires to thermostat.
3
6
9
M29963
SUPPLY
LOAD
PROVIDED
WIRES
M29964

Advertisement

Table of Contents
loading

Related Manuals for Honeywell TL8100

Summary of Contents for Honeywell TL8100

  • Page 1: Installation Instructions

    TL8100 7 DAY PROGRAMMABLE HYDRONIC THERMOSTAT INSTALLATION INSTRUCTIONS GUIDELINES TURN OFF POWER TO THE HEATING SYSTEM AT THE MAIN POWER PANEL TO AVOID ELECTRICAL SHOCK. INSTALLATION SHOULD BE CARRIED OUT BY AN ELECTRICIAN. • For a new installation, choose a location about 5 ft.

  • Page 2: Thermostat Wiring

    TL8100 THERMOSTAT WIRING V8043F 120 VAC OR 240 VAC TH, TR TH TR 2 AMP MAXIMUM INDUCTIVE LOAD TL8100 TL8100 M29965 Fig. 3. Wiring diagram for a line voltage circulator. M29978 Fig. 8. Wiring diagram for a 24 VAC V8043F.

  • Page 3: Thermostat Configuration

    HVAC system is able to distribute heat, the smaller the the differential should be. • When more than one TL8100 is wired directly to one zone valve or one zone circulator. See Table 3 to set switches #1 and #2 for how to configure conventional mode.
  • Page 4 TL8100 Automation and Control Solutions Honeywell International Inc. 1985 Douglas Drive North ® U.S. Registered Trademark Golden Valley, MN 55422 © 2012 Honeywell International Inc. 69-2017EFS—03 L.L. Rev. 03-12 customer.honeywell.com Printed in United States...

  • Page 5: Notice D'installation

    TL8100 THERMOSTAT HYDRONIQUE PROGRAMMABLE NOTICE D'INSTALLATION DIRECTIVES COUPER L'ALIMENTATION ÉLECTRIQUE DU SYSTÈME DE CHAUFFAGE AU TABLEAU PRINCIPAL POUR ÉVITER TOUT CHOC ÉLECTRIQUE. IL EST PRÉFÉRABLE DE CONFIER L'INSTALLATION À UN ÉLECTRICIEN. • S'il s'agit d'une nouvelle installation, choisir un emplacement à environ 1,5 m (5 pi) du sol.

  • Page 6: Raccordement Du Thermostat

    TL8100 RACCORDEMENT DU THERMOSTAT V8043F TH, TR TH TR TL8100 120 V c.a. OU 240 V c.a. CHARGE INDUCTIVE DE 2 A MAX. M29978 TL8100 MF29965 Fig. 14. Schéma de câblage pour un circulateur sur Fig. 19. Schéma de câblage d'une vanne de 24 V c.a.

  • Page 7: Configuration Du Thermostat

    TL8100 CONFIGURATION DU • Lorsque plus d'un TL8100 est directement câblé à une vanne de zone ou un circulateur de zone. THERMOSTAT Voir le Table 6 pour régler les interrupteurs n° 1 et 2 au mode conventionnel. Le Table 4 illustre la configuration des interrupteurs au dos du module avant.
  • Page 8 TL8100 Solutions de régulation et d’automatisation Honeywell International Inc. 1985 Douglas Drive North ® Marque de commerce déposée aux États-Unis © 2012 Honeywell International Inc. Golden Valley, MN 55422 Tous droits réservés 69-2017EFS—03 L.L. Rev. 03-12 customer.honeywell.com Imprimé aux États-Unis...

  • Page 9: Instrucciones De Instalación

    TL8100 TERMOSTATO PROGRAMABLE INSTRUCCIONES DE INSTALACIÓN INSTRUCCIONES CORTAR LA ALIMENTACIÓN DEL SISTEMA DE CALEFACCIÓN EN EL PANEL CENTRAL PARA EVITAR RIESGOS DE ELECTROCUCIÓN. LA INSTALACIÓN DEBE REALIZARLA UN ELECTRICISTA. • En el caso de una instalación nueva, elegir un sitio a alrededor de 1.5 m (5 ft) sobre el piso.

  • Page 10: Cableado Del Termostato

    TL8100 CABLEADO DEL TERMOSTATO V8043F TH, TR TH TR TL8100 120 V CA o 240 V CA CARGA INDUCTIVA MÁXIMA DE 2 AMP M29978 TL8100 MS29965 Fig. 30. Diagrama de cableado de la V8043F de 24 V CA. Fig. 25. Diagrama de cableado de un circulador de voltaje de línea.

  • Page 11: Configuración Del Termostato

    TERMOSTATO ventilación y aire acondicionado, menor debe ser el diferencial. • Cuando se conectan más de un TL8100 directamente En la Table 7 se muestra la configuración de los a una válvula de zona o a un circulador de zona.
  • Page 12 TL8100 By using this Honeywell literature, you agree that Honeywell will have no liability for any damages arising out of your use or modification to, the literature. You will defend and indemnify Honeywell, its affiliates and subsidiaries, from and against any liability, cost, or damages, including attorneys’...
