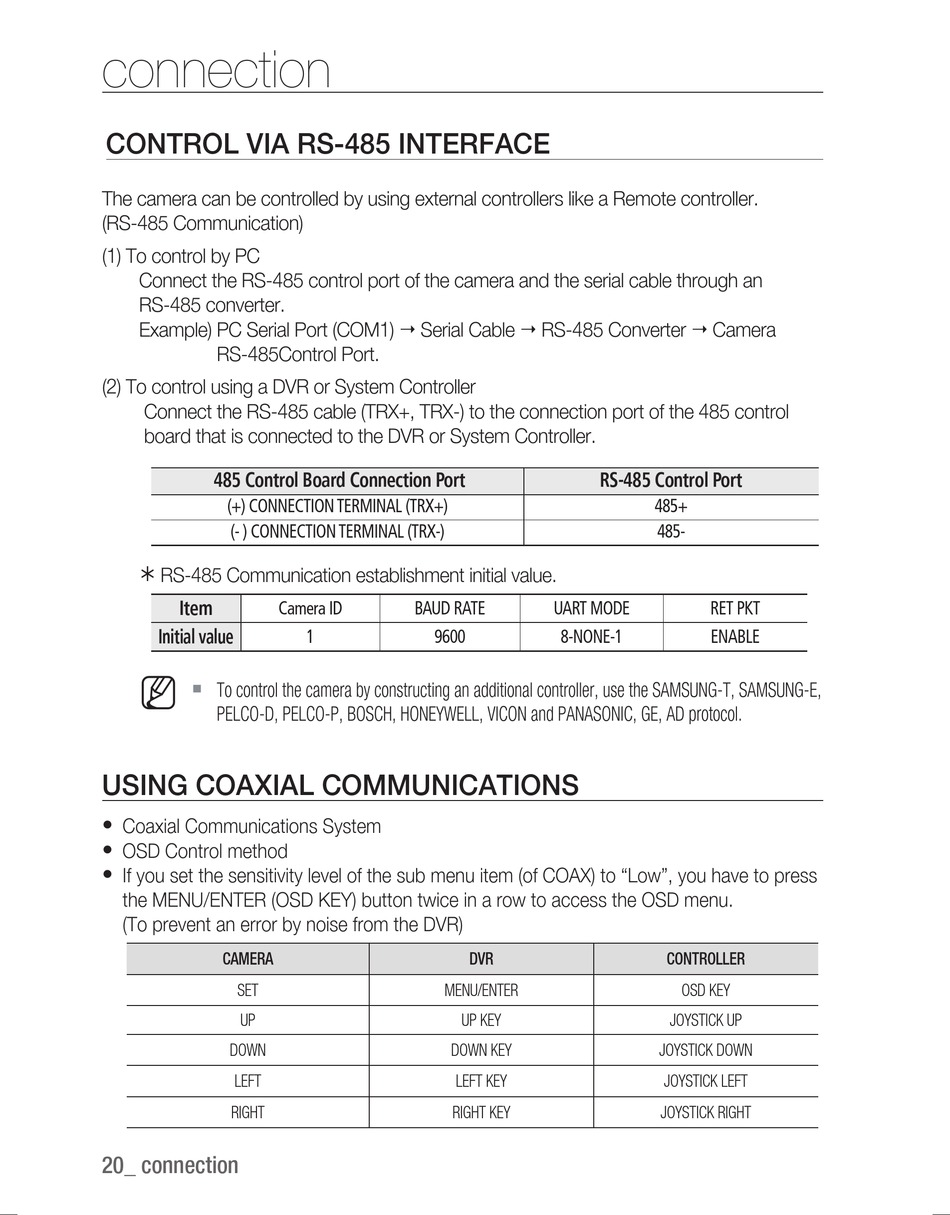

connection
CONTROL VIA RS-485 INTERFACE
The camera can be controlled by using external controllers like a Remote controller.
(RS-485 Communication)
(1) To control by PC
Connect the RS-485 control port of the camera and the serial cable through an
RS-485 converter.
Example) PC Serial Port (COM1)
RS-485Control Port.
(2) To control using a DVR or System Controller
Connect the RS-485 cable (TRX+, TRX-) to the connection port of the 485 control
board that is connected to the DVR or System Controller.
485 Control Board Connection Port
(+) CONNECTION TERMINAL (TRX+)
(- ) CONNECTION TERMINAL (TRX-)
RS-485 Communication establishment initial value.
Item
Initial value
M
To control the camera by constructing an additional controller, use the SAMSUNG-T, SAMSUNG-E,
PELCO-D, PELCO-P, BOSCH, HONEYWELL, VICON and PANASONIC, GE, AD protocol.
USING COAXIAL COMMUNICATIONS
Coaxial Communications System
OSD Control method
If you set the sensitivity level of the sub menu item (of COAX) to "Low", you have to press
the MENU/ENTER (OSD KEY) button twice in a row to access the OSD menu.
(To prevent an error by noise from the DVR)
CAMERA
SET
UP
DOWN
LEFT
RIGHT
20_ connection
Serial Cable
Camera ID
BAUD RATE
1
RS-485 Converter
UART MODE
9600
8-NONE-1
DVR
MENU/ENTER
UP KEY
DOWN KEY
LEFT KEY
RIGHT KEY
Camera
RS-485 Control Port
485+
485-
RET PKT
ENABLE
CONTROLLER
OSD KEY
JOYSTICK UP
JOYSTICK DOWN
JOYSTICK LEFT
JOYSTICK RIGHT
