Connecting Hubs Together

Twisted-Pair Cascade Connections

To expand your network, the hub can be connected to other hubs with straight-
through cable by using the Media Dependent Interface (MDI/MDI-X) switch.
The MDI/MDI-X switch controls how the signals are sent through the twisted-
pair cable connected to Port 1. The hub is shipped with the switch in the MDI-
X position. The switch has two positions:
In the MDI position, use Port 1 to connect your hub to another hub. In
this position, the hub reverses the Tx and Rx port pairs for you. This allows
you to use "straight-through" category 3 or 4 cable rather than "cross-over"
cable to connect two hubs together. The cable length can be up to 100
meters. Category 5 cable length can be up to 150 meters.
Be sure that only one of the two hubs is using an MDI port; the hub-to-
device connection must always have MDI at one end (usually a trans-
ceiver), and MDI-X at the other end (usually a hub or switch), when
connecting the two with a straight-through cable.
In the MDI-X position, use Port 1 to connect your hub to a PC or similar
device using "straight-through" cable. In this position, the port is wired
the same as all other twisted-pair ports on the hub. Cable lengths for these
connections can be up to 100 meters.
1 2 3 4 5 6 13 14
ProCurve 10Base-T Hub 24M
Xcvr
HP J3303A
7 8 9 10 11 12 19 20
Power
Act
Reset Clear
Fault Console

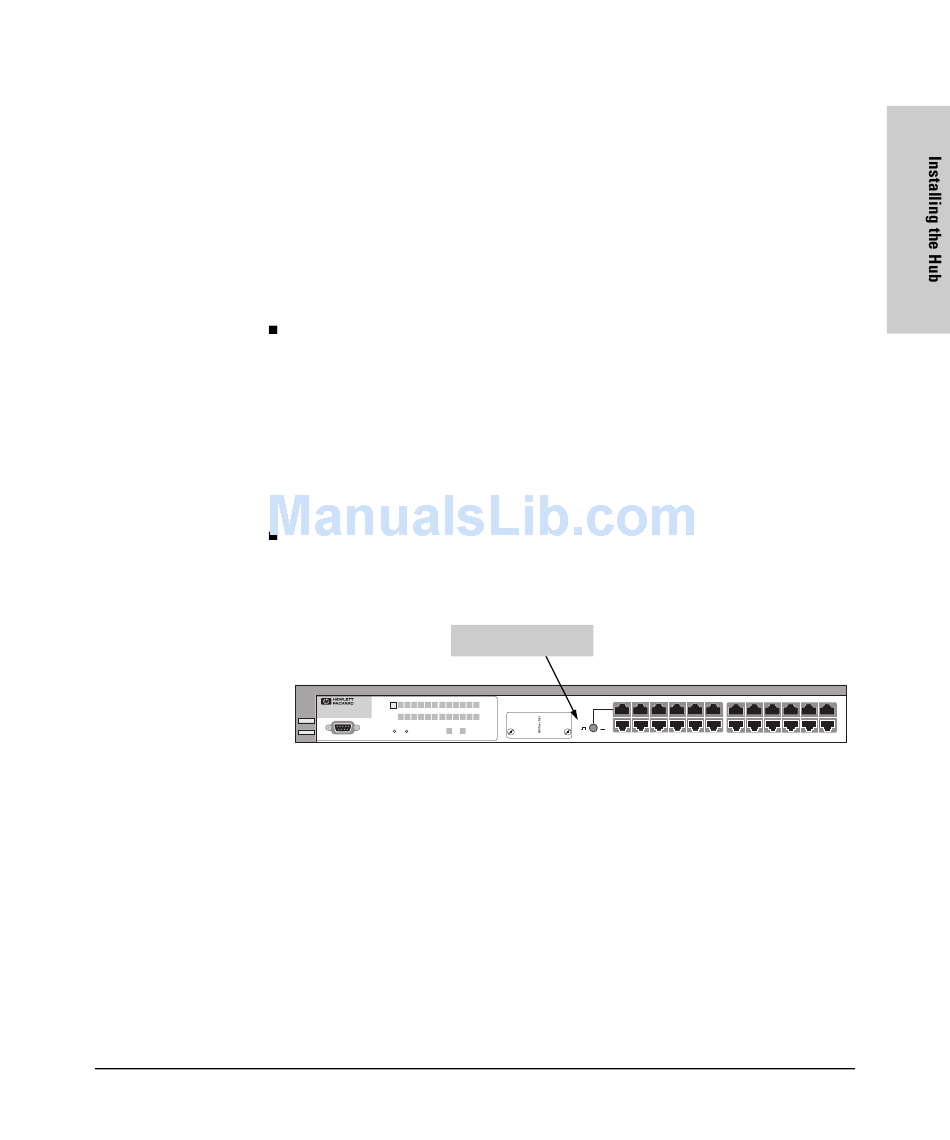

Figure 1-5. The MDI/MDI-X Switch
MDI/MDI-X Switch
1
15 16 17 18
Port 1 Only
10 Mbps Xcvr Port
21 22 23 24
MDI-X MDI
Col
(out) (In)
7X
Installing the Hub
Installing Your Hub
2X 3X 4X 5X 6X
13X 14X 15X 16X 17X
8X 9X 10X 11X 12X 19X 20X 21X 22X 23X
18X
24X
1-9
