Installing the Hub
Installing Your Hub

5. Connect the hub to your network

Connect the hub to an AC power source. With the hub mounted, you are now
ready to connect the hub to your network. Typical hub connections are:
This section describes the different ways you can connect your hub to your
network.
To connect a device to the hub, using unshielded twisted-pair (UTP) cable,
push the RJ-45 plug at one end of the cable into the RJ-45 jack on the hub until
the tab on the plug clicks into place.

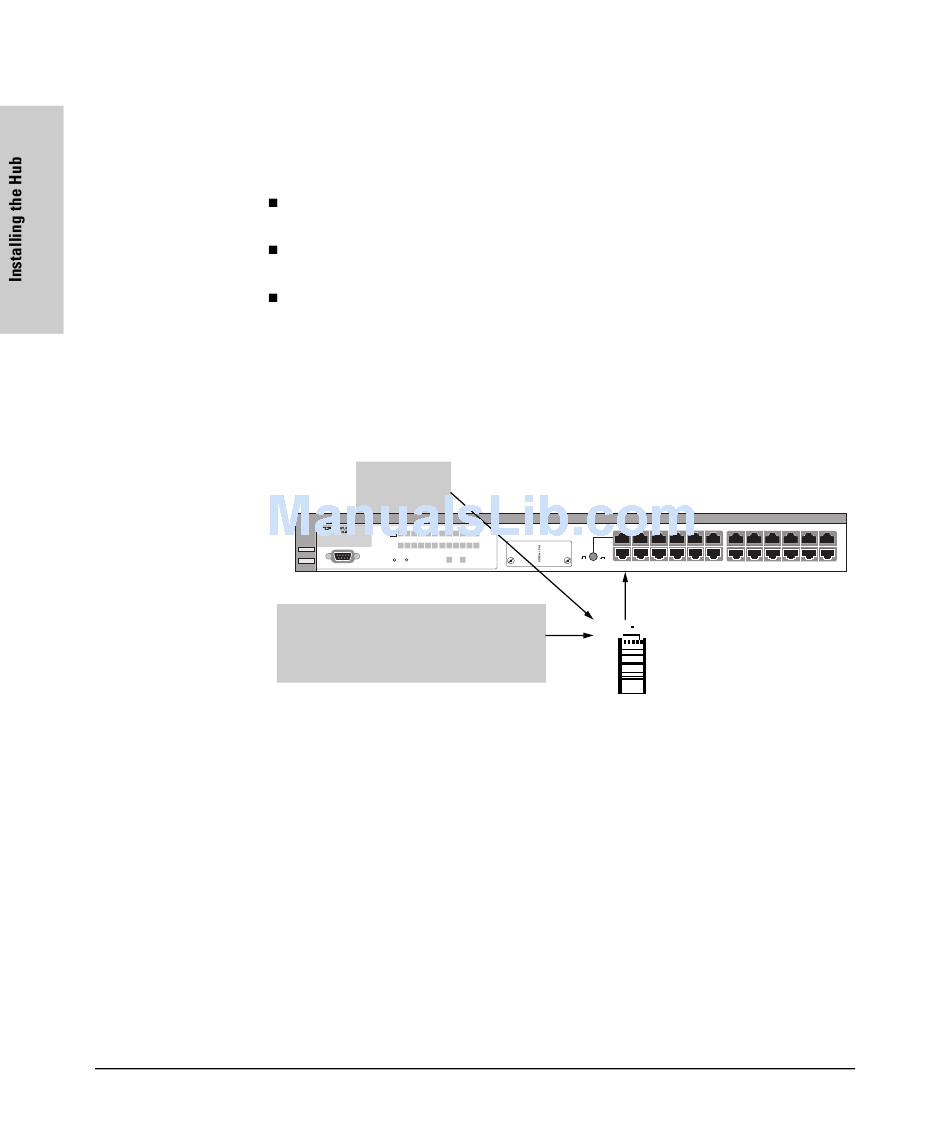

Figure 1-4. The RJ-45 Connector
1-8
hub-to-device connections. Connecting to network devices such as
computers, and printers.
hub-to-hub and hub-to-switch connections. Connecting to another
Ethernet hub.
hub-to-network backbones. Connecting to a network backbone.
RJ-45
Connector
1 2 3 4 5 6 13 14 15 16 17
ProCurve 10Base-T Hub 24M
Xcvr
HP J3303A
7 8 9 10 11 12 19 20 21 22 23
Power
Act Col
Reset Clear
Fault Console
unshielded twisted-pair cable
Category 3, 4, or 5
Cat 3, 4 maximum distance: 100 meters
Cat 5 maximum distance: 150 meters
1 2X
18
Port 1 Only
10 Mbps Xcvr Port
24
MDI-X MDI
(out) (In)
7X 8X
3X 4X 5X 6X 13X 14X 15X 16X 17X 18X
9X 10X 11X 12X
19X 20X 21X 22X 23X 24X
