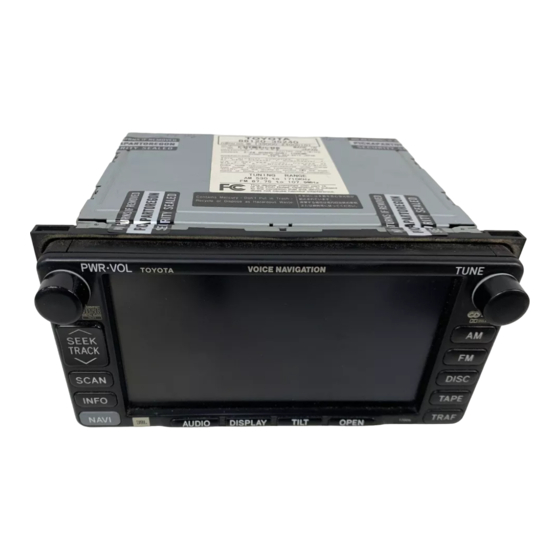

Navigation system
Hide thumbs Also See for 2003 4Runner navigation system:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
Thank you for your purchase of the Navigation System. Please read this manual carefully to ensure proper use. Keep this
manual stored in your vehicle at all times.
The Toyota Navigation System is one of the most technologically advanced vehicle accessories ever developed. The system
receives satellite signals from the Global Positioning System (GPS) operated by the U.S. Department of Defense. Using these
signals and other vehicle sensors, the system can show you where you are and assist you in locating a desired destination.
The navigation system is designed to select efficient routes from your present starting location to your destination. The system is
designed to direct you to a destination that is unfamiliar to you in efficient manners. The system uses the maps of DENSO based
on NAVTECH maps, GDT maps and infoUSA POIs. The calculated routes are neither the shortest routes nor routes without traffic
congestion. Your own personal local knowledge or "short cut" may at times be faster than the calculated routes.
The navigation system's database includes about 50 point of interest categories to allow you to easily select destinations such as
restaurants and banks. If a destination is not in the database, you can enter the street address or a major intersection close to it
and the system will route you there. The system will provide both a visual map and audio instructions. The audio instructions will
announce the distance and direction to go when you are approaching a fork or intersection. These voice instructions will help you
keep your eyes on the road and are timed to provide enough time to allow you to maneuver, change lanes or slow down.
Please be aware that all current vehicle navigation systems have certain limitations that may affect their ability to
perform properly. The accuracy of the vehicle's position depends on the satellite condition, road configuration, vehicle
condition or other circumstances. For more information on the limitations of the system, refer to pages 60 through 62.
E
2002 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in
whole or in part, without the written permission of Toyota Motor Corporation.
4Runner_Navi_U (L/O 0208)
Foreword
i
2003 MY 4Runner Navigation from Aug. '02 Prod. (OM35799U)

Advertisement

Table of Contents
loading

Related Manuals for Toyota 2003 4Runner navigation system

Summary of Contents for Toyota 2003 4Runner navigation system

  • Page 1 The Toyota Navigation System is one of the most technologically advanced vehicle accessories ever developed. The system receives satellite signals from the Global Positioning System (GPS) operated by the U.S. Department of Defense. Using these signals and other vehicle sensors, the system can show you where you are and assist you in locating a desired destination.
  • Page 2 “ACC”, initial hicle or its equipment if the warning “TOYOTA” screen appears is ignored. You are informed about system begins operating. what you must or must not do in Touch either “English” or “French” to order to avoid or reduce the risk of select a language.
  • Page 3 4Runner_Navi_U (L/O 0208) “I agree” When touch switch screen, “map” screen appears. You can access this screen when you “INFO” push the button and touch the “Language” switch. Then you can select a language. 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)

  • Page 4: Safety Instruction

    4Runner_Navi_U (L/O 0208) Safety Instruction Before attempting to use this system CAUTION while you are driving, learn how to use it and become thoroughly familiar with it. For safety, the driver should not Read entire Navigation System operate navigation system Manual to make sure you understand the L00002 while he/she is driving.
  • Page 5 4Runner_Navi_U (L/O 0208) While you are driving, listen to the voice instructions as much as possible and glance at the screen briefly and only when it is safe. However, do not totally rely on voice guidance. Use it just for your information.
  • Page 6 4Runner_Navi_U (L/O 0208) Overview of Touch Screen and Switches Switch operation This system is operated mainly by the switches on the screen. To prevent damage to the screen, lightly touch switches on the screen with your fin- ger. When you touch a switch on the screen or push button,...
  • Page 7 4Runner_Navi_U (L/O 0208) Symbols, Switches and Buttons Current vehicle position mark North–up or heading–up symbol Indicates the current position. GPS mark (Global Positioning and scale of map For details, see page 39. System) Indicates a map view with north up MAP/VOICE tab Whenever your vehicle is or heading up.
  • Page 8 4Runner_Navi_U (L/O 0208) Changing the route guidance When touch this switch, “Change route” screen will appear. For details, see page 50. One–touch registration of marked point To register the current vehicle position as a marked point. For details, see page 83. Display of point of interest Symbols such as restaurants and hotels,...

  • Page 9: Table Of Contents

    4Runner_Navi_U (L/O 0208) SECTION BASIC FUNCTIONS Descriptions of basic operations in frequent use Your navigation system ........Inputting letters and numbers .
  • Page 10 4Runner_Navi_U (L/O 0208) Limitations of the navigation system ......Map database information and updates .

  • Page 11: Your Navigation System

    4Runner_Navi_U (L/O 0208) Your navigation system Inputting letters and numbers The navigation system is operated by CAUTION switches on the screen and the but- tons located on the front face around Take care not to jam your hand the screen. When you touch a switch while the display is moving.
  • Page 12 4Runner_Navi_U (L/O 0208) “List” Touching the switch will change appears to the right of the the screen to a display of the database item name, the complete name items that match the name or address is too long for the display. that you have entered on the screen.

  • Page 13: How To Move The Cursor

    4Runner_Navi_U (L/O 0208) How to move the cursor L00016 “Adjust” 1. Touch the switch to move the cursor 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 14 4Runner_Navi_U (L/O 0208) L00017 " Position locating screen on the map 2. When you touch an arrow facing your desired point, the map scrolls in that direction. When you release your finger, scrolling stops. “Enter” 3. If you touch the switch, the position of cursor is set.

  • Page 15: Destination Input Explains 11 Ways To Input Your Destination Explains 11 Ways To Input Your Destination

    4Runner_Navi_U (L/O 0208) Destination input “DEST” Touch the tab on the screen and the “Destination” screen appears. States included in the search Switch area L00019 Idaho Oregon Washington L00018 California Nevada Arizona “US1” Touch through Colorado “CAN” switches to select a search Montana “OK”...
  • Page 16 4Runner_Navi_U (L/O 0208) You can find your destination using vari- Alabama Canada ous methods. See pages 11 through 25 Arkansas Provinces and regions included for the detailed steps. Louisiana Switch in the search area Mississippi Tennessee Alberta British Columbia Connecticut Manitoba Maine New Brunswick...
  • Page 17 4Runner_Navi_U (L/O 0208) 3. By Address: You can input the house number and the street address by using the input keys. See page 12 for the detailed steps. 4. By POI: You can select one of the many points of interest that have been already stored in the system’s database. There are about 50 categories to choose from, including restaurants, banks and automotive locations.
  • Page 18 4Runner_Navi_U (L/O 0208) 5. By Marked Point: You can register your own favorite destinations as a “Marked Point”. The system allows you to store up 100 marked points. See page 20 for the detailed steps. 6. By Previous Destination: You can select a destination from any of the last 20 previously set destinations. See page 21 for the detailed steps.
  • Page 19 4Runner_Navi_U (L/O 0208) Destination input by HOME 11. By Map Selection: You can select a destination simply by touching the location on the displayed map. See page 25 for the detailed steps. INFORMATION Touch the switch on the Destina- D When setting the destination, you D When inputting the destination, the tion input screen.
  • Page 20 4Runner_Navi_U (L/O 0208) Destination input by PRESET Destination input by (a) Inputting a house number DESTINATION ADDRESS and a street name “Address” Touch the switch on the Touch any of — (preset des- destination screen. “Address” tination) switches on the “Destination” screen appears, and then you can in- screen.
  • Page 21 4Runner_Navi_U (L/O 0208) L00022 L00015 L00023 After each letter is input, the system When you find your desired street If you input a street name first, the searches the database for street names name, touch of the item. The screen changes. You can then input the that match.
  • Page 22 4Runner_Navi_U (L/O 0208) (b) Selecting a city to search The screen for selecting last 5 cities ap- The screen for inputting a city name ap- The current screen changes to the “Input city “City” pears if you touch the pears if you touch the switch on screen which is for inputting a street name”...
  • Page 23 4Runner_Navi_U (L/O 0208) Destination input by POI (a) Input the name directly “POI” There are 3 ways to select a point of Touch the switch on the “Des- interest location. tination” screen. (a) Input the name directly (b) Selecting a city to search L00028 (c) Selecting from the categories It will not take a long time for you to...
  • Page 24 4Runner_Navi_U (L/O 0208) (c) Selecting from the (b) Selecting a city to search categories “City” “Category” Touch the switch on the “POI” Touch the switch on the screen. “POI” screen. L00030 L00029 L00031 Input the city name. If the number of sites becomes 4 or less, Last 5 cities are displayed on the categories shown...
  • Page 25 4Runner_Navi_U (L/O 0208) When you touch the of your de- sired item, the screen changes and displays the map location of the se- lected destination and the route prefer- ence. (See “(a) Entering destination” L00033 L00183 on page 26.) Once you have selected a category, you If you input the name of a specific point L00036 can touch letters directly on the screen...
  • Page 26 4Runner_Navi_U (L/O 0208) POI (Points of Interest) icons PARKING LOT RESTAURANT CONTINENTAL JAPANESE RENTAL CAR AGENCY MEXICAN TOYOTA DEALERSHIPS CHINESE SEAFOOD (all search areas) LEXUS DEALERSHIPS FRENCH SHOPPING (all search areas) ITALIAN AUTOMOBILE CLUB GROCERY STORE AUTO SERVICE & OTHER...
  • Page 27 4Runner_Navi_U (L/O 0208) CONVENTION/EXHIBITION GOLF COURSE WINERY CENTER SKI RESORT CITY HALL COURT HOUSE AMUSEMENT PARK POLICE STATION TRAIN STATION (all search areas) SPORTS COMPLEX LIBRARY AIRPORT (all search areas) CASINO HOSPITAL BUS STATION PARK/RECREATION MARINA COMMUTER RAIL STATION (all search areas) TOURIST ATTRACTION CIVIC/COMMUNITY FERRY TERMINAL...
  • Page 28 4Runner_Navi_U (L/O 0208) Destination input by MARKED POINTS “Marked points” Touching switch on the “Destination” screen dis- plays your list of registered marked PARK AND RIDE SCHOOL points. See page 76 on registering and editing marked points. REST AREA L00037 TOURIST INFORMATION HIGHER EDUCATION HISTORICAL MONUMENTS...
  • Page 29 4Runner_Navi_U (L/O 0208) Destination input by PREVIOUS DESTINATION “Prev. dest” There are 3 ways to list the marked Touch the switch on You can delete the list of previous des- point by touching switches on bottom the “Destination” screen. tinations while you stop your car, if you of the screen.
  • Page 30 4Runner_Navi_U (L/O 0208) Destination input by EMERGENCY “Emergency” touching INFORMATION switch on the “Destination” screen, the display changes to a screen to select navigation system does dealers, hospitals or police stations. guide in areas where route guidance L00041 During driving, only nearby police sta- is unavailable.
  • Page 31 4Runner_Navi_U (L/O 0208) Destination input by INTERSECTION “Intersection” Touch the switch on the “Destination” screen. L00043 EMV3111U L00042 Touch the of your desired item. After inputting the two intersecting If the same two streets cross at more streets, the screen changes and dis- Input the name of the two intersecting than one intersection, the screen changes plays the map location of the selected...
  • Page 32 4Runner_Navi_U (L/O 0208) Destination input by FREEWAY ENTRANCE or EXIT To input a freeway entrance or exit, “FWY Ent./Exit” touch the switch on the “Destination” screen. L00045 L00047 L00044 Select the desired freeway by touching Touch the of the desired entrance or exit name.
  • Page 33 4Runner_Navi_U (L/O 0208) Destination input by Destination input by MAP PREVIOUS STARTING POINT “Previous starting “Map” There are 2 ways to list the freeway Touch Touch the switch on the “Des- point” entrance or exit. switch on the “Destination” tination” screen. screen.

  • Page 34: Setting And Deleting Destination

    4Runner_Navi_U (L/O 0208) Setting and deleting destination (a) Entering destination After you input the destination, the You are given a number of choices on The switches you select are highlighted screen changes and displays the map the conditions which the system uses to in green.
  • Page 35 4Runner_Navi_U (L/O 0208) (b) Adding destinations Quick: A route by which you can reach the destination in the shortest time This route is indicated by an orange line. Short: A route by which you can reach L00052 the destination in the shortest distance This route is indicated by a purple line.
  • Page 36 4Runner_Navi_U (L/O 0208) L00059 “Edit route” 2. Touch the switch. L00056 “Add” 3. Touch the switch of Destination. 4. Input an additional destination in the same way as the destination input. (See page 26.) 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 37 4Runner_Navi_U (L/O 0208) L00055 “Add” 5. The add destination screen appears. Touch the switch that you want to add a destination. 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 38 4Runner_Navi_U (L/O 0208) (c) Relocating destinations “MENU” “Edit route” 1. Touch the tab on the screen to display the “Menu” screen and touch the switch. L00056 “Reorder” 2. Touch the switch under “Destination”. 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 39 4Runner_Navi_U (L/O 0208) (d) Deleting destination L00057 3. Select the destinations in the order of arrival by touching the switch. After you finished selecting the destina- “OK” tions, touch the switch. The pre- vious screen returns. L00056 “Delete” 1. Touch the switch under “Destination”.

  • Page 40: Setting And Deleting Preferred Road

    4Runner_Navi_U (L/O 0208) Setting and deleting preferred road (a) Adding preferred road “Yes” 3. A message appears to confirm your request to delete. To delete the destination(s), touch the switch. “Yes” If you touch the switch, the data cannot be recovered. “No”...
  • Page 41 4Runner_Navi_U (L/O 0208) (b) Modifying preferred road “Next” Touch the switch to change Select the preferred road which you the road type. want to modify and touch the switch. L00056 L00061 L00063 “Modify” Touch the switch under “Set preferred road”. The “Modify pre- ferred road”...

  • Page 42: Search Condition

    4Runner_Navi_U (L/O 0208) (c) Deleting preferred road Search condition “Delete” 1. Touch the switch under “Set preferred road”. The “Delete preferred road” screen appears. L00064 “Delete all” 2. Select the preferred road which you want to delete. Touch the switch if you want to delete all preferred roads.

  • Page 43: Route Guidance Screen

    4Runner_Navi_U (L/O 0208) “Search Condition” Route guidance screen Touch switch on the “Edit route” screen. The The route guidance system has two “Search condition” screen appears. different screen modes. L00065 L00067 L00072 Split screen: Map and guidance screen are shown in a screen mode. (For detail “Quick”...
  • Page 44 4Runner_Navi_U (L/O 0208) Upon reception signals The “Change route” screen INFORMATION from the GPS (Global Posi- appears following tioning System), this mark settings are available. If the calculated route includes a trip appears. (For details, by ferry, the route guidance shows a page 60.) sea route.

  • Page 45: Route Overview

    4Runner_Navi_U (L/O 0208) Route overview Route preview “Route preview” Touch the switch To review the route to the on the “Menu” screen. The “Route pre- previous starting point view” screen appears. fast–forward mode To indicate the previous start- L00059 ing point L00070 “Route overview”...
  • Page 46 4Runner_Navi_U (L/O 0208) L00071 “Edit” Touch the switch to display the “Edit route preview” screen. To next POI: Preview the next POI. To next : Preview the next destination. Delete: Delete the POI icon. Select POI: Select the POI icon. “OK”...

  • Page 47: Current Position Display

    4Runner_Navi_U (L/O 0208) Current position display Voice guidance Voice guidance to the destination dur- INFORMATION ing route guidance. Use voice guid- ance just for your reference. When you use the “one–touch” scroll feature, the current vehicle position You can adjust the volume of the voice mark may disappear from the screen.

  • Page 48: Typical Voice Guidance Prompts

    4Runner_Navi_U (L/O 0208) Typical voice guidance prompts INFORMATION freeways, interstates other highways with higher speed limits, L00075 the voice guidance will be made at UN301 earlier points than on city streets in order to allow time to maneuver. Touch number select “Off”...
  • Page 49 4Runner_Navi_U (L/O 0208) 4.2 miles One–way road 0.25 miles NZ018 EMV3114U EMV3115U One–way road : The system indicates a U–turn if the The system announces your approach to “Proceed about 4 miles to the distance between two one–way roads (of the final destination.

  • Page 50: Registering Your Home

    4Runner_Navi_U (L/O 0208) Registering your home INFORMATION D If the system cannot determine the current vehicle position correctly (in cases of poor GPS signal recep- tion), the voice guidance may be made early or delayed. D If you did not hear the voice guid- “MAP/ ance command, touch the VOICE”...
  • Page 51 4Runner_Navi_U (L/O 0208) If you register your home address be- forehand, you can easily set the route back to your home. L00059 “MENU” “Marked points” 1. Touch the tab on the screen to display the “Menu” screen and touch the switch.
  • Page 52 4Runner_Navi_U (L/O 0208) If your home is already registered, the “Delete home” switch will appear. L00077 You may register the location of your home by ten different methods: ad- dress, POI, marked points, previous destination, intersection, freeway en- trance/exit, map, current position or preset destinations.
  • Page 53 4Runner_Navi_U (L/O 0208) DELETING YOUR HOME L00059 “MENU” “Marked points” 1. Touch the tab on the screen to display the “Menu” screen and touch the switch. L00078 “Delete home” 2. Touch the switch on the “Marked points” screen. 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)

  • Page 54: Registering Preset Destinations

    4Runner_Navi_U (L/O 0208) Registering preset destinations You can register up to 5 preset des- tinations. L00079 The screen changes and displays the map location of home and a message. If you are sure that you want to delete, “Yes” touch the switch.
  • Page 55 4Runner_Navi_U (L/O 0208) L00081 3. Touch any of the — switches for which you want to register the preset destination. If you have already registered a preset destination, you can overwrite it. L00082 4. Input the preset destination in the same way as the destination input. (See page 26.) 2003 MY 4Runner Navigation from Aug.
  • Page 56 4Runner_Navi_U (L/O 0208) EDITING PRESET DESTINATIONS “MENU” “Marked points” 1. Touch the tab on the screen to display the “Menu” screen and touch the switch. L00080 “Edit” 2. Touch the switch of preset destinations L00083 3. Select the destination that you want to edit and touch the switch.
  • Page 57 4Runner_Navi_U (L/O 0208) DELETING PRESET DESTINATIONS L00084 You can change the name, location and phone number of the preset destination in the same way as editing marked points. “Change” Touch the switch. (See page 77.) “MENU” “Marked points” 1. Touch the tab on the screen to display the “Menu”...

  • Page 58: Detour Setting

    4Runner_Navi_U (L/O 0208) Detour setting L00085 3. Select the destination that you want to delete and touch the switch. If you want to delete all the preset destinations, touch the “Delete all” When you are driving while the route switch. guidance is operating, you can change Messages appear depending on the type the route to detour around a section...
  • Page 59 4Runner_Navi_U (L/O 0208) Detour route suggested by the sys- INFORMATION D When your vehicle is on a freeway, the detour distance selections are 5, 15, and 25 miles. L00086 D The system may not be able to cal- culate a detour route depending on selected distance sur-...

  • Page 60: Displaying Poi

    4Runner_Navi_U (L/O 0208) Displaying POI Points of interest such as gas stations A window with a limited choice of points and restaurants can be displayed on of interest will be displayed. When you the map screen. You can also set their touch your desired type of point of inter- location as a destination and use them est, symbols will appear on the map...

  • Page 61: Turn List

    4Runner_Navi_U (L/O 0208) Turn list “Route” By turning the switch on, you The map will shift so that the symbol is You can change from the map screen can search for POIs on the route when centered on the screen and overlaps with to a “Turn List”...
  • Page 62 4Runner_Navi_U (L/O 0208) L00091 “Turn list” 2. The screen will change to the entire route map screen where you can touch the switch. 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 63 4Runner_Navi_U (L/O 0208) “Map” Touch the switch of your de- INFORMATION sired point. point which choose displayed D The current vehicle position mark L00092 screen. appears bottom screen next to the name of the street you are driving on. The mark does not move.

  • Page 64: Map Appearance

    4Runner_Navi_U (L/O 0208) Map appearance You can select the single screen map or the dual screen map. You can also change the half of the screen to the guidance screen by touching the map/ guidance switch while the map screen is displayed.
  • Page 65 4Runner_Navi_U (L/O 0208) L00094 2. The screen will change to the “Map appearance” screen and you can select the map mode and the guidance mode. Map mode Single map Dual map To display single map screen To display dual map screen Guidance mode L00074 L00097...

  • Page 66: Map Scale

    4Runner_Navi_U (L/O 0208) Map scale Arrow screen Turn list screen L00098 L00095 L00096 Touch to change the scale of the map display. The scale bar and This screen shows the current road name The screen shows the Turn List. You can- and the distance to the next corner.

  • Page 67: Screen Scrolling

    4Runner_Navi_U (L/O 0208) Screen scrolling “Mark” If you touch switches such as INFORMATION “POI” , etc., the screen does not scroll When the map scale is at the maxi- and the selected function operates. mum range of 128 miles, will After you scroll the screen, the map re- L00099 disappear.

  • Page 68: Orientation Of The Map

    4Runner_Navi_U (L/O 0208) Limitations of the navigation Orientation of the map system You can change the orientation of the This navigation system calculates the map from the north–up to the heading current vehicle position using satellite up by touching the orientation symbol signals, various vehicle signals, map L00100 at the top left of the screen.
  • Page 69 4Runner_Navi_U (L/O 0208) (a) Accurate current vehicle position may not be shown in the following cases: The GPS satellites may not send signals When driving on a small angled Y– due to repairs or improvements being shaped road. made to them. When driving on a spiral road.
  • Page 70 4Runner_Navi_U (L/O 0208) (b) Inappropriate route guidance may occur in the following cases: When the tire pressure in any of the When turning at a wrong intersection If the route to your destination in- four tires is not correct. off the designated route guidance cludes gravel, unpaved roads or al- leys, the route guidance may not be If you set more than one destination...
  • Page 71 4Runner_Navi_U (L/O 0208) Map database information and updates There are two types of areas available This system uses the maps of DENSO for route guidance. (See the following based on NAVTECH maps, GDT maps pages.) In one type of area, primarily and infoUSA POIs.
  • Page 72 “Menu” screen. The “DVD information” screen ap- The map database is normally updated pears and displays the map database once a year. Contact your Toyota dealer version. for information about the availability and pricing of an update.
  • Page 73 4Runner_Navi_U (L/O 0208) Route guidance availability 1NO077 2001 by NAVTECH Route guidance available areas Route guidance available for main roads only 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 74 4Runner_Navi_U (L/O 0208) Route guidance availability 1NO078 2001 by NAVTECH Route guidance available areas Route guidance available for main roads only 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 75 4Runner_Navi_U (L/O 0208) Route guidance availability 1NO088 2001 by NAVTECH Route guidance available areas Route guidance available for main roads only 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 76 4Runner_Navi_U (L/O 0208) Route guidance availability 1NO089 2001 by NAVTECH Route guidance available areas Route guidance available for main roads only 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 77 4Runner_Navi_U (L/O 0208) Route guidance availability 1NO090 2001 by NAVTECH Route guidance available areas Route guidance available for main roads only 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 78 4Runner_Navi_U (L/O 0208) Route guidance availability 1NO091 2001 by NAVTECH Route guidance available areas Route guidance available for main roads only 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 79 4Runner_Navi_U (L/O 0208) Route guidance availability 1NO083 2001 by NAVTECH Route guidance available areas Route guidance available for main roads only 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 80 4Runner_Navi_U (L/O 0208) Route guidance availability 1NO084 2001 by NAVTECH Route guidance available areas Route guidance available for main roads only 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 81 4Runner_Navi_U (L/O 0208) Route guidance availability 1NO085 2001 by NAVTECH Route guidance available areas Route guidance available for main roads only 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 82 4Runner_Navi_U (L/O 0208) Route guidance availability 1NO086 2001 by NAVTECH Route guidance available areas Route guidance available for main roads only 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 83 4Runner_Navi_U (L/O 0208) SECTION ADVANCED FUNCTIONS Descriptions of operations for more effective use Marked points ..........Area to avoid .
  • Page 84 4Runner_Navi_U (L/O 0208) Marked points (a) Registering marked points You can register and keep your own marked points of interest list (like res- taurants, sports facilities, etc.) and use the marked points to input a destina- L00059 tion. “MENU” “Marked points” 1.
  • Page 85 4Runner_Navi_U (L/O 0208) (b) Editing marked points L00104 A screen similar to that for destination input appears. Input the address of the marked point in the same way as any destination input. See pages 11 through “Back” 3. After you finish registering the marked point, touch the switch.
  • Page 86 4Runner_Navi_U (L/O 0208) “MENU” “Marked points” 1. Touch the tab on the screen to display the “Menu” screen and touch the switch. L00078 “Edit” 2. Touch the switch under “Marked points”. 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 87 4Runner_Navi_U (L/O 0208) CHANGING THE ICON L00106 L00105 L00107 “Change” The screen lists the marked points. Touch the switch to edit the each item. Sort by Icon: Touch this switch to list Touch your desired icon. the marked points in order of the type of Page 1 and page 2: You can select one symbol.
  • Page 88 4Runner_Navi_U (L/O 0208) CHANGING THE NAME CHANGING THE PHONE NUMBER L00109 L00108 L00110 Touch the direction switches and adjust “OK” the direction. Touch the switch. Touch alphabet or numeral keys direct- Touch numeral keys directly. The buzzer sounds when your vehicle ap- ly to input the name.
  • Page 89 4Runner_Navi_U (L/O 0208) (c) Deleting marked points CHANGING THE POSITION register marked points. If you attempt to register more than 100, a message appears for con- firmation. L00111 L00118 Touch the arrows to scroll to your de- sired point on the map screen. “OK”...
  • Page 90 4Runner_Navi_U (L/O 0208) “MENU” “Marked points” 1. Touch the tab on the screen to display the “Menu” screen and touch the switch. L00078 “Delete” 2. Touch the switch of the marked point. L00112 3. Touch of the marked point to delete. 2003 MY 4Runner Navigation from Aug.
  • Page 91 4Runner_Navi_U (L/O 0208) (d) One–touch marked point registration A screen for confirmation will appear with the map of the marked point. If “Yes” you want to delete it, touch “No” “Back” Touching will re- L00115 turn to the previous screen. L00114 If you want to delete all of the marked “Delete...
  • Page 92 4Runner_Navi_U (L/O 0208) Area to avoid If you want to register a new point, de- Any areas you want to avoid due to lete one of the marked points. See “(c) traffic jams, construction work or other Deleting marked points”. reasons can be registered as areas to avoid.
  • Page 93 4Runner_Navi_U (L/O 0208) (a) Registering area to avoid INFORMATION D Some areas and freeways may not be able to be set as an avoid point. D If a destination is input in the avoid area or the route calculation cannot be made without running through the avoid area, a route passing through the avoid area may be shown.
  • Page 94 4Runner_Navi_U (L/O 0208) “OK” (b) Editing area to avoid 3. Touch the switch when the cursor is at the center of the area that you want to avoid. L00121 4. Depending on the contents to be edited, touch either switch. “OK”...
  • Page 95 4Runner_Navi_U (L/O 0208) “Edit” 1. Touch the switch under “Area to avoid” to display the “Edit area to avoid” screen. L00123 2. Touch the point you want to edit from the list. L00124 L00125 You can edit the name, location and size of the area to avoid.
  • Page 96 4Runner_Navi_U (L/O 0208) (c) Deleting area to avoid INFORMATION D If you try to change the map to an inappropriate scale, a message ap- pears. D For magnification or reduction of the map scale, see page 58. “Delete” 1. Touch the switch to display the “Delete area to avoid”...
  • Page 97 4Runner_Navi_U (L/O 0208) Current position calibration Delete all: All the areas to avoid regis- tered in the system are deleted. L00128 L00127 3. Either of the above messages appears. “Yes” To delete the area(s), touch the switch. The current vehicle position mark will If you want to try again or cancel the be automatically corrected during driv- “No”...
  • Page 98 4Runner_Navi_U (L/O 0208) L00129 “Calibration” 2. Touch the switch. L00129 “Position/Direction” 3. Touch the switch. INFORMATION For additional information on current position accuracy, see “Limitations of the navigation system” on page 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 99 4Runner_Navi_U (L/O 0208) POSITION/DIRECTION CALIBRATION L00130 1. Touch the scroll arrows to move the cursor to your desired location. “OK” Touch the switch. L00131 2. Touch either the left or right arrow to correct the direction of the current vehicle position mark. “OK”...
  • Page 100 4Runner_Navi_U (L/O 0208) The tire change calibration function should be used when the tires are re- placed. This will adjust for any pos- sible change in tire circumference from the old tires to the new ones. If this procedure is not performed when tires are replaced, the current vehicle posi- tion mark may become incorrect.
  • Page 101 4Runner_Navi_U (L/O 0208) SECTION MORE ADVANCED FUNCTIONS Convenient features Setup ............Map color .

  • Page 102: Setup

    4Runner_Navi_U (L/O 0208) Setup You can set the values shown on the Setup screen. “MENU” 1. Touch the tab on the screen. L00059 “Setup” 2. Touch the switch to display the “Setup” screen. Select your desired items you want to set. Selected items will be highlighted in green.

  • Page 103: Map Color

    4Runner_Navi_U (L/O 0208) Map color Distance: change “km” “miles” to display your desired units. Notify seasonal restrict: You can select to notify or not to notify a seasonal re- striction. Voice guidance in all modes: You can set the voice guide in all mode or not. Current street name: You can select to show or not to show a current street name on the map screen.

  • Page 104: Auto Reroute

    4Runner_Navi_U (L/O 0208) Auto reroute When auto reroute feature turned on, the system will automatical- ly search for a new route to the des- tination leave guidance route. This feature does not operate while you are driving on roads where the guidance is not available.

  • Page 105: Estimated Travel Time

    4Runner_Navi_U (L/O 0208) “MENU” “Setup” Estimated travel time 1. Touch the tab on the screen to display the “Menu” screen, and touch the switch. L00059 L00133 “On” 2. Touch the switch of “Auto reroute”. If you can not find the item on the list, touch to scroll up or down the list.
  • Page 106 4Runner_Navi_U (L/O 0208) “MENU” “Setup” 1. Touch the tab on the screen to display the “Menu” screen, and touch the switch. 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 107 4Runner_Navi_U (L/O 0208) L00134 “On” 2. Touch the switch of the Estimated travel time. If you cannot find the item on the list, touch to scroll up or down the list. 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 108 4Runner_Navi_U (L/O 0208) L00135 To set average speeds: “Change speed” 1. Touch the switch of “Estimated travel time”. 2. Touch to set average vehicle speeds for driving on a freeway, main street and residential road. “Default” If you touch the switch, the default speed is set at each item.

  • Page 109: Adjusting Time Zone

    4Runner_Navi_U (L/O 0208) Adjusting time zone INFORMATION D The displayed time to the destina- tion is the approximate driving time calculated based on the speeds you selected and your actual posi- tion along the guidance route. D The time shown may vary greatly depending on your progress along the route (which may be affected by road conditions such as traffic...
  • Page 110 4Runner_Navi_U (L/O 0208) “MENU” 1. Touch the tab on the screen. L00059 “Setup” 2. Touch the switch. L00162 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 111 4Runner_Navi_U (L/O 0208) “Adjust” 3. Touch the switch. The “Adjust time zone” screen appears on the display. L00163 4. Select your desired time zone. The selected switch is highlighted in green. “On” Touch the switch and then touch to set daylight saving time. “OK”...

  • Page 112: Distance Indication

    4Runner_Navi_U (L/O 0208) Distance indication “MENU” 1. Touch the tab on the screen. L00059 “Setup” 2. Touch the switch. L00161 “km” “mile” 3. Touch to select your desired units. “OK” 4. Touch the switch. 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)

  • Page 113: Notification Of Seasonal Restrictions

    4Runner_Navi_U (L/O 0208) Notification of seasonal restrictions “MENU” 1. Touch the tab on the screen. L00059 “Setup” 2. Touch the switch. L00149 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)

  • Page 114: Voice Guidance In All Modes

    4Runner_Navi_U (L/O 0208) “On” “OK” Voice guidance in all modes 3. Touch the switch of the “Notify seasonal restrict”. Touch the switch. The screen returns to the previous map. L00150 The restricted road icon and message will appear on the screen. 2003 MY 4Runner Navigation from Aug.
  • Page 115 4Runner_Navi_U (L/O 0208) “MENU” 1. Touch the tab on the screen. L00059 “Setup” 2. Touch the switch. L00164 “On” 3. Touch the switch on the right of “Voice guide in all mode”. 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)

  • Page 116: Current Street Name

    4Runner_Navi_U (L/O 0208) Current street name “MENU” 1. Touch the tab on the screen. L00059 “Setup” 2. Touch the switch. L00147 “On” 3. Touch the switch on the right of “Current street name”. 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)

  • Page 117: Maintenance Information

    4Runner_Navi_U (L/O 0208) Maintenance information The current street name appears on the map screen. NZN044 L00148 L00136 This system has a function which in- forms you of the time to replace cer- tain parts or components as well as other information shown screen.
  • Page 118 4Runner_Navi_U (L/O 0208) “INFO” “Maintenance” 1. Push the button to display the “Information Menu” screen, and then touch the switch. L00137 2. Touch your desired icon and input the conditions. 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 119 4Runner_Navi_U (L/O 0208) Delete all: Cancel all conditions which INFORMATION ITEMS have been input. Reset all: Reset all items which satisfy Oil change either condition. “Off” Touch the switch on the “Mainte- L00138 nance” screen, “Information” Replace oil filter screen will no longer be displayed. INFORMATION Rotate tires D For scheduled maintenance infor-...

  • Page 120: Dealer Setting

    4Runner_Navi_U (L/O 0208) Dealer setting (a) Registering dealer Replace brake fluid L00137 L00139 Replace ATF Scheduled maintenance You can register your dealer’s name “Set address. Touch dealer” switch on the Maintenance Replace air filter screen. Personal 1. Enter your dealer’s location address in the same way as you input any destination. (See pages 11 through 25.) 2003 MY 4Runner Navigation from Aug.
  • Page 121 4Runner_Navi_U (L/O 0208) (b) Editing dealer L00140 2. After you enter your dealer, the screen changes and displays the map location of the dealer. If it is OK, touch the “Enter” switch. The current screen changes to the screen where you can edit the data of your deal- er.
  • Page 122 4Runner_Navi_U (L/O 0208) EDITING THE NAME OF THE DEALER EDITING THE LOCATION EDITING THE PHONE NUMBER OR CONTACT L00143 L00144 L00142 Touch the arrows to scroll to your de- Touch numeral keys directly. Touch alphabet or numeral keys direct- sired point on the map screen. After you finish your entry, touch the ly to input the name.
  • Page 123 4Runner_Navi_U (L/O 0208) (c) Deleting dealer L00141 “Set dealer” “Delete dealer” 1. Touch the switch and then touch the switch. L00146 “Yes” 2. A selected point will appear. Also, a message will appear at the bottom of the screen. To delete, touch the “No”...

  • Page 124: Calendar With Memo

    4Runner_Navi_U (L/O 0208) Calendar with memo (a) Inputting a memo L00185 L00153 L00153 “INFO” Push the button to display This system has a function which in- the “Information Menu” screen. Touch forms you the memo you entered. “Calendar” switch to display When the system begins operating af- the “Calendar”...
  • Page 125 4Runner_Navi_U (L/O 0208) 1. Touch directly on the day you want to input a memo. L00186 “Memo” 2. Touch the switch to display the “Memo” screen. 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 126 4Runner_Navi_U (L/O 0208) L00160 3. Touch keys directly to input a memo. You can input up to 24 letters. 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 127 4Runner_Navi_U (L/O 0208) (b) Adding a Memo After you input the memo, touch the “OK” switch at the bottom right of the screen. The previous screen will appear. You can input a memo until December 31. 2020. L00186 L00186 You can select your desired date and/ When you want to add a memo, touch “Chg.
  • Page 128 4Runner_Navi_U (L/O 0208) (c) Deleting a memo (d) Editing a memo (e) Memo list L00186 L00186 L00186 L00160 Touch the date which you already If you want to edit the memo, touch If you want to look at the memo you “Edit”...
  • Page 129 4Runner_Navi_U (L/O 0208) If you want to remove all of the date colors of date you input, touch the “Remove color of date” switch. A message appears on the display. To “Yes” remove the colors, touch the L00158 L00156 switch. To allow the colors to remain, “No”...
  • Page 130 4Runner_Navi_U (L/O 0208) SECTION OTHER FUNCTIONS Other functions Screen adjustment ......... . Screen transition .
  • Page 131 4Runner_Navi_U (L/O 0208) Screen adjustment You can adjust the brightness or con- trast of the screen depending on the brightness of your surroundings. You also can turn the screen off. “DISPLAY” 1. Push the button. The following adjustment screen appears. NZN043 L00181 BRIGHTNESS: Adjusts the brightness of...
  • Page 132 4Runner_Navi_U (L/O 0208) Screen transition NZN065 NZN044 Depending on the position of the head- You can select a function that enables light switch, the screen changes to the automatic return previous day mode or night mode. screen from the audio screen. To display the screen in the day mode even with the headlight switch on, touch “DAY MODE”...
  • Page 133 4Runner_Navi_U (L/O 0208) NZN045 “ON” “OFF” “OK” 2. Select and then touch The previous screen automatically returns from the audio screen 20 seconds after the end of audio op- eration. OFF: The audio screen remains on. 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 134 4Runner_Navi_U (L/O 0208) 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 135 4Runner_Navi_U (L/O 0208) SECTION AUDIO SYSTEM Audio system Quick reference for your audio system ..... . . Your audio system .

  • Page 136: Quick Reference For Your Audio System

    4Runner_Navi_U (L/O 0208) Quick reference for your audio system “TUNE” knob Function switch display screen Turn this knob to move up or Touch the switches displayed on down station band. the screen to control the radio, details, see page 134. “PWR·VOL”...

  • Page 137: Your Audio System

    4Runner_Navi_U (L/O 0208) Your audio system The slots for the cassette tape player and compact disc player are behind the display. To lower the display, push the “OPEN” button. After you inserting the cassette tape or compact disc, push the button L00004 again to close the display.

  • Page 138: Using Your Audio System

    4Runner_Navi_U (L/O 0208) Using your audio system— —Some basics This section describes some of the basic features of the Toyota audio system. Some information may not pertain to your system. Your audio system works when the igni- tion switch is in the “ACC” or “ON” posi- L00166 tion.
  • Page 139 4Runner_Navi_U (L/O 0208) INFORMATION D If the system does not respond to a touch of a switch, move your fin- ger away from the screen and then touch it again. D You cannot operate dimmed switches. D Wipe off fingerprints on the surface of the display using a glass clean- ing cloth.
  • Page 140 4Runner_Navi_U (L/O 0208) (b) Tone and balance (c) Surround function How good an audio program sounds to you Touching the “SURROUND” switch dis- is largely determined by the mix of the played on the screen at the audio con- treble, midrange, and bass levels. In fact, trol mode will turn on or off the sur- NZN030 different kinds of music and vocal programs...
  • Page 141 4Runner_Navi_U (L/O 0208) (d) Your radio antenna (e) Your cassette player (f) Your compact disc player Your vehicle has an antenna printed on When you insert a cassette, insert it with When you insert a compact disc, insert the inside of the rear quarter windows. the exposed tape side to the right.
  • Page 142 4Runner_Navi_U (L/O 0208) —Radio operation (g) Your DVD player If your Toyota is equipped with a DVD player with changer, it can play selected discs or continuously play all the discs set in the magazine. When you set discs into the magazine,...
  • Page 143 4Runner_Navi_U (L/O 0208) (b) Presetting a station 1. Tune in the desired station. 2. Touch one of the station selector switches (1–6) and hold it until a beep is heard. This sets the station to the switch and the frequency appears on the switch Each radio mode (AM, FM1 or FM2) can To scan all the frequencies: Touch the store up to 6 stations.
  • Page 144 4Runner_Navi_U (L/O 0208) To scan the preset stations: Touch the “RDS SRCH” (RDS search) switch “SCAN” switch on the screen or push the This switch allows you to search all avail- “SCAN” button for longer than 2 seconds. able RDS stations out of the entire FM “P.
  • Page 145 4Runner_Navi_U (L/O 0208) If no RDS stations are found, “No RDS To recall a radio text messages stored in Stations Found” will be displayed and the memory, touch “RECALL” switch. beep sounds. Then the radio will return Touching the “LATEST MESSAGE” will to the previous FM mode and frequency.
  • Page 146 4Runner_Navi_U (L/O 0208) —Cassette tape player operation (a) Playing a cassette tape To insert a cassette tape, push the “OPEN” button to lower the display. Put the cassette tape in the slot with the exposed tape side to the right and lightly push it in.
  • Page 147 4Runner_Navi_U (L/O 0208) To stop and eject the cassette tape, push NOTICE the “OPEN” button to lower the display. Do not obstruct the display while it Push the “TAPE ” button. is moving. It could damage your au- dio system. L00173 2003 MY 4Runner Navigation from Aug.
  • Page 148 4Runner_Navi_U (L/O 0208) : Dolby noise reduction manufactured under license from (b) Manual program selection Dolby Laboratories Licensing Corporation. “DOLBY” and the A " Program switch: Touch “ ” double D symbol are trademarks of Dolby Laboratories Licensing Corporation. switch on the screen to select the other side of a cassette tape.
  • Page 149 4Runner_Navi_U (L/O 0208) (c) Automatic program selection Push the lower side of this button to skip backward. Push the button until “REW” “RPT” switch: The repeat feature auto- and the number of programs you want to matically replays the current program. skip appears on the screen.
  • Page 150 4Runner_Navi_U (L/O 0208) —Compact disc player operation (a) Playing a compact disc NOTICE To insert a compact disc, push the Do not obstruct the display while it “OPEN” button to lower the display. is moving. It could damage your au- Put the compact disc in the slot with dio system.
  • Page 151 4Runner_Navi_U (L/O 0208) To stop and eject the compact disc, push the “OPEN” button to lower the display. Push the “CD ” button. The compact disc player can play the L00175 discs marked as shown above. The fol- lowing products may not be playable on your compact disc player.
  • Page 152 4Runner_Navi_U (L/O 0208) Reverse: Touch the “ ” switch and hold it to reverse the disc. When you release the switch, the compact disc player will resume playing. L00178 L00176 Push the “DISC” button if a compact (b) Selecting a desired track disc is already loaded in the slot.
  • Page 153 If the player still does not operate, have “RPT” switch: Use it for automatic re- it checked by your Toyota dealer. (c) Searching for a desired track peat of the track you are currently listen- ing to.
  • Page 154 4Runner_Navi_U (L/O 0208) —DVD player operation The DVD player can play audio CDs, DVD video discs and video CDs. For appropriate discs for this player, see “Car audio/video system operating hints” on page 176. For safety reasons, you can enjoy DVD NCY006 video discs and video CDs only when the vehicle is completely stopped with the...
  • Page 155 4Runner_Navi_U (L/O 0208) NCY007 2. Slide the cover to eject the magazine. 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 156 4Runner_Navi_U (L/O 0208) NZY001 3. Pull out the tray while pushing the lock release button. 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 157 4Runner_Navi_U (L/O 0208) NZY002 4. Put a disc on the tray with its label face up and push the tray back into the magazine. If the label faces down, the disc cannot be played. In this case, “DISC CHECK” and disc number appears on the screen. If a disc which is not playable is inserted, “DISC CHECK”...
  • Page 158 4Runner_Navi_U (L/O 0208) When the magazine is set completely, the system will be in a load cycle for approxi- mately 30 seconds while the system CAUTION searches for discs in the magazine. Upon completion of this cycle, the DVD player To reduce the chance of injury in unit will be ready to play.
  • Page 159 4Runner_Navi_U (L/O 0208) (d) Operating an audio CD (c) Selecting a desired disc Touch the desired disc number on the screen. The selected disc number is highlighted in green. The player will start playing the selected disc from the first track or chapter. 1.
  • Page 160 4Runner_Navi_U (L/O 0208) L00176 2. Selecting a desired track “TRACK” button: Use for direct access to a desired track. Reverse: Touch the “ ” switch on the Push either side of the “TRACK” button screen and hold it to reverse the disc. and hold it until the desired track number When you release the switch, the player appears on the display.
  • Page 161 4Runner_Navi_U (L/O 0208) “Scan” will be highlighted in green. The player will play the next track for 10 sec- Touch the “DISK SCAN” switch. onds, then scan again. To select a track, “DISC SCAN” will be highlighted in green. touch the “SCAN” switch again. If the The program at the beginning of each player reaches the end of the disc, it will disc will be played for 10 seconds.
  • Page 162 4Runner_Navi_U (L/O 0208) (e) Operating a DVD video disc The title/chapter number and playback time display may not appear while playing NOTE: The playback condition of some back certain DVD video discs. DVD video discs may be determined by the manufacturer of the DVD video CAUTION software producer.
  • Page 163 4Runner_Navi_U (L/O 0208) 1. Playing a DVD video disc Touch the number of the disc you want to play. The selected disc is au- tomatically played. When you touch the “PICTURE” switch, the video screen appears. For safety reasons, you can enjoy DVD NZN016 video discs only when the vehicle is com- pletely stopped with the ignition switch in...
  • Page 164 4Runner_Navi_U (L/O 0208) 3. Description of each switch SWITCHES ON TOP PAGE “SET UP” switch: The initial set up “"” switch: Touch this switch to resume screen appears. (See page 158.) normal play after a stop or pause. “ ”, “Menu”...
  • Page 165 4Runner_Navi_U (L/O 0208) Enter the title number using “–”, “+” and “+10” switches and touch “Enter”. The player starts playing video for that title number. Push “ ” or “ ” on the “TRACK” switch to select a chapter. NZN019 Touch “Return”, and the previous screen returns.
  • Page 166 4Runner_Navi_U (L/O 0208) NZN021 7. Changing the angle The angle can be selected for discs that are multi–angle compatible when the angle mark appears on the display. Each time touch “Angle”, angle changes. Touch “Return”, and the previous screen NZN022 returns.
  • Page 167 4Runner_Navi_U (L/O 0208) If you cannot find the language you want to hear on this screen, touch “Others” SUBTITLE LANGUAGE and enter a language code. For the entry You can change the subtitle language. of language code, see the following “12. Entry of language code”.
  • Page 168 4Runner_Navi_U (L/O 0208) 10 touches of “Clear” will initialize the per- sonal code. 3. Touch a parental level (1–8) on the “Select Restriction Level” and touch “Enter”. 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 169 4Runner_Navi_U (L/O 0208) If you touch “Others” on the “Select Audio Lang.” screen, “Select Subtitle Lang.” screen or “Select DVD lan- guage” screen, you can select the lan- guage you want to hear or read by entering a language code. NZN023 12.
  • Page 170 4Runner_Navi_U (L/O 0208) Code Language 0126 Azerbaijani 0615 Faroese 1001 Japanese 0201 Bashkir 0625 Frisian 0514 English 0205 Byelorussian 0701 Irish 0618 French 0207 Bulgarian 0704 Scots–Gaelic 0405 German 0208 Bihari 0712 Galician 0920 Italian 0209 Bislama 0714 Guarani 0519 Spanish 0214 Bengali...
  • Page 171 4Runner_Navi_U (L/O 0208) 1111 Kazakh 1325 Burmese 1912 Slovenian 1112 Greenlandic 1401 Nauru 1913 Samoan 1113 Cambodian 1405 Nepali 1914 Shona 1114 Kannada 1415 Norwegian 1915 Somali 1119 Kashmiri 1503 Occitan 1917 Albanian 1121 Kurdish 1513 (Afan) Oromo 1918 Serbian 1125 Kirghiz 1518...
  • Page 172 4Runner_Navi_U (L/O 0208) 2118 Urdu 2315 Wolof 2126 Uzbek 2408 Xhosa 2020 Tatar 2209 Vietnamese 2515 Yoruba 2023 2111 Ukrainian 2215 Volapük 2621 Zulu 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 173 4Runner_Navi_U (L/O 0208) NZN064 (f) Operating a video CD 1. Playing a video CD Touch the number of the disc you want to play. When you touch the “PICTURE” switch, the video screen appears. For safety reasons, you can enjoy video CDs only when the vehicle is completely stopped with the ignition switch in the “ACC”...
  • Page 174 4Runner_Navi_U (L/O 0208) NZN026 NZN027 2. Displaying operation switches If you touch a part of the screen where switches are not located while you are watching video on the video CD, video CD operation switches will appear. 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 175 4Runner_Navi_U (L/O 0208) “Second Page” switch: Use this switch to display the operation switches on the second page. “Top Page” switch: Use this switch to display the operation switches on the top page. “Hide Keys” switch: Use this switch to turn off the operation switches from the display.
  • Page 176 4Runner_Navi_U (L/O 0208) NZN028 4. Searching by track Enter the track numbers using “–”, “+” If “DVD DOOR OPEN” appears on the and “+10” switches and touch “Enter”. display: It indicates that the door of the (g) If the player malfunctions The player starts playing video for that DVD player is open.
  • Page 177 4Runner_Navi_U (L/O 0208) If the malfunction is not rectified: Take (h) DVD video disc information your vehicle to your Toyota dealer. 1. DVD player and DVD video discs This DVD player conforms to NTSC color TV formats. DVD video discs...
  • Page 178 4Runner_Navi_U (L/O 0208) Indicates NTSC format of color TV. Indicates the number of audio tracks. Indicates the number of language subtitles. Indicates the number of angles. Indicates the screen to be selected. Wide screen: 16:9 Standard: 4:3 Indicates regions in which this video disc can be played.
  • Page 179 4Runner_Navi_U (L/O 0208) DVD video discs: Digital Versatile Disc that holds video. DVD video discs have Level 8: All types of DVD video discs can Manufactured under license from Dolby adopted “MPEG2”, one of the world stan- be played. Laboratories. “Dolby”, “Pro Logic”,...

  • Page 180: Audio Remote Controls

    4Runner_Navi_U (L/O 0208) Audio remote controls 2003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
  • Page 181 4Runner_Navi_U (L/O 0208) Some parts of the audio system can be adjusted with the button on the steering wheel. Details of the specific buttons, controls, and features are described below. 1. Volume control button 2. “ ” button 3. “MODE” button CY17001 2003 MY 4Runner Navigation from Aug.
  • Page 182 4Runner_Navi_U (L/O 0208) 1. Volume control button Push “+” to increase the volume. The Push “–” to decrease the volume. The volume continues to increase while the volume continues to decrease while the button is being pressed. button is being pressed. 2.
  • Page 183 4Runner_Navi_U (L/O 0208) There must be at least 3 seconds of DVD player blank space between tracks To skip to a different chapter or track in switch to work correctly. In addition, the either direction: feature may not work well with some spo- Use this switch to skip up or down to a ken, live, or classical recordings.

  • Page 184: Car Audio/Video System Operating Hints

    4Runner_Navi_U (L/O 0208) Car audio/video system operating hints 3. “MODE” button Push the “MODE” button to select an audio mode. Each time you push this For example, nearby buildings and terrain button, the system changes between the NOTICE can interfere with FM reception. Power radio, cassette tape player, compact disc lines or telephone wires can interfere with To ensure the correct audio/video...
  • Page 185 4Runner_Navi_U (L/O 0208) Static and fluttering—These occur when CARING YOUR CASSETTE Avoid using cassettes with a total signals are blocked by buildings, trees, or PLAYER AND TAPES playing time longer than 100 minutes other large objects. Increasing the bass (50 minutes per side). The tape used For the best performance for your cas- level may reduce static and fluttering.
  • Page 186 4Runner_Navi_U (L/O 0208) CAUTION Audio CDs Compact disc players and DVD play- invisible laser beam which could cause hazardous radi- ation exposure if directed outside DVD video discs the unit. Be sure to operate the play- ers correctly. Video CDs Compact disc player DVD player Use only compact discs marked as...
  • Page 187 4Runner_Navi_U (L/O 0208) Z17038 Z17037 Z17052 Correct Wrong Special shaped discs Labeled discs Handle discs carefully, especially when you are inserting them. Hold them on the edge and do not bend them. Avoid NOTICE getting fingerprints on them, particular- ly on the shiny side. To prevent damage to the player or changer, do not use special shaped, Dirt, scrapes, warping, pin holes, or...
  • Page 188 4Runner_Navi_U (L/O 0208) Z17053 To clean a disc: Wipe it with a soft, lint– free cloth that has been dampened with water. Wipe in a straight line from the center to the edge of the disc (not in circles). Dry it with another soft, lint–free cloth.

Table of Contents
