Electrolux EIDW6305GS - 24-in Built in Dishwasher Service Data Sheet

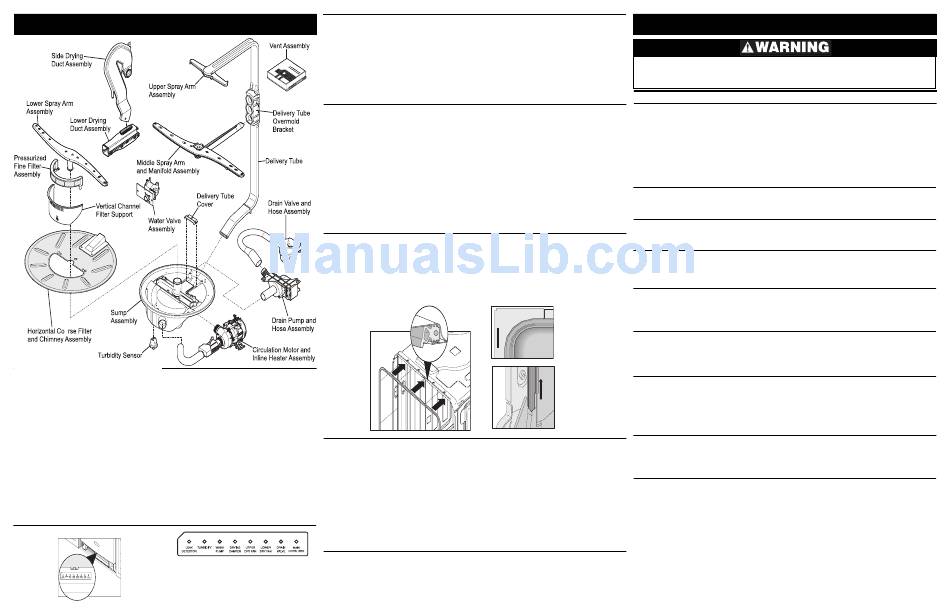

Exploded View of Wash System
a
Pump Assembly
The pump assembly is driven by a permanent The drain valve is connected to the drain pump
split capacitor motor. When looking at the output by a rubber hose and is mounted to the
shaft, rotation is in the counterclockwise direction dishwasher base. The drain valve maintains
at 3300RPM when driven by 120V 60Hz AC pressure in the pressurized fine filter. The
signal. The motor drives a pump which supplies intermediate drain hose is attached by a worm
100% filtered water at the rate of approximately gear clamp to the discharge end of the drain
19 GPM to all three spray arms at once. valve.
Draining is accomplished by using a small The drain hose must have a loop at a minimum
seperate synchronous drain pump mounted to height of 32 inches in order to ensure proper
the sump. The drain pump is connected to the drainage.
sump by a small rubber hose and two mounting
The main pump is removed by disconnecting
points. A check valve is located at the discharge
both attached clamps and hoses, removing the
end of the drain pump.
three screws that secure the motor base to the
dishwasher base, unlatching the leak detector,
and disconnecting the wiring harness
connections to the pump assembly.
Componenet Error LED Indications
To gain access to the Control Housing Assem-
bly, remove kickplate assembly. LED indicates
which component is the source of the error.
Standard Dry Air Flow
air is mixed with hot, humid air existing the tub
When the control advances to the "dry" portion of
the cycle, the lower fan located in the Lower in the Lower Drying Duct Assembly. This lowers
Drying Duct Assembly is activated. Then, the the temperature and humidity of the air exiting
the unit through the toe and kickplate. The
Vent Assembly located in the top right corner of
the tub is activated. The vent fan draws in the air addition of cooler, dryer outside air helps to
from outside the tub forcing the hot, humid air out speed evaporation of water from the hot dishes.
the Side Drying Duct Assembly and into the
Lower Drying Duct Assembly. Cool dry outside
Detergent and Rinse Aid Dispenser
The detergent and rinse aid dispenser is a one To replace dispenser:
piece component consisting of a molded
• shut off electricity to dishwasher,
detergent cup and a built-in rinse aid dispenser.
• remove outer door panel assembly and foam
barrier,
The detergent cup has a spring loaded cover
• disconnect wiring to the dispenser,
and the rinse aid dispenser has a removable
• remove the six screws and bracket,
cover.
• remove the dispenser,
Liquid rinse aid is added to the dispenser up to • replace and reinstall in reverse order,
the fill line indicator. The amount of rinse aid • rewire actuator.
released can be adjusted by turning the arrow
indicator from one, being the least amount, to
four, being the greatest amount.
Tub Gasket
3. Press the gasket while stretching around
The door gasket is pressed into the tub channel
the corners.
for an interference fit. To install the gasket:
1. Locate the center mark on the gasket and NOTE: There should be no wrinkles or
puckers in the corners.
press into place.
4. Place the gasket end at the bottom and
2. Press the gasket across the header using
your thumb. then press the gasket in from the bottom up.
Product Specifications
Electrical
Water Supply
Suggested minimum incoming water
Rating ................................... 120 Volts, 60Hz
temperature ............................. 120°F (49°C)
Separate Circuit..15 amp min.- 20 amp max.
Motor (Amps) ........................................... .75 Pressure (PSI) min./max. ................... 20/120
Heater Wattage ..................................... 1200 Connection (NPT) .....................................
Total Amps (load rated) ........................ 10.0
Consumption (Normal Cycle) .......................
TempAssure .............................. 140°F ±5°F
............. 4.9 - 9.7 U.S. gal., 18.5 - 36.7 liters
(60°C±3°C) [with outer door in place]
Water valve flow rate (U.S. GPM) ........... .83
TempBoost ............. 145°F ±5°F (63°C ±3°C)
Water recirculation rate (U.S. GPM) ..............
Heated Wash/Heated Rinse
.................................................... approx. 19
Sanitize .................. 150°F ±5°F (66°C ±3°C)
Water fill time ................................... 87 sec.
Hi-Limit Thermostat ................ 200°F (93°C)
Trouble Shooting Tips
Personal Injury Hazard
Always disconnect the dishwasher from the electrical power source before adjusting or
replacing components.
Symptom
Check the Following
Dishwasher will not operate when
1. Fuse (blown or tripped).
turned on.
2. 120 VAC supply wiring connection
faulty.
3. Electronic control board defective.
4. No 12 VAC power to control.
5. Motor (inoperative).
6. Door switch (open contacts).
7. Door latch not making contact with
door switch.
8. Touch pad circuit defective.
9. No indicator lamps illuminate when
START or OPTIONS are pressed.
Motor hums but will not start or
1. Motor (bad bearings).
run.
2. Motor stuck due to prolonged
non-use.
1. Improper voltage.
Motor trips out on internal thermal
2. Motor windings shorted.
overload protector. 3. Glass or foreign items in pump.
1. Heater element (open).
Dishwasher runs but will not heat.
2. Electronic control board defective.
3. Wiring or terminal defective.
4. Hi-Limit thermostat defective.
1. Latch mechanism defective.
Detergent cover will not latch or 2. Electronic control board defective.
open.
3. Wiring or terminal defective.
4. Broken spring(s).
5. Defective actuator.
Dishwasher will not pump out. 1. Drain restricted.
2. Electronic control board defective.
3. Defective drain pump.
4. Blocked impeller.
5. Open windings.
6. Wiring or terminal defective.
7. Defective Drain Valve.
Dishwasher will not fill with water.
1. Water supply turned off.
2. Defective water inlet fill valve.
3. Check fill valve screen for
obstructions.
4. Defective float switch.
5. Electronic control board defective.
6. Wiring or terminal defective.
7. Float stuck in "UP" position.
Dishwasher water siphons out. 1. Drain hose (high) loop too low.
2. Drain line connected to a floor drain
not vented.
3. Drain valve or pump stuck open.
1. Detergent allowed to stand too long
Detergent left in dispenser.
/ "
3 in dispenser.
8
2. Dispenser wet when detergent was
added.
3. Detergent cover held closed or
blocked by large dishes.
4. Improper incoming water
temperature to properly dissolve
detergent.
5. See "Detergent cover will not open."
6. Spray arm blocked.
7. Is water getting into the unit.
Remedy
1. Replace fuse or reset breaker.
2. Repair or replace wire fasteners at
dishwasher junction box.
3. Replace control board.
4. Replace control board.
5. Replace motor/impeller assembly.
6. Replace latch assembly.
7. Replace latch assembly.
8. Replace console assembly.
9. Replace console assembly.
1. Replace motor assembly.
2. Rotate motor impeller.
1. Check voltage.
2. Replace motor/impeller assembly.
3. Clean and clear blockage.
1. Replace heater element.
2. Replace control board.
3. Repair or replace.
4. Replace thermostat.
1. Replace dispenser.
2. Replace control board.
3. Repair or replace.
4. Replace dispenser.
5. Replace dispenser.
1. Clear restrictions.
2. Replace control board.
3. Replace pump.
4. Check for blockage, clear.
5. Replace pump assembly.
6. Repair or replace.
7. Repair or replace.
1. Turn water supply on.
2. Replace water inlet fill valve.
3. Disassemble and clean screen.
4. Repair or replace.
5. Replace control board.
6. Repair or replace.
7. Clean or replace float.
1. Repair to proper 32-inch minimum
height .
2. Install air gap at counter top.
3. Repair or replace.
1. Instruct customer/user.
2. Instruct customer/user.
3. Instruct customer/user on proper
loading of dishes.
4. Incoming water temperature of
120°F is required to properly
dissolve dishwashing detergents.
6. Instruct customer/user.
7. Check fill valve repair or replace
010108
