- Page 1 Model:RS-8000/RS-9000 Bluetooth Ring Scanner Package Included: 1 x Scanner; 1 x Dock; 1 x USB cable; 2 x Batteries; 1 x Quick Manual; V20.12.31...
-
Page 2: Product Information
1. Product Information ① Scanning Window ② Scanner LED ③ Battery Door ④ Buzzer ⑤ Trigger Button ⑥ Adjustable Ring Belt ① Battery Charging Dock ② DC Port ③ Type C Port ④ Bluetooth LED ⑤ Transmission LED ⑥ Battery charging LED ⑦Scanner Power charging LED... - Page 3 2. Charge The Battery 2.1. Press and push up the 2.2. Insert battery and secure battery door battery door...

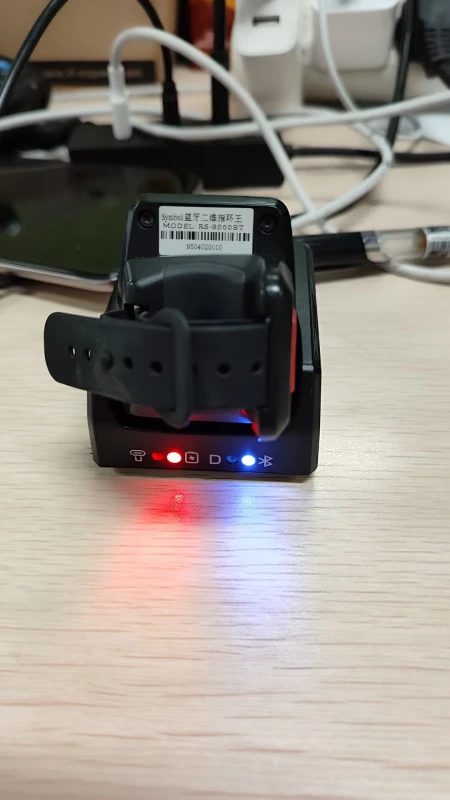

- Page 4 3.Scanner's Bluetooth Connection Status Bluetooth 1) Solid Blue- Bluetooth Connected 2) Flashing Blue- Bluetooth Disconnected/Bluetooth Pairing Battery Dock LED Status： ① Scanner LED 1) Solid Red- Full Charged 2) Flashing Red- Charging ② Battery LED 1) Solid Red- Full Charged 2) Flashing Red - Charging ③...
-
Page 5: Firmware Version
4. Setup Guide Get Started 1）Pair Netum bluetooth (refer to the section of “Bluetooth pairing”) 2）Setup keyboard language: US keyboard is set by default. If you use other type of keyboard please refer to the section of “keyboard language”. 3）Locate cursor on place where you want the data to be displayed after that you can start to scan. -
Page 6: Keyboard Language
2) Scan QR code from the dock, Bluetooth paired once blue LED on the dock turns to solid blue. 3) If you want to disconnect it with the dock and connect it with your device, scan "Bluetooth HID" then pair Netum Bluetooth. Bluetooth HID (Default) Important Note: Default Idle Time: Scanner will power off... - Page 7 Portugal keyboard Spain keyboard UK keyboard Czech keyboard Hungary keyboard Belgium FR keyboard Data Uploading Mode If you are heading for a working area which lies outside the bluetooth signal range, you may activate scanner’s store mode, following steps described be- low.
- Page 8 Offline Mode By scanning the following barcode, the offline mode will be activated. Offline Mode Output Stored Data By scanning the following barcode, all data entries in the buffer memory can be manually uploaded after reconnecting to the working station. Output Stored Data Output Total Entry By scanning the following barcode, the gross quantity of the uploaded data...
- Page 9 Get Battery Volume Scan below command barcode to get battery rough volume. Battery Rough Volume 1) Voltage < 3.5V, Low battery Volume, there will have 5 beeps after each scan. Scanner can not be able to read any barcodes. 2) 3.7V< Voltage < 3.5V, Low battery Volume, there will have 2 beeps after each scan.
- Page 10 IOS Keyboard POP UP/HIDE During the scanning IOS keyboard can be hided or popped up by scanning below command barcode. 1)Scan this barcode at Bluetooth HID connected state on IOS device, popup IOS keyboard. IOS Keyboard POP UP/HIDE 2) Popup IOS keyboard by hold trigger 4 seconds. Enable/Disable 3) Popup IOS keyboard by double click trigger.
-
Page 11: Factory Restore
Beeper Enable/Disable scanner to beep to indicate successful scan. Beep Off *High Volume Middle Volume Low Volume Vibration Scan the appropriate barcode below to enable or disable the vibration. Disable the Vibration *Enable the Vibration Factory Restore Scan below command barcode will reset the scanner. Factory Restore (10) - Page 12 Beep Tone Indication Indication Beep Type Beep/Tone Scan Code under Store Mode/ Power Off 1 Beep in 2 Tones Prompt Tone 1 Beep in 3 Tones Power On/ Successful Configuration/ Finish Uploading 1 Short Beep Successful Scan Two Beeps in Same Tone Low Battery Volume Warning Error on saving barcodes under Store Mode Three Beeps in Same Tone...
-
Page 13: Contact Information
Support For any inquiries concerning our products, please send an email to service@netum.net, and we will respond to you as soon as possible. Contact Information Whatsapp: +86 188 2626 1132 Tel.:+0086 20-6626-0708 Email:service@netum.net... - Page 14 (13)
