Operating and installation
instructions
Induction cooktops
To avoid the risk of accidents or damage to the appliance it is
imperative that you read these instructions before
installing the appliance and using it for the first time.
en-CA
M.-Nr. 09 330 060

Advertisement

Table of Contents
loading

Related Manuals for Miele KM 6357

Summary of Contents for Miele KM 6357

  • Page 1 Operating and installation instructions Induction cooktops To avoid the risk of accidents or damage to the appliance it is imperative that you read these instructions before installing the appliance and using it for the first time. en-CA M.-Nr. 09 330 060...

  • Page 2: Table Of Contents

    Contents Warnings and safety instructions ..............Caring for the environment ................15 Overview......................16 Cooktop....................... 16 KM 6357 ......................16 KM 6386 ......................17 Controls/Indicators....................18 Cooking zone data ....................20 Initial commissioning ..................22 Cleaning the cooktop for the first time..............22 Turning on the cooktop for the first time .............
  • Page 3 Data plate ......................54 Warranty ......................54 Installation......................55 Safety instructions for installation ............... 55 Safety clearances ....................56 Instructions for installation .................. 60 Installation dimensions..................61 KM 6357 ......................61 KM 6386 ......................62 Installation ......................63 Electrical connection ................... 64...

  • Page 4: Warnings And Safety Instructions

    This prevents both personal injury and damage to the cooktop. Miele expressly and strongly advises that you read and follow the instructions in “Installation”, as well as in the “Warning and Safety instructions”.
  • Page 5 Warnings and safety instructions Appropriate use  This cooktop is intended for domestic use and use in other similar environments.  This cooktop is not intended for outdoor use.  The cooktop is intended to prepare food and keep it warm in domestic use only.
  • Page 6 Warnings and safety instructions Safety with children  Children under 8 years of age must be kept away from the cooktop unless they are constantly supervised.  Children over 8 years of age may only use the cooktop unsupervised if they have been shown how to use it in a safe way. Children must be able to understand and recognize the possible dangers caused by incorrect operation.
  • Page 7 Warnings and safety instructions Technical safety  Installation, maintenance and repair work should only be performed by a Miele authorized service technician. Installation, maintenance and repair work by unqualified persons can cause considerable danger to users.  Damage to the cooktop can compromise your safety. Check the cooktop for visible signs of damage.
  • Page 8 Any repairs not performed by a Miele authorized service technician will void the warranty.  Miele can only guarantee the safety of the appliance if genuine Miele spare parts are used. Defective components must only be replaced by genuine Miele spare parts.
  • Page 9 Danger of electric shock. Do not use the cooktop if it is faulty, or if the ceramic surface is cracked, chipped, or damaged in any way. Switch it off immediately. Disconnect the cooktop from the power supply. Contact Miele Service.  If the cooktop is installed behind a cabinet door, do not close the door while the cooktop is in operation.
  • Page 10 Warnings and safety instructions Correct use  The cooktop gets hot when in use and remains hot for a while after being turned off. A burn hazard is present until the residual heat indicators go out.  Oil and fat can catch fire if overheated. Never leave the cooktop unattended when cooking with oil and fat.
  • Page 11 Warnings and safety instructions  You can burn yourself on a hot cooktop. When cooking on the cooktop, protect your hands by using heat-resistant pot holders or oven mitts. Only use dry pot holders and oven mitts. Wet or damp textiles conduct heat more effectively and produce steam, which poses a burn hazard.
  • Page 12 Warnings and safety instructions  Lift pans into position on the cooktop. Sliding them into place can cause scuff marks and scratches.  Because induction heating works so quickly, the base of the cookware could heat up to the temperature at which oil or fat self- ignites within a very short time.
  • Page 13 Warnings and safety instructions  If the cookware only partially covers a cooking zone or casserole cooking zone, the handle could become very hot. Always place cookware in the middle of a cooking zone or casserole cooking zone.  If an induction adapter plate is used for cookware, the induction generators may be damaged or even destroyed.
  • Page 14 (see relevant section).  Miele will guarantee to supply functional spare parts for a minimum of 10 years and up to 15 years following the discontinuation of your cooktop.

  • Page 15: Caring For The Environment

    Consult with local authorities, dealers or Miele in order to dispose of and recycle electrical and electronic appliances. Miele assumes no responsibility for deleting any personal data left on the appliance being disposed.

  • Page 16: Overview

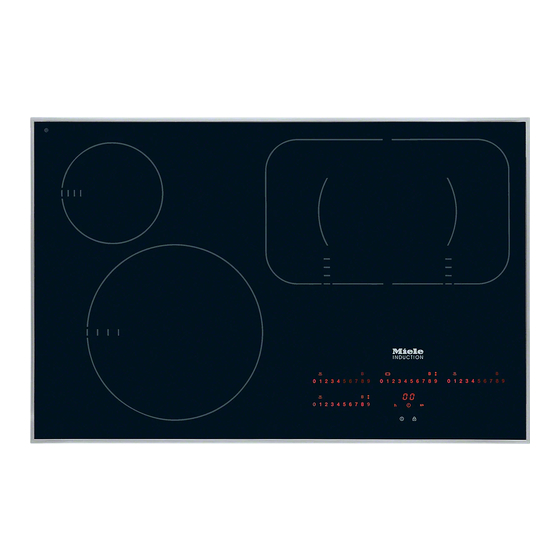

    Overview Cooktop KM 6357 a Cooking zone with Booster b Cooking zone with Booster c PowerFlex cooking zone with TwinBooster d PowerFlex cooking zone with TwinBooster cd can be combined to form PowerFlex cooking area e Controls/Indicators...
  • Page 17 Overview KM 6386 a Cooking zone with Booster b Cooking zone with Booster c Cooking zone with Booster d PowerFlex cooking zone with TwinBooster e PowerFlex cooking zone with TwinBooster de can be combined to form PowerFlex cooking area f Controls/Indicators...

  • Page 18: Controls/Indicators

    Overview Controls/Indicators 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 Sensor buttons a For switching the cooktop on and off...
  • Page 19 Overview o TwinBooster/WaterBoost (depending on model) switched on  Level 1  Level 2 p Timer display  to  Time in minutes . to . Time in hours  System lock/Safety lock activated  Demonstration mode activated...

  • Page 20: Cooking Zone Data

    Overview Cooking zone data KM 6357 Cooking Ø* Power in watts at 230 V** zone Inches  7–11 18–28 normal 2600 TwinBooster, Level 1 3000 TwinBooster, Level 2 3700  4–6 10–16 normal 1400 Booster 2200  6–9 15–23 normal 2100...
  • Page 21 Overview KM 6386 Ø* Cooking Power in watts at 230 V** zone Inch  cm  14–20 normal 1850 "–8 Booster 3000  4–6 10–16 normal 1400 Booster 2200  7–11 18–28 normal 2600 WaterBoost, level 1 3000 WaterBoost, level 2 3700 ...

  • Page 22: Initial Commissioning

    Initial commissioning  Please stick the extra data plate for Turning on the cooktop for the the appliance supplied with this first time documentation in the space provided Metal components are protected by a in the “After sales service” section of conditioning agent.

  • Page 23: Induction

    Induction Mode of operation Cookware An induction coil is located under each Suitable cookware cooking zone. The coil creates a - Stainless steel with a magnetic base magnetic field that reacts directly with the base of the pan and heats it up. The - Enamel-coated steel cooking zone itself is heated up - Cast iron...
  • Page 24 Induction No cookware / unsuitable cookware Tips display - To make optimum use of the cooking The set power level flashes in the zones, choose cookware with a numerical keybank for the cooking zone suitable base diameter (see “Overview”, “Cooking zone data”). If the cookware is too small it will not - no cookware or unsuitable cookware be recognized.

  • Page 25: Noises

    Induction Noises When you use an induction cooking zone, the following noises may occur, depending on the type and shape of the cookware bottom: On the higher power levels, the appliance might buzz. This will decrease or cease altogether when the power level is reduced.

  • Page 26: Energy Saving Tips

    Energy saving tips - Use a lid whenever possible to minimize heat loss. - For small quantities, select a small pan. A small pan on a small cooking zone uses less energy than a large, only partially filled pan on a large cooking zone.

  • Page 27: Setting Range

    Setting range The cooktop is programmed with 9 power levels at the factory. If you wish to fine- tune a setting, you can extend the power setting range to 17 power levels (see “Programming”). Setting range default extended settings settings (9 power (17 power levels)

  • Page 28: Operation

    Operation Basic operation  Malfunction can occur due to dirty and / or covered sensor The ceramic cooktop is equipped with buttons. electronic sensor buttons that react to If the sensor buttons are dirty or finger contact. During activation, the On/Off  sensor button must be covered this could cause them to fail pressed somewhat longer than the to react, to activate a function, or...

  • Page 29: Switching On

    Operation  To turn off the cooktop and thus all  Risk of fire with overheated food. cooking zones, tap the  sensor Unattended food can overheat and button. ignite. Do not leave the cooktop unattended Residual heat indicator whilst it is being used. When a cooking zone is hot, the residual heat indicator and the ...

  • Page 30: Setting The Power Level - Extended Power Level Range

    Operation Setting the power level – PowerFlex cooking area extended power level range You can combine the PowerFlex cooking zones into one large PowerFlex  Touch the numerical keybank cooking area (see the “Overview – between two number sensors. Cooking zone” chapter). The settings The numbers to the left and right of the for the cooking area are controlled interim level light up brighter than the...

  • Page 31: Auto Heat-Up

    Operation Auto Heat-up Continued Heat-up time cooking level* [min:sec] When Auto Heat-up has been activated, the cooking zone turns on automatically approx. 0:15 at the highest level and then switches approx. 0:15 to the previously selected continued cooking level. The heat-up time approx.

  • Page 32: Booster

    Operation Two cooking zones each are connected Booster with each other so that the power for The cooking zones are equipped with a the booster can be provided. The Booster, TwinBooster or WaterBoost connected zone will operate at reduced depending on model (see “Guide to the power while the booster is on.
  • Page 33 Operation To switch the Booster/WaterBoost/ During the booster time, the  sensor TwinBooster off button and all sensor buttons of the control panel are lit with brightness  Tap the  sensor button leve 2. - once (Booster) Activating the booster - repeatedly until the indicator lights go off (TwinBooster/WaterBoost).

  • Page 34: Keeping Food Warm

    Operation Switching the keep warm function Keeping food warm on/off The keep warm function is for keeping  Tap the  sensor button for the food warm that has just been cooked, desired cooking zone. i.e., food that is still hot. It is not for reheating cold food.

  • Page 35: Timer

    Timer Timer The cooktop has to be turned on if you wish to use the timer. Setting the minutes You can set a time between 1 minute () and 9 hours (.). Example: You want to set a time of 15 minutes.
  • Page 36 Timer Setting the hours Changing the timer  Touch the  sensor button. To set full hours, touch the respective sensor on the control scale. To set half  Set a new time, as described above. hours, touch the space between 2 sensors on the control scale.

  • Page 37: Switching Off A Cooking Zone Automatically

    Timer  If you want to set another cooking Switching off a cooking zone zone to switch off automatically, automatically follow the same steps as described You can set a time after which the above. cooking zone will switch off automatically.

  • Page 38: Using Both Timer Functions At The Same Time

    Timer If you want to show the times counting Using both timer functions at down in the background: the same time  Touch the  sensor button The timer and automatic switch-off repeatedly until functions can be used at the same time.

  • Page 39: Additional Functions

    Additional functions Stop & Go When activated, the Stop & Go reduces the power of all cooking zones in use to power level 1. The power levels of the zones and setting of the timer cannot be changed and the cooktop can only be turned off. A set timer and booster time continue to run.

  • Page 40: Safety Features

    Safety features The safety lock is activated when the System lock/Safety lock cooktop is turned on. When the safety The system lock and safety lock are lock is activated, the cooktop can be deactivated if there is a power operated only under certain conditions: outage.

  • Page 41: Safety Shut-Off

    Safety features Safety shut-off if the sensors are Safety shut-off covered Excessive operating time Your cooktop will turn off automatically The safety shut-off mechanism is if one or several of the sensors remain triggered automatically if a cooking covered for longer than 10 seconds, for zone is heated for an unusually long example, by finger contact, food boiling period of time.

  • Page 42: Overheat Protection

    If, despite elimination of the cause, the - Any booster function in operation will overheat protection is triggered again, be turned off. contact Miele Service. - The power level that is set will be reduced. - The cooking zone turns off automatically.

  • Page 43: Cleaning And Care

    Cleaning and care  The cooktop should be cleaned after  Risk of burning due to hot each use. cooking zones.  Dry the cooktop after using water to The cooking zones will be hot after clean it. This helps prevent lime use.
  • Page 44  Then clean the ceramic surface with the Miele Ceramic and Stainless Steel  Afterwards, clean the ceramic surface Cleaner (see “Optional accessories – in its cooled state, as described Cleaning and care products”) or with...

  • Page 45: Programming

    Programming You can adapt the programming of the Starting the programming cooktop to your personal needs. function Several settings can be changed in  When the cooking zone is turned succession. off, tap the  and  sensor buttons After the programming function is simultaneously until the indicator light started, ...
  • Page 46 Programming Settings Program Status Demo mode and factory default Demo mode on settings Demo mode off Default settings reinstated Stop and Go Number of power levels 9 power levels 17 power levels Induction buzzer tone when there is no or unsuitable quiet cookware medium...
  • Page 47 Programming Settings Program Status Miele@home not currently available - only on communication- logged off enabled appliances retrofitted with a communication module - logged on Buzzer tone if the sensors are covered Sensor button reaction speed slow normal fast Unlisted programs are not assigned.

  • Page 48: Frequently Asked Questions

    There is no power to the cooktop. zones cannot be turned  Check if the circuit breaker has tripped. Contact a qualified electrician or Miele Service (for the minimum fuse rating, see data plate). There may be a technical fault.
  • Page 49 Frequently Asked Questions Problem Possible cause and solution   flashes in the timer One or more of the sensor buttons are covered, e.g., by finger contact, food boiling over, or an object. display and the cooktop switches off  Clean off any dirt and / or remove the object (see automatically.
  • Page 50  Interrupt the power supply to the cooktop for approx. 1 minute.  If the problem persists after power is restored, please contact Miele Service.  Alternating with a  number flashes in the The overheat protection was triggered.

  • Page 51: Optional Accessories

    Optional accessories Miele offers a wide range of useful Cleaning and care products accessories as well as cleaning and Ceramic and stainless steel cleaner conditioning products for your Miele 250 mL appliances. These products can be ordered through the Miele Webshop.

  • Page 52: Miele@Home / Con@Ctivity

    Your cooktop is communication- Further information regarding enabled and can Miele@home and Con@ctivity is available on the internet and in the - be integrated into the Miele@home instruction manuals of the various system using an optional components. communication module or communication with the ventilation hood (Con@ctivity).
  • Page 53 Miele@home / Con@ctivity If you want Logging off the cooktop - To log on to the Miele@home If you would like to log off the cooktop system, first prepare the log-on from Miele@home, first prepare the procedure on the master appliance. log-off procedure on the display...

  • Page 54: Technical Service

    In the event of a fault which you cannot remedy yourself, please contact your Miele dealer or Miele Service. Contact information for Miele Service can be found at the end of this document. Please quote the model identifier and serial number of your appliance (SN) when contacting Miele Service.

  • Page 55: Installation

    *INSTALLATION* Installation Safety instructions for installation  Risk of damage from incorrect installation. Incorrect installation can damage the cooktop. The cooktop must only be installed by a qualified specialist.  Risk of electric shock from voltage. Incorrect connection to the power supply may result in an electric shock. The cooktop must be connected to the power supply by a qualified electrician.

  • Page 56: Safety Clearances

    *INSTALLATION* Installation Safety clearances Safety clearance above the cooktop For a ventilation hood positioned above the cooktop, always use the clearance specified by the hood manufacturer. If no specifications are available from the hood manufacturer, or if flammable materials (e.g. wall shelf) are installed above the cooktop, the clearance must be at least 760 mm (30").
  • Page 57 *INSTALLATION* Installation Safety clearances to the sides and back of the cooktop Ideally the cooktop should be installed with plenty of space on either side. The minimum distance  shown below must be maintained between the back of the cooktop and a tall unit or wall. The minimum distance , ...
  • Page 58 *INSTALLATION* Installation Minimum clearance underneath the Protective base cooktop Installation of a protective base under To ensure proper ventilation of the the cooktop is allowed but not required. cooktop, a minimum clearance is Leave a gap of " (10 mm) at the back required between the appliance and an of the shelf to accommodate the cable.
  • Page 59 *INSTALLATION* Installation Safety distance from the wall covering If a wall covering is installed, a minimum safety distance must be maintained between the countertop cut-out and the covering, since high temperatures can damage these materials. If the covering is made of a flammable material (such as wood), the minimum distance ...

  • Page 60: Instructions For Installation

    *INSTALLATION* Installation Tiled countertop Instructions for installation Seal between cooktop and countertop The grouting  and the shaded area under the cooktop frame must be smooth and flat so that the frame will sit evenly on the countertop and so that the sealing strip under the top edge of ...

  • Page 61: Installation Dimensions

    *INSTALLATION* Installation Installation dimensions All dimensions are indicated in mm and inches. KM 6357 1 / 4 " 2 0 3 / ( 7 m / 1 6 " 4 " " 1 1 2 2 / 1 6 ( 5 2 6 m...
  • Page 62 6 " 1 / 1 ( 3 7 7 / 8 " 1 / 4 " a Front b Installation height c Miele@home/Con@ctivity connection d Power connection box The power cable 4' (1200 mm long) is supplied separately with the cooktop.

  • Page 63: Installation

    *INSTALLATION* Installation Installation If the seal does not sit flush with the countertop in the corners, the corner  Create the countertop cut-out. radius (≤ R4) can be carefully cut to fit Remember to maintain the minimum using a jigsaw. safety distances (see “Installation” – “Safety distances”).

  • Page 64: Electrical Connection

    Installation, repair, and maintenance disconnect the power supply by work must only be performed by a either removing the fuse, shutting off technician authorized by Miele in the main power or manually compliance with local codes and the “tripping” the circuit breaker.
  • Page 65 3 mm must be present!) The disconnecting devices are overcurrent protection elements and protective circuit breakers. Black: Connect to L1 (hot) Red: Connect to L2 (hot) Green: Connect to GND (ground) KM 6357 208/240 V, 60 Hz, 40 A KM 6386 208/240 V, 60 Hz, 50 A...
  • Page 67 Please have the model and serial number of your appliance available when contacting Customer Service. Canada Importer Miele Limited Headquarters and Miele Centre 161 Four Valley Drive Vaughan, ON L4K 4V8 www.miele.ca Customer Care Centre Phone: 800 565-6435 customercare@miele.ca Germany Manufacturer Miele &...
