Installing the collectors
8.2
Installing the collector clamp on the right side
▶ Slide the one-sided collector clamp into the profile rail and let it click
into the slot (only on the right; the left side is done later).

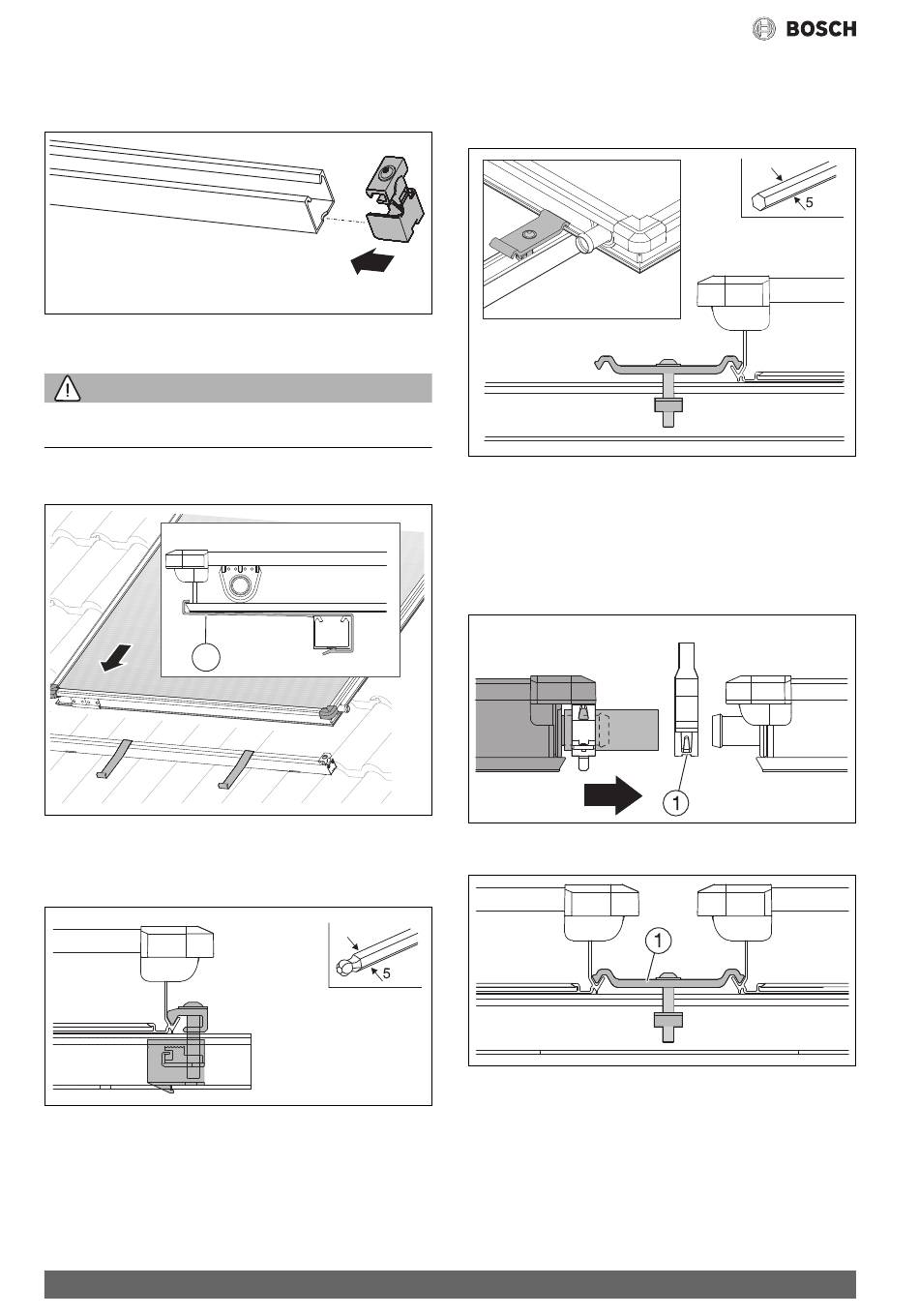

Fig. 41 Installing the collector clamp on the right side
8.3
Place first collector on the profile rail
WARNING:
Risk of injury from falling collectors.
▶ Ensure that the collector profile engages in the anti-slip protector.
▶ Place the collector on the right onto the profile rails and allow it to
slide into the anti-slip protectors [1].
A
1
Fig. 42 Let the collector slide into the anti-slip protectors
▶ Carefully push the collector up against the collector clamp and level
horizontally.
▶ Tighten the screw of the collector clamp.
A
Fig. 43 Tightening the screw of the collector clamp
If only one collector is installed, then install the collector clamp on the
left.
18
8.4
If two collectors are installed:
▶ Place the double-sided collector clamp on the profile rail and push up
0010014493-01
Fig. 44 Only insert a double-sided collector clamp
8.5
▶ Place second collector along with the pre-assembled solar hoses
▶ Push the second hose clip [1] onto the solar hoses.
▶ Push the collector up to the first collector so that the solar hoses are
0010015805-01
0010015805-01
Fig. 45 Push the left collector to the right collector
▶ Tighten the screw of the double-sided collector clamp [1].
Fig. 46 Double-sided collector clamp
0010014495-01
Inserting the double-sided collector clamp
to the collector. Do not tighten yet.
Placing the second collector on the profile rails
onto the profile rails and let it slide into the anti-slip protectors.
pushed onto the collector connections.
0010014496-01
0010014497-01
0010014498-01
TSS – 6720887693 (2018/10)
