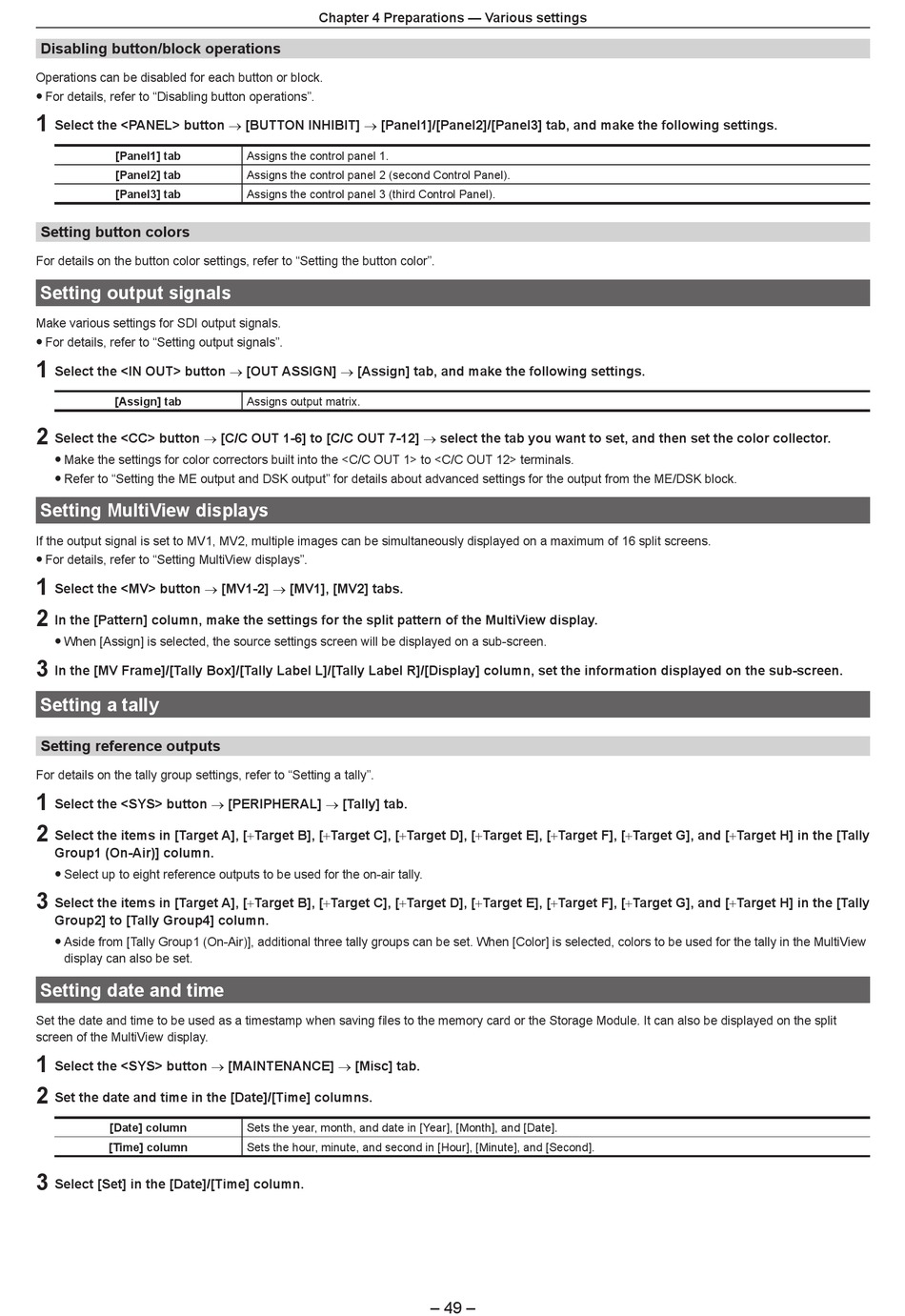

Disabling button/block operations
Operations can be disabled for each button or block.
f For details, refer to "Disabling button operations".
1
Select the <PANEL> button → [BUTTON INHIBIT] → [Panel1]/[Panel2]/[Panel3] tab, and make the following settings.
[Panel1] tab
[Panel2] tab
[Panel3] tab
Setting button colors
For details on the button color settings, refer to "Setting the button color".
Setting output signals
Make various settings for SDI output signals.
f For details, refer to "Setting output signals".
1
Select the <IN OUT> button → [OUT ASSIGN] → [Assign] tab, and make the following settings.
[Assign] tab
2
Select the <CC> button → [C/C OUT 1-6] to [C/C OUT 7-12] → select the tab you want to set, and then set the color collector.
f Make the settings for color correctors built into the <C/C OUT 1> to <C/C OUT 12> terminals.
f Refer to "Setting the ME output and DSK output" for details about advanced settings for the output from the ME/DSK block.
Setting MultiView displays
If the output signal is set to MV1, MV2, multiple images can be simultaneously displayed on a maximum of 16 split screens.
f For details, refer to "Setting MultiView displays".
1
Select the <MV> button → [MV1-2] → [MV1], [MV2] tabs.
2
In the [Pattern] column, make the settings for the split pattern of the MultiView display.
f When [Assign] is selected, the source settings screen will be displayed on a sub-screen.
3
In the [MV Frame]/[Tally Box]/[Tally Label L]/[Tally Label R]/[Display] column, set the information displayed on the sub-screen.
Setting a tally
Setting reference outputs
For details on the tally group settings, refer to "Setting a tally".
1
Select the <SYS> button → [PERIPHERAL] → [Tally] tab.
2
Select the items in [Target A], [+Target B], [+Target C], [+Target D], [+Target E], [+Target F], [+Target G], and [+Target H] in the [Tally
Group1 (On-Air)] column.
f Select up to eight reference outputs to be used for the on-air tally.
3
Select the items in [Target A], [+Target B], [+Target C], [+Target D], [+Target E], [+Target F], [+Target G], and [+Target H] in the [Tally
Group2] to [Tally Group4] column.
f Aside from [Tally Group1 (On-Air)], additional three tally groups can be set. When [Color] is selected, colors to be used for the tally in the MultiView
display can also be set.
Setting date and time
Set the date and time to be used as a timestamp when saving files to the memory card or the Storage Module. It can also be displayed on the split
screen of the MultiView display.
1
Select the <SYS> button → [MAINTENANCE] → [Misc] tab.
2
Set the date and time in the [Date]/[Time] columns.
[Date] column
[Time] column
3
Select [Set] in the [Date]/[Time] column.
Chapter 4 Preparations — Various settings
Assigns the control panel 1.
Assigns the control panel 2 (second Control Panel).
Assigns the control panel 3 (third Control Panel).
Assigns output matrix.
Sets the year, month, and date in [Year], [Month], and [Date].
Sets the hour, minute, and second in [Hour], [Minute], and [Second].
– 49 –
