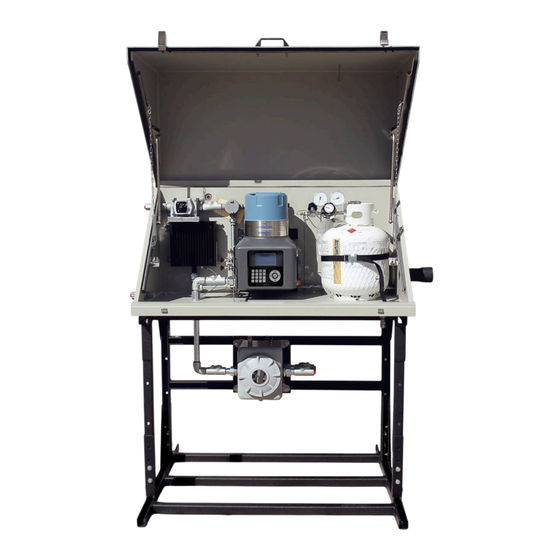

Emerson Rosemount 370XA Quick Start Manual

Enclosure natural gas chromatograph
Hide thumbs Also See for Rosemount 370XA:
Table of Contents

Advertisement

Quick Links

Quick Start Guide
9-00200-954, Rev B
November 2019
™
Rosemount
370XA Enclosure
Natural Gas Chromatograph

Advertisement

Table of Contents
loading

Related Manuals for Emerson Rosemount 370XA

Summary of Contents for Emerson Rosemount 370XA

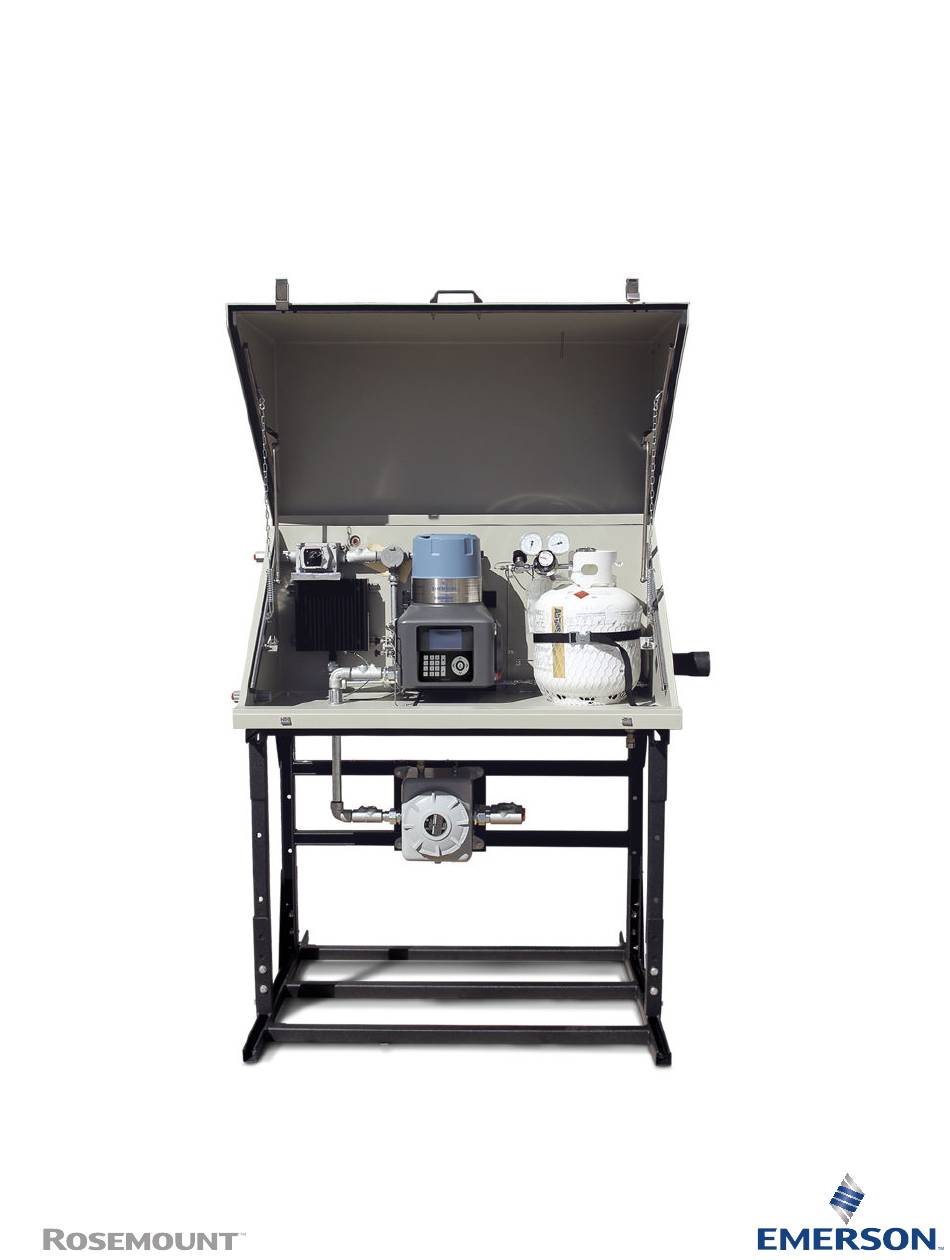

  • Page 1 Quick Start Guide 9-00200-954, Rev B November 2019 ™ Rosemount 370XA Enclosure Natural Gas Chromatograph...
  • Page 2 Observe all environmental and personal safety messages described in this document, warning labels on the analyzer, and your company's operational safety requirements. Rosemount 370XA Gas Chromatograph safety warnings Observe these safety messages for the Rosemount 370XA Gas Chromatograph. WARNING EXPLOSION HAZARD Failure to de-energize the analyzer may cause serious injury or death to personnel.

  • Page 3: Table Of Contents

    Power the heater......................19 Chapter 7 Tubing connections - internal..................21 Chapter 8 Tubing connections - external..................23 Chapter 9 Start up the Rosemount 370XA gas chromatograph............. 25 Chapter 10 Configure and calibrate the Rosemount 370XA gas chromatograph......29 Rosemount 370XA Enclosure...
  • Page 4 Contents Quick Start Guide November 2019 9-00200-954 Emerson.com/Rosemount...

  • Page 5: Specifications

    9-00200-954 November 2019 Specifications Minimum requirements These are the minimum requirements for a typical installation. Please reference the Rosemount 370XA Reference Manual for more details or call the factory for additional support. • 24 Vdc (21 Vdc to 30 Vdc) •...
  • Page 6 Specifications Quick Start Guide November 2019 9-00200-954 Emerson.com/Rosemount...

  • Page 7: Rosemount 370Xa Enclosure Layout

    Quick Start Guide Rosemount 370XA enclosure layout 9-00200-954 November 2019 Rosemount 370XA enclosure layout Figure 2-1: Rosemount 370XA Enclosure Layout Front Callout Description Callout Description Rosemount 370XA Gas Thermostat Chromatograph LP5 calibration gas Sample boot cylinder Heater Signal/power junction box Power switch for heater ¾-in.
  • Page 8 Rosemount 370XA enclosure layout Quick Start Guide November 2019 9-00200-954 Figure 2-2: Rosemount 370XA Enclosure Layout - Left Side Callout Description Frame ¾-in. national pipe thread (NPT) Myers hub bulkhead Enclosure Emerson.com/Rosemount...
  • Page 9 Quick Start Guide Rosemount 370XA enclosure layout 9-00200-954 November 2019 Figure 2-3: Rosemount 370XA Enclosure Layout - Right Side Callout Description Drains/vent ¼-in. stainless steel bulkheads Rosemount 370XA Enclosure...
  • Page 10 Rosemount 370XA enclosure layout Quick Start Guide November 2019 9-00200-954 Emerson.com/Rosemount...

  • Page 11: Mounting The Enclosure

    Quick Start Guide Mounting the enclosure 9-00200-954 November 2019 Mounting the enclosure Enclosure refers to the system (Rosemount 370XA Gas Chromatograph, heater, tubing, junction boxes, box and the frame) and protects the system from the environment. Prerequisites • Required tools —...
  • Page 12 Figure 3-2: Proper Positioning of Forklift Tines or Slings A. To lift, place forks or slings here. 3. Ensure that the enclosure's foot plate pre-drilled holes align with holes in the mounting surface. 4. Secure the enclosure to the mounting surface with the cement anchors. Emerson.com/Rosemount...

  • Page 13: Electrical Connections

    Power to the unit must be supplied by an approved power-rated circuit breaker. WARNING CRUSHING HAZARD The enclosure lid is heavy. Failure to keep hands and fingers away from the openning may cause injury. Keep hands away from the enclosure opening when raising or lowering the lid. Rosemount 370XA Enclosure...
  • Page 14 Electrical connections Quick Start Guide November 2019 9-00200-954 Figure 4-1: Electrical Connections - Left Side View A. AC power entry for heater power B. Conduit entry provided for heat trace power connections Emerson.com/Rosemount...
  • Page 15 Quick Start Guide Electrical connections 9-00200-954 November 2019 Figure 4-2: Electrical Connections - Right Side View A. DC power entry B. Signal entry Rosemount 370XA Enclosure...
  • Page 16 Electrical connections Quick Start Guide November 2019 9-00200-954 Emerson.com/Rosemount...

  • Page 17: Signal/Power Wiring To The Junction Box

    Refer to the Rosemount 370XA Reference Manual (PN 7P00370-H01) for complete details. DC power and signal connections for the Rosemount 370XA gas chromatograph are made in the junction box mounted under the enclosure housing (see Figure 2-2, Item L) .
  • Page 18 Signal/power wiring to the junction box Quick Start Guide November 2019 9-00200-954 Emerson.com/Rosemount...

  • Page 19: Power The Heater

    Connect the AC power for the heater to the switch located at the top left of the enclosure (see Figure 2-1, Item D). Refer to Figure 6-1 to wire the heater. Figure 6-1: Enclosure Heater Power Connection Wiring Diagram A. Line B. Neutral C. Ground D. Black E. White F. Ground Rosemount 370XA Enclosure...
  • Page 20 Power the heater Quick Start Guide November 2019 9-00200-954 Note The heater may be 120 Vac or 230 Vac (300 Watts) depending on the option purchased. Ensure that the correct voltage is applied. Note AC power wiring to be 12 AWG. Emerson.com/Rosemount...

  • Page 21: Tubing Connections - Internal

    A. Tubing details B. Sample in - sample gas connection Bottom image A. Sample in - customer provided connections (⅛-in. union fitting) B. Vent out (¼-in. fitting) C. Calibration (⅛-in Union fitting) D. Carrier In (¼-in. fitting) Rosemount 370XA Enclosure...
  • Page 22 Tubing connections - internal Quick Start Guide November 2019 9-00200-954 Emerson.com/Rosemount...

  • Page 23: Tubing Connections - External

    Figure 8-1: External Tubing Connections A. Heat shrink boot B. Vent out, ¼-in. stainless steel bulkhead C. Carrier in, ¼-in. stainless steel bulkhead D. Calibration in, ¼-in. stainless steel bulkhead (only used if the internal calibration cylinder option is not selected) Rosemount 370XA Enclosure...
  • Page 24 Tubing connections - external Quick Start Guide November 2019 9-00200-954 Emerson.com/Rosemount...

  • Page 25: Start Up The Rosemount 370Xa Gas Chromatograph

    1. Turn on the power to start up and configure the Rosemount 370XA gas chromatograph. The local operator interface (LOI) shows the Emerson logo while the software starts up, and it shows the Home screen after it has completed the startup.
  • Page 26 Start up the Rosemount 370XA gas chromatograph Quick Start Guide November 2019 9-00200-954 Figure 9-1: Local Operator Interface A. Exit/cancel B. Alphanumerical keypad C. Enter D. Full color screen: 480 x 272 pixels E. Up F. Right G. Select/edit H. Left I.
  • Page 27 Quick Start Guide Start up the Rosemount 370XA gas chromatograph 9-00200-954 November 2019 Figure 9-2: LOI Home Screen Main menu display options • View • Hardware • Application • Logs • GC controls • Tools Table 9-1: LOI Main menu display icons...
  • Page 28 Start up the Rosemount 370XA gas chromatograph Quick Start Guide November 2019 9-00200-954 Emerson.com/Rosemount...

  • Page 29: Configure And Calibrate The Rosemount 370Xa Gas Chromatograph

    The Login screen appears if you are not logged in. d) Enter your username and password. The default values for the Rosemount 370XA gas chromatograph are: User: EMERSON Password: (blank) Rosemount 370XA Enclosure...
  • Page 30 Configure and calibrate the Rosemount 370XA gas chromatograph Quick Start Guide November 2019 9-00200-954 2. Configure the time and date. Figure 10-2: Main Menu, Showing Set GC Time a) From the Main Menu, select Set GC Time from the Tools menu.
  • Page 31 Quick Start Guide Configure and calibrate the Rosemount 370XA gas chromatograph 9-00200-954 November 2019 4. Configure the Ethernet port. Figure 10-4: TCP/IP Settings Screen a) From the Main Menu, use the arrow keys to navigate to the Application menu and select the TCP/IP Settings option.
  • Page 32 Configure and calibrate the Rosemount 370XA gas chromatograph Quick Start Guide November 2019 9-00200-954 c) Press to continue and enter the uncertainty values from the certificate. If the calibration certificate does not include uncertainty values, use the default 2 percent setting.
  • Page 33 Quick Start Guide Configure and calibrate the Rosemount 370XA gas chromatograph 9-00200-954 November 2019 This should take approximately two hours from when power is applied. 7. Clear alarms. Figure 10-9: Current Alarms Screen a) From the Main Menu, navigate to the View menu and select Current Alarms.
  • Page 34 Configure and calibrate the Rosemount 370XA gas chromatograph Quick Start Guide November 2019 9-00200-954 9. Calibrate the GC. Figure 10-11: Starting the First Communication Cycle a) From the Main Menu, navigate to the GC Control menu and select Halt to stop the current analysis.
  • Page 35 Quick Start Guide 9-00200-954 November 2019 Rosemount 370XA Enclosure...
  • Page 36 2019 Emerson. All rights reserved. twitter.com/rosemount_news The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a Facebook.com/Rosemount mark of one of the Emerson family of companies. All other marks are the property of their youtube.com/RosemountMeasurement respective owners.
