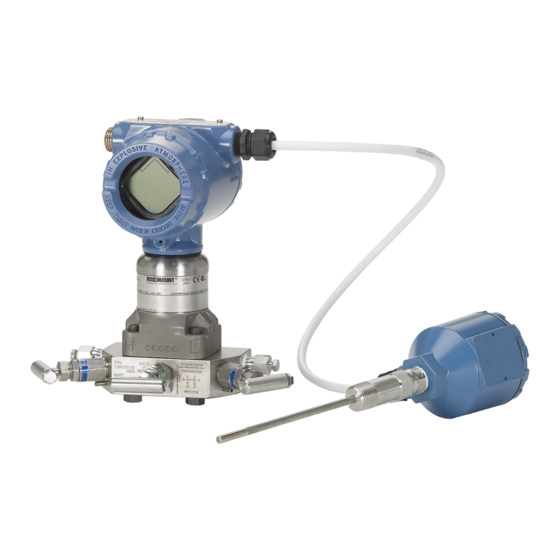

Emerson Rosemount 3051S Series Quick Start Manual

Emerson Rosemount 3051S Series Quick Start Manual

Flow meter multivariable transmitters
Hide thumbs Also See for Rosemount 3051S Series:
Table of Contents

Advertisement

Quick Links

Download this manual

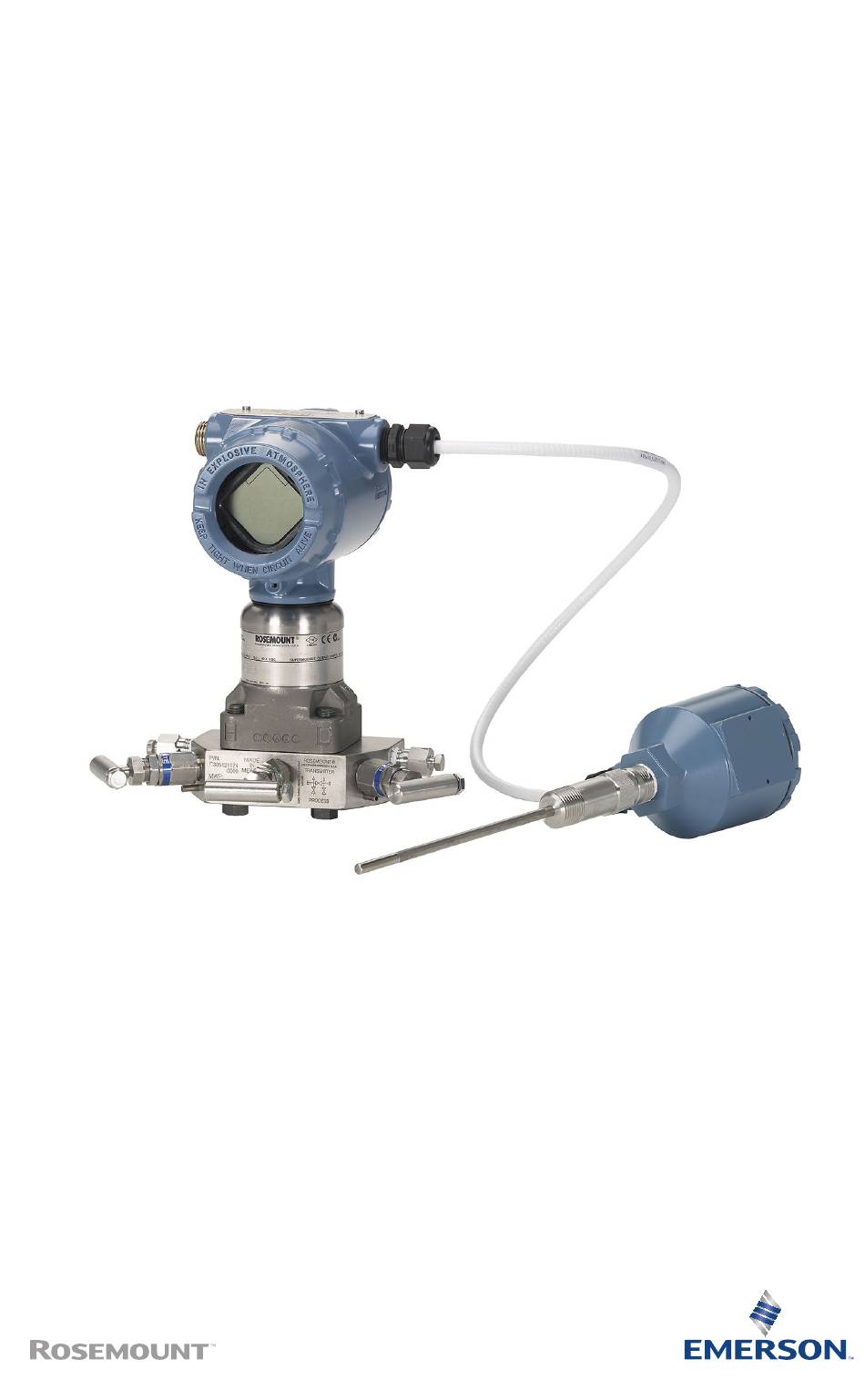

Quick Start Guide
00825-0100-4803, Rev GB
January 2024
Rosemount
3051S and 3051SF
™
Series Flow Meter MultiVariable
™
Transmitters

Advertisement

Table of Contents
loading

Related Manuals for Emerson Rosemount 3051S Series

Summary of Contents for Emerson Rosemount 3051S Series

  • Page 1 Quick Start Guide 00825-0100-4803, Rev GB January 2024 Rosemount 3051S and 3051SF ™ Series Flow Meter MultiVariable ™ Transmitters...

  • Page 2: Table Of Contents

    About this guide........................... 3 Mount the transmitter.........................5 Consider housing rotation......................12 Set the switches......................... 13 Connect wiring and power up....................15 Engineering Assistant installation................... 19 Flow configuration........................22 Verifying device configuration....................32 Trimming the transmitter......................36 Safety instrumented systems installation................38 Product certifications........................ 39 Emerson.com/Rosemount...

  • Page 3: About This Guide

    Refer to the Rosemount 3051SMV Reference Manual for more instruction. The manual and this guide are also available electronically at Emerson.com/ Rosemount. 1.1  Safety messages  WARNING Failure to follow these installation guidelines could result in death or serious injury.
  • Page 4 Physical security is an important part of any security program and fundamental in protecting your system. Restrict physical access by unauthorized personnel to protect end users’ assets. This is true for all systems used within the facility. Emerson.com/Rosemount...

  • Page 5: Mount The Transmitter

    January 2024 Quick Start Guide 2  Mount the transmitter 2.1  Liquid flow applications Procedure 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Mount the transmitter so that the drain/vent valves are oriented upward. A.
  • Page 6 Quick Start Guide January 2024 A. Direction of flow 2.3  Steam flow applications Procedure 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Fill impulse lines with water. A. Direction of flow Emerson.com/Rosemount...
  • Page 7 January 2024 Quick Start Guide 2.4  Mounting brackets Figure 2-1: Mounting Bracket – Coplanar Flange Panel mount Pipe mount     Figure 2-2: Mounting Brackets – Traditional Flange Panel mount Pipe mount     Quick Start Guide...
  • Page 8 Only use bolts supplied with the transmitter or sold by Emerson as spare parts. Figure 2-4 illustrates common transmitter assemblies with the bolt length required for proper transmitter assembly.
  • Page 9 D. Transmitter with coplanar flange and optional Rosemount Conventional Manifold and flange adapters Note For all other manifolds, contact Emerson.com/Rosemount. Bolts are typically carbon steel or stainless steel. Confirm the material by viewing the markings on the head of the bolt and referencing Table 2-1.
  • Page 10 Table 2-1: Torque Values for the Flange and Flange Adapter Bolts Bolt Head markings Initial Final torque material torque Carbon Steel 300 in-lb 650 in-lb (CS)   Stainless 150 in-lb 300 in-lb Steel (SST)   Figure 2-5: Proper Bolt Installation A. Bolt B. Sensor module Emerson.com/Rosemount...
  • Page 11 January 2024 Quick Start Guide 2.6  O-rings with flange adapters  WARNING Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or serious injury. Only use the O-ring that is designed for its specific flange adapter. Figure 2-6: O-Ring flange adapter A.

  • Page 12: Consider Housing Rotation

    Figure 3-1: Transmitter Housing Set Screw A. LCD display B. Housing rotation set screw (3/32 in.)  CAUTION Do not rotate the housing more than 180° without first performing a disassembly procedure. Over-rotation may sever the electrical connection between the sensor module and the electronics. Emerson.com/Rosemount...

  • Page 13: Set The Switches

    January 2024 Quick Start Guide 4  Set the switches The transmitter’s default configuration sets the alarm condition to High (HI) and the security to Off. Procedure 1. If the transmitter is installed, secure the bus and remove power. 2. Required: Remove the transmitter cover opposite the field terminal side.
  • Page 14 Quick Start Guide January 2024 Figure 4-1: Transmitter Switch Configuration A. Security B. AC Termination Emerson.com/Rosemount...

  • Page 15: Connect Wiring And Power Up

    January 2024 Quick Start Guide 5  Connect wiring and power up  CAUTION Do not connect the power across the test terminals. Power could damage the test diode in the test connection. Twisted pairs yield best results. Use 24 to 14 AWG wire and do not exceed 5,000 ft. (1500 m). Use the following steps to wire the transmitter: Procedure 1.
  • Page 16 The Dc power supply should provide power with less than two percent ripple. The total resistance load is the sum of the resistance of the signal leads and the load resistance of the controller, indicator, intrinsic safety barriers, and related components. Emerson.com/Rosemount...
  • Page 17 January 2024 Quick Start Guide Figure 5-2: Load Limitation Maximum loop resistance = 43.5 x (power supply voltage – 12.0) 1322 1000 Operating region 12.0 42.4 Voltage (Vdc)   HART communication requires a minimum loop resistance of 250Ω 5.3  Install optional process temperature input (Pt 100 RTD sensor) Note To meet ATEX/IECEx Flameproof certification, only ATEX/IECEx...
  • Page 18 Quick Start Guide January 2024 Figure 5-3: RTD Wiring Connection A. Ground lug B. RTD cable assembly wires C. Pt 100 RTD sensor Emerson.com/Rosemount...

  • Page 19: Engineering Assistant Installation

    The Rosemount 3051SMV Engineering Assistant software is required to complete the flow configuration. NOTICE To ensure correct operation, download the most current version of the Engineering Assistant software at Emerson.com/Rosemount- Engineering-Assistant. 6.1  System requirements The following are the minimum system requirements to install the Rosemount 3051SMV Engineering Assistant software: •...
  • Page 20 Launch Engineering Assistant 6.1 or later. 6. Once the configuration is complete, replace cover and tighten until metal contacts metal to meet explosion-proof requirements. Figure 6-1 shows how to connect a computer to a Rosemount 3051SMV. Emerson.com/Rosemount...
  • Page 21 January 2024 Quick Start Guide Figure 6-1: Connecting a PC to the Transmitter Without optional process With optional process temperature temperature connection connection RL ≥ 250Ω RL ≥ 250Ω     A. Power supply B. Modem Quick Start Guide...

  • Page 22: Flow Configuration

    The following pages provide instructions on creating a new flow configuration in offline mode. For more information on other functionality, see the Rosemount 3051SMV Reference Manual. Emerson.com/Rosemount...
  • Page 23 January 2024 Quick Start Guide 7.1  Basic navigation overview Figure 7-1: Engineering Assistant Basic Navigation Overview Screen component Description of use The navigation tabs contain the flow configuration information. In Offline mode, each tab will not become active until the required fields on the previous tab are completed.
  • Page 24 Engineering Assistant software from the Start menu. Procedure 1. Select the Start menu → All Programs → Engineering Assistant. Engineering Assistant will open to the screen shown Figure 7-2. 2. Select Offline button located in the lower right hand corner of the screen shown in Figure 7-2. Emerson.com/Rosemount...
  • Page 25 January 2024 Quick Start Guide Figure 7-2: Engineering Assistant Device Connection Screen 7.3  Use Preferences tab The Preferences tab, shown in Figure 7-3, allows you to select the preferred engineering units to display. Procedure 1. Select the preferred engineering units. 2. If Custom Units are selected, configure the Individual Parameters.
  • Page 26 5. Enter the Nominal Operating Pressure, select the Enter or Tab key. 6. Enter the Nominal Operating Temperature, select the Enter or Tab key. Engineering Assistant will automatically fill in suggested operating ranges, as shown in Figure 7-4. These values may be edited as needed by the user. Emerson.com/Rosemount...
  • Page 27 January 2024 Quick Start Guide 7. Verify the Reference/Atmospheric Conditions are correct for the application. These values may be edited as needed. Note Reference pressure and temperature values are used by Engineering Assistant to convert the flow rate from mass units to mass units expressed as standard or normal volumetric units.
  • Page 28 Quick Start Guide January 2024 Figure 7-5: Fluid Properties Tab 7.6  Select primary element The Primary Element Selection tab shown in Figure 7-6 allows the user to choose the primary element. Figure 7-6: Primary Element Selection Tab Continuing with the example configuration: Emerson.com/Rosemount...
  • Page 29 January 2024 Quick Start Guide Procedure 1. Expand the Conditioning Orifice Plate category. 2. Select 405C/3051SFC. 3. Enter the measured Meter Tube Diameter (pipe ID) at a reference temperature. If the meter tube diameter cannot be measured, select a Nominal Pipe Size and Pipe Schedule to input an estimated value for the meter tube diameter (English units only).
  • Page 30 3. To send the configuration, select the Send To button. Note The Send Flow Data and Send Transmitter Data checkboxes can be used to select what configuration data is sent to the transmitter. If either checkbox is unselected, the corresponding data will not be sent. Emerson.com/Rosemount...
  • Page 31 January 2024 Quick Start Guide 4. The Engineering Assistant Device Connection screen will appear, Figure 7-8. Figure 7-8: Engineering Assistant Device Connection Screen 5. Select the Search button located in the lower right hand corner of the screen. Engineering Assistant will begin to search for connected devices.

  • Page 32: Verifying Device Configuration

      Differential Pressure Reading and Status 1, 4, 2, 1, 4   Differential Pressure Sensor Trim Options 1, 2, 5, 3 ✓ Differential Pressure Zero Trim 1, 2, 5, 3, 1   Differential Pressure Units 1, 3, 3, 4 Emerson.com/Rosemount...
  • Page 33 January 2024 Quick Start Guide Table 8-1: Fast Keys for Fully Compensated Mass and Energy (continued) Flow   Function Fast Key sequence   Energy Rate Units 1, 3, 3, 2   Energy Reading and Status 1, 4, 2, 1, 2   Equipped Sensors 1, 4, 4, 4  ...
  • Page 34 1, 4, 4, 3   Field Device Information 1, 4, 4, 1   Gage Pressure Reading and Status 1, 4, 2, 1, 3   Gage Pressure Sensor Limits 1, 4, 1, 2, 9   Gage Pressure Units 1, 3, 3, 3 Emerson.com/Rosemount...
  • Page 35 January 2024 Quick Start Guide Table 8-2: Fast Keys for Direct Process Variable Output (continued)   Function Fast Key sequence   LCD Configuration 1, 3, 8   Loop Test 1, 2, 2   Module Temperature Reading and Status 1, 4, 2, 1, 5  ...

  • Page 36: Trimming The Transmitter

    When performing a lower sensor trim on an absolute pressure sensor, it is possible to degrade the performance of the sensor if inaccurate calibration equipment is used. Use a barometer that is at least three times as accurate as the absolute sensor of the transmitter. Emerson.com/Rosemount...
  • Page 37 January 2024 Quick Start Guide 4. Zero the differential pressure sensor by inputting the following Fast Key sequence at the Rosemount 3051SMV menu: Flow Fast Direct output Description Keys Fast Keys 1, 2, 5, 3, 1 1, 2, 4, 3, 1 Differential pressure sensor zero trim Quick Start Guide...

  • Page 38: Safety Instrumented Systems Installation

    For safety certified installations, refer to the appropriate reference manual for the installation procedure and system requirements: • For DP only measurements (measurement type D), refer to the Rosemount 3051S Reference Manual. • For MultiVariable measurements (measurement type 1–7), refer to the Rosemount 3051SMV Reference Manual. Emerson.com/Rosemount...

  • Page 39: Product Certifications

    A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. Ordinary location certification As standard, the transmitter has been examined and tested to...
  • Page 40 G T135 °C; Class I, Zone 0 AEx ia IIC T4 Ga; T4 (-50 °C ≤ T ≤ +70 °C) [HART ® T4 (-50 °C ≤ T ≤ +60 °C) [Fieldbus]; when connected per Rosemount drawing 03151-1207; Type 4X Emerson.com/Rosemount...
  • Page 41 January 2024 Quick Start Guide 11.1.2  Canada E6 Canada Explosionproof, Dust Ignition-proof, Division 2 1143113 Certificate CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No. 25-1966, CSA Standards Std C22.2 No. 30-M1986, CSA C22.2 No. 94.2-07 , CSA Std C22.2 No. 213-M1987, CAN/CSA C22.2 60079-11:14, CAN/ CSA-C22.2 No.
  • Page 42 Ex II 1 G Ex ia IIC T4 Ga, T4 (–60 °C ≤T ≤ +70 °C) Markings Paramete HART SuperModule RTD (for 3051SFx) ® ™ ™ OUNDATION Fieldbus only HART Fieldbus Voltage U 30 V 30 V 7.14 V 30 V 30 V Emerson.com/Rosemount...
  • Page 43 January 2024 Quick Start Guide Paramete HART SuperModule RTD (for 3051SFx) ® ™ ™ OUNDATION Fieldbus only HART Fieldbus Current I 300 mA 300 mA 2.31 mA 18.24 mA Power P 1.3 W 887 mW 17.32 137 mW Capacitanc 14.8 0.11 μF 0.8 nF Inductance 1.33 mH...
  • Page 44 Ex db IIC T6…T4 Ga/Gb, T6 (–60 °C≤ T ≤ +70 °C), T5/T4 Markings (–60 °C ≤ T ≤ +80 °C) Temperature class Process temperature –60 °C to +70 °C –60 °C to +80 °C –60 °C to +120 °C Emerson.com/Rosemount...
  • Page 45 January 2024 Quick Start Guide Special Conditions for Safe Use (X): 1. This device contains a thin wall diaphragm less than 1 mm thickness that forms a boundary between EPL Ga (process connection) and EPL Gb (all other parts of the equipment). The model code and datasheet are to be consulted for details of the diaphragm material.
  • Page 46 IECEx BAS 08.0025X Certificate IEC 60079-0:2011, IEC 60079-11:2011 Standards Ex ia IIC T4 Ga, T4 (–60 °C ≤ T ≤ +70 °C) Markings Parameter FISCO Voltage U 17.5 V Current I 380 mA Power P 5.32 W Capacitance C Inductance L Emerson.com/Rosemount...
  • Page 47 January 2024 Quick Start Guide N7 IECEx Type n IECEx BAS 08.0026X Certificate IEC 60079-0:2011, IEC 60079-15:2010 Standards Ex nA IIC T5 Gc, (–40 °C ≤T ≤ +70 °C) Markings Special Condition for Safe Use (X): If fitted with a 90 V transient suppressor, the equipment is not capable of withstanding the 500 V electrical strength test as defined in Clause 6.5.1 of IEC 60079-15:2010.
  • Page 48 3051SFx: GYJ21.3300X [MfgUSA, China, Singapore] 3051SMV: GB/T 3836.1-2021, GB/T 3836.2-2021, GB/T Standards 3836.20-2010 3051SFx: GB3836.1-2010, GB3836.2-2010, GB12476.1-2013, GB12476.5-2013 3051SMV: Ex d IIC T6··· T4 Ga/Gb Markings 3051SFx: Ex d IIC T4 T6 Ga/Gb; Ex tD IP66 A20 T105°C 95°C Emerson.com/Rosemount...
  • Page 49 January 2024 Quick Start Guide Special Conditions for Safe Use (X): 一、产品安全使用特殊条件 证书编号后缀“X”表明产品具有安全使用特殊条件： 1. 涉及隔爆接合面的维修须联系产品制造商。 2. 产品使用厚度小于 1mm 的隔膜作为 0 区（过程连接）和 1 区（产 品其他部分）的隔离，安装和维护时需严格遵守制造商提供的说明 书，以确保安全性。 3. 产品外部涂层可能产生静电危险，使用时须防止产生静电火花，只 能用湿布清理。 二、产品使用注意事项 1. 产品温度组别和使用环境温度之间的关系为： 温度组别 使用环境温度 过程温度 -60 °C to +70 °C –60 °C to +70 °C -60 °C to +80 °C –60 °C to +80 °C -60 °C to +80 °C...
  • Page 50 753-9220-XXXX 电池。 二、产品使用注意事项 1. 用于爆炸性气体环境中，产品使用环境温度为：-60 ℃ ≤ T ≤＋ 70 ℃ 用于爆炸性粉尘环境中，产品使用环境温度为：-20 ℃ ≤ T ≤＋ 85 ℃ 2. 本安电气参数： c 输出代 端子 最高输 最大输 最大输 最大内部 等效参数 入电流 I 码 入电压 入功率 (nF) (μH) (mA) SuperM +, -, odule Emerson.com/Rosemount...
  • Page 51 January 2024 Quick Start Guide c 输出代 端子 最高输 最大输 最大输 最大内部 等效参数 入电流 I 码 入电压 入功率 (nF) (μH) (mA) +, -, A 配 +, - M7、 M8 或 M9 显示 +, - FISCO +, - 17.5 5.32 d 代码为 A 时 最高输出...
  • Page 52 3. Non-standard paint options may cause risk from electrostatic discharge. Avoid installations that could cause electrostatic build-up on painted surfaces, and only clean the painted surfaces with a damp cloth. If paint is ordered through a special option code, contact the manufacturer for more information. Emerson.com/Rosemount...
  • Page 53 January 2024 Quick Start Guide 11.1.9  Republic of Korea EP Republic of Korea Flameproof 19-KA4BO-0913X [Mfg USA], 12-KB4BO-0180X [Mfg USA], Certificate 11-KB4BO-0068X [Mfg Singapore] Ex d IIC T6...T4 Ga/Gb Markings IP Republic of Korea Intrinsic Safety [HART Only] ® 10-KB4BO-0021X [Mfg SMMC], 16-KB4BO-0440X [Mfg Certificate USA], 19-KA4BO-0911X [Mfg USA] Ex ia IIC T4...
  • Page 54 High Speed and Light Craft, and Det Norske Veritas’ Offshore Standards. [HART only] ® Application Location classes Type 3051S Temperature Humidity Vibration Enclosure D/IP66/IP68 SLL Lloyds Register (LR) Type Approval LR21173788TA Certificate Environmental categories ENV1, ENV2, ENV3, and ENV5. Application [HART only] ® Emerson.com/Rosemount...
  • Page 55 January 2024 Quick Start Guide 11.2  Declaration of conformity Quick Start Guide...
  • Page 56 Quick Start Guide January 2024 Emerson.com/Rosemount...
  • Page 57 January 2024 Quick Start Guide Quick Start Guide...
  • Page 58 Quick Start Guide January 2024 11.3  China RoHS Emerson.com/Rosemount...
  • Page 59 January 2024 Quick Start Guide Quick Start Guide...
  • Page 60 2024 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
