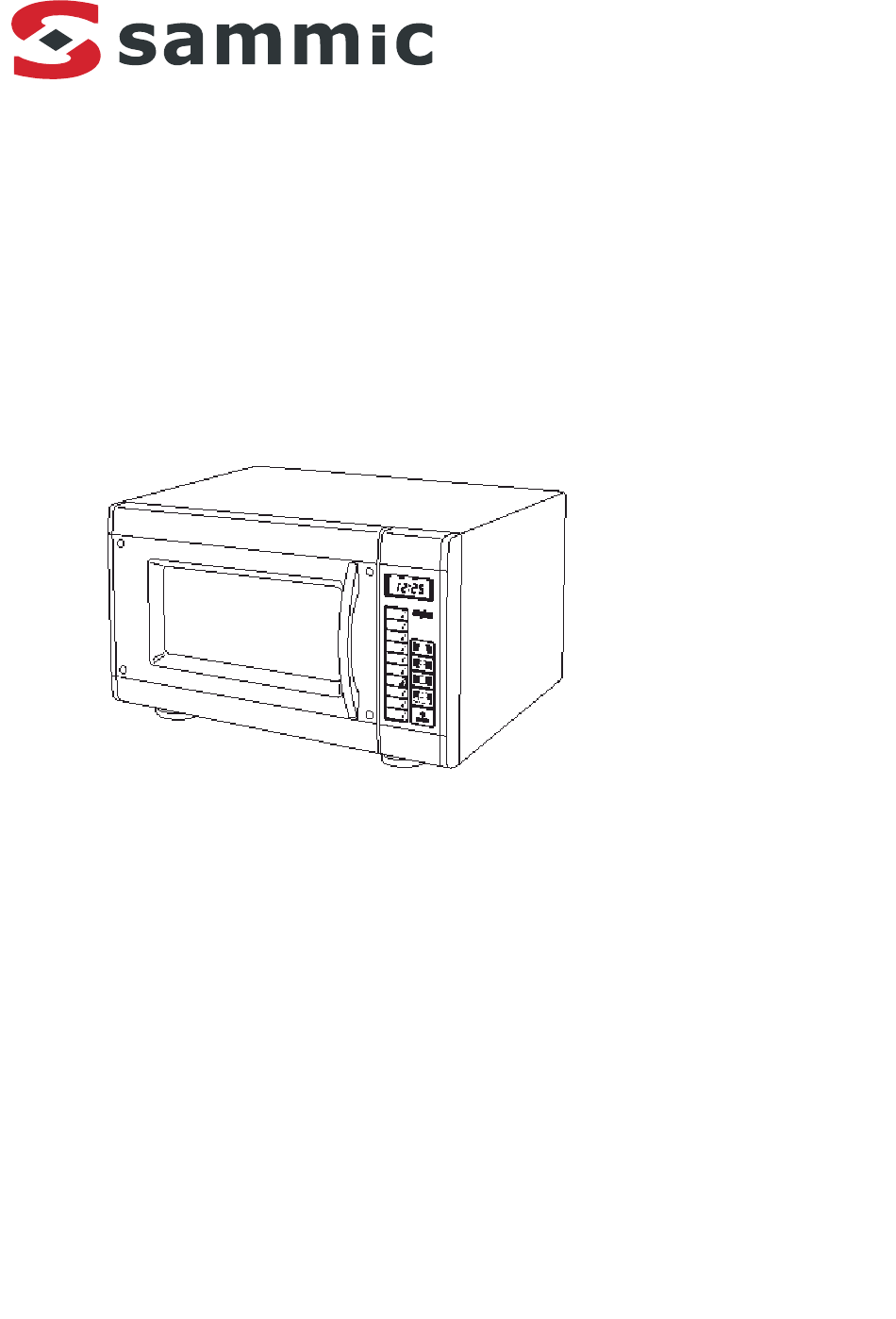

SAMMIC HM-1000 MANUAL DE INSTRUCCIONES Horno de microondas comercial HM-1000 Fuente de suministro eléctrico 230V AC, 50 Hz Potencia máxima de salida 1000 vatios Volumen de la cavidad 0,8 pies cúbicos Dimensiones totales (AxPxA) 520 mm x 412 mm x 296 mm Peso neto Aprox.
INDICE Descripción de las partes del horno Instalación Cómo utilizar su horno de microondas de forma segura El cuidado de su horno de microondas Panel de control del horno Consejos para cocinar con un horno de microondas Instrucciones de uso 7-10 Tabla de los niveles de potencia Cocción programada (en 2 fases)
Centros de Asistencia Cubrir los orificios de ventilación puede acarrear el Sanyo. Es importante que el color de la cubierta del mal funcionamiento del horno. Por lo tanto, será fusible de repuesto corresponda con el del inserto o necesario un mínimo de 5 cm tanto por encima...
COMO UTILIZAR SU HORNO DE MICROONDAS DE FORMA SEGURA (continuación) Aunque su horno cuenta con medidas de seguridad, es importante tener en cuenta lo siguiente: Es importante no manipular ni tratar de forzar los enclavamientos de seguridad. No colocar ningún objeto entre la parte anterior del horno y la puerta ni dejar que se acumulen residuos sobre las superficies de cerrado.
PANEL DE CONTROL DEL HORNO VISUALIZADOR: 1. Visualizador LED - Muestra el tiempo 3. Tecla de potencia - Para introducir la de cocción, el nivel de potencia y los potencia de salida deseada en la memoria indicadores de función. de la unidad. 4.
CONSEJOS PARA COCINAR CON UN HORNO DE MICROONDAS 1. Tiempos de cocción y cantidades Pistas para una cocción uniforme Introducir el tiempo de cocción adecuado para la Dar la vuelta (180 grados) a los alimentos voluminosos cantidad de alimentos que se vayan a preparar. En el a media cocción.
Page 8
INSTRUCCIONES DE USO (2) UTILIZANDO LA TECLA DE PROGRAMA PARA EL ALMACENAMIENTO DE LA MEMORIA 1. Cocción programada (de 1 fase) a la potencia máxima. (Ejemplo) Para programar lo siguiente con el programa n.º 3: (Nivel de potencia... potencia máxima durante 30 segundos.) Pasos a seguir Pantalla de visualización Pulsar la tecla “Memory”...
Page 9
INSTRUCCIONES DE USO (3) UTILIZANDO LA TECLA DE PROGRAMA PARA EL ALMACENAMIENTO DE LA MEMORIA 1. Cocción programada (de 1 fase) a un nivel de potencia inferior. (Ejemplo) Para programar lo siguiente con el programa n.º 4: (Nivel de potencia 5 para 45 segundos.) Pasos a seguir Pantalla de visualización...
Page 10
INSTRUCCIONES DE USO (4) METODO DE CALENTAMIENTO 1. Uso normal (Ejemplo) En el caso de que el programa n.º 3 se programe como: Primera fase (potencia máxima durante 30 segundos) y segunda fase (potencia de nivel 2 durante 1 minuto). Pasos a seguir Pantalla de visualización 1 Colocar los alimentos...
TABLA DE LOS NIVELES DE POTENCIA NIVEL DE POTENCIA (W) Tiempo de POTENCIA entrada máximo (cifra de entrada) EM-S1000 Introducción Ciclo único manual potencia máxima (sin entrada) 1000 10 min., 00 seg. 6 min., 00 seg. “ “ “ “...
COCCION PROGRAMADA (EN 2 FASES) 1. Cocción programada (en 2 fases) (Ejemplo) Para programar lo siguiente con el programa n.º 3: Primera fase (potencia máxima durante 30 segundos) Segunda fase (nivel 2 de potencia durante 10 minutos) Seguir los pasos 1-6 de la cocción en 1 fase (ver pág. 8) y a continuación: Pasos a seguir Pantalla de...
Page 13
COCCION PROGRAMADA EN 2 FASES (Continuación) 2. Confirmación de la memoria (Ejemplo) En el caso de que el programa n.º 3 se programe de la siguiente manera: Primera fase (potencia máxima durante 30 segundos) Segunda fase (nivel 2 de potencia durante 10 minutos) Pasos a seguir Pantalla de visualización 1 Abrir la puerta...
PRECAUCIONES DURANTE EL CALENTAMIENTO Comprobar los alimentos durante la cocción El tiempo de cocción para una cantidad doble Cuando se abre la puerta mientras se están cocinando El tiempo de cocción para una cantidad doble equivale los alimentos, el programa de cocción se suspende a 1,7 veces el tiempo de cocción para una cantidad.
COMPROBACION DEL TIEMPO DE COCCION ACUMULATIVO, NUMERO DE OPERACIONES DE LA PUERTA Y CONTROL DEL TIMBRE (LA PUERTA DEBE ESTAR CERRADA) Mediante el teclado, podrá conocerse el tiempo de cocción acumulativo o el número de operaciones de la puerta. También podrá modificarse el tiempo de cocción restante, el sonido del timbre o su volumen.
COMO CONFIRMAR LA FRECUENCIA DE CADA CICLO UTILIZADO Pasos a seguir Pantalla de visualización Pulsar la tecla “Clear” Aparecerá un “0” en la pantalla Pulsar la tecla “Time” Se encenderán la barra de Stage 1 y el punto inferior Aparecerá “99.99” en pantalla Pulsar el número “9”...
ásperas. QUE HACER EN CASO DE AVERIA Póngase en contacto con el CENTRO DE ASISTENCIA SANYO más cercano. Es peligroso para cualquier persona que no sea un ingeniero de servicio debidamente cualificado y formado por SANYO llevar a cabo ajustes o arreglos.
Page 18
EM-S1000 INSTRUCTION MANUAL Commercial Microwave Oven Power Source 230V AC, 50Hz Max. Output Power 1000 Watts Cavity Size 0.8 cu-ft Overall Dimensions (WxDxH) 520mm x 412mm x 296mm Net Weight Approx. 17 kgs Read these instructions carefully before use. If you follow these instructions, your Microwave Oven will serve you long and well.
Page 19
Control Of The Buzzer Sound How To Confirm The Frequency Of Each Course Used Care And Cleaning What To Do If Repairs Are Needed DESCRIPTION OF OVEN PARTS EM-S1000 1. CERAMIC TRAY 2. CONTROL PANEL 3. VENTS 4. SAFETY INTERLOCK SYSTEM...
Replacement fuse moisture are generated as this may lower oven efficiency. covers are available from Sanyo Service Centres. It is important that the colour of the replacement fuse cover 3. Covering the air vents may lead to the malfunction-...
11. When disposable containers of plastic, paper or other completely but its special SANYO design contributes combustible materials are used to reheat food, it is to the complete safety of the appliance.
HOW TO USE YOUR MICROWAVE OVEN SAFELY (cont.) Although your oven is provided with safety features, it is important to observe the following: It is important not to defeat or tamper with safety interlocks. Do not place any object between the oven face and the door or allow residue to accumulate on sealing surfaces. Wipe the sealing area frequently with a mild detergent, rinse and wipe dry.
OVEN CONTROL PANEL DISPLAY: 3. Power Key - For entering the desired power output 1. LED Display - Cooking time, power level, function into the unit memory. indicators are displayed. 4. Timer Key - For entering the desired cooking time into the units memory.
MICROWAVE OVEN COOKING KNOW-HOW 1. Cooking times with quantity 2. Hints for even cooking Input the cooking time that is appropriate to Turn bulky foods over (180 degrees) halfway the quantity of foods being prepared. through the cooking. When heating double or triple quantity, use When cooking two or more items, rotate the appropriate multiple-quantity key.
Page 25
OPERATING INSTRUCTIONS (2) USING THE PROGRAM KEY FOR MEMORY STORAGE Programmed (1-Stage) Cooking at maximum power. (Example) To program the following on program No. 3: ( Power Level ...max power for 30 seconds.) Operational flow Display Window Touch “Memory” Key (1st time) “0”...
Page 26
OPERATING INSTRUCTIONS (3) USING THE PROGRAM KEY FOR MEMORY STORAGE Programmed (1-Stage) Cooking at lower power level. (Example) To program the following on program No. 4: ( Power Level 5 for 45 seconds.) Operational flow Display Window “0” will appear on the display Touch “Memory”...
Page 27
OPERATING INSTRUCTIONS (4) HEATING METHOD Ordinary Use (Example) When program No. 3 is programmed as: First stage ( Max power for 30 seconds.) and Second stage (Power Level 2 for 1 min.) Operational flow Display Window Place food in oven “0”...
POWER LEVEL LIST POWER LEVEL POWER (W) Max. Input time (Input figure) EM-S1000 Manual Set One Touch Course max power (no input) 1000 10 min. 00 sec. 6 min. 00 sec. “ “ “ “ “ “ “ “ 30 min. 00 sec.
PROGRAM (2-STAGE) COOKING Programmed (2 Stage) Cooking (Example) To program the following on program No. 3: First stage (Max power for 30 seconds.) Second stage (Power Level 2 for 10 minutes.) Operating flow 1-6 of 1-stage cooking, then: (see page 8) Operational flow Display Window Stage 2 bar lights and “PL10”...
Page 30
PROGRAM (2-STAGE) COOKING (cont.) Confirmation of Memory (Example) When program No.3 is programmed as: First stage (Max power for 30 seconds.) Second stage (Power Level 2 for 10 minutes.) Operational flow Display Window Open door “0” will appear on the display Touch number “3”...
PRECAUTIONS WHILE HEATING 1. Checking foods during cooking 5. Cooking time for triple quantity When it is necessary to open the door while The cooking time for triple quantity is 2.3 times the food is cooking, the cooking program is auto- cooking time for one quantity.
CHECKING ACCUMULATIVE COOKING TIME, NUMBER OF DOOR OPERATIONS AND CONTROL OF THE BUZZER SOUND (DOOR MUST BE CLOSED) Display shows accumulative cooking time or the number of door operations by key operation. Also, you can change any remaining cooking time, buzzer sound or buzzer volume. Operational flow Display Window “0”...
HOW TO CONFIRM THE FREQUENCY OF EACH COURSE USED Operational flow Display Window “0” will appear on the display. Touch “Clear” Key Touch “Time” key Stage 1 bar & lower colon lights. The “99.99” will appear on the Touch number display.
WHAT TO DO IF REPAIRS ARE NEEDED 1. Get in contact with your nearest SANYO SERVICE • If the interior lamp does not light when the oven CENTER. It is dangerous for anyone other than a...
Page 35
03-03 SANYO Electric Co., Ltd. CODE NO. MO- P xxxx Printed in Thailand...
Page 36
SAMMIC HM-1000 NOTICE D'UTILISATION Four micro-ondes à usage commercial Alimentation électrique 230 V c.a., 50 Hz Puissance restituée 1000 W Volume intérieur du four 22,6 litres Dimensions totales (Larg. x Prof. x Haut.) 520 mm x 412 mm x 296 mm Poids net Environ 17 kg Veuillez lire attentivement cette notice avant d'utiliser votre appareil.
Page 37
SOMMAIRE Vue descriptive des différentes parties du four Installation Comment utiliser votre four micro-ondes en toute sécurité L'entretien de votre four micro-ondes Panneau de commande du four Conseils pratiques pour cuisiner au micro-ondes Mode d'emploi 7-10 Tableau des niveaux de puissance Cuisson programmée (en 2 étapes) 12-13 Précautions à...
Page 38
L'obstruction orifices d'aération pourrait d'Assistance Sanyo. Il est important que la couleur du entraîner un mauvais fonctionnement du four. Par couvercle du fusible de rechange soit la même que conséquent, il est nécessaire de laisser un espace celle d'origine ou soit conforme aux indications de dégagement d'au moins 5 cm tant au-dessus...
La porte n'est Quand vous faites réchauffer des aliments dans pas conçue pour être complètement hermétique mais des récipients jetables en plastique, papier ou sa conception spéciale SANYO contribue à la parfaite autres matières inflammables, sécurité...
COMMENT UTILISER VOTRE FOUR À MICRO-ONDES EN TOUTE SÉCURITÉ (suite) Votre four est doté de dispositifs de sécurité, mais il est néanmoins important de tenir compte des consignes suivantes : Il est important de ne pas manipuler ni essayer de forcer les verrouillages de sécurité. Ne posez aucun objet entre la partie avant du four et la porte.
PANNEAU DE COMMANDE DU FOUR AFFICHAGE : 3. Touche de puissance – Permet d'entrer 1. Ecran d'affichage LED – Affiche le la puissance souhaitée dans la mémoire de temps de cuisson, le niveau de puissance l'unité. et les indicateurs de fonction. 4.
CONSEILS PRATIQUES POUR CUISINER AU MICRO-ONDES 1. Temps de cuisson et quantités Conseils pour une cuisson uniforme Sélectionnez le temps de cuisson requis pour la Retournez (180º) les aliments épais à mi-cuisson. quantité d'aliments à préparer. Pour cuisiner ou Si vous faites cuire deux produits ou plus en même réchauffer des quantités doubles ou triples, appuyez temps, changez-les de place à...
Page 43
MODE D'EMPLOI (2) AVEC UTILISATION DE LA TOUCHE DE PROGRAMMATION POUR LA MISE EN MÉMOIRE DU CYCLE PROGRAMMÉ 1. Cuisson programmée (1 étape) à la puissance maximum. Exemple : Pour programmer la cuisson suivante comme programme nº 3 : (Niveau de puissance..
Page 44
MODE D'EMPLOI (3) AVEC UTILISATION DE LA TOUCHE DE PROGRAMMATION POUR LA MISE EN MÉMOIRE DU CYCLE PROGRAMMÉ 1. Cuisson programmée (1 étape) à un niveau de puissance inférieur. (Exemple) Pour programmer la cuisson suivante comme programme nº 4 : (Niveau de puissance 5 pendant 45 secondes) Séquence Affichage...
Page 45
MODE D'EMPLOI (4) MÉTHODE DE RÉCHAUFFAGE 1. Utilisation normale Exemple : Soit le programme nº 3 suivant : Etape 1 (puissance maximum pendant 30 secondes) et étape 2 (niveau de puissance 2 pendant 1 minute). Séquence Affichage 1 Placez les aliments L'écran affiche “0”.
TABLEAU DES NIVEAUX DE PUISSANCE NIVEAU DE PUISSANCE (W) Durée maximum PUISSANCE fonctionnement (Valeur saisie) EM-S1000 Réglage manuel Cycle unique puissance maximum 1000 10 min 00 s 6 min 00 s (pas de valeur à saisir) “ “ “ “...
CUISSON PROGRAMMÉE (EN 2 ÉTAPES) 1. Cuisson programmée (en 2 étapes) Exemple : Programmation de la cuisson suivante comme programme nº 3 : Etape 1 (puissance maximum pendant 30 secondes) Etape 2 (niveau de puissance 2 pendant 10 minutes) Séquence de cuisson 1 à 6 pour l'étape 1 (voir page 8), puis : Séquence Affichage Appuyez sur la touche...
Page 48
CUISSON PROGRAMMÉE (EN 2 ÉTAPES) 2. Validation d'un programme mémorisé Exemple : Si le programme nº 3 a été programmé comme suit : Etape 1 (puissance maximum pendant 30 secondes) Etape 2 (niveau de puissance 2 pendant 10 minutes) Séquence Affichage 1 Ouvrez la porte du four.
PRÉCAUTIONS À PRENDRE PENDANT LA CUISSON Surveillance des aliments pendant la cuisson Temps de cuisson pour les quantités doubles Si la porte est ouverte pendant le fonctionnement, le Le temps de cuisson pour une quantité double est égal programme de cuisson s'interrompt automatiquement, à...
VÉRIFICATION DU TEMPS DE CUISSON ACCUMULÉ, DU NOMBRE D'OUVERTURES DE PORTE ET RÉGLAGE DU SIGNAL SONORE (LA PORTE DOIT ÊTRE FERMÉE) Vous pouvez connaître le temps de cuisson accumulé ou le nombre d'ouvertures de la porte. Vous pouvez également modifier le temps de cuisson restant, régler le type de signal sonore ou son volume.
POUR AFFICHER LE NOMBRE D'UTILISATIONS DE CHAQUE CYCLE Séquence Affichage Appuyez sur la touche L'écran affiche “0”. “Clear”. Appuyez sur la touche La barre de Stage 1 et le point “Time”. inférieur s'allument. Affichage de “99.99”. Appuyez quatre fois sur la touche nº “9”.
Page 52
Appuyez de nouveau sur la touche L'écran affiche le nombre “Start”. d'utilisations du cycle nº 1. Par exemple : 428 fois. Appuyez de nouveau sur la touche L'écran affiche le nombre “Start”. d'utilisations du cycle nº 2. Par exemple : 1125 fois. Par pressions successives sur la touche “Start”, vous pouvez afficher le nombre d'utilisations des 10 cycles de cuisson en mémoire.
étincelles et des arcs électriques. N'utilisez jamais de poudres à récurer ni de tampons abrasifs. QUE FAIRE EN CAS DE PANNE Contactez votre CENTRE D'ASSISTANCE SANYO le plus proche. Les réglages ou réparations sur le four doivent être confiés à des professionnels qualifiés et formés par SANYO, des interventions mal faites pouvant entraîner de graves dangers.
Page 54
SAMMIC HM-1000 MANUALE DI ISTRUZIONI Forno a microonde commerciale HM-1000 Fonte di erogazione elettrica 30V AC, 50 Hz Potenza massima d’uscita 1000 watt Volume della cavità 0,8 piedi cubi Dimensioni complessive (AxPxA) 520 mm x 412 mm x 296 mm Peso netto Circa 17 kg.
Page 55
INDICE Descrizione delle parti del forno Installazione Come utilizzare il proprio forno a microonde in modo sicuro Gli accorgimenti per il proprio forno a microonde Pannello di controllo del forno Consigli per cucinare con un forno a microonde Istruzioni di uso 7-10 Tabella dei livelli di potenza Cottura programmata (in 2 fasi)
Non si deve collocare il forno vicino alle zone in cui si sostituisca detto ricoprimento. Si potranno reperire si genera calore e umidità, poiché ciò potrebbe tali ricoprimenti nei Centri di Assistenza Sanyo. È ridurre l’efficacia del forno. importante che il colore del ricoprimento del fusibile di Coprire i fori di ventilazione può...
Mettersi in possono bruciare, prosciugarsi o andare in contatto con il CENTRO DI ASSISTENZA SANYO fiamme, se si cucinano o si riscaldano per troppo più vicino.
Page 58
COME UTILIZZARE IL PROPRIO FORNO A MICROONDE IN MODO SICURO (segue) Anche se per il forno sono state prese delle misure di sicurezza, è importante tenere presente quanto di seguito indicato: È importante non manipolare, né cercare di forzare i blocchi di sicurezza. Non collocare nessun oggetto fra la parte anteriore del forno e la porta, né...
Page 59
PANNELLO DI CONTROLLO VISUALIZZATORE: 3. Tasto di potenza - Per introdurre la 1. Visualizzatore LED - Mostra il tempo di potenza di partenza desiderata nella cottura, il livello di potenza e gli indicatori di memoria dell’unità. funzione. 4. Tasto dell’orologio. Per introdurre il tempo di cottura desiderato nella memoria dell'unità.
CONSIGLI PER CUCINARE CON UN FORNO A MICROONDE 1. Tempi di cottura e quantità Suggerimenti per una cottura uniforme Introdurre il tempo di cottura adeguato alla quantità di Far girare (180 gradi) i cibi voluminosi a media cibi che si dovranno preparare. Se si deve riscaldare cottura.
Page 61
ISTRUZIONI DI USO (2) UTILIZZANDO IL TASTO DI PROGRAMMA PER LA REGISTRAZIONE DELLA MEMORIA 1. Cottura programmata (di 1 fase) alla potenza massima. (Esempio) Per programmare quanto segue con il programma n.º 3: (Livello di potenza... potenza massima per un tempo di 30 secondi.) Passi da seguire Schermo di visualizzazione Premere il tasto “Memory”...
Page 62
ISTRUZIONI DI USO (3) UTILIZZANDO IL TASTO DI PROGRAMMA PER LA REGISTRAZIONE DELLA MEMORIA 1. Cottura programmata (di 1 fase) a un livello di potenza inferiore. (Esempio) Per programmare quanto segue, con il programma n.º 4: (Livello di potenza 5 per 45 secondi.) Passi da seguire Schermo di visualizzazione...
Page 63
ISTRUZIONI DI USO (4) METODO DI RISCALDAMENTO 1. Uso normale (Esempio) Nel caso in cui il programma n.º 3 sia programmato come: Prima fase (potenza massima per 30 secondi) e seconda fase (potenza di livello 2 durante 1 minuto). Passi da seguire Schermo di visualizzazione 1 Collocare i cibi nel Apparirà...
COTTURA PROGRAMMATA (IN 2 FASI) 1. Cottura programmata (in 2 fasi) (Esempio) Per programmare quanto segue con il programma n.º 3: Prima fase (potenza massima per 30 secondi) Seconda fase (livello 2 di potenza per 10 minuti) Seguire i passi 1-6 della cottura in 1 fase (vedi pag. 8) e di seguito: Passi da seguire Schermo di...
Page 66
COTTURA PROGRAMMATA IN 2 FASI (Segue) 2. Conferma della memoria (Esempio) Nel caso in cui il programma n.º 3 venga programmato nel seguente modo: Prima fase (potenza massima per 30 secondi) Seconda fase (livello 2 di potenza per 10 minuti) Passi da seguire Schermo di visualizzazione 1 Aprire la porta...
PRECAUZIONI DURANTE IL RISCALDAMENTO Controllare i cibi durante la cottura Il tempo di cottura per una quantità doppia Se si apre la porta mentre si stanno cucinando i cibi, il Il tempo di cottura per una quantità doppia equivale a programma di cottura si sospende automaticamente, 1,7 volte il tempo di cottura per una sola quantità.
VERIFICA DEL TEMPO DI COTTURA CUMULATIVO, NUMERO DI OPERAZIONI DELLA PORTA E CONTROLLO DEL CAMPANELLO (LA PORTA DEVE ESSERE CHIUSA) Mediante la tastiera si potrà conoscere il tempo di cottura cumulativo o il numero di operazioni della porta. Inoltre, si potrà modificare il tempo di cottura restante, il suono del campanello o il suo volume.
COME CONFERMARE LA FREQUENZA DI OGNI CICLO UTILIZZATO Passi da seguire Schermo di visualizzazione Premere il tasto “Clear” Apparirà uno “0” sullo schermo Premere il tasto “Time” Se accenderanno la barra di Stage 1 e il punto inferiore Apparirà “99.99” sullo schermo Premere il numero “9”...
CHE FARE IN CASO DI GUASTO 1. Mettersi in contatto con il CENTRO DI ASSISTENZA SANYO più vicino. È pericoloso per qualsiasi persona, che non sia un ingegnere debitamente qualificato e formato dalla SANYO eseguire riparazioni o regolazioni.
