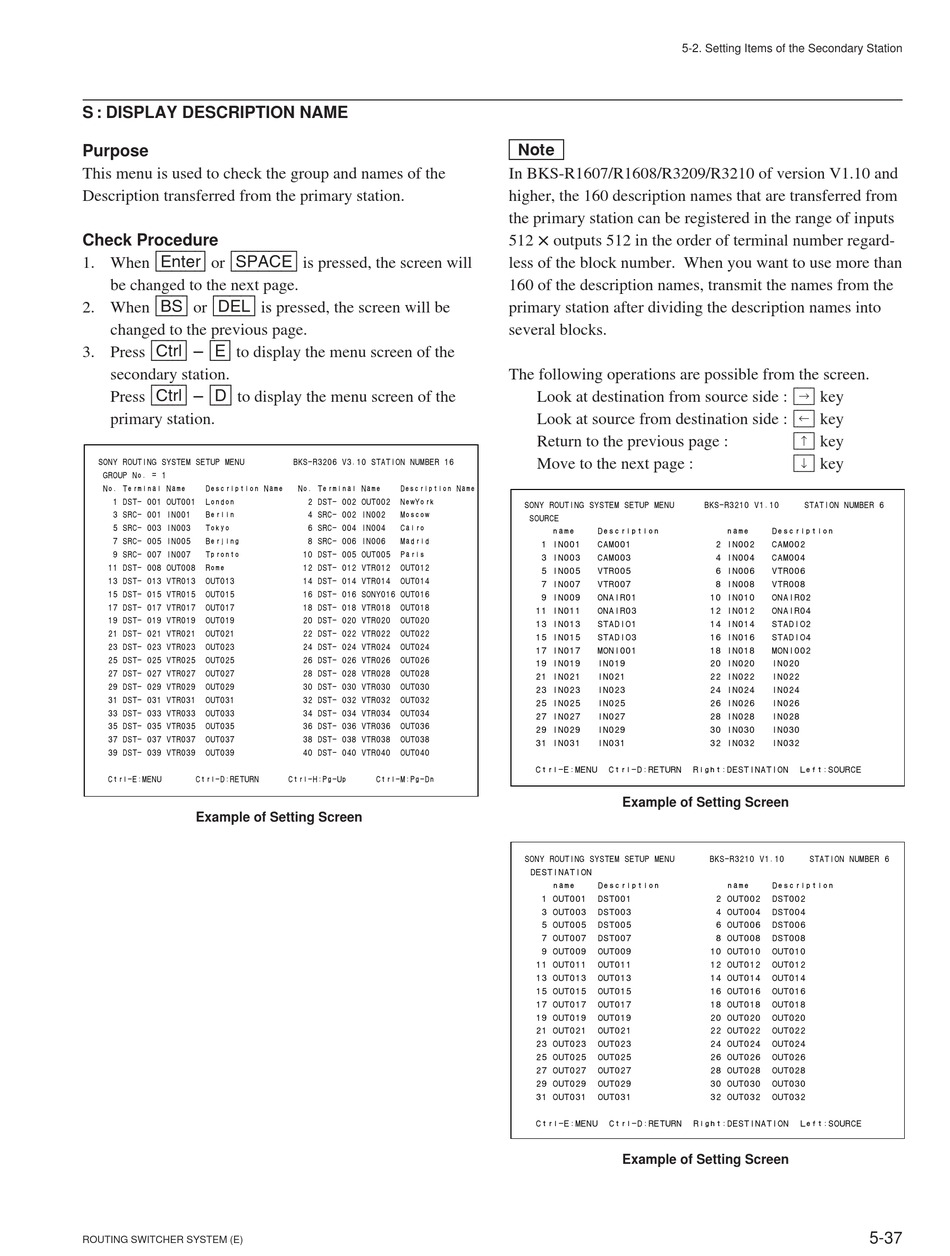

S : Display Description Name - Sony BKS-R3202/R3210/R3220 Installation Manual

S : DISPLAY DESCRIPTION NAME

Purpose
This menu is used to check the group and names of the
Description transferred from the primary station.
Check Procedure
1. When [Enter] or [SPACE] is pressed, the screen will
be changed to the next page.
2. When [BS] or [DEL] is pressed, the screen will be
changed to the previous page.
3. Press [Ctrl] _ [E] to display the menu screen of the
secondary station.
Press [Ctrl] _ [D] to display the menu screen of the
primary station.
SONY ROUTING SYSTEM SETUP MENU
GROUP No. = 1
No. Terminal Name Description Name
1 DST- 001 OUT001 London
3 SRC- 001 IN001 Berlin
5 SRC- 003 IN003 Tokyo
7 SRC- 005 IN005 Berjing
9 SRC- 007 IN007 Tpronto
11 DST- 008 OUT008 Rome
13 DST- 013 VTR013 OUT013
15 DST- 015 VTR015 OUT015
17 DST- 017 VTR017 OUT017
19 DST- 019 VTR019 OUT019
21 DST- 021 VTR021 OUT021
23 DST- 023 VTR023 OUT023
25 DST- 025 VTR025 OUT025
27 DST- 027 VTR027 OUT027
29 DST- 029 VTR029 OUT029
31 DST- 031 VTR031 OUT031
33 DST- 033 VTR033 OUT033
35 DST- 035 VTR035 OUT035
37 DST- 037 VTR037 OUT037
39 DST- 039 VTR039 OUT039
Ctrl-E:MENU Ctrl-D:RETURN
Example of Setting Screen
ROUTING SWITCHER SYSTEM (E)
BKS-R3206 V3.10 STATION NUMBER 16
No. Terminal Name Description Name
2 DST- 002 OUT002 NewYork
4 SRC- 002 IN002 Moscow
6 SRC- 004 IN004 Cairo
8 SRC- 006 IN006 Madrid
10 DST- 005 OUT005 Paris
12 DST- 012 VTR012 OUT012
14 DST- 014 VTR014 OUT014
16 DST- 016 SONY016 OUT016
18 DST- 018 VTR018 OUT018
20 DST- 020 VTR020 OUT020
22 DST- 022 VTR022 OUT022
24 DST- 024 VTR024 OUT024
26 DST- 026 VTR026 OUT026
28 DST- 028 VTR028 OUT028
30 DST- 030 VTR030 OUT030
32 DST- 032 VTR032 OUT032
34 DST- 034 VTR034 OUT034
36 DST- 036 VTR036 OUT036
38 DST- 038 VTR038 OUT038
40 DST- 040 VTR040 OUT040
Ctrl-H:Pg-Up Ctrl-M:Pg-Dn
5-2. Setting Items of the Secondary Station
n
In BKS-R1607/R1608/R3209/R3210 of version V1.10 and
higher, the 160 description names that are transferred from
the primary station can be registered in the range of inputs
512 x outputs 512 in the order of terminal number regard-
less of the block number. When you want to use more than
160 of the description names, transmit the names from the
primary station after dividing the description names into
several blocks.
The following operations are possible from the screen.
Look at destination from source side : [*] key
Look at source from destination side : [&] key
Return to the previous page :
Move to the next page :
SONY ROUTING SYSTEM SETUP MENU
SOURCE
name Description
1 IN001 CAM001
3 IN003 CAM003
5 IN005 VTR005
7 IN007 VTR007
9 IN009 ONAIR01
11 IN011 ONAIR03
13 IN013 STADIO1
15 IN015 STADIO3
17 IN017 MONI001
19 IN019 IN019
21 IN021 IN021
23 IN023 IN023
25 IN025 IN025
27 IN027 IN027
29 IN029 IN029
31 IN031 IN031
Ctrl-E:MENU Ctrl-D:RETURN Right:DESTINATION Left:SOURCE
Example of Setting Screen
SONY ROUTING SYSTEM SETUP MENU
DESTINATION
name Description
1 OUT001 DST001
3 OUT003 DST003
5 OUT005 DST005
7 OUT007 DST007
9 OUT009 OUT009
11 OUT011 OUT011
13 OUT013 OUT013
15 OUT015 OUT015
17 OUT017 OUT017
19 OUT019 OUT019
21 OUT021 OUT021
23 OUT023 OUT023
25 OUT025 OUT025
27 OUT027 OUT027
29 OUT029 OUT029
31 OUT031 OUT031
Ctrl-E:MENU Ctrl-D:RETURN Right:DESTINATION Left:SOURCE
Example of Setting Screen
[(] key
[)] key
BKS-R3210 V1.10 STATION NUMBER 6
name Description
2 IN002 CAM002
4 IN004 CAM004
6 IN006 VTR006
8 IN008 VTR008
10 IN010 ONAIR02
12 IN012 ONAIR04
14 IN014 STADIO2
16 IN016 STADIO4
18 IN018 MONI002
20 IN020 IN020
22 IN022 IN022
24 IN024 IN024
26 IN026 IN026
28 IN028 IN028
30 IN030 IN030
32 IN032 IN032
BKS-R3210 V1.10 STATION NUMBER 6
name Description
2 OUT002 DST002
4 OUT004 DST004
6 OUT006 DST006
8 OUT008 DST008
10 OUT010 OUT010
12 OUT012 OUT012
14 OUT014 OUT014
16 OUT016 OUT016
18 OUT018 OUT018
20 OUT020 OUT020
22 OUT022 OUT022
24 OUT024 OUT024
26 OUT026 OUT026
28 OUT028 OUT028
30 OUT030 OUT030
32 OUT032 OUT032
5-37
