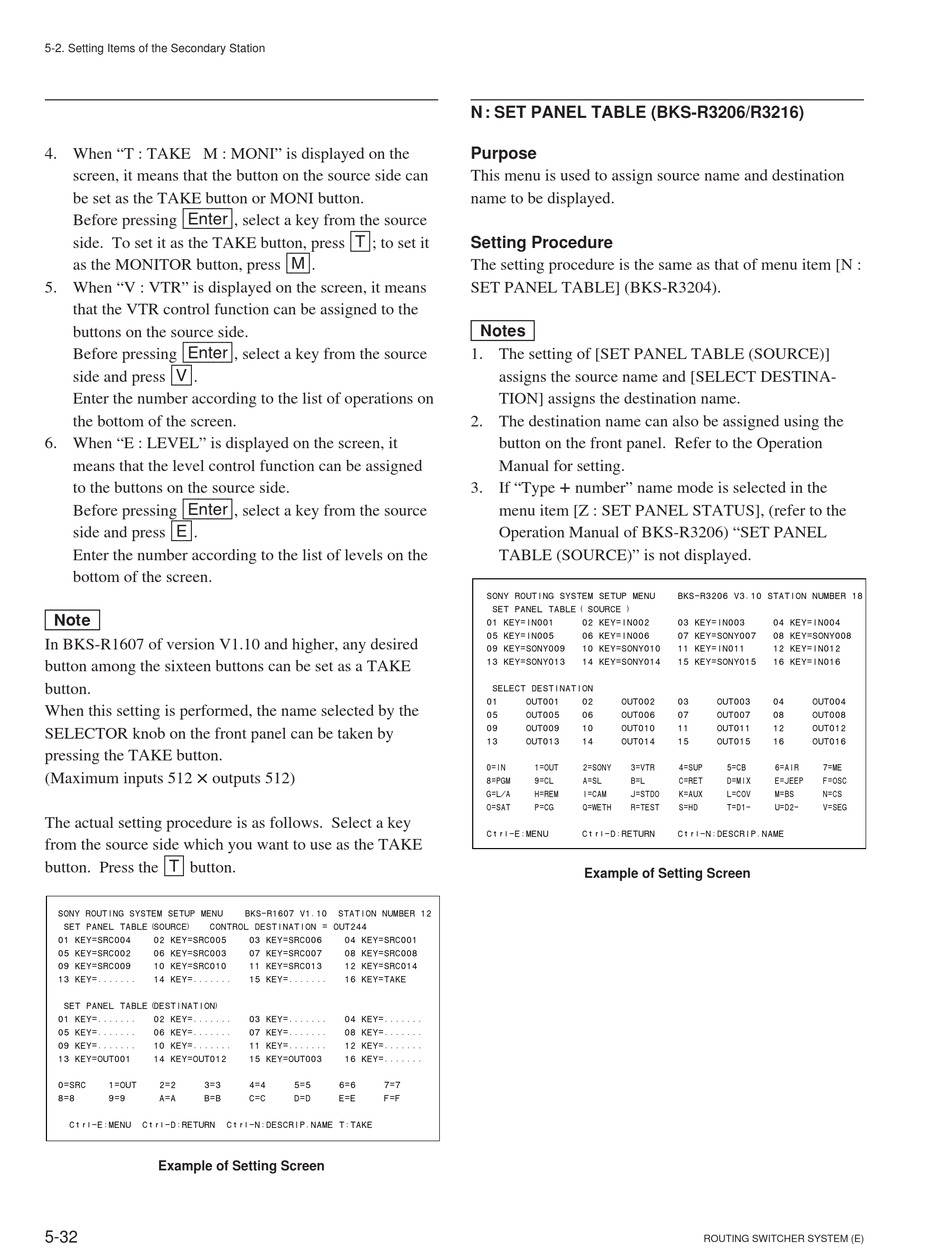

5-2. Setting Items of the Secondary Station
4. When "T : TAKE M : MONI" is displayed on the
screen, it means that the button on the source side can
be set as the TAKE button or MONI button.
Before pressing [Enter], select a key from the source
side. To set it as the TAKE button, press [T]; to set it
as the MONITOR button, press [M].
5. When "V : VTR" is displayed on the screen, it means
that the VTR control function can be assigned to the
buttons on the source side.
Before pressing [Enter], select a key from the source
side and press [V].
Enter the number according to the list of operations on
the bottom of the screen.
6. When "E : LEVEL" is displayed on the screen, it
means that the level control function can be assigned
to the buttons on the source side.
Before pressing [Enter], select a key from the source
side and press [E].
Enter the number according to the list of levels on the
bottom of the screen.
n
In BKS-R1607 of version V1.10 and higher, any desired
button among the sixteen buttons can be set as a TAKE
button.
When this setting is performed, the name selected by the
SELECTOR knob on the front panel can be taken by
pressing the TAKE button.
(Maximum inputs 512 x outputs 512)
The actual setting procedure is as follows. Select a key
from the source side which you want to use as the TAKE
button. Press the [T] button.
SONY ROUTING SYSTEM SETUP MENU
SET PANEL TABLE(SOURCE) CONTROL DESTINATION = OUT244
01 KEY=SRC004 02 KEY=SRC005
05 KEY=SRC002 06 KEY=SRC003
09 KEY=SRC009 10 KEY=SRC010
13 KEY=....... 14 KEY=.......
SET PANEL TABLE(DESTINATION)
01 KEY=....... 02 KEY=.......
05 KEY=....... 06 KEY=.......
09 KEY=....... 10 KEY=.......
13 KEY=OUT001 14 KEY=OUT012
0=SRC 1=OUT 2=2 3=3
8=8 9=9 A=A B=B
Ctrl-E:MENU Ctrl-D:RETURN Ctrl-N:DESCRIP.NAME T:TAKE
Example of Setting Screen
5-32
BKS-R1607 V1.10 STATION NUMBER 12
03 KEY=SRC006 04 KEY=SRC001
07 KEY=SRC007 08 KEY=SRC008
11 KEY=SRC013 12 KEY=SRC014
15 KEY=....... 16 KEY=TAKE
03 KEY=....... 04 KEY=.......
07 KEY=....... 08 KEY=.......
11 KEY=....... 12 KEY=.......
15 KEY=OUT003 16 KEY=.......
4=4 5=5 6=6 7=7
C=C D=D E=E F=F

N : SET PANEL TABLE (BKS-R3206/R3216)

Purpose
This menu is used to assign source name and destination
name to be displayed.
Setting Procedure
The setting procedure is the same as that of menu item [N :
SET PANEL TABLE] (BKS-R3204).
m
1. The setting of [SET PANEL TABLE (SOURCE)]
assigns the source name and [SELECT DESTINA-
TION] assigns the destination name.
2. The destination name can also be assigned using the
button on the front panel. Refer to the Operation
Manual for setting.
3. If "Type + number" name mode is selected in the
menu item [Z : SET PANEL STATUS], (refer to the
Operation Manual of BKS-R3206) "SET PANEL
TABLE (SOURCE)" is not displayed.
SONY ROUTING SYSTEM SETUP MENU
SET PANEL TABLE( SOURCE )
01 KEY=IN001 02 KEY=IN002
05 KEY=IN005 06 KEY=IN006
09 KEY=SONY009 10 KEY=SONY010
13 KEY=SONY013 14 KEY=SONY014
SELECT DESTINATION
01 OUT001 02 OUT002
05 OUT005 06 OUT006
09 OUT009 10 OUT010
13 OUT013 14 OUT014
0=IN 1=OUT 2=SONY 3=VTR
8=PGM 9=CL A=SL B=L
G=L/A H=REM I=CAM J=STDO
O=SAT P=CG Q=WETH R=TEST
Ctrl-E:MENU Ctrl-D:RETURN
Example of Setting Screen
BKS-R3206 V3.10 STATION NUMBER 18
03 KEY=IN003 04 KEY=IN004
07 KEY=SONY007 08 KEY=SONY008
11 KEY=IN011 12 KEY=IN012
15 KEY=SONY015 16 KEY=IN016
03 OUT003 04 OUT004
07 OUT007 08 OUT008
11 OUT011 12 OUT012
15 OUT015 16 OUT016
4=SUP 5=CB 6=AIR 7=ME
C=RET D=MIX E=JEEP F=OSC
K=AUX L=COV M=BS N=CS
S=HD T=D1- U=D2- V=SEG
Ctrl-N:DESCRIP.NAME
