Use
CE1N2269en
09.10.2003

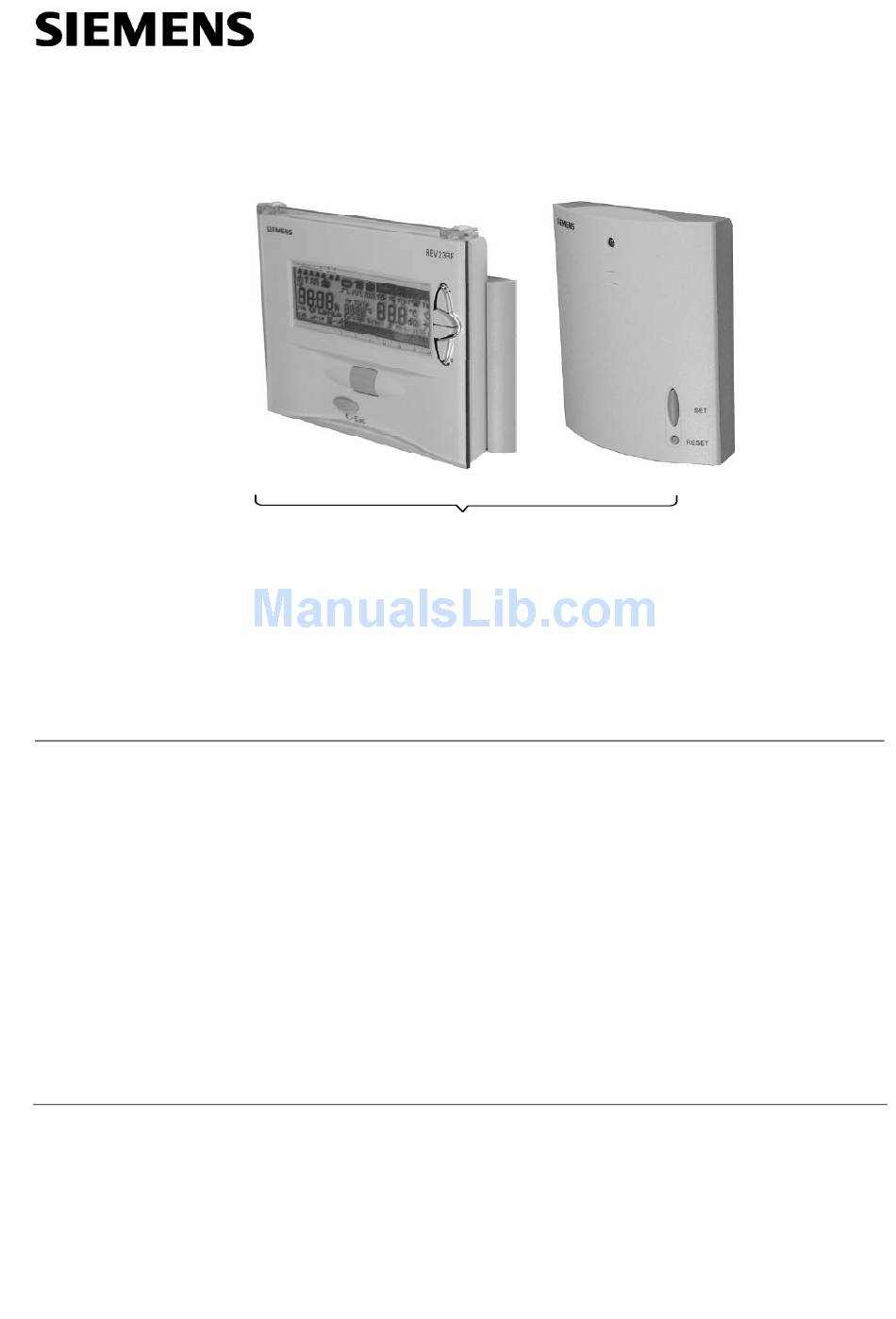

REV23RF
REV23RF16A/SET
Self-learning Room
Temperature Controller
Receiver
Consisting of controller (with integrated radio transmitter) and receiver
(switching unit with relay outputs)
• Mains-independent room temperature controller
• Straightforward, self-explanatory menu selection via roller selector
• Self-learning 2-position controller providing PID mode (patented)
• Choice of operating modes:
Automatic with maximum 3 heating or cooling periods, continuously comfort,
continuously economy, frost protection with one 24-hour operating mode in-
cluding one heating or cooling period
• In automatic mode, one temperature setpoint can be entered for each heating
or cooling period
• Optional control of cooling equipment
• Advantageous for retrofitting and upgrading projects
(wireless room unit)
• Switching capacity of relay: AC24...250 V, 16 (2) A
suited for the control of resistive loads (electrical heating elements)
For control of the room temperature in:
• Apartments, single-family or holiday houses
• Offices, individual rooms, consulting rooms or commercially used spaces
REV-R.02/16A
REV23RF
REV-R.02/16A
Siemens Building Technologies
HVAC Products
2
269
Advertisement
Table of Contents
Related Manuals for Siemens REV23RF16A
Summary of Contents for Siemens REV23RF16A
- Page 1 (electrical heating elements) For control of the room temperature in: • Apartments, single-family or holiday houses • Offices, individual rooms, consulting rooms or commercially used spaces Siemens Building Technologies CE1N2269en HVAC Products 09.10.2003...
- Page 2 Ordering When ordering, please give the type references according to «Type summary». The controller / transmitter REV23RF is supplied complete with batteries. Technical design Display and operating elements 2/16 Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en HVAC Products 09.10.2003...
-
Page 3: Override Button
The selection is automati- cally reset when the next switching point is reached or when the operating mode is changed 3/16 Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en HVAC Products 09.10.2003... - Page 4 Entry of holidays or periods of absence. Number of days with economy mode setting / max. 99 days Temperature setpoint during absence. Default setting is 12 °C for heating and 30 °C for cooling 4/16 Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en HVAC Products 09.10.2003...
-
Page 5: Temperature Setpoints
. The self-generated 24-hour operating mode is maintained until another operating mode is selected. Example °C Automatically generated 24-hour switching program when 24-hour 24-hour operating mode operating mode is activated 5/16 Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en HVAC Products 09.10.2003... -
Page 6: Switching Times
20 23 21 23 16 Mo-Fr Auto 07:00 23:00 Sa-Su 00:00 24:00 19 23 Mo-Su 00:00 24:00 16 29 Mo-Su 00:00 24:00 5 35 Mo-Su Absence 12 30 6/16 Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en HVAC Products 09.10.2003... -
Page 7: Sensor Calibration
The controller generates the positioning signals depending on the deviation of the set- point from the actual value acquired by the built-in temperature sensor. 7/16 Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en HVAC Products 09.10.2003... - Page 8 A relay with a potential free changeover contact, the connection terminals and the receiving antenna are integrated in the housing. 8/16 Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en HVAC Products 09.10.2003...
- Page 9 • First, fit the base. Then, engage the controller from the top. The base can be fitted to Wall mounting of controller / transmitter most commercially available recessed conduit boxes or directly on the wall REV23RF 9/16 Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en HVAC Products 09.10.2003...
- Page 10 The first signal transmission to the receiver has taken place After 10 seconds, the transmitter sends another signal 10/16 Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en HVAC Products 09.10.2003...
-
Page 11: Environmental Conditions
< 85 % r. h. Transport to IEC 60 721-3 Climatic conditions class 2K3 − Temperature 25...+70 °C Humidity < 93 % r. h. Mechanical conditions class 2M2 11/16 Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en HVAC Products 09.10.2003... - Page 12 85 °C Storage and transport to IEC 60 721-3 Climatic conditions class 2K3 − Temperature 25...+70 °C Humidity < 93 % r. h. Mechanical conditions class 2M2 12/16 Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en HVAC Products 09.10.2003...
- Page 13 II to EN 60 730-1 Degree of pollution normal Weight (incl. package) REV-R.02/16A 0.24 kg REV23RF/SET 0.68 kg Color Unit front Signal-white RAL 9003 Base grey RAL 7038 Dimensions 83x104x32 mm 13/16 Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en HVAC Products 09.10.2003...
-
Page 14: Application Examples
N.C. contact, AC 24...250 V / 16 (2) A Smaller circulating pump Receiver REV-R.02/16A Actuating device Application examples Instantaneous hot water heater Atmospheric gas burner Zone valve Cooling equipment 14/16 Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en HVAC Products 09.10.2003... - Page 15 Room temperature controller (transmitter) REV23RF Receiver REV-R.02/16A Room temperature controller (transmitter) REV23RF Receiver REV-R.02/16A 3-port valve with manual adjustment Solenoiod valve Motorized 3-port valve Motorized 2-port valve Electrical heating element 15/16 Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en HVAC Products 09.10.2003...
- Page 16 Dimensions Controller / transmitter REV23RF 11.75 83.50 Receiver REV-R.02/16A 2003 Siemens Building Technologies AG Änderungen vorbehalten 16/16 Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en HVAC Products 09.10.2003...
