CHAPTER 4: INTERFACES
745 TRANSFORMER PROTECTION SYSTEM – INSTRUCTION MANUAL

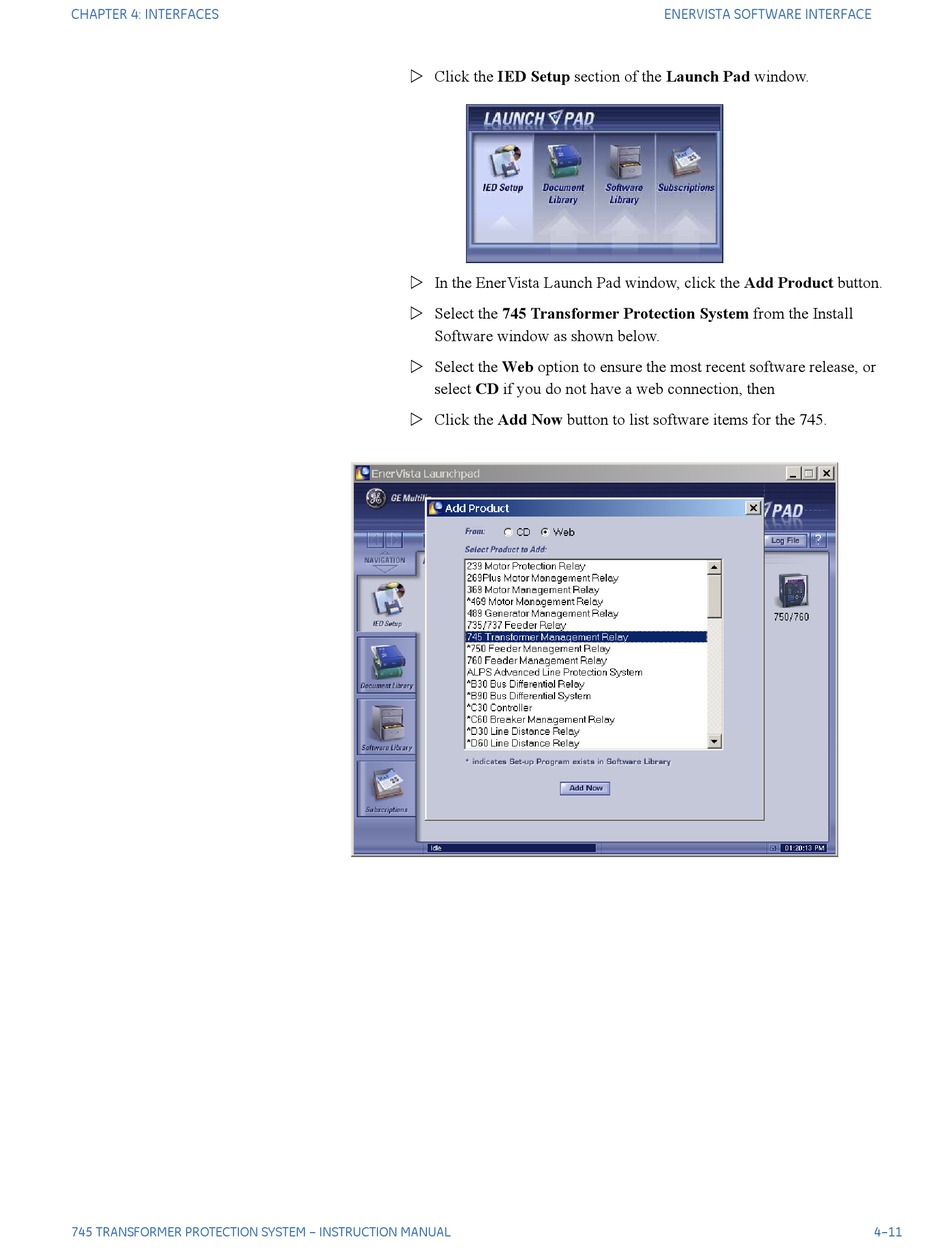

Click the IED Setup section of the Launch Pad window.
In the EnerVista Launch Pad window, click the Add Product button.
Select the 745 Transformer Protection System from the Install
Software window as shown below.
Select the Web option to ensure the most recent software release, or
select CD if you do not have a web connection, then
Click the Add Now button to list software items for the 745.
ENERVISTA SOFTWARE INTERFACE
4–11
