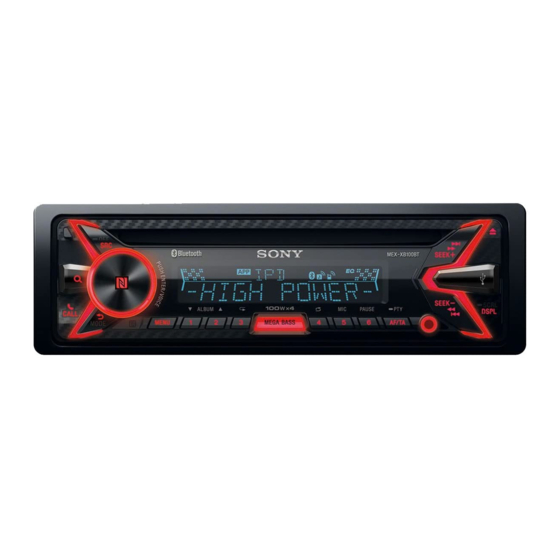

Sony MEX-XB100BT Service Manual
Bluetooth
Hide thumbs
Also See for MEX-XB100BT:
- Operating instructions manual (180 pages) ,
- Operating instructions manual (84 pages) ,
- Operating instructions manual (120 pages)
Table of Contents
Advertisement
SERVICE MANUAL
Ver. 1.0 2015.01
The service manual of the mechanism deck, used in
this model, has been issued in a separate volume.
Please refer to the service manual of the MG-101
series for the mechanism deck information.
• The tuner and CD sections have no adjustments.
(US and Canadian models only)
FOR THE CUSTOMERS IN THE USA. NOT
APPLICABLE IN CANADA, INCLUDING IN THE
PROVINCE OF QUEBEC.
POUR LES CLIENTS AUX ÉTATS-UNIS. NON
APPLICABLE AU CANADA, Y COMPRIS LA
PROVINCE DE QUÉBEC.
AUDIO POWER SPECIFICATIONS
CEA2006 Standard
Power Output: 40 Watts RMS × 4 at 4
Ohms < 1% THD+N
SN Ratio: 80 dBA
(reference: 1 Watt into 4 Ohms)
Tuner section
(US and Canadian models)
FM
Tuning range: 87.5 – 107.9 MHz
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency:
FM CCIR: -1,956.5 to -487.3 kHz and
+500.0 to +2,095.4 kHz
Usable sensitivity: 8 dBf
Selectivity: 75 dB at 400 kHz
Signal-to-noise ratio: 73 dB
Separation: 50 dB at 1 kHz
Frequency response: 20 – 15,000 Hz
AM
Tuning range: 530 – 1,710 kHz
Antenna (aerial) terminal:
External antenna (aerial) connector
Sensitivity: 26 μV
9-896-121-01
Sony Corporation
2015A33-1
©
2015.01
Published by Sony Techno Create Corporation
MEX-XB100BT
Model Name Using Similar Mechanism
Mechanism Type
Optical Pick-up Name
SPECIFICATIONS
(AEP and UK models)
MW/LW
Tuning range:
FM
Tuning range: 87.5 – 108.0 MHz
Antenna (aerial) terminal:
External antenna (aerial) connector
Antenna (aerial) terminal:
Intermediate frequency:
FM CCIR: -1,956.5 to -487.3 kHz and
Sensitivity: MW: 26 μV, LW: 50 μV
+500.0 to +2,095.4 kHz
Usable sensitivity: 8 dBf
(E and Australian models)
Selectivity: 75 dB at 400 kHz
FM
Signal-to-noise ratio: 73 dB
Tuning range:
Separation: 50 dB at 1 kHz
Frequency response: 20 – 15,000 Hz
MW/LW
Tuning range:
FM tuning step:
MW: 531 – 1,602 kHz
LW: 153 – 279 kHz
Antenna (aerial) terminal:
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency:
Sensitivity: MW: 26 μV, LW: 50 μV
(Russian model)
Usable sensitivity: 8 dBf
Selectivity: 75 dB at 400 kHz
FM
Tuning range:
Signal-to-noise ratio: 73 dB
Separation: 50 dB at 1 kHz
FM1/FM2: 87.5 – 108.0 MHz
(at 50 kHz step)
Frequency response: 20 – 15,000 Hz
FM3: 65 – 74 MHz (at 30kHz step)
AM
Antenna (aerial) terminal:
Tuning range:
External antenna (aerial) connector
Intermediate frequency:
FM CCIR: -1,956.5 to -487.3 kHz and
AM tuning step:
+500.0 to +2,095.4 kHz
FM OIRT: -1,815.6 to -943.7 kHz and
Antenna (aerial) terminal:
+996.6 to +1,776.6 kHz
Usable sensitivity: 8 dBf
Sensitivity: 26 μV
Selectivity: 75 dB at 400 kHz
Signal-to-noise ratio: 73 dB
Separation: 50 dB at 1 kHz
Frequency response: 20 – 15,000 Hz
Canadian Model
Australian Model
MW: 531 – 1,602 kHz
LW: 153 – 279 kHz
External antenna (aerial) connector
87.5 – 108.0 MHz (at 50 kHz step)
87.5 – 108.0 MHz (at 100 kHz step)
87.5 – 107.9 MHz (at 200 kHz step)
50 kHz/100 kHz/200 kHz switchable
External antenna (aerial) connector
FM CCIR: -1,956.5 to -487.3 kHz and
+500.0 to +2,095.4 kHz
531 – 1,602 kHz (at 9 kHz step)
530 – 1,710 kHz (at 10 kHz step)
9 kHz/10 kHz switchable
External antenna (aerial) connector
– Continued on next page –
US Model
AEP Model
UK Model
E Model
MEX-N5100BE/N5100BT/
N5150BT
MG-101CF-188
DAX-25A
(Saudi Arabia model)
FM
Tuning range: 87.5 – 108.0 MHz
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency:
FM CCIR: -1,956.5 to -487.3 kHz and
+500.0 to +2,095.4 kHz
Usable sensitivity: 8 dBf
Selectivity: 75 dB at 400 kHz
Signal-to-noise ratio: 73 dB
Separation: 50 dB at 1 kHz
Frequency response: 20 – 15,000 Hz
MW
Tuning range: 531 – 1,602 kHz
Antenna (aerial) terminal:
External antenna (aerial) connector
Sensitivity: 26 μV
SW
Tuning range:
SW1: 2,940 – 7,735 kHz
SW2: 9,500 – 18,135 kHz
(except for 10,140 – 11,575 kHz)
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency:
-2,463.8 to -1,710.1 kHz and
+1,710.0 to +2,418.4 kHz
Sensitivity: 26 μV
AUDIO SYSTEM
