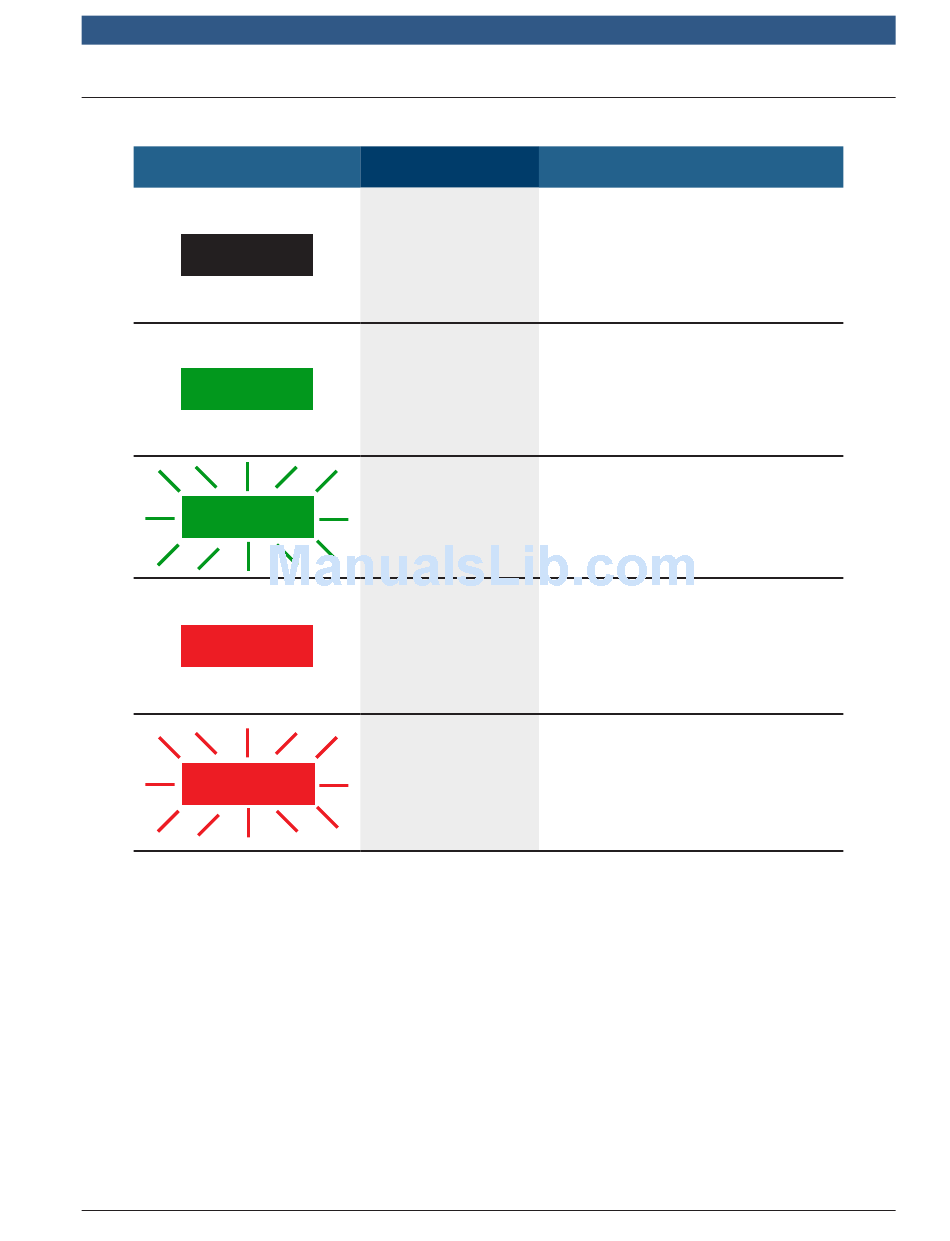

Charging Status Indicators

LED Status
Note:
Minor clicking noises are normal during startup (powering on the Power Max Level 2 Charging Station and
connecting to EV).
Bosch Automotive Service Solutions
Installation and Operating Instructions | Power Max Level 2 Charging Station | 13 | en
Description
Power is off.
Off Use the ON/OFF switch on the side of
the Level 2 Charging Station to turn on
the power.
Level 2 Charging Station is ON; charging
not in process.
Solid green
Connect the charging cable to begin
charging.
Charging in process.
Flashing green
LED status returns to solid green
(above) when charging is complete.
Level 2 Charging Station fault.
Solid red Stop using the Level 2 Charging Station
and contact the Level 2 Charging Station
provider.
Level 2 Charging Station is recovering
from a minor fault.
Flashing red
Stop using the Level 2 Charging Station
until the LED turns solid green.
Definition
569217 | REV. A | 05.22.2013
