Page 1

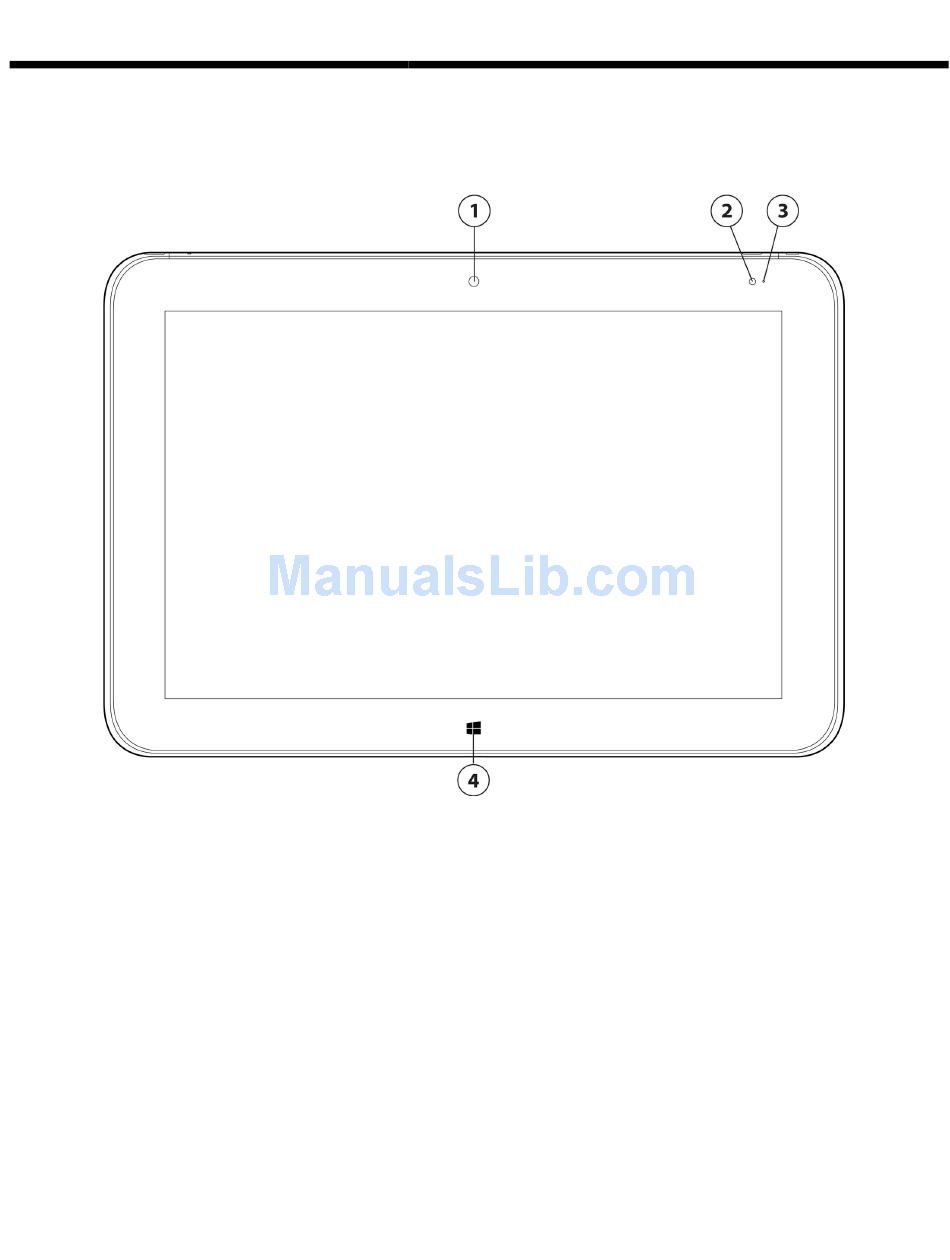

QuickSpecs HP ElitePad 1000 G2 Overview HP ElitePad 1000 G2 Display Side Front-facing 2.1MP/1080p camera 3. Front-facing camera LED Ambient Light Sensor (ALS) 4. Home button Worldwide — Version 1.1 — February, 2014 Page 1...
Page 2
QuickSpecs HP ElitePad 1000 G2 Overview Rear View MicroSDXC door eject hole 4. Flash LED SIM / MicroSDXC card access door 5. Volume up Rear Facing 8MP camera Volume down Worldwide — Version 1.1 — February, 2014 Page 2...
Page 3
QuickSpecs HP ElitePad 1000 G2 Overview Power button 4. Combo headphone-out/microphone-in jack Integrated microphone (dual-microphone array) 5. Stereo speakers Rotation lock switch 6. Docking connector Worldwide — Version 1.1 — February, 2014 Page 3...
Page 4
• Rugged Case, HP External Optical Drive, HP ElitePad Security Jacket, HP ElitePad Security Jacket with Smart Card Reader and Fingerprint Reader, and HP ElitePad Productivity Jacket are some of the optional accessories that may be included on select configurations Standard commercial 1 year warranty with upgrade available with optional HP Care Pack •...
QuickSpecs HP ElitePad 1000 G2 Features PRODUCT NAME HP ElitePad 1000 G2 OPERATING SYSTEM Preinstalled Windows 8.1 Pro 64* Windows 8.1 64* Office Home & Student 2013** Windows 8.1 Pro 64 Retail Solutions* Windows Embedded 8.1 Industry 64* * Not all features are available in all editions of Windows 8.1. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows 8.1 functionality.
Page 6
Supports MicroSDXC Cards up to 2TB Removable Storage Optional HP External Optical Drive using ElitePad USB connector * For Solid State Drives (SSD), GB = 1 billion bytes. Actual formatted capacity is less. Up to 5 GB for Windows 8.1 is reserved for system recovery software.
Ambient Light Sensor Haptics SOFTWARE AND SECURITY Software Included Windows 8.1 Security HP Client Security (incl. Credential Manager and Password Manager) Absolute Data Protect Device Access Manager with Just In Time Authentication Drive Encryption HP Trust Circles Standard Microsoft Defender Communications...
Page 8
RSA SecurID tokens from Absolute Software. 2. HP Trust Circles Standard, when included, allows up to 5 Trust Circles with up to 5 contacts in each Trust Circle. Optional Trust Circles Pro required for unrestricted number of Trust Circles and contacts. Trust Circles Reader is available to allow a contact to participate in an invited Trust Circle.
Total length is 5.9 ft (180 cm). Primary Battery 2-cell (30 WHr) Lithium Polymer battery Battery Life* Battery Life with Primary Battery and optional HP ElitePad Expansion Jacket* with optional Battery* System Standby Time Up to TBD weeks Power Conservation Balanced * Sold separately or as an optional feature.
* Sold separately or as an optional feature. NOTE: Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit www.hp.com/go/cpc. Consult the HP Customer Support Center for details.
BSMI CE Marking Compliance BNCI or BELUS GOST Saudi Arabian Compliance (ICCP) SABS UKRSERTCOMPUTER For accessibility information on HP products, please visit: http://www.hp.com/accessibility. DISPLAYS 10.1-inch diagonal Diagonal Size 10.1 inch WUXGA wide-viewing Surface Anti-smudge Gorilla Glass 3 angle outdoor display...
Page 12
QuickSpecs HP ElitePad 1000 G2 Technical Specifications * All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower. STORAGE AND DRIVES 64 GB embedded Multi Drive Weight Up to 2g Media Card (eMMC)
Page 13
QuickSpecs HP ElitePad 1000 G2 Technical Specifications Antenna Range Up to 0.79 in (2 cm) Secure Element SWP/HCI according to ETSI/SCP standardization Interfaces ISO/IEC 28361 (ECMA 373) NFC-WI. Data rate restricted to 106kbps Embedded Secure P5CN145 SmartMX Secure Dual Interface PKI Smart Card Controller...
Page 14
QuickSpecs HP ElitePad 1000 G2 Technical Specifications Dimensions 1.65 x 1.18 x 0.09 in (42 x 30 x 2.3 mm) (Length x Width x Thickness) Voltage, Operating 3.3 V +1.1/-0.17 V Temperature, Operating 14° to 131°F (-10° to 55°C) Temperature, Non- -40°...
Page 15
QuickSpecs HP ElitePad 1000 G2 Technical Specifications Form Factor M.2, 3042-S3 Key B Weight Dimensions 1.65 x 1.18 x 0.09 in (42 x 30 x 2.3 mm) (Length x Width x Thickness) Voltage, Operating 3.3 V +1.1/-0.17 V Temperature, operating -13° to 140°F (-25° to 60°C) Temperature, Non- -40°...
Page 16
QuickSpecs HP ElitePad 1000 G2 Technical Specifications Form Factor M.2, 3042-S3 Key B Weight Dimensions 1.65 x 1.18 x 0.09 in (42 x 30 x 2.3 mm) (Length x Width x Thickness) Voltage, Operating 3.3 V +1.1/-0.17 V Temperature, operating 14° to 131°F (–10° to 55°C) Temperature, Non- –40°...
Page 17
QuickSpecs HP ElitePad 1000 G2 Technical Specifications network support, and is not available in all areas. Contact service provider to determine the coverage area and availability. Connection speeds will vary due to location, environment, network conditions, and other factors. HP lt4226 LTE/HSPA+...
Page 19
0 to 10,000 ft (3,048 m) Non-operating 0 to 50,000 ft (15,240 m) HP Integrated Module with Bluetooth 4.0 LE SDIO Wireless Technology* *This module is Bluetooth Smart Ready for systems running Windows 8 and Windows 8.1. Bluetooth Specification BT 4.0 LE SDIO Dimensions Width 17 x Depth 10.5 x High 1.5(mm)
Page 20
QuickSpecs HP ElitePad 1000 G2 Technical Specifications ETS 300 328, ETS 300 826 Low Voltage Directive IEC950 UL, CSA, and CE Mark Bluetooth Profiles Serial Port Profile (SPP) Supported Service Discovery Application Profile (SDAP) Dial-Up Networking (DUN) Generic Object Exchange Profile (GOEP)
Available ENVIRONMENTAL DATA MATERIAL USAGE This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the Environment (http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/gen_specifications.html): Asbestos • Worldwide — Version 1.1 — February, 2014...
Page 22
This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.
QuickSpecs HP ElitePad 1000 G2 Technical Specifications http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html COUNTRY OF ORIGIN China Worldwide — Version 1.1 — February, 2014 Page 23...
Page 24
HP X4000b Bluetooth Mouse H3T50AA#xxx HP Slim Bluetooth Mouse F3J92AA#xxx * HP Executive Tablet Pen (G2) is only compatible with HP ElitePad 1000 G2 and HP Revolve G2. Power HP ElitePad 10 Watt AC Adapter H4K08AA HP 65W Smart Adapter...
Page 25
Corning and Gorilla are registered trademarks of Corning in the U.S. and/or other countries. The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products are set forth in the express limited warranty statements accompanying such products.
