Page 1

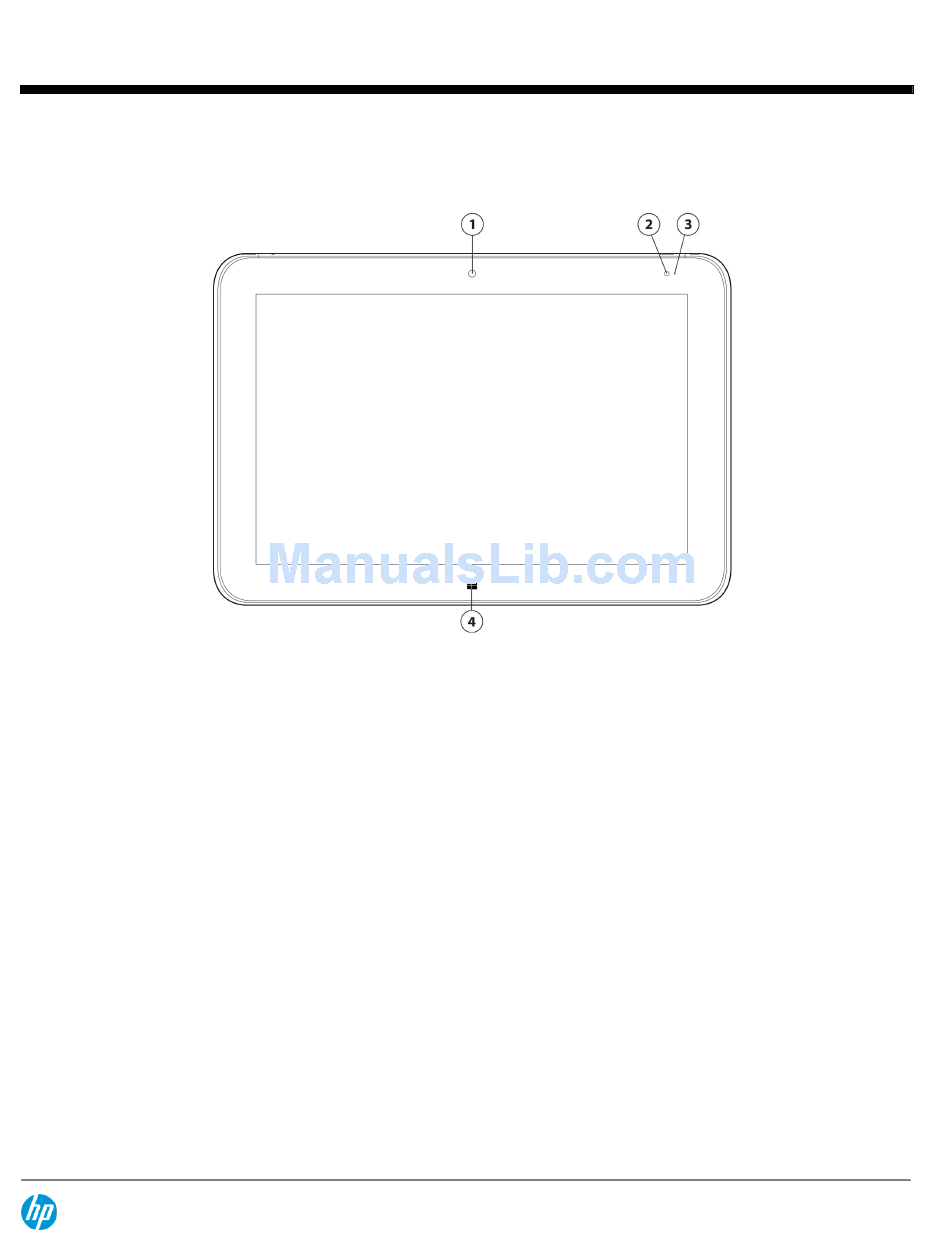

QuickSpecs HP ElitePad 1000 G2 Overview Display Side 1. Front-facing 2.1MP/1080p camera 3. Front-facing camera LED 2. Ambient Light Sensor (ALS) 4. Home button DA - 14898 Canada — Version 5 — May 9, 2014 Page 1...
Page 2
QuickSpecs HP ElitePad 1000 G2 Overview Rear View 1. MicroSDXC door eject hole 4. Flash LED 2. SIM / MicroSDXC card access door 5. Volume up 3. Rear Facing 8MP camera 6. Volume down DA - 14898 Canada — Version 5 — May 9, 2014...
Page 3
HP ElitePad Expansion Jacket, HP ElitePad Expansion Jacket with Battery, HP ElitePad Docking Station, HP ElitePad Rugged Case, HP External Optical Drive, HP ElitePad Security Jacket, HP ElitePad Security Jacket with Smart Card Reader and Fingerprint Reader, and HP ElitePad Productivity Jacket are some of the optional accessories that may be included on select configurations Standard commercial 1 year warranty with upgrade available with optional HP Care Pack NOTE: See important legal disclosures for all listed specs in their respective features sections.
QuickSpecs HP ElitePad 1000 G2 Features PRODUCT NAME HP ElitePad 1000 G2 OPERATING SYSTEM Preinstalled Windows 8.1 Pro Windows 8.1 Office Home & Student 2013** Windows 8.1 Pro 64 Retail Solutions* Windows Embedded 8.1 Industry * Not all features are available in all editions of Windows 8.1. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows 8.1 functionality.
Page 5
Supports MicroSDXC Cards up to 2TB Removable Storage Optional HP External Optical Drive using ElitePad USB connector * For Solid State Drives (SSD), GB = 1 billion bytes. Actual formatted capacity is less. Up to 5 GB for Windows 8.1 is reserved for system recovery software.
QuickSpecs HP ElitePad 1000 G2 Features NETWORKING/COMMUNICATIONS Wireless Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the latest industry standards. Broadband Wireless (WWAN) is available in select countries. Wireless LAN and integrated Bluetooth are also available (both are factory configurable only) and can be combined with any of the supported wireless WAN options.
Page 7
PIN or purchase one or more RSA SecurID tokens from Absolute Software. 2. HP Trust Circles Standard, when included, allows up to 5 Trust Circles with up to 5 contacts in each Trust Circle. Optional Trust Circles Pro required for unrestricted number of Trust Circles and contacts. Trust Circles Reader is available to allow a contact to participate in an invited Trust Circle.
Page 8
Features 3. Internet access required. 4. HP Mobile Connect is available in EMEA only and requires a compatible CDMA or HSPA mobile broadband module 5. and prepaid service purchase. Find coverage and availability for your service area at: www.hp.com/go/mobileconnect. 6. Integrated Intel Wi-Di feature is available on select configurations only and requires separately purchased projector, tv or computer monitor with an integrated or external Wi-Di receiver.
Up to 21 hours:30 minutes with optional base** *Testing conducted by HP consisting of full battery discharge while running a series of productivity scripts against the following applications (which may or may not be included with your particular product): Adobe ® AcrobatReader 7.0, Adobe® Illustrator®...
* Sold separately or as an optional feature. NOTE: Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit: www.hp.com/go/cpc. Consult the HP Customer Support Center for details.
Japan VCCI Compliance BSMI CE Marking Compliance BNCI or BELUS GOST Saudi Arabian Compliance (ICCP) SABS UKRSERTCOMPUTER For accessibility information on HP products, please visit: http://www.hp.com/accessibility. DISPLAYS DA - 14898 Canada — Version 5 — May 9, 2014 Page 11...
Page 12
Other Display Features Wide-viewing angle Direct bonded Multi-touch capacitive digitizer Auto rotate (selectable) * All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower. STORAGE AND DRIVES Internal Storage 64 GB embedded Multi...
Page 13
QuickSpecs HP ElitePad 1000 G2 Technical Specifications Optional Near Field NFC Specifications ISO/IEC 14443A, ISO/IEC 14443B PCD 106 kbps to 848 kbps ISO/IEC 14443A, ISO/IEC 14443B PICC 106 kbps to 424 kbps Communications (NFC)* ISO/IEC 15693/ICODE reader NFC-IP1 and NFC-IP2 protocols, 106 kbps to 424 kbps...
QuickSpecs HP ElitePad 1000 G2 Technical Specifications Maximum output power WCDMA/HSPA/HSPA+ MHz: 24 dBm GPRS 1900/1800 MHz: 30 dBm GPRS 900/850 MHz: 33 dBm EDGE 1900/1800 MHz: 26 dBm EDGE 900/850 MHz: 27 dBm Maximum power 2500 mA (peak); 600 mA (average)
Page 15
IEEE 802.11n Bluetooth 4.0 Combo Adaptor* Interoperability Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 7, Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN) Frequency Band 802.11b/g/n 2.402 - 2.482 GHz 802.11a/n 4.9 - 4.95 GHz (Japan) 5.15 - 5.25 GHz 5.25 - 5.35 GHz...
Page 17
Operating 0 to 10,000 ft (3,048 m) Non-operating 0 to 50,000 ft (15,240 m) HP Integrated Module with Bluetooth 4.0 LE SDIO Wireless Technology* *This module is Bluetooth Smart Ready for systems running Windows 8 and Windows 8.1. Bluetooth Specification BT 4.0 LE SDIO...
Page 18
QuickSpecs HP ElitePad 1000 G2 Technical Specifications Synchronization Profile (SYNC) Hard Copy Cable Replacement (HCRP) Personal Area Networking Profile (PAN) Human Interface Device Profile (HID) FAX Profile (FAX) Basic Imaging Profile (BIP) Headset Profile (HSP) Hands Free Profile (HFP) Advanced Audio Distribution Profile (A2DP) * Wireless access point and internet service required and sold separately.
QuickSpecs HP ElitePad 1000 G2 Technical Specifications HP 10W non-Smart AC Dimensions 2.56 x 2.17 x 1.12 in (65.0 x 55.0 x 28.5 mm) Adapter Input 100 to 240 VAC Input dPower Rating < 15W Input frequency range 47 - 63 Hz Input AC current 0.3A at 90 VAC...
Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model family. HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model family does not offer ENERGY STAR®...
The plastic packaging material contains at least 71.22% recycled content. The PAPER/Paper packaging materials contains at least 0% recycled content. MATERIAL USAGE This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification for the Environment at: http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf): Asbestos...
Page 22
This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.
HP X4000b Bluetooth Mouse H3T50AA#xxx HP Slim Bluetooth Mouse F3J92AA#xxx * HP Executive Tablet Pen (G2) is only compatible with HP ElitePad 1000 G2 and HP Revolve G2. Power HP ElitePad 10 Watt AC Adapter H4K08AA HP 65W Smart Adapter...
Page 24
Corning and Gorilla are registered trademarks of Corning in the U.S. and/or other countries. The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products are set forth in the express limited warranty statements accompanying such products.
