  • Page 2 Notice The information contained in this document is subject to change without notice. Hewlett-Packard makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

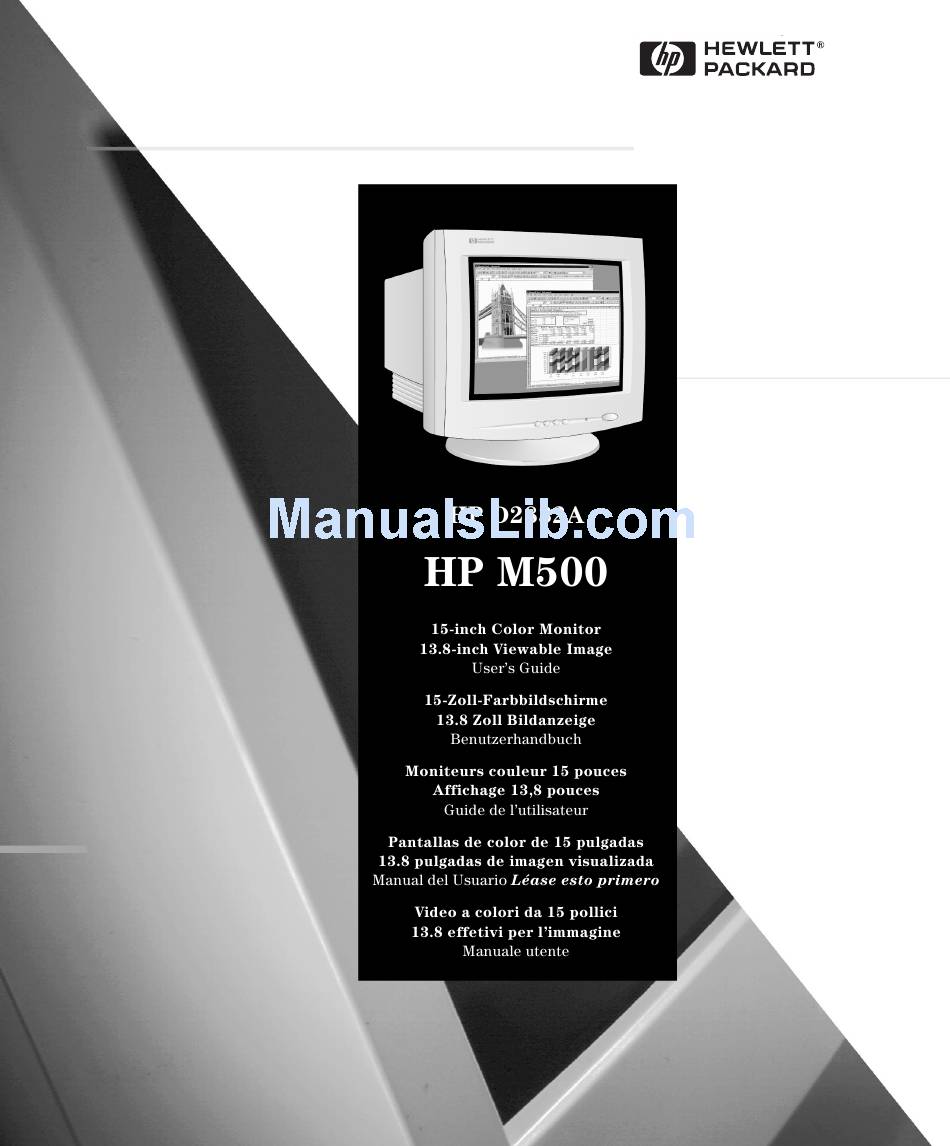

  • Page 3 Full scan screen that gives an edge to edge image Optional USB-Hub (Universal Serial Bus-Hub) Controls for brightness, contrast, image position, and image geometry. HP M500 15-inch Color Monitor 13.8-inch Viewable Image User’s Guide 0.28 mm dot pitch for excellent graphics...

  • Page 4: Important Safety Instructions

    HP M500 15” Color Monitor User’s Guide Important Safety Instructions Important Safety Instructions Before you plug in your new monitor, read these important safety instructions. WARNING Connect the monitor only to a grounded power outlet. Use the power cord supplied with the monitor or one with a properly grounded plug.
  • Page 5 What Your New Monitor Offers Your HP monitor is a 15-inch (13.8-inch viewable image), high resolution, multi-synchronous color monitor. Multi-synchronous means that the monitor supports a range of video modes. It is optimized to be used with all Hewlett-Packard PCs.
  • Page 6 HP M500 15” Color Monitor User’s Guide What Your New Monitor Offers Your HP D2832A monitor is certified to TCO95. • Your monitor can be upgraded with a USB-Hub (Universal Serial • Bus- Hub). This is plugged into the back of your monitors base and allows you to connect up to 4 USB devices (refer to note below).

  • Page 7: Setting Up Your Monitor

    Ensure the operating site is free from excessive heat, moisture, dust and sources of electromagnetic fields. Sources of electromagnetic fields include transformers, motors, and other monitors. Avoid exposing the monitor to direct sunlight. HP M500 15” Color Monitor User’s Guide Setting Up Your Monitor English 5...

  • Page 8: Connecting The Cables

    Connecting the Cables CAUTION Before you connect any cables, or install your HP monitor, refer to the safety instructions at the beginning of this manual. Refer to the user manual which accompanies your PC and video adapter to ensure this equipment is correctly installed.

  • Page 9: Using Your Monitor

    Exit to save your adjustments. is on the front of the monitor. from the submenu that appears. Use the HP M500 15” Color Monitor User’s Guide Using Your Monitor ON/OFF Button adjustment controls to scroll...
  • Page 10 HP M500 15” Color Monitor User’s Guide Using Your Monitor Adjusting the Quality of the Displayed Image Adjustments to the quality of the displayed image can be made from a submenu. To access this submenu, select To adjust the contrast, select this feature from the submenu, then...
  • Page 11 HP M500 15” Color Monitor User’s Guide Using Your Monitor from this from adjustment controls to locate...
  • Page 12 HP M500 15” Color Monitor User’s Guide Using Your Monitor Adjusting the Color of the Displayed Image Adjustments to the color of the displayed image can be made from a submenu. To access this submenu, select Your monitor displays a combination of red, blue, and green to show a full color image.
  • Page 13 Your monitor has a Plug and Play capability (VESA DDC1/2B standard) that enables it to identify itself to suitably equipped HP PCs. This will automatically give you the best refresh rate for the resolution that you have set.
  • Page 14 HP M500 15” Color Monitor User’s Guide Using Your Monitor Minimizing Energy Consumption Your monitor has energy saving capabilities. Depending on your PC and operating system, your monitor will be able to enter the following modes: Sleep mode (DPMS Standby mode). This mode uses less than 15W.
  • Page 15 70 Hz 1024 768 75 Hz 1024 768 85 Hz 1280 1024 60 Hz HP M500 15” Color Monitor User’s Guide What Video Modes are Supported Video Solution Super VGA Ergonomic Super VGA Super VGA Ultra VGA 1024 Ultra VGA 1024...

  • Page 16: Technical Specifications

    HP M500 15” Color Monitor User’s Guide Technical Specifications Technical Specifications Size Phosphorous PICTURE TUBE Dot pitch Face Plate Video INPUT SIGNAL Synchronization Input Connector INTERFACE Horizontal SCANNING FREQUENCY Vertical 1280 1024 (60Hz) MAX. RESOLUTION (H V 30 minutes to reach optimum performance level...

  • Page 17: Care And Cleaning

    To maximize screen life and prevent damage to the picture tube (such as burned phosphor due to leaving the same image on the screen for a long time), it is recommended that you: Use the monitor power management system (on HP PCs) or a screen • saver program.

  • Page 18: Environmental Information

    HP can also take back your old monitor for recycling when it reaches the end of its useful life. HP has a product take-back program in several countries. The collected equipment is sent to of HP’s recycling facilities in Europe or...

  • Page 19: Hardware Warranty

    Should HP be unable to repair or replace the product within a reasonable amount of time, your alternate exclusive remedy shall be a refund of the purchase price upon return of the product.

  • Page 20: Limitation Of Liability And Remedies

    SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, WHETHER BASED ON WARRANTY, CONTRACT, TORT, OR ANY OTHER LEGAL THEORY. The foregoing limitation of liability shall not apply in the event that any HP product sold hereunder is determined by a court of competent jurisdiction to be defective and to have directly caused bodily injury, death, or property damage;...

  • Page 21: Regulatory Information

    Grenoble, June 1998 For Compliance Information ONLY, contact: USA contact: Hewlett-Packard Company, Corporate Product Regulations Manager, 3000 Hanover Street, Palo Alto, CA94304. (Phone (415)857-1501) HP M500 15” Color Monitor User’s Guide HEWLETT-PACKARD 5, Avenue Raymond Chanas - EYBENS 38053 GRENOBLE CEDEX 09...

  • Page 22: X-Ray Radiation Notice

    Replace the cathode ray tube with an identical CRT only. General Notice The HP D2832A 15-inch Color Monitor has been tested according to MPR 1990:8 for Emission properties and meets the guidelines as given by MPR 1990:10 (2.01 - 2.04)

  • Page 23: Notice For Japan

    Cet appareil numérique de la Classe B est conforme a la norme NMB-003 du Canada. Notice for the United Kingdom The HP D2832A is approved under Approval Number NS/G/1234/J/100003 for indirect connection to public telecommunications systems within the United Kingdom.
  • Page 24 HP M500 15” Color Monitor User’s Guide Regulatory Information 22 English...
  • Page 26 Paper not bleached with chlorine Part Number: 5967-0371 Printed in Malaysia 06/98...
