Speaker Section - Sony SRS-D313 Service Manual

SRS-D313
Ver 1.4 2002.11

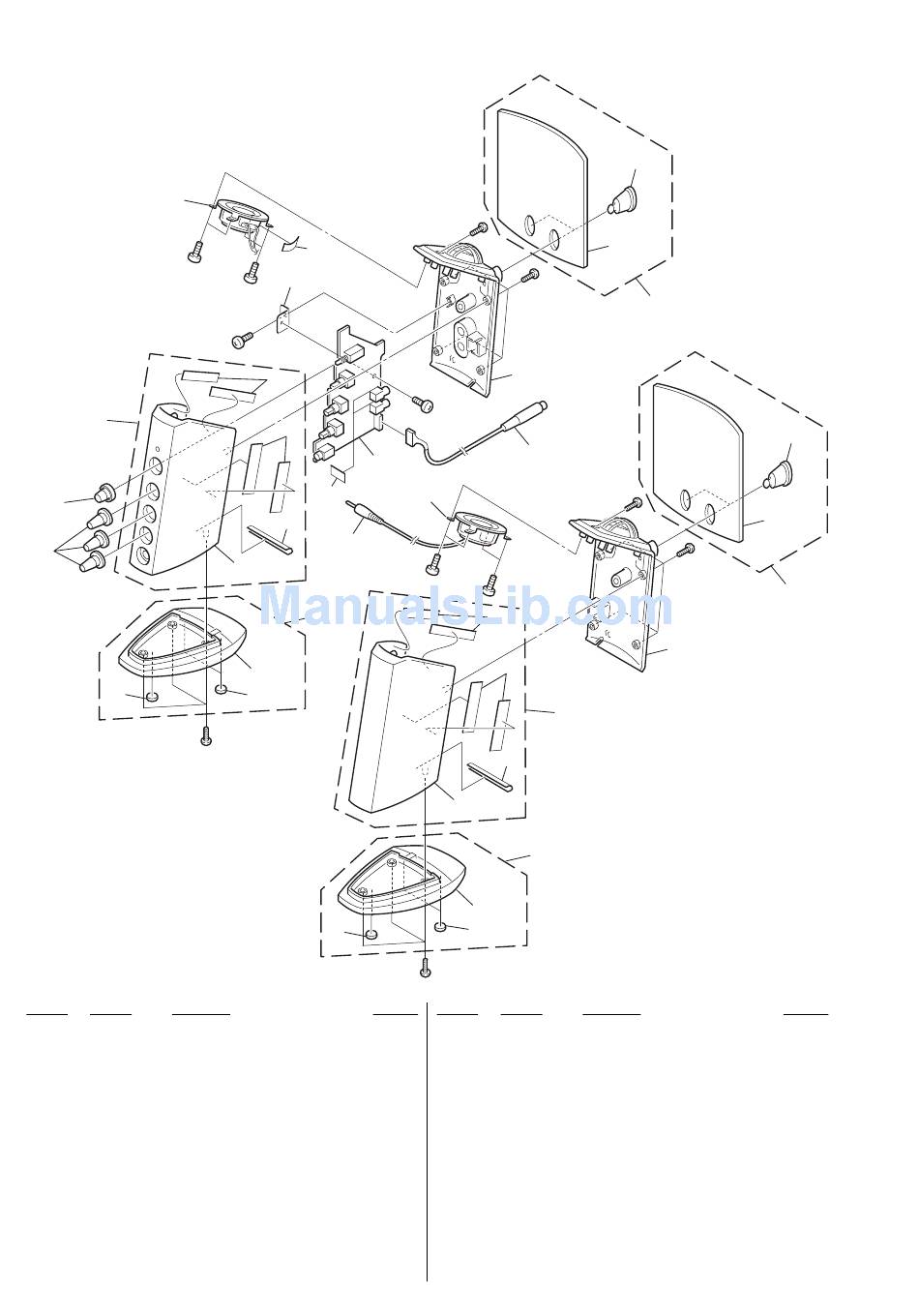

3-2. SPEAKER SECTION

SP101
#5
57
54
53
51
Ref. No. Part No. Description
51 4-984-729-01 FOOT, RUBBER
52 X-3381-091-1 BASE (L) ASSY (SATELLITE)
53 3-232-658-01 KNOB
54 3-232-657-01 BUTTON, POWER
55 1-823-120-11 CORD CONNECTION 1P
56 3-235-434-01 CUSHION (E) (WOOFER)
57 X-3381-093-1 CABINET (L) ASSY, FRONT
57 X-3381-977-1 CABINET (L) ASSY, FRONT (AEP,UK,AUS)
∗ 58
A-3062-598-A CONTROL BOARD, COMPLETE
∗ 58
A-3323-727-A CONTROL BOARD, COMPLETE (AEP,UK,AUS)
59 1-823-119-11 DIN CABLE 8P
∗ 60
3-233-819-01 BRACKET (PWB)
10
63
60
#5
#5
56
56
58
68
65
55
not
supplied
52
not
supplied
51
#4
51
Remarks
(EXCEPT AEP,UK,AUS)
(EXCEPT AEP,UK,AUS)
#4
#4
61
#6
59
SP102
#5
#5
56
56
66
65
not
supplied
67
not
supplied
51
#4
Ref. No. Part No.
61 3-232-655-01 CABINET (L), REAR
62 X-3381-245-1 REFLECTOR SUB ASSY
63 3-840-486-12 CUSHION (SP)
64 3-232-663-01 CABINET (R), REAR
65 3-233-816-01 CUSHION (C), WOOFER
66 X-3381-094-1 CABINET (R) ASSY, FRONT
67 X-3381-092-1 BASE (SATELLITE) (R) ASSY
68 3-384-102-01 CUSHION (LCD)
SP101 1-544-897-11 SPEAKER (039F006)
SP102 1-544-897-11 SPEAKER (039F006)
#4 7-685-105-19 SCREW +P 2X8 TYPE2 NON-SLIT
#5 7-685-133-19 SCREW +P 2.6X6 TYPE2
#6 7-685-791-09 SCREW +PTT 2.6X5 (S)
not
supplied
not
supplied
62
#4
#4
64
Description
not
supplied
not
supplied
62
Remarks
