SERVICE MANUAL
Ver. 1.1 2005.05
Subwoofer
Speaker section
Satellite speaker
Speaker system
Magnetically shielded
3.9 cm, cone type (Sigma-type) × 2
Speaker units
Enclosure type
Bass reflex
8 Ω
Impedance
Cord length
3 m
Subwoofer
Speaker system
Active subwoofer, magnetically shielded
Speaker units
7.7 cm, cone type (Sigma-type)
Enclosure type
Bass reflex
8 Ω
Impedance
Amplifier section
6 W (10% T.H.D., 1 kHz, 8 Ω) (Satellite speaker)
Rated output
25 W (10% T.H.D., 100 Hz, 8 Ω) (Subwoofer)
Stereo mini jack × 1 (INPUT 1)
Input
Stereo mini jack × 1 (INPUT 2)
Input impedance
4.7 kΩ (at 1 kHz)
Stereo mini jack × 1 (PHONES)
Output
Sony Corporation
9-879-587-02
Personal Audio Group
2005E02-1
Published by Sony Engineering Corporation
© 2005.05

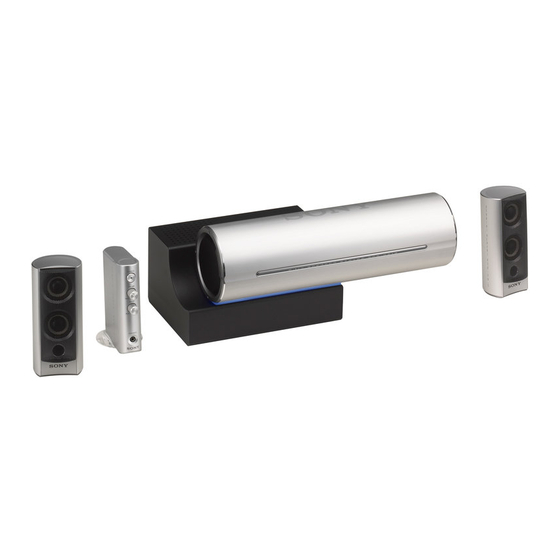

SRS-DZ10
Satellite
Control Box
Speaker

SPECIFICATIONS

General
Dimensions (w/h/d)
Mass
Cord length
Power requirements
Where purchased
U.S.A./Canada
European countries
Other countries
Power consumptions
Supplied accessories
Connecting cord, rubber feet
Design and specifications are subject to change without notice.
ACTIVE SPEAKER SYSTEM
US Model
Canadian Model
AEP Model
UK Model
Approx. 30 × 118.5 × 93.2 mm
× 4
× 3
(1
3
/
3
/
3
/
in.) (Control box)
16
4
4
Approx. ø62.8 × 142 mm
× 5 in.) (Satellite speaker)
(2
1
/
2
Approx. 375 × 151.5 × 183 mm
× 6 × 7
7
1
(14
/
/
in.) (Subwoofer)
8
4
Approx. 146.5 g (6 oz.) (Control box)
Approx. 481 g (1 lb. 1 oz.) (Satellite speaker)
Approx. 4.1 kg (9 lb. 1 oz.) (Subwoofer)
2 m (Control box to subwoofer)
2 m (Power cord)
Operating voltage
120 V AC, 60 Hz
220 - 230 V AC, 50 Hz
220 - 230 V AC, 50 Hz
19 W (US, Canadian)
24 W (AEP, UK)
