SERVICE MANUAL

Ver. 1.1 2008.05

Revision History

Internal memory

ON BOARD

Revised-1

Replace the previously issued

SERVICE MANUAL 9-852-298-31

with this manual.

Link

SPECIFICATIONS

MODEL INFORMATION TABLE

SERVICE NOTE

• Precaution on Replacing the SY-188 Board

The components identified by

mark 0 or dotted line with

mark 0 are critical for safety.

Replace only with part num-

ber specified.

DSC-W110/W115_L2

9-852-298-32

DSC-W110/W115

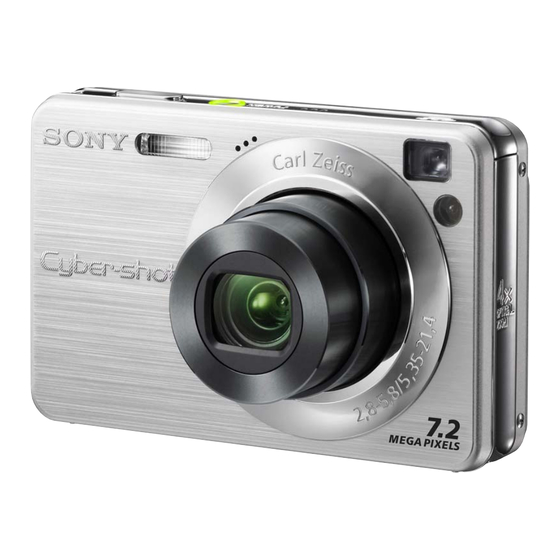

Photo: DSC-W110/Silver

DISASSEMBLY

BLOCK DIAGRAMS

FRAME SCHEMATIC DIAGRAM

Les composants identifiés par une

marque 0 sont critiques pour la

sécurité.

Ne les remplacer que par une pièce

portant le numéro spécifié.

Sony EMCS Co.

Canadian Model

AEP Model

Australian Model

Chinese Model

Korea Model

Argentine Model

Brazilian Model

Thai Model

Japanese Model

SCHEMATIC DIAGRAMS

PRINTED WIRING BOARDS

REPAIR PARTS LIST

DIGITAL STILL CAMERA

Published by Kohda TEC

LEVEL

US Model

UK Model

E Model

2008E0500-1

Table of Contents

Summary of Contents for Sony DSC-W115

Page 1 0 are critical for safety. sécurité. Replace only with part num- Ne les remplacer que par une pièce ber specified. portant le numéro spécifié. DIGITAL STILL CAMERA 2008E0500-1 DSC-W110/W115_L2 © 2008.5 Sony EMCS Co. 9-852-298-32 Published by Kohda TEC...
Page 2: Specifications
SPECIFICATIONS [Input and Output connectors] Camera BC-CSGB/BC-CSGC battery charger Multi connector: Video output [System] Audio output (Monaural) Power requirements: AC 100 V to 240 V, 50/60 Hz, Image device: USB communication 2.6 W (BC-CSGB), 2 W (BC-CSGC) 7.20 mm (1/2.5 type) color CCD, Primary USB communication: Hi-Speed USB (USB 2.0 Output voltage: DC 4.2 V, 0.25 A color filter...
Page 3 Ver. 1.1 2008.05 The changed portions from Ver. 1.0 are shown in blue. Model information table Model DSC-W110 DSC-W115 US, CND, AEP, UK, Destination E, AUS, CH, KR, CND, AEP, UK, AR AR, BR, TH, J • Abbreviation AR : Argentine model...
Page 4: Safety Check-Out
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU PUBLISHED BY SONY.
Page 5 ENGLISH JAPANESE ENGLISH JAPANESE • • • • • • • • DSC-W110/W115_L2 — 5 —...
Page 6: Self-Diagnosis Function
ENGLISH JAPANESE ENGLISH JAPANESE 1. SERVICE NOTE 1-1. PRECAUTION ON REPLACING THE SY-188 BOARD DESTINATION DATA When you replace to the repairing board, the written destination data of repairing board also might be changed to original setting. Refer to Service Manual ADJ, and perform “DESTINATION DATA WRITE”. USB SERIAL No.
Page 7: Process After Fixing Flash Error
ENGLISH JAPANESE ENGLISH JAPANESE 1-2-3. Self-diagnosis Code Table Self-diagnosis Code Block Detailed Symptom/State Correction Function Code The internal memory has experienced a Format the internal memory. format error. “Memory Stick Duo” is unformatted. Format the “Memory Stick Duo”. “Memory Stick Duo” is broken. Insert a new “Memory Stick Duo”.
Page 8: Method For Copying Or Erasing The Data In Internal Memory
ENGLISH JAPANESE ENGLISH JAPANESE 1-4. METHOD FOR COPYING OR ERASING THE DATA IN INTERNAL MEMORY The data can be copied/erased by the operations on the HOME screen. (When erasing the data, execute formatting the internal memory.) Note 1: When replacing the SY-188 board, erase the data in internal memory of the board before replacement. Note 2: When replacing the SY-188 board, execute formatting and initialize the internal memory after replacement.
Page 9: How To Write Data To Internal Memory
To change the setting, use the write enable tool “WriteEnableTool.exe”. Data writing method Connect the PC to the camera (USB mode: Mass Storage), and switch the driver to the “Sony Seus USB Driver”. Start the Write Enable Tool and the SeusEX.
Page 10 ENGLISH JAPANESE ENGLISH JAPANESE 1. SERVICE NOTE C : 3 2 : 00 “ ” DSC-W110/W115_L2...
Page 11 ENGLISH JAPANESE ENGLISH JAPANESE • DSC-W110/W115_L2...
Page 12 ENGLISH JAPANESE ENGLISH JAPANESE • • • • • DSC-W110/W115_L2...
Page 13 ENGLISH JAPANESE ENGLISH JAPANESE “ ” [Activate Write Enable Mode] DSC-W110/W115_L2 1-8E...
Page 14: Note For Repair
2. DISASSEMBLY NOTE FOR REPAIR • Make sure that the flat cable and flexible board are not cracked of bent at the terminal. Cut and remove the part of gilt Do not insert the cable insufficiently nor crookedly. which comes off at the point. (Be careful or some •...
Page 15: Identifying Parts
2-1. IDENTIFYING PARTS Cabinet (Rear) Cabinet (Upper) ⋅ AF-112 Board ⋅ ST-180 Board BT Holder Section ⋅ MC-189 Flexible Board ⋅ ST-188 Flexible Board ⋅ SY-188 Board LCD Frame ⋅ SW-520 Board ⋅ SW-533 Flexible Board Cabinet (Front) Lens Block ⋅...
Page 16: Lcd Section
HELP HELP 2-2. DISASSEMBLY EXPLODED VIEW HARDWARE LIST 2-2-1. LCD SECTION Follow the disassembly in the numerical order given. 1 Cabinet (Rear) (1-1 to 1-6) 2 LCD (2-1 to 2-17) 1 Cabinet (Rear) 1-5 (Boss) HELP 1 1-1 (#20) 2-16 1-3 (#20) 2-15 (Solder)
Page 17: Bt Holder Section
2-2-2. FRONT SECTION EXPLODED VIEW HARDWARE LIST Follow the disassembly in the numerical order given. 1 Cabinet (Front) (1-1 to 1-3) 2 Lens Block (2-1 to 2-6) HELP 4 BT Holder Section (See Page 2-5) 1 Cabinet (Front) HELP 4 1-3 (Claw) 2-1 (#20) 1-1 (Claw)
Page 18 2-2-3. BT HOLDER SECTION EXPLODED VIEW HARDWARE LIST Follow the disassembly in the numerical order given. 1 Cabinet (Upper) Block (1-1 to 1-4) 2 SY-188 Board (2-1 to 2-5) 2SY-188 Board 1 Cabinet (Upper) Block HELP 6 2-1 (#3) (Solder) 2-2 (Claw) HELP 5 1-3 (Claw)
Page 19: Precautions When Holding The Lens Block
2-3. PRECAUTIONS WHEN HOLDING THE LENS BLOCK • Hold the Lens Block at the center of both sides. Hold here. • Do not hold the following part. Lens Flexible Board Lens Barrel Lens Barrier ∗Very weak Optical Stepping Motor Zoom Motor ∗Very weak Focus Lens OVF Cam Plate...
Page 20: Barrier Assy Replacing Method
2-4. BARRIER ASSY REPLACING METHOD Removal 1 Turn on the power switch and extend the lens. 2 Detach the battery. 3 Pour a solvent such as alcohol from two places A to the tweezers or a needle shown below into a gap of Ornamental Ring A. 4 Remove while turning the Ornamental Ring A right and left.
Page 21: Lens Motor Replacing Method
2-5. LENS MOTOR REPLACING METHOD Replace the parts if the following events appear when the power switch is turned on. 1 "Turn off and on the power" is displayed without performing the zoom operation. Replace Zoom Gear Block if a damage of lens barrel due to a drop of camera is not found. (See "2-5-1.
Page 22 2-5-2. Optical Stepping Motor Replacing Method Removal 1 Disengage the lens flexible board from the claw. 2 Remove solders of the lens flexible board. 3 Remove Zoom Gear Block by referring to the removal 1 to 3 in "2-5-1. Zoom Gear Block Replacing Method". 4 Remove three screws.
Page 23 Installation 1 Install the lens flexible board with four solders. 2 Referring to the following figure, check each part state of lens rear block. 3 Install Optical Stepping Motor. 4 Tighten one screw. * Tightening torque = 0.049 ± 0.01N • m (0.5 ± 0.1kgf • cm) 2 Check the state of each part 4 Screw 3 Optical Stepping Motor...
Page 24 2-5-3. FINAL INSPECTION (NO FAULT IN ACTUAL MOTION/ACTUAL SCREEN) 1 Zoom motion (Check five postures: horizontal, upward/downward, upper/lower oblique 45º) No abnormal sound or motion must be found over full stroke between TELE end and WIDE end. 2 Zoom image No abnormality such as a skipped image or wavy image must be found in the image through LCD or finder over full stroke between TELE end and WIDE end.
Page 25 HELP Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown. HELP 1: HELP 3: LCD Window Adhesive Sheet Kit LCD Insulating Sheet LCD Window Adhesive Sheet Kit must use only - Front Side - the part of LCD window edge. LCD Insulating Sheet Please discard other parts.
Page 26 HELP 4: HELP 5: Tape (AF)/Capacitor Protection Sheet BT Terminal Harness BT Holder Tape (AF) BT902 (White) BT903 (Black) BT901 (Red) Tape (AF) SY-188 Board BT Terminal Harness BT Holder Mold Capacitor Protection Sheet DSC-W110/W115_L2 HELP...
Page 27 HELP 6: Sheets and Harness of ST-180 Board - Top View - Harness (HN-062) (Gray) ST Insulating Sheet Harness (HN-061) (Yellow) ST-180 Board Harness (HN-059) (Pink) Harness (HN-060) (Blue) When connecting the harness to the strobe capacitor terminals, wind the naked leads of the harness around the terminals by more than Mic Harness (Orange) 1.5 turns, and then solder them.
Page 28 HELP 7: Installation Method of Battery Terminal Board 1 Insert the battery terminal board into a slit in the BT holder to install. * The battery terminal board is attached with the notch for installation. BT holder Notch Battery terminal Battery terminal board board 2 Fold the notch 3 or 4 times repeatedly to break.
Page 29 HELP 8: Lens Flexible Board/CD-719 Flexible Board CD-719 Flexible Board Apply the fold trace. Lens Flexible Board Apply the fold trace. HELP 9: MC-189 Flexible Board Apply the fold trace. MC-189 Flexible Board DSC-W110/W115_L2 HELP...
Page 30: Overall Block Diagram
3. BLOCK DIAGRAMS Link Link OVERALL BLOCK DIAGRAM (1/2) POWER BLOCK DIAGRAM (1/2) OVERALL BLOCK DIAGRAM (2/2) POWER BLOCK DIAGRAM (2/2) DSC-W110/W115_L2...
Page 31 3. BLOCK DIAGRAMS 3-1. OVERALL BLOCK DIAGRAM (1/2) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. CD-719 FLEXIBLE BOARD SY-188 BOARD (1/2) LENS BLOCK LCD901 (1/2) LCD MODULE LENS IRIS (METER)
Page 32 3-2. OVERALL BLOCK DIAGRAM (2/2) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. MC-189 FLEXIBLE SY-188 BOARD (2/2) BOARD (2/2) CN709(2/2) XPOWER_ON XPOWER_ON XPWR_ON ACV_UNREG ACV_UNREG ST_UNREG MS_VCC CAM_12.5V CAM_-7.5V USB_3.2V...
Page 33 3-3. POWER BLOCK DIAGRAM (1/2) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. MC-189 SY-188 BOARD (1/2) FLEXIBLE F001 BOARD CN709 F002 ACV_UNREG ACV_UNREG IC001 Q001, Q002 DC/DC CONVERTER (9/10) XACV_DET XACV_DET UNREG...
Page 34 3-4. POWER BLOCK DIAGRAM (2/2) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. LCD901 LCD MODULE SY-188 BOARD (2/2) CN704 L702 M_5.0V VDDD2IN L701 D_3.1V VDD1A 2.5INCH VDD1D COLOR XDD_SYS_RST XRST...
Page 35 4. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 4-1. FRAME SCHEMATIC DIAGRAM LENS BLOCK SW-520 BOARD CD-719 FLEXIBLE BOARD ST-188 FLEXIBLE BOARD SW-533 FLEXIBLE BOARD IC003 (Not supplied) BT901 BT902 BT903 BATTERY − TERMINAL BT900 LITHIUM BATTERY ST-180 BOARD (SIDE B) LCD901 LCD MODULE CN002...
Page 36: Schematic Diagrams
4-2. SCHEMATIC DIAGRAMS Link Link SW-520 BOARD CD-719 FLEXIBLE BOARD (CCD IMAGER) (CONTROL SWITCH) MC-189 FLEXIBLE BOARD ST-180 BOARD (1/2) (FLASH DRIVE) (MULTI CONNECTOR) ST-188 FLEXIBLE BOARD ST-180 BOARD (2/2) (CONTROL SWITCH) (SY-ST CONNECTION) SW-533 FLEXIBLE BOARD AF-112 BOARD (AF ILLUMINATOR) (SY-SW CONNECTION) COMMON NOTE FOR SCHEMATIC DIAGRAMS DSC-W110/W115_L2...
Page 37: This Note Is Common For Schematic Diagrams
ENGLISH JAPANESE 4-2. SCHEMATIC DIAGRAMS ENGLISH JAPANESE 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS (ENGLISH) THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS (In addition to this, the necessary note is printed in each block) (For schematic diagrams) 1. Connection • All capacitors are in µF unless otherwise noted. pF : µ Pattern box µF.
Page 38 ENGLISH JAPANESE 4-2. SCHEMATIC DIAGRAMS ENGLISH JAPANESE 4-2. SCHEMATIC DIAGRAMS (JAPANESE) Pattern box PTB-450 For PTB-450: J-6082-200-A J-6020-250-A For PTB-1450: Small pattern box J-6082-559-A PTB-1450 J-6082-557-A L = 24 m (PTB-450) L = 11 cm (PTB-1450) Ω DSC-W110/W115_L2...
Page 39 CAM_-7.5V_CD Note: IC003(CCD imager) and CD-719 flexible complete board are not supplied, but there are included in CCD block assy. Note: Voltages of IC003 can not be measured, because this is mounted by the side of the lens. N.C. N.C. IC003 ICX629EQP-13 CCD_OUT...
Page 40 Schematic diagrams of the SY-188 board are not shown. Pages from 4-5 to 4-14 are not shown. DSC-W110/W115_L2...
Page 41 • Refer to page 4-2 (English), 4-3 (Japanese) for mark 0. AF-112 LND033 LND201, LND202 Through the XAF_LED Harness (HN-61, HN-62) D_3.1V Page 4-16 CN002 of Level 2 LND034 L001 ST_UNREG 2.2uH ST_UNREG D001 ST_UNREG R005 LND038 C006 4700 CRF02(TE85R) 220p C002 22u C...
Page 42 • Refer to page 4-2 (English), 4-3 (Japanese) for mark 0. Note: LCD901 is not included in SW-520 complete board. LCD901(2/2) LCD MODULE LND001 XAE_LOCK_LED D101 BL_H (AE/AF LOCK) CL-196SYG-CD-T KEY_AD1 BL_L XSTRB_LED KEY_AD2 BACKLIGHT LND002 D102 REG_GND LNJ426W830S0 (FLASH CHARGE/RECORD) MODE_DIAL1 MODE_DIAL2 S003...
Page 43 LND001 REG_GND LND002 AU_LINE_OUT LND003 A_GND LND004 V_LINE_OUT LND005 V_GND LND006 HD_Y LND007 XACC_IN LND008 ACV_UNREG LND009 ACV_UNREG LND010 ACV_UNREG LND011 ACV_UNREG LND012 ACV_UNREG LND013 ACV_UNREG LND014 BATT_UNREG LND015 BATT_UNREG LND016 BATT_UNREG LND017 BATT_UNREG SY-188 Note: CN001 (multi connector) is not supplied, but this is included LND018 BATT_UNREG (10/10)
Page 44 LND031 ST_UNREG ST_UNREG LND041 LND042 ST_UNREG ST_UNREG LND030 LND043 ST_UNREG ST_UNREG LND029 LND044 LND028 LND045 REG_GND REG_GND LND027 REG_GND REG_GND LND046 LND026 REG_GND REG_GND LND047 LND025 LND048 STRB_CHG STRB_CHG LND024 STRB_ON STRB_ON LND049 LND023 LND050 ST_5V ST_5V LND022 LND051 STRB_CHG_CONT STRB_CHG_CONT LND021 XSTRB_FULL...
Page 45: Printed Wiring Boards
4-3. PRINTED WIRING BOARDS Link Link CD-719 FLEXIBLE BOARD SW-520 BOARD ST-180 BOARD MC-189 FLEXIBLE BOARD AF-112 BOARD COMMON NOTE FOR PRINTED WIRING BOARDS DSC-W110/W115_L2...
Page 46: This Note Is Common For Printed Wiring Boards
4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS (ENGLISH) THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS • : Uses unleaded solder. • Chip parts. • : Circuit board Transistor Diode : Flexible board Pattern from the side which enables seeing. : pattern of the rear side (The other layers’...
Page 47 CD-719 (2 layers) : Uses unleaded solder. CD-719 FLEXIBLE BOARD LND001 LND002 LND003 LND004 LND005 LND006 LND007 LND008 LND009 LND010 LND011 LND012 LND013 LND014 LND015 LND016 LND017 LND018 LND019 LND020 LND021 9 7 C 9 7 1 9 7 D 9 7 1 7 7 1 7 7 1...
Page 48 Printed wiring board of the SY-188 board is not shown. Page from 4-21 is not shown. DSC-W110/W115_L2...
Page 49 ST-180 (4 layers), AF-112 (2 layers) : Uses unleaded solder. MIC901 MICROPHONE BLOCK ST-180 BOARD (SIDE A) POWER (SHUTTER) LND101 S102 D003 C008 LND102 D103 C006 (POWER) R005 HARNESS (HN-060) (Blue) C901 LND037 CL002 C001 CHARGING C003 CAPACITOR D101 LND038 L001 C002 HARNESS (HN-059) (Pink)
Page 50 SW-520 (2 layers) : Uses unleaded solder. SW-520 BOARD (SIDE B) SW-520 BOARD (SIDE A) S003 S008 (ZOOM) BL-H LND001 TO LCD901 (BACKLIGHT) S010 BL-L LND002 (MODE DIAL) VDR001 Note: S010 (Mode dial) is not supplied, but this is included in SW-520 complete board. S010 MENU HOME...
Page 51 MC-189 (2 layers) : Uses unleaded solder. MC-189 FLEXIBLE BOARD (MULTI CONNECTOR) CN001 Note: CN001 (multi connector) is not supplied, but this is included in MC-189 flexible complete board. R004 LF001 1-874-415- DSC-W110/W115_L2 MC-189 4-24E...
Page 52: Repair Parts List
NOTE NOTE 5. REPAIR PARTS LIST NOTE: Characters A to Z of the electrical parts list indicate location of exploded views in which the desired part is shown. EXPLODED VIEWS EXPLODED VIEWS Link Link LCD SECTION FRONT SECTION BT HOLDER SECTION CABINET (UPPER) SECTION LENS SECTION ELECTRICAL PARTS LIST...
Page 53 Ver. 1.1 2008.05 The changed portions from 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST Ver. 1.0 are shown in blue. 5. REPAIR PARTS LIST (ENGLISH) NOTE: When indicating parts by reference number, • -XX, -X mean standardized parts, so they may have some differences from please include the board name.
Page 54: Hardware List
5. REPAIR PARTS LIST 5. REPAIR PARTS LIST DISASSEMBLY HARDWARE LIST 5-1. EXPLODED VIEWS 5-1-1. LCD SECTION ns: not supplied (Note) LCD901 #118 Front Section (See page 5-3) Note: Refer to “HELP 1: LCD Window Adhesive Sheet Kit” Note: when replace the LCD window adhesive sheet kit. Ref.
Page 55 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST DISASSEMBLY HARDWARE LIST 5-1-2. FRONT SECTION BT Holder Section (See page 5-4) (including IC003 (CCD imager) and CD-719 flexible complete board) (Note 1, 2) Lens Section (See page 5-6) Note 1: Be sure to read “Precuations for Replacement of Imager”...
Page 56 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST DISASSEMBLY HARDWARE LIST 5-1-3. BT HOLDER SECTION ns: not supplied BT903 (Note) BT902 (Note) 106 107 Cabinet (Upper) Section (See page 5-5) BT901 (Note) Note: Refer to “HELP 7: Installation method of battery terminal board”...
Page 57: Cabinet (Upper) Section
5. REPAIR PARTS LIST 5. REPAIR PARTS LIST HARDWARE LIST 5-1-4. CABINET (UPPER) SECTION ns: not supplied SP901 MIC901 (Note) C901 (Note) BT900 : BT900 (LITHIUM RECHARGEABLE BATTERY) Board on the mount position. (See page 4-22) CAUTION Note: Refer to “HELP 6: Sheets and Harness of ST-180 Board” when Danger of explosion if battery is incorrectly replaced.
Page 58: Lens Section
5. REPAIR PARTS LIST 5. REPAIR PARTS LIST HARDWARE LIST 5-1-5. LENS SECTION ns: not supplied (Note 4) (Note 1) (Note 4) (Note 3) (Note 2) (Note 4) (Note 2) (Note 3) (Note 2) (Note 3) (Note 3) Note 1: Refer to “2-3. Precuations when Holding the Lens Note 3: Refer to “2-5.
Page 59 AF-112 CD-719 MC-189 ST-180 5-2. ELECTRICAL PARTS LIST Ref. No. Part No. Description Ref. No. Part No. Description A-1494-317-A AF-112 BOARD, COMPLETE < CONNECTOR > ********************** * CN002 1-817-391-81 CONNECTOR, FPC (ZIF) 31P < DIODE > < DIODE > * D201 6-501-861-01 DIODE CL-360S-TD4-X-TL (SELF-TIMER/ SMILE SHUTTER/AF ILLUMINATOR) 0 D001...
Page 60 SW-520 Ref. No. Part No. Description Ref. No. Part No. Description A-1494-316-A SW-520 BOARD, COMPLETE *********************** (S010 (Mode dial) is not supplied, but this is included in SW-520 complete board.) < CONNECTOR > * CN001 1-820-634-51 CONNECTOR, FPC (LIF (NON-ZIF)) <...
Page 61 Ver. 1.1 2008.05 The changed portions from Ver. 1.0 are shown in blue. Checking supplied accessories. Note: This item is supplied with the unit as an accessory, but is not prepared as a service part. Battery Charger Battery Charger Wrist Strap Soft Carrying Case BC-CSGB/BC-CSGC BC-CSGB/BC-CSGC...
Page 62 HARDWARE LIST (1/7) #1: M1.7 X 2.5 #2: M1.7 X 4.0 #3: M1.7 X 2.5 #4: M1.4 X 2.5 (Tapping) (Black) (Black) (Red) (Dark Silver) 2-635-562-11 2-635-562-31 2-660-401-01 3-348-998-81 #5: M1.7 X 3.5 (Tapping) #6: M1.4 X 1.7 #7: M1.7 X 1.6 #8: M1.7 X 3.5 (Tapping) (Black) (Silver)
Page 63 HARDWARE LIST (2/7) #21: M1.4 X 3.0 #22: M1.7 X 5.0 (Tapping) #23: M1.7 X 4.0 (Tapping) #24: B1.7 X 5.5 (Tapping) (Black) (Silver) (Black) (Black) 2-662-396-21 3-083-261-01 3-080-204-11 4-679-805-11 #25: M1.7 X 3.0 #26: M1.4 X 2.0 #27: M1.4 X 2.0 #28: M1.4 X 4.0 (Tapping) (Black) (Silver)
Page 64 HARDWARE LIST (3/7) #41: M3.0 X 8.0 (Tapping) #42: M2.0 X 4.0 (Tapping) #43: M1.7 X 4.0 #44: M1.7 X 3.0 (Tapping) (Silver) (Silver) (Red) (Silver) 3-065-748-01 7-628-253-00 2-660-401-31 3-078-890-61 #45: M1.4 X 2.5 #46: M1.7 X 3.0 #47: M1.4 X 3.0 (Tapping) #48: M1.7 X 2.5 (Silver) (Red)
Page 65 HARDWARE LIST (4/7) #64: M1.7 X 5.0 (Tapping) #61: M3.0 X 10.0 #62: M2.0 X 3.0 #63: M5.0 X 12.5 (Silver) (Black) (Silver) (Black) 2-666-551-21 7-682-549-09 3-080-202-21 3-060-811-21 12.5 10.0 #65: M1.4 X 3.5 #66: M1.4 X 1.4 #67: M1.4 X 2.0 #68: M1.7 X 4.0 (Silver) (Silver)
Page 66 HARDWARE LIST (5/7) #81: M1.7 X 2.5 #82: M1.4 X 1.4 #83: M1.7 X 7.0 (Tapping) #84: M2.0 X 3.0 (Silver) (Silver) (Black) (Silver) 2-515-756-01 3-272-251-01 3-080-204-41 3-072-453-11 #85: M1.7 X 2.5 #86: M1.7 X 4.0 (Tapping) #87: M1.6 X 5.3 #88: M1.6 X 5.9 (Tapping) (Black) (Silver)
Page 67 HARDWARE LIST (6/7) #101: M2.0 X 5.0 #102: M2.6 X 8.0 #103: M2.6 X 10.0 #104: M3.0 X 8.0 (Silver) (Black) (Silver) (Black) 7-621-555-39 7-621-284-30 7-685-794-09 7-682-548-09 10.0 #105: M2.0 X 4.0 #106: M2.0 X 6.0 #107: M2.0 X 5.0 #108: M1.7 X 3.0 (Tapping) (Red) (Black)
Page 68 HARDWARE LIST (7/7) #121: M2.0 X 4.0 (Tapping) #122: M3.0 X 6.0 #123: M4.0 X 8.0 #124: M1.7 X 2.0 (Silver) (Black) (Black) (Silver) 7-682-547-09 3-080-205-11 7-682-561-09 2-599-475-01 #125: M1.4 X 3.0 #126: M2.9 X 3.5 #127: M3.0 X 25.0 #128: M4.0 X 12.0 (Black)
Page 69: Revision History
Reverse 985229832.pdf Revision History S.M. Rev. Ver. Date History Contents issued 2008.03 Official Release — — 2008.05 Revised-1 • Addition of Thai model (A1 DI08-073) S.M. revised: Page Page 5-1, Page 5-13 DSC-W110/W115_L2...
