Bosch VIP X1 Brochure & Specs

Video | VIP X1 Single-channel Video Encoder

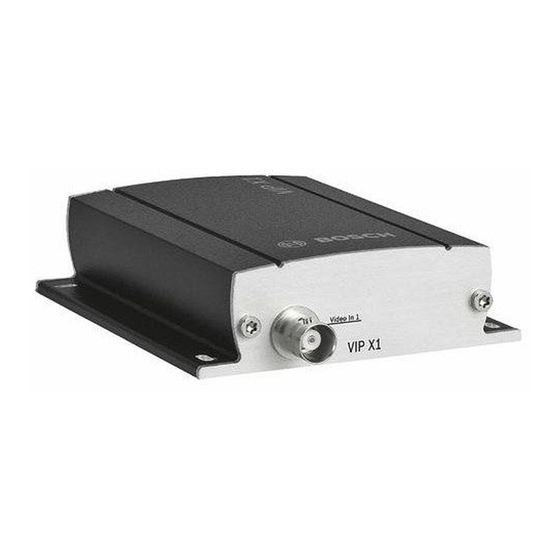

VIP X1 Single-channel Video Encoder
www.boschsecurity.com
The VIP X1 features DVD-like quality MPEG‑4 video, at
up to 25/30 images per second, over IP networks. This
unit supports PAL and NTSC sources.
The audio models of the VIP X1 provide bidirectional
audio communication in parallel to video. Besides the
standard line level interface, built in amplifiers allow
direct connection to microphone and speaker.
The VIP X1 Power-over-Ethernet models can be power-
fed via the network cable.
The VIP X1 provides Dual Streaming. It is able to
generate two independently configurable MPEG‑4
video streams. The VIP X1 is ultra-compact, so it is
perfect for any application that depends on space-
saving solutions.
Functions
Viewing
The VIP X1's video can be viewed on a PC using a
simple Web browser such as Internet Explorer or the
Bosch Video Management System. It can also be
integrated into other video management systems using
the Bosch VideoSDK.
By routing the IP video to a high-performance VIP XD
video decoder or a VIDOS Monitor Wall you can
present the video with ultimate clarity on an analog
CCTV or large, flat-screen VGA monitor or TV.
Single-channel encoder with Dual Streaming
u
High-quality MPEG‑4 from QCIF to 4CIF
u
USB and iSCSI recording
u
Ultra-compact size
u
Multicast and Internet streaming
u
Recording
The VIP X1 offers unparalleled recording options—
locally on a USB hard disk, network-attached utilizing
iSCSI devices, and of course centrally using Network
Video Recorders. The iSCSI RAID storage enables the
VIP X1 to act as a conventional DVR as well as to
stream high-performance live video across the
network.
Dual Streaming
The VIP X1 uses Dual Streaming to generate two
independent IP video streams per channel if sufficient
computational power is available. This allows viewing
and recording at two different quality levels to save
disk space and bandwidth. On alarm, it may send out
e‑mail with JPEG images attached.
Access Security
The VIP X1 encoders offer various security levels for
accessing the network, the unit, and the data
channels. As well as password protection with three
levels, they support 802.1x authentication using a
RADIUS server for identification. You can secure Web
browser access by HTTPS using a SSL certificate that
is stored in the unit. For total data protection, each
communication channel—video, audio, or serial I/O—
can be independently AES encrypted with 128‑bit
keys, once the Encryption Site License has been
applied.
