Single
Pole Motion
Sensing Switch
The Single Pole Motion Sensing Switch detects motion to turn on
lights for an adjustable amount of time. A built-in photo cell can be set
to keep lights off when the lights aren't needed. The unit has excellent
sensitivity and a wide 150° detection range. It can be used with incan-
descent lighting as well as rapid start fluorescent lighting.
Installation is as easy as replacing a wall switch. However, some
codes require installation by a qualified electrician.
OFF AUTO ON
Features include:
• 150° motion detection angle.
• Adjustable on-time from 5 sec. to 20 min.
• Adjustable photocell.
• Works with incandescent and rapid start fluorescent lighting.
• Works with motors up to 1/8 hp.
• Slide switch selectable OFF, ON AND AUTO modes.
Included are: • The sensor switch • Cover plate • 3 wire connectors • 2 large screws • 2 small screws.
INSTALLATION
WARNING: For indoor use only.
SELECT A LOCATION
NEW APPLICATION
Choose a location where the motion sensor has a clear view of
the entire area where occupant motion may occur.
RETROFIT APPLICATION
Motion sensing switch will replace existing wall switch. Use only
where the existing switch location provides a clear view of the
occupied area.
GENERAL APPLICATION INFORMATION
The detector is more sensitive to motion across the front of the sensor than to motion towards the sensor.
The detector senses heat in motion and possible heat sources that change temperature quickly. Therefore, to
avoid false triggering, avoid placing the sensor where it will be aimed at air conditioners, heaters, and other
sources of heat or cold.
30'
15'
0'

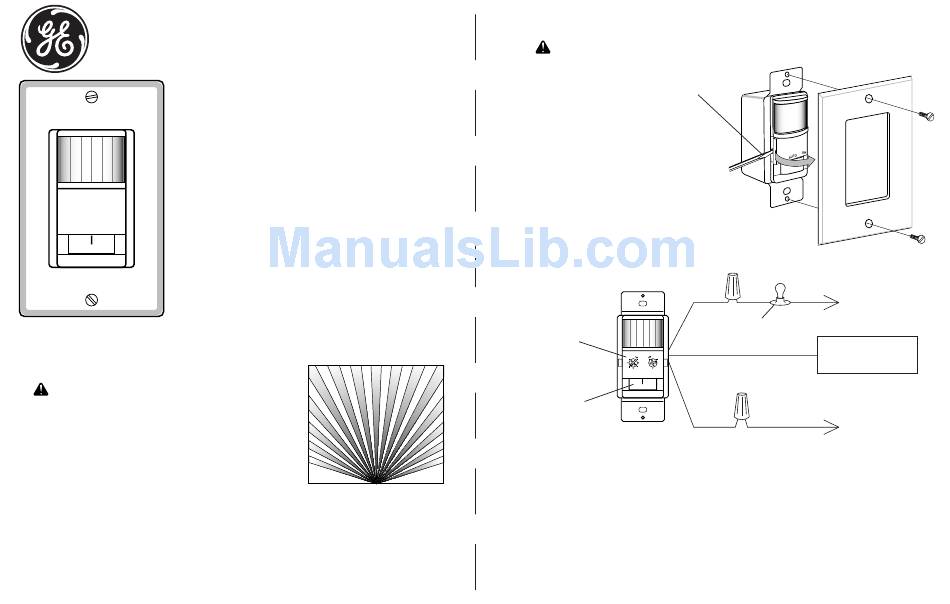

Typical Plan View of Coverage
598-1106-03
INSTALLING THE SWITCH
WARNING: Turn power off at the circuit breaker before wiring.
• Remove the decorative coverplate (secured by two
screws).
• Remove Control Cover. (Press in with screwdriver.
Swing out cover to remove.)
• Remove the existing switch (if this is a retrofit
application).
• Connect the detector as shown in the diagram.
Before installing the detector into the box, make
sure there is no wire exposed at the connection.
Control Cover
Plate Removed
+ +
T I M E L I G H T
MODE
Selection
Switch
TYPICAL INSTALLATION
• Mount the detector into the wall box with the mounting screws.
• For test purposes, use a small screwdriver to turn the time control fully counter-clockwise and the light
control fully clockwise. Turn the power back on at the circuit breaker.
• Set the switch to the AUTO mode. When unit stabilizes (about 1 minute), the sensor is ready to detect motion.
If motion is detected, the lights will turn on. The lights will turn off 5 seconds after motion is no longer detected.
Questions? Call 1-800-654-8483 Or visit us at www.jascoproducts.com
BLACK
WHITE
(NEUTRAL)
LIGHTING
LOAD
Green ground wire to
junction box screw or
grounding wire.
BLACK
BLACK
(LINE)
