Owner's Manual and
Installation Instructions
29-Inch Wide
GAS DRYERS
IMPORTANT:
Read and follow all safety
and operating instructions
before first use of this product.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com
3979090A
PRINTED IN U.S.A.
12/01

Advertisement

Table of Contents
loading

Related Manuals for Kenmore 29-Inch Wide GAS DRYERS

Summary of Contents for Kenmore 29-Inch Wide GAS DRYERS

  • Page 1 Owner's Manual and Installation Instructions 29-Inch Wide GAS DRYERS IMPORTANT: Read and follow all safety and operating instructions before first use of this product. Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com 3979090A PRINTED IN U.S.A. 12/01...

  • Page 2: What To Do If You Smell Gas

    WARNING: For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury, or death. -Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

  • Page 3: Troubleshooting

    Product Record Please read this manual. It will help you install and operate your new Use the space below to record the model Kenmore dryer in the most economical number and serial number of your new way. Kenmore dryer. If you need more information about the care and operation of Kenmore appliances Model No.
  • Page 4 Full One Year Warranty on Warranty Service Mechanical and Electrical Parts Warranty service is available by contacting your nearest Sears Service Center in the For one year from the date of purchase, United States. if this dryer is installed and operated according to the instructions in this This warranty applies only while this dryer manual, Sears will repair or replace any...
  • Page 5 Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance, Always read and obey all safety messages, This is the safety alert symbol. This symbol alerts you to potential hazards that can killor hurt you and others, All safety messages will follow the safety alert symbol and either the word "DANGER"...

  • Page 6: Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING : To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic precautions, including the following: • Read all instructions before using • Do not repair or replace any part of the dryer.

  • Page 7: Tools And Parts

    Parts needed: Tools and Parts Check local codes and with gas supplier, Check that you have everything neces- check existing gas supply, electrical sary for correct installation. Proper supply and venting, and read "Electrical installation is your responsibility. Requirements," "Gas Supply Requirements"...

  • Page 8: Location Requirements

    Installation Clearances Location Requirements The location must be large enough to fully open the dryer door. Dryer Dimensions Explosion Hazard Keep flammable materials and vapors, such as gasoline, away from dryer. Place dryer at least 18 inches (46 cm) above the floor for a garage installation.
  • Page 9 • Companion appliance spacing should also be considered. (110 (_.7 _m) 1" 1" 1" 27_6" 51_2" _,5 i_11 (2,5t_) (6905 cm)(l 4 cm) 29 "_ _(73.66 3. Wide Opening Side-Swing Door ('t.e_) 48'2 (310='al) - 24"2 (110cln) 3<' 1"/.6 _ ) 133/4"...

  • Page 10: Gas Supply Requirements

    Electrical Requirements Gas Supply Requirements Explosion Hazard Electrical Shock Hazard Use a new AGA or CSA approved Plug into a grounded 3 prong outlet. gas supply line. Do not remove ground prong. Install a shut-off valve. Do not use an adapter. Do not use an extension cord.
  • Page 11 • If your dryer has been converted to use Gas Supply Line: L.P. gas, 3/,/8 in. L.P. compatible copper in. IPS pipe is recommended. • tubing can be used. If the total length of • 3/8 in. approved tubing is acceptable the supply line is more than 20 ft (6.1 for lengths under 20 ft (6.1 m) if local m), use larger pipe.

  • Page 12: Venting Requirements

    Venting Requirements Use a heavy metal vent. Do not use plas- tic or metal foil vent. Rigid metal vent is recommended to pre- vent crushing and kinking. Flexible metal vent must be fully extend- ed and supported when the dryer is in its final position.
  • Page 13 Special provisions for mobile home Standard exhaust installation with rigid installations metal or flexible metal vent The exhaust vent must be securely fas- tened to a noncombustible portion of the mobile home structure. Do not use screws or other fastening devices that extend into the interior of the vent to secure vent.

  • Page 14: Install Vent System

    The angled hood style (shown following) Install Vent System is acceptable. 1. (Optional) Put on safety glasses and gloves. 2. Install exhaust hood. Use caulking compound to seal exterior wall open- ing around exhaust hood. (6.4 cm) 3. Connect vent to exhaust hood. Vent See the exhaust vent length chart that must fit inside exhaust hood.

  • Page 15: Make Gas Connection

    4. Screw the legs into the leg holes by Make Gas Connection hand. Use a wrench to finish turning 1. Remove the red cap from the gas the legs until the diamond marking is pipe. Move the dryer to its final no longer visible.

  • Page 16: Connect Vent

    Connect Vent 7. Remove the blue protective film on 1. Using a 4 in. (10.2 cm) clamp, con- the console and any tape remaining nect vent to exhaust outlet in dryer. If on the dryer. connecting to existing vent, make sure 8.

  • Page 17: Stopping/Restarting Your Dryer

    Explosion Hazard Fire Hazard Keep flammable materials and No washer can completely remove oil. vapors, such as gasoline, away from dryer. Do not dry anything that has ever had Do not dry anything that has ever had any type of oil on it (including cooking anything flammable on it (even after oils).

  • Page 18: Cycle Description

    CYCLE DESCRIPTION On Dryers with AUTO MOISTURE SENSING • Dryness is determined by an electronic sensor that "feels" the amount of The automatic cycles save you time moisture in clothes as they pass over it. by providing the best drying results When the dryness selected is reached, in the shortest time.
  • Page 19 FABRIC/TEMPERATURE CONTROL FABRIC I_MPtERATURE IOIIT I NORMAL / CASUAL PEIRM PRESS Proper use of this control helps MEDIUMHmH ensure that fabrics are dried at the right temperature for maximum life. Use this control to select the drying temperature that matches the fabrics in your load.
  • Page 20 USING AIR DRY/AIR FLUFF To use AIR FLUFF: • Set Cycle Selector Control for the number of minutes you want in the TIMED DRY Cycle. • Set FABRIC/Temperature Control to AIR Using these cycles gives you all the ben- FLUFE efits of hang drying with a shorter drying time.

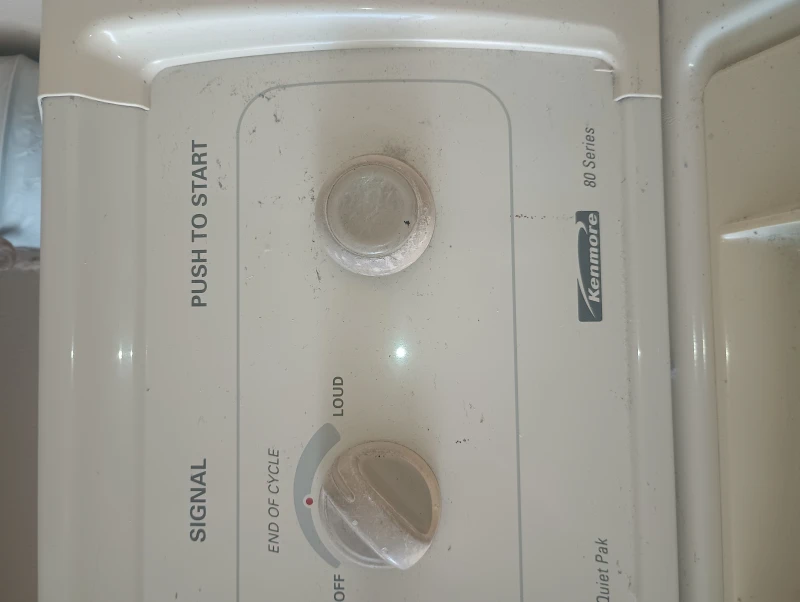

  • Page 21 END OFCYCLESIGNALCONTROL COOLDOWN Approximately 10 minutes before the end of the AUTO DRY, AUTO MOISTURE SENSING and TIMED DRY Cycles, Your dryer sounds a signal when clothes are tumbled without heat to help a drying cycle is finished. reduce wrinkles and make clothes more comfortable to handle.

  • Page 22: Dryer Rack

    DRYER RACK Put the wet items on top of the rack. Leave space between the items so air On some models, the dryer rack was can reach all the surfaces. Close the shipped on top of your dryer. Remove door. and discard shipping blocks before using.

  • Page 23: Sorting Clothes

    PREPARING CLOTHES SORTING CLOTHES FOR DRYING Follow these recommendations to help save on your utility bills and pro- long the life of your garments. • Refer to your Washer Owner's Manual for proper washing techniques and additional laundry tips. DRYING TIPS •...

  • Page 24: Saving Energy

    CHOOSING LOAD SIZES USING DRYER FABRIC SOFTENERS • Mix large items with small items. Load the dryer by the amount of space Dryer fabric softeners are recommended items take up, net by their weight. Do for reducing static cling. Always follow net overload the dryer.

  • Page 25: Cleaning Your Dryer

    CLEANING YOUR DRYER To clean dryer drum: 1. Make a paste with detergent and very warm water and apply to a soft cloth. 2. Scrub area until all excess dye is Proper care of your dryer can extend its removed. life and help you avoid costly service calls.

  • Page 26: Cleaning The Lint Screen

    Wash Lint Screen As Needed CLEANING THE LINT SCREEN Laundry detergents and fabric softeners Remove Lint Before Every Load can cause a residue buildup on the lint The lint screen is located on top of your screen. Wash the lint screen with a nylon dryer.

  • Page 27: Moving Care

    REMOVING ACCUMULATED LINT TO CHANGE DRUM LIGHT From Inside the Dryer Cabinet The dryer light automatically turns on Lint should be removed every 2 years or inside the dryer drum when you open more often, depending on dryer usage. the door. Cleaning should be done by a qualified person.
  • Page 28 Most laundering problems are easily solved if you understand the cause. Using the charts below will save you time and money by helping you avoid unnecessary service calls. Possible Cause Solution Problem Clean lint screen. Not Drying Lint screen is clogged with lint. Satisfactorily Restricted air movement.
  • Page 29 Problem Possible Cause Solution Dryer Will Using a regular fuse. Replace with a time-delay fuse. Not Run Dryer door not firmly closed. Close dryer door tightly. (cent'd) PUSH TO START Button Press PUSH TO START Button again. not firmly pressed. Controls not set in an Reset controls in an ON position.
  • Page 30 We Service What We Sell. Sears Maintenance Agreements Your Kenmore appliance is designed, manufactured and tested te provide years of dependable operation. Yet any major appliance may require service from time te time. The Sears Maintenance Agreement offers you an outstanding service program, affordably priced.
  • Page 31 Forrepairof majorbrandappliances in your own home... no matterwho madeit, no matterwho solditl 1-800-4-MY-HOME ® AnyUme, day ornight (1-e00._SS-46_) (U.S._and Canada) www.Nars.oom www.sears.ca www.sears.oom ..iiiiiiiii Forthe replacement p arts,accessories and owner'smanuals thatyouneed todo-it-yourself, call Sears PadsDIrectS"l 1-800-366-PART 6 a.m. - 11p.m. C ST, 7 days a week (1-800-366-7278) (U.S.A.
