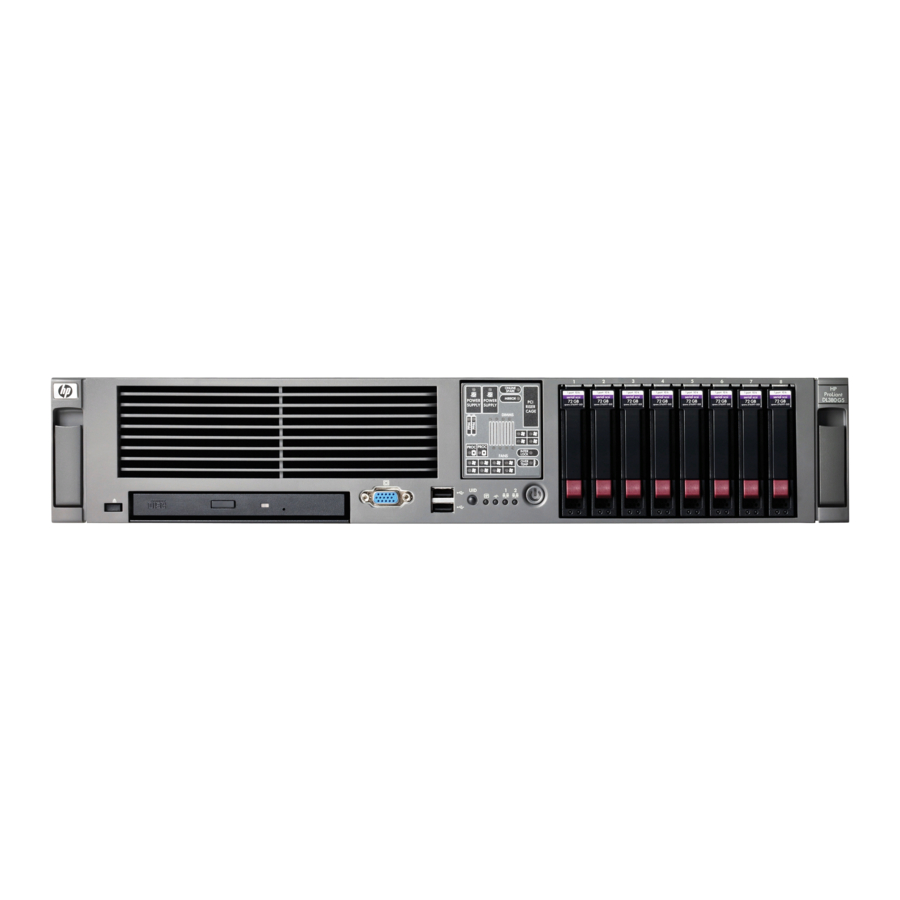

HP ProLiant DL380 Quickspecs

HP ProLiant DL380 Quickspecs

Generation 4 (g4) packaged cluster with modular smart array 1000
Hide thumbs Also See for ProLiant DL380:

Advertisement

Quick Links

Download this manual See also: Maintenance and Service Manual, Quickspecs
QuickSpecs
Overview
Front Veiw:
Front Veiw:
Front Veiw:
Front Veiw:

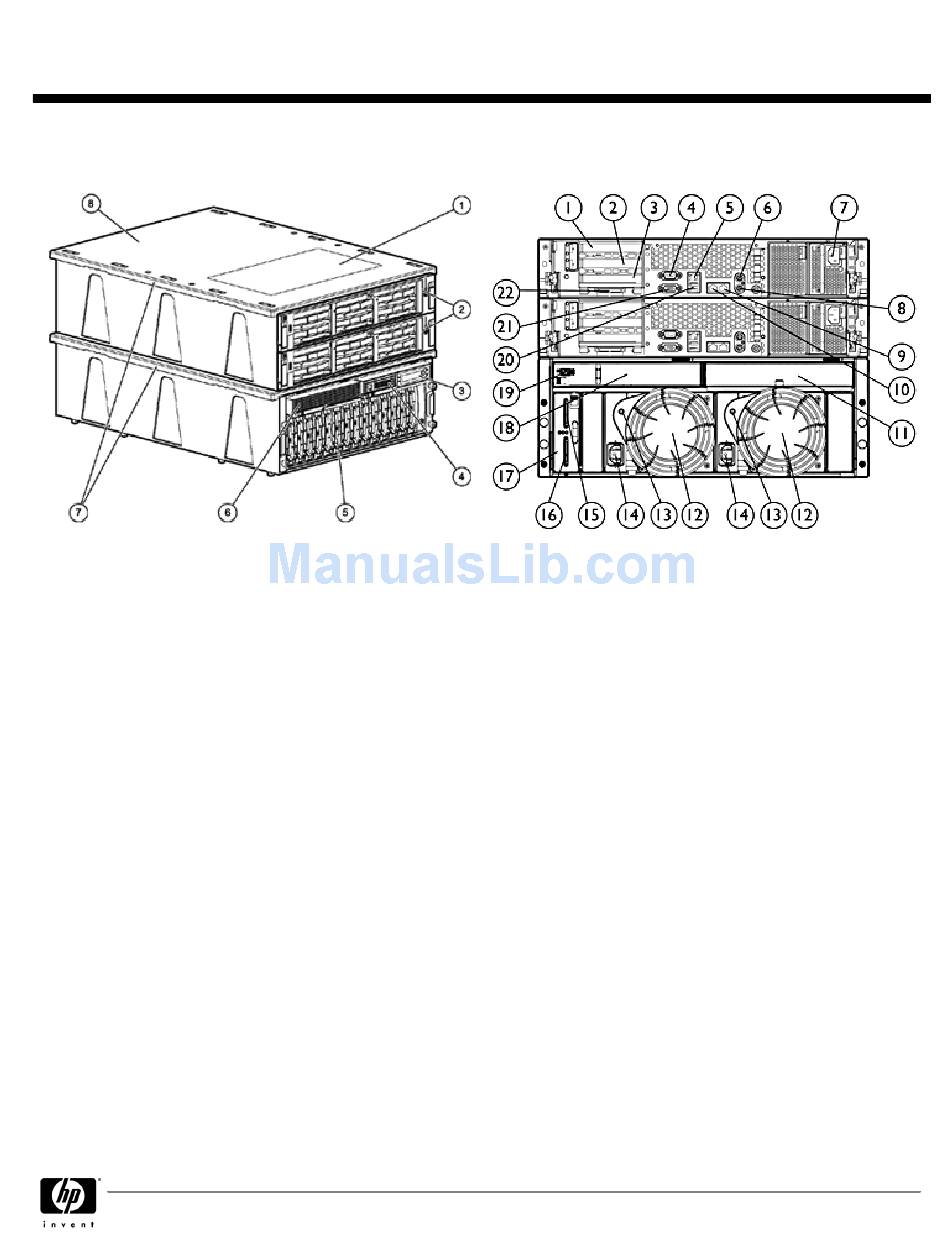

1. Cluster Component Label
2. Two 2U Servers
3. MSA1000 Controller
4. MSA1000 Controller LED
5. 4U HP StorageWorks MSA1000 Shared Storage
with fourteen Hot Plug Hard drives Bays
6. Redundant MSA1000 Controller Bay
7. Lifting Rails
8 Configuration Fixture
HP ProLiant DL380 Generation 4 (G4) Packaged Cluster
HP ProLiant DL380 Generation 4 (G4) Packaged Cluster
HP ProLiant DL380 Generation 4 (G4) Packaged Cluster
HP ProLiant DL380 Generation 4 (G4) Packaged Cluster
DA - 12086
Worldwide — Version 35 — February 1, 2008
with Modular Smart Array 1000
with Modular Smart Array 1000
with Modular Smart Array 1000
with Modular Smart Array 1000
ProLiant DL380 G4 Rear View:
ProLiant DL380 G4 Rear View:
ProLiant DL380 G4 Rear View:
ProLiant DL380 G4 Rear View:
1. Hot-plug or non-hot-plug PCI-X expansion slot 3, 64
bit/100 MHz, bus B /PCI Express x4 slot 2, bus B
NOTE:
NOTE:
NOTE:
NOTE: x8 PCI Express cards are supported on the SCSI
models and will run at x4 speeds. SAS models do not support
PCI Express cards.
2. Hot-plug or non-hot-plug PCI-X expansion slot 2, 64
bit/100 MHz, bus B / PCI Express x4 slot 1, bus A
NOTE:
NOTE: x8 PCI Express cards are supported on the SCSI
NOTE:
NOTE:
models and will run at x4 speeds. SAS models do not support
PCI Express cards.
3. Non-hot-plug PCI-X expansion slot 1, 64 bit/133 MHz, bus
A
4. Serial connector
5. iLO connector
6. Mouse connector
7. Power cord connector
8
Keyboard connector
9. NIC 1 connector
10. NIC 2 connector
20. USB connectors
21. Video connector
22. VHDCI SCSI connector (port 1)
NOTE: This feature applies only to SCSI models.
NOTE:
NOTE:
NOTE:
MSA1000 Rear View:
MSA1000 Rear View:
MSA1000 Rear View:
MSA1000 Rear View:
11. Blank panel (when hot-pluggable options installed)
12. Power supply/blower assemblies
Page 1
