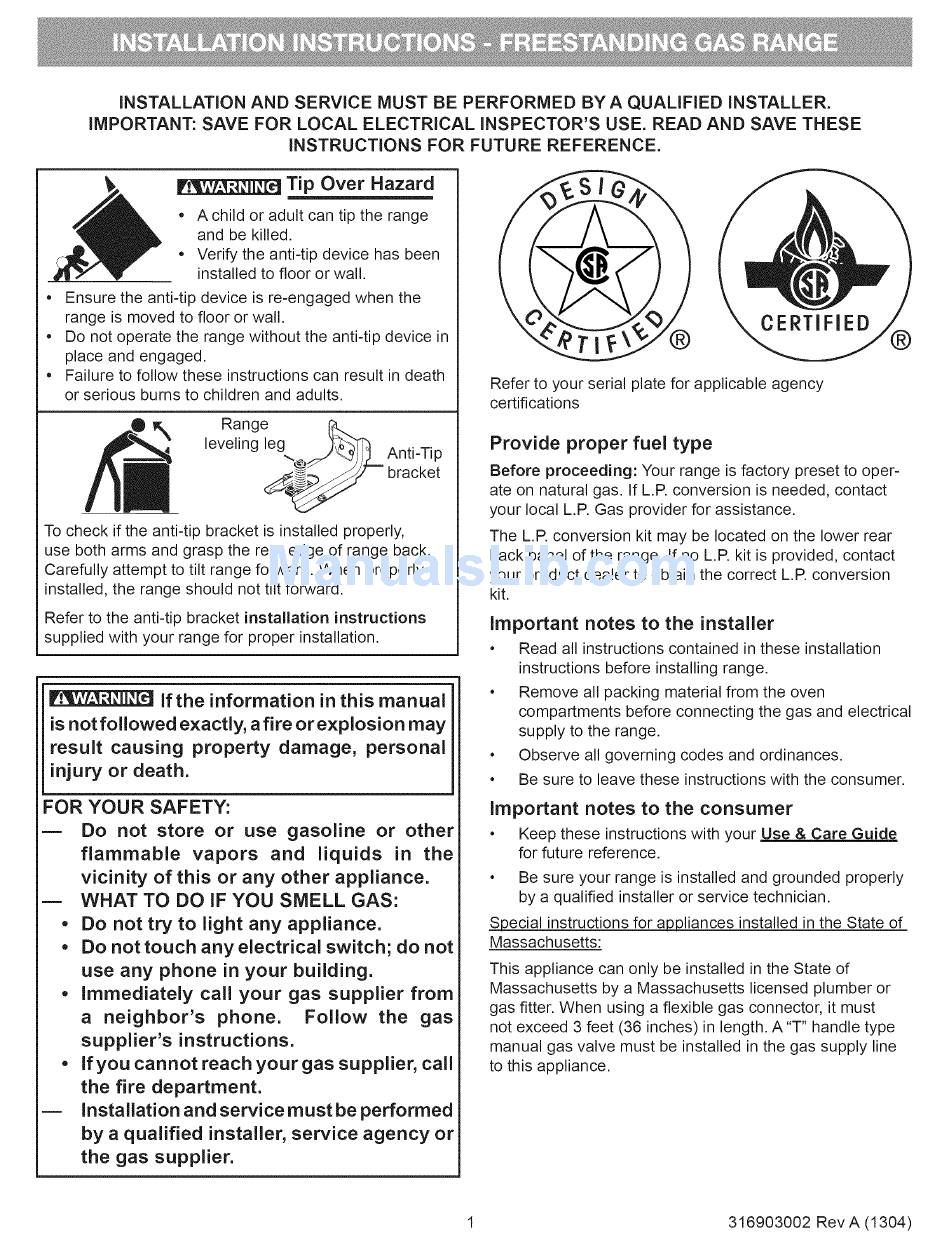

INSTALLATION
AND SERVICE
MUST BE PERFORMED
BY A QUALIFIED
INSTALLER.
IMPORTANT:
SAVE FOR LOCAL
ELECTRICAL
INSPECTOR'S
USE. READ AND SAVE THESE
INSTRUCTIONS
FOR FUTURE
REFERENCE.
Tip Over Hazard
• A child or adult can tip the range
and be killed.
• Verify the anti-tip device has been
installed to floor or wall.
• Ensure the anti-tip device is re-engaged when the
range is moved to floor or wall.
• Do not operate the range without the anti-tip device in
place and engaged.
• Failure to follow these instructions can result in death
or serious burns to children and adults.
Range
[_..
leveling leg
_-_ i"_. _
_. _.
Anti-Tip
j_
bracket
To check if the anti-tip bracket is installed properly,
use both arms and grasp the rear edge of range back.
Carefully attempt to tilt range forward. When properly
installed, the range should not tilt forward.
Refer to the anti-tip bracket installation instructions
supplied with your range for proper installation.
if the information
in this manual
is not followed
exactly, afire or explosion
may
result
causing
property
damage,
personal
injury or death.
FOR YOUR SAFETY:
m
Do not
store
or use gasoline
or other
flammable
vapors
and
liquids
in the
vicinity
of this or any other
appliance,
WHAT TO DO IF YOU SMELL GAS:
, Do not try to light any appliance.
, Do not touch
any electrical
switch;
do not
use any phone in your
building.
, immediately
call your
gas supplier
from
a neighbor's
phone.
Follow
the
gas
supplier's
instructions.
, if you cannot reach yourgas
supplier, call
the fire department.
=
installation and service must be performed
by a qualified
installer, service agency
or
the gas supplier.
CERTIFIED
Refer to your serial plate for applicable agency
certifications
Provide proper fuel type
Before proceeding:
Your range is factory preset to oper-
ate on natural gas. If L.P. conversion is needed, contact
your local L.P. Gas provider for assistance.
The L.P. conversion kit may be located on the lower rear
back panel of the range. If no L.P. kit is provided, contact
your product dealer to obtain the correct L.P. conversion
kit.
important
notes
to the installer
Read all instructions contained in these installation
instructions before installing range.
Remove all packing material from the oven
compartments before connecting the gas and electrical
supply to the range.
Observe all governing codes and ordinances.
Be sure to leave these instructions with the consumer.
important
notes
to the consumer
Keep these instructions with your Use & Care Guide
for future reference.
Be sure your range is installed and grounded properly
by a qualified installer or service technician.
Special instructions for a_j31iances installed in the State of
Massachusetts:
This appliance can only be installed in the State of
Massachusetts by a Massachusetts
licensed plumber or
gas fitter. When using a flexible gas connector, it must
not exceed 3 feet (36 inches) in length. A "T" handle type
manual gas valve must be installed in the gas supply line
to this appliance.
1
316903002
Rev A(1304)
