Summary of Contents for Electrolux EFS 633

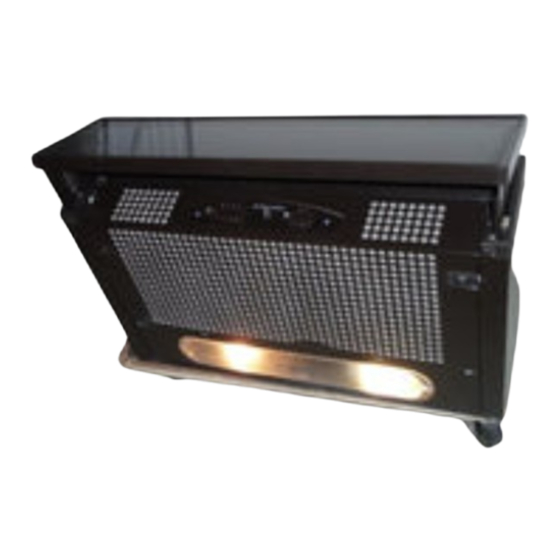

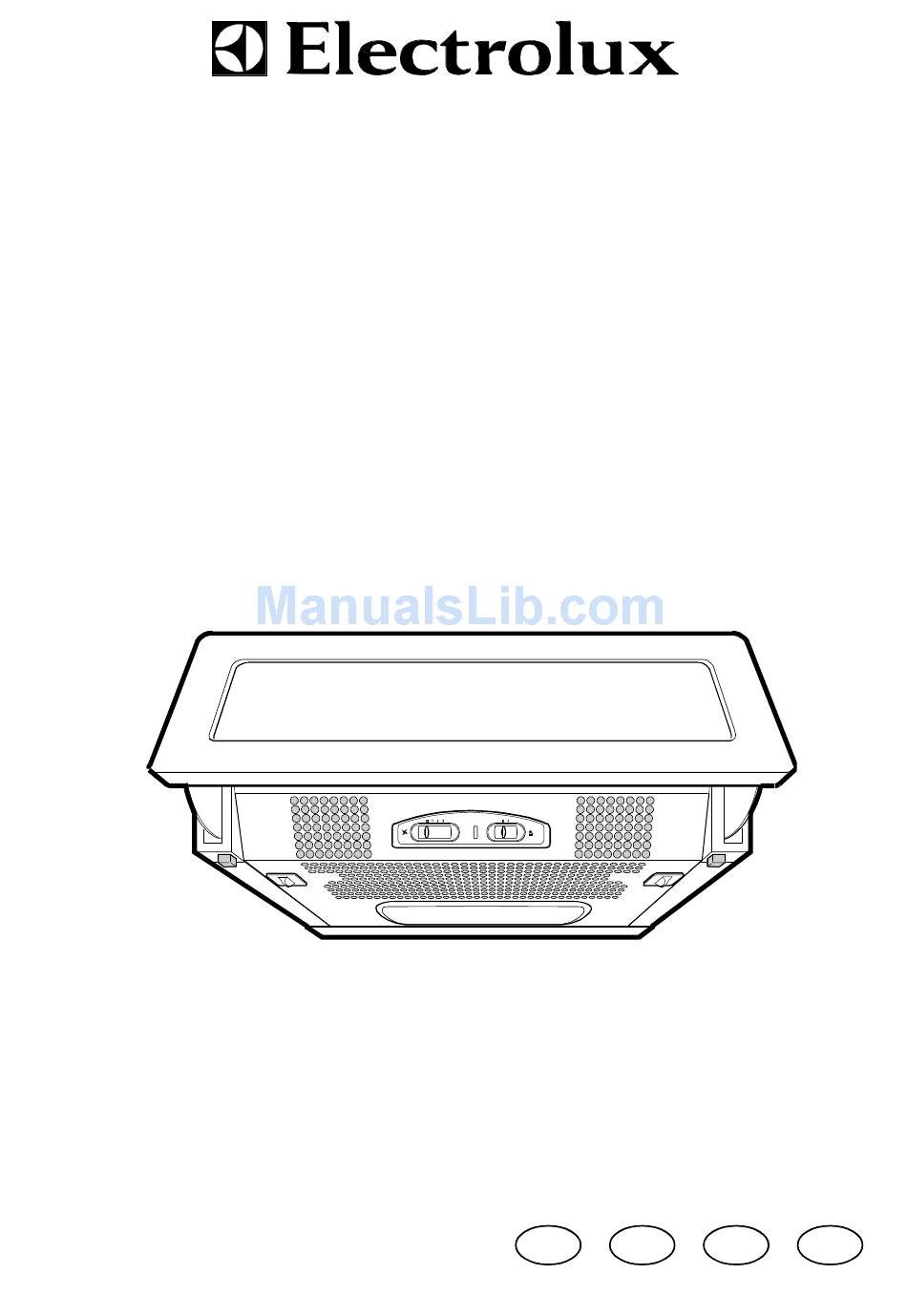

- Page 1 Gebrauchsanweisung, Manuel d'utilisation EFS 633 / EFS 533 Istruzioni per l'uso, User Manual...
-
Page 2: Table Of Contents
Contents Safety instructions ....................... 30 Description of the appliance ....................31 Function ................................31 Opening the suction grid ............................31 Fitting the removable drawer ..........................31 Special accessories ......................32 Installation ..........................32 Unpacking ................................32 Placement ................................32 Electrical connection ............................32 Fastening the removable drawer .......................... -
Page 3: Safety Instructions
Congratulations to your new Cooker Hood Thank you for your choice of an Electrolux product. We are convinced that you will have great use and pleasure from your new cooker hood. Before you use the cooker hood we recommend that you read through the whole user manual giving a direct description of the cooker hood and its functions. -
Page 4: Description Of The Appliance
Description of the appliance 1. Motor speed switch 2. Light switch 3. Removable drawer 4. Suction grid 5. Lamp cover 6. Operating light Standard accessories included: Template for mounting Screws: Fig. 1 Duct with no return valve Function The hood may be used as follows: - For air exhausting - For air recycling... -
Page 5: Special Accessories
Special accessories Active carbon filter Order by the retailer PNC 955 101 117 When the hood is used in recirculation mode an active carbon filter should be used. Installation Unpacking Check that the cooker hood has no damages. Transportation damages should immediately be reported to the one responsible for the transport 75 cm Damages, faults and eventually missing details... -
Page 6: Exhausting Mode
Exhausting mode Fit the coupling flange with non-return smoke valve so that point B of the flange matches up with the small triangle A which is printed on the body of the appliance (Fig. 8). Connect the air outlet to the smoke exhaust hose Check that lever G is positioned on setting “A”... -
Page 7: Using The Hood
Using the hood Speed regulation The hood has a three speed motor regulated with a slide switch. For the best performance, we recom- mend using the highest speed in particular cases of strong odour and vapour concentration. We recommend starting up the hood a few minutes before cooking and keeping it running until all the odours have been eliminated. -
Page 8: Maintenance
Maintenance Before performing any maintenance operation, disconnect the hood from the electricity. Grease filter This serves to hold the grease particles in suspen- sion. The metal filter should be washed every month with warm soapy water or, if possible, in the dishwasher (60 C). -
Page 9: If The Hood Does Not Function
If the hood does not function Before you make contact to service Check that the power plug is connected to the wall power outlet and that no fuse is blown. Do not do any operations that can cause hazard or damage to the product. -
Page 10: Technical Data
Technical data Model EFS 633 EFS 533 Capacity 270 m 155 m 270 m 155 m Min. 175 m 175 m Dimension Height 150 mm 150 mm Width 600 mm 550 mm Depth 300 mm 300 mm Light 2 x 40 W E 14... - Page 11 1007 ACD L 575A Ed. 03/96 96-00161...
