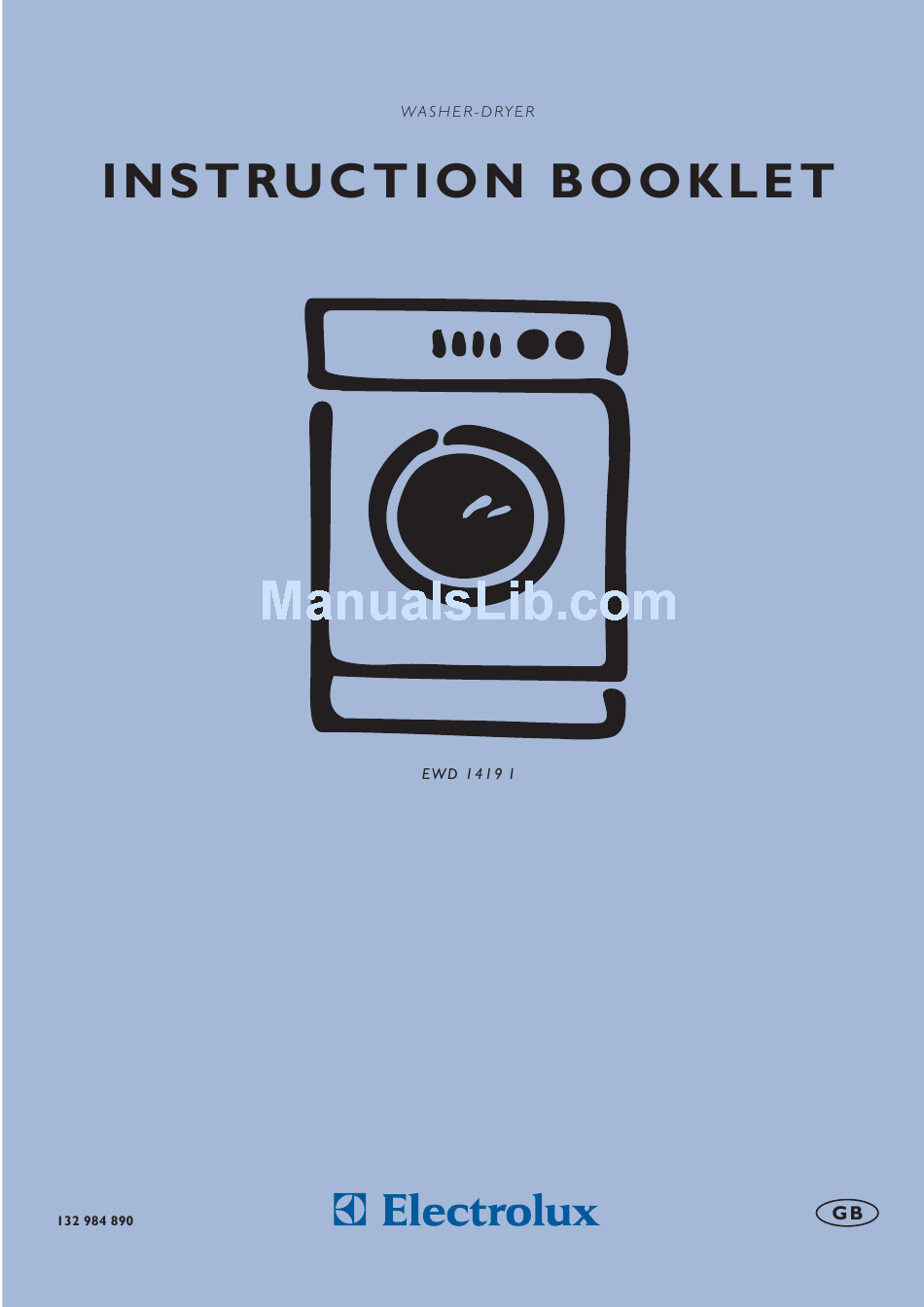

Electrolux EWD 1419I Instruction Booklet

Hide thumbs Also See for EWD 1419I:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Electrolux EWD 1419I

Summary of Contents for Electrolux EWD 1419I

  • Page 2: Important Safety Information

    Important Safety Information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings.

  • Page 3: Table Of Contents

    Contents For the User 20-21 Maintenance and Cleaning Descaling Important Safety Information After each wash Maintenance wash Your New Washer Dryer External cleaning Description of the Appliance Cleaning the dispenser drawer Detergent dispenser drawer Cleaning the drawer recess Child safety feature Cleaning the filter The Control Panel 6-10...

  • Page 4: Your New Washer Dryer

    Your New Washer-Dryer Your new washer-dryer fitted with the Electrolux “JET SYSTEM”, meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. Even small loads are washed “economically” because the amount of water used is regulated automatically according to the load and type of fabric.

  • Page 5: Description Of The Appliance

    Description of the Appliance 1 Detergent dispenser drawer 2 Programme guide 3 Control panel 4 Door opening handle 5 Filter 6 Adjustable feet Detergent dispenser drawer Prewash Main wash Fabric softener The programme chart is in the interior part of the drawer.

  • Page 6: The Control Panel

    The Control Panel 1 Detergent dispenser drawer 5 “Spin speed” button The programme chart is in the interior part of the Press this button to reduce the maximum speed of the final speed proposed by the machine for the selected drawer.
  • Page 7 6 “Quick wash” button to 130 minutes. For automatic Washing & Drying programmes the This option can be used for lightly soiled cotton, drying time is displayed for 3 seconds, then the duration synthetic or delicate items hat have been used or worn of the programme will appear.
  • Page 8 Reset/cancellation of the programme The selected delay (23 hours max) set by means of the If the programme selector dial is turned to Off position, relevant button appears on the display for 3 seconds, three blinking dashes are displayed. then the duration of the previously selected programme Now you can select a new programme.

  • Page 9: Programme Progress Display

    The selector dial can be turned either clockwise or anticlockwise. 13 Programme progress display Positions E60° and E40° correspond to the ENERGY By selecting the wash programme, the pilot lights SAVING programmes and position to “cold wash”. corresponding to the various phases making up the At the end of the programme the selector dial must programme come on.

  • Page 10: Programme Information

    Opening the door after the programme has Drain started For emptying out the water of the last rinse in You can open the door, after having set the washer-dryer programmes with the Rinse Hold or Night Cycle to PAUSE, provided the following conditions exist: option.

  • Page 11: Operating Sequence

    Operating Sequence Therefore we recommend that you use approximately Washing only 1/3 less than the detergent manufacturer recommends on Before the first wash, we recommend that you run a the packet or bottle, making the appropriate allowances cotton cycle at 95°C, without any laundry in the for soft or hard water, and light or heavy soilage of machine, to remove any manufacturing residue from the clothes.

  • Page 12: Select The Spin Speed Or Rinse Hold Option

    During this period it is possible to load other laundry: 5. Select the Spin speed or Rinse press the Start/Pause button. Open the door. Load the Hold option laundry. Close the door and press the Start/Pause Depress the spin speed button to choose the required button again.

  • Page 13: Drying Only

    Automatic washing and drying Switch the machine off by pressing the ON/OFF (NON-STOP programme) button. Remove the laundry from the drum and carefully check Warning! For NON-STOP programmes, it is also that the drum is empty so as to avoid any forgotten essential not to exceed the maximum load sizes of items being damaged in a subsequent wash (e.g.

  • Page 14: Washing And Drying Hints

    Washing and Drying Hints Do NOT overload the machine. Weigh the laundry the Some stains such as fruit, wine, grass, rust etc. are first few times you use the appliance. difficult to remove and should be treated before washing with specific products, which can be found The average weights of the most common items are in most household shops.

  • Page 15: Which Detergent

    Which detergent?..And in which form? To ensure you obtain the best wash results from your Not only are there different types of detergent, but they appliance, it is important to use the right detergent in are also available in different forms. Whether you chose your everyday wash, and only detergents recommended a powder or liquid in traditional or compact form is for use in automatic machines.

  • Page 16: Wash Care Symbols

    Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine.

  • Page 17: Washing And Special Programmes

    Washing Programmes Consumption* ype of Programme Additional Max. Section Temp. Energy Water Time fabric description functions load 95° Whites Wash at 95°C 5 kg SPIN SPEED/R. H. OTTON PREWASH 3 rinses QUICK WASH Normal spin NIGHT CYCLE SENSITIVE Whites E60° Wash at 60°C SPIN SPEED/R.

  • Page 18: Special Programmes

    Special Programmes Consumption Selector dial position/ Additional Max. Programme description Programme functions load Time Energy Water Rinses 3 rinses with liquid additive 5 kg SPIN SPEED RINSE HOLD if required SENSITIVE Long spin NIGHT CYCLE 5 kg Drain For emptying out the last rinse water in programmes with the “rinse hold”...

  • Page 19: Drying Programmes

    Drying Programmes Drying time Degree of drying Type of fabric Max. load Spin speed mins 1400 105-1115 Extra dry 2.5 kg Cotton and linen Ideal for (bathrobes, bath towelling towels, etc.) 50-60 materials 1400 1 kg 1400 95-105 2.5 kg Cotton and linen (towels, T-shirts, bathrobes)

  • Page 20: Maintenance And Cleaning

    Maintenance and Cleaning and dryingBefore any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine.

  • Page 21: The Dangers Of Freezing

    The dangers of freezing Unscrew and remove the filter. Clean carefully under a fast running tap. If the machine is exposed to temperatures below 0°C, certain precautions should be taken. Turn off the water tap. Unscrew the inlet hose. Unhook the drain hose from the rear support and position the end of this hose and that of the inlet hose in a bowl.

  • Page 22: Something Not Working

    Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee.

  • Page 23: Service And Spare Parts

    Symptom Possible causes The machine vibrates when spinning The internal packing has not been removed. The machine is in contact with the wall or furniture. The machine is not level. The washing load is badly distributed in the drum. Maybe there is very little laundry in the drum. The door will not open The water level is above the bottom edge of the door.

  • Page 24: Guarantee Conditions

    Customer Customer Care Department - Electrolux Major Appliances For general enquiries concerning your Electrolux Addington Way appliance or for further information on Electrolux Luton products, please contact our Customer Care Department Bedfordshire by letter or telephone at the address below or visit our LU4 9QQ website at www.electrolux.co.uk Tel 08705 980 950*...

  • Page 25: Installation Instructions

    Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

  • Page 26: Unpacking

    Unpacking Set the machine upright and remove the two remaining All transit bolts and packing must be removed bolts from the back. before using the appliance. Pull out the three plastic spacers from the holes into which the bolts were fitted. You are advised to keep all the packaging for re-use in Plug the open holes with the plugs supplied with the case the machine is to be transported again.

  • Page 27: Water Drainage

    If you cannot make the cold water connection direct When discharging into a standpipe ensure that the top of from the rising mains, you may be able to operate the the standpipe is no more than 90cm (35.4'') and no less appliance from your cold water storage system.

  • Page 28: Levelling

    Special conditions If the floor is carpeted or covered with crumbly or soft material, insert a rigid support base under the feet to prevent noise, vibration or displacement. The base should protrude a few centimetres beyond the edges of the machine. Warning The machine should NOT be placed on deep pile The drain hose may be extended to a maximum of 4...

  • Page 29: Electrical Connection

    Electrical connection The wire coloured green and yellow must be connected to the terminal marked with the letter «E» or by the Any electrical work required to install this appliance earth symbol or coloured green and yellow. should be carried out by a qualified electrician or The wire coloured blue must be connected to the competent person.

  • Page 30: Building-In

    Building-in The height (C-Fig. C) depends on the height of the adjacent furniture's base. This appliance has been designed to be built into the kitchen furniture. The recess should have the dimensions shown in picture A. b) Hinges To mount the hinges it is necessary to drill two holes (dia.
  • Page 31 If the door has to be opened from left to right, invert the Position the base into the recess with its front edge as position of the plates (7), the magnet (4) and the plate far forward as the adjoining plinth line will allow. (5) (Fig.
  • Page 32 © Electrolux plc 2005...
