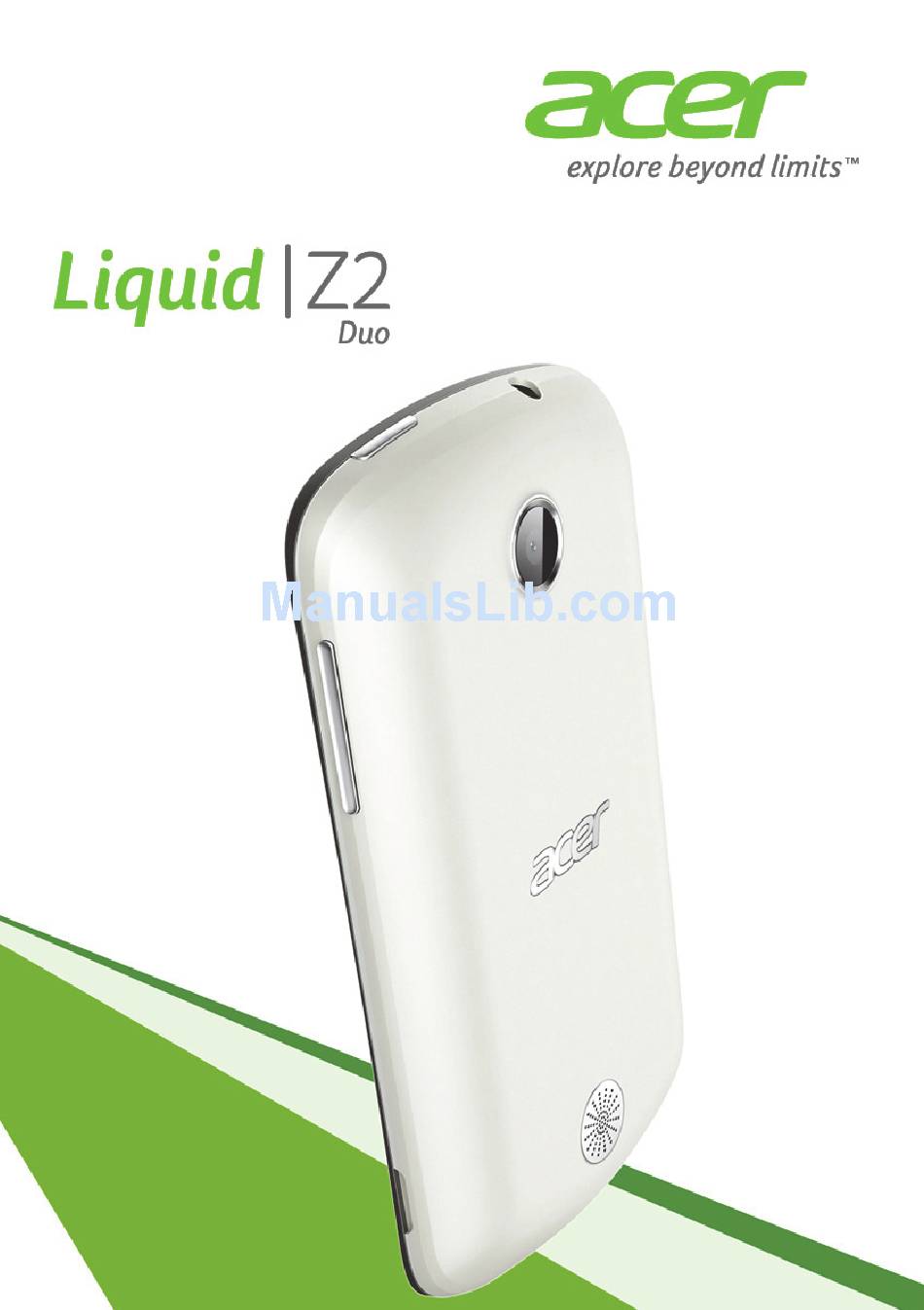

  • Page 2 © 2012 All Rights Reserved Acer Liquid Z2 Duo User’s Manual Model: Z120 This revision: 3/2013 Acer Liquid Z2 Duo Smartphone Model number: __________________________________ Serial number: ___________________________________ Date of purchase: ________________________________ Place of purchase: ________________________________...

  • Page 3: Table Of Contents

    Table of contents Table of contents ......... . 3 Setting up .
  • Page 4 Maps, Navigation, Places and Latitude ....... 32 Using the Camera......... 33 Camera icons and indicators .

  • Page 5: Setting Up

    Your new smartphone comes packed in a protective box. Carefully unpack the box and remove the contents. If any of the following items is missing or damaged, contact your dealer immediately: • Acer Liquid Z2 Duo Smartphone • Battery • Quick Guide •...

  • Page 6: Installing Or Removing The Battery

    Item Description LED indicator Indicates the phone’s charging status. Touchscreen 4.5-inch, 960 x 540 pixel capacitive touchscreen to display data, phone content and enter information. Microphone Internal microphone. Volume up/down buttons Increases or decreases the phone volume. Camera A camera for taking high-resolution images. Handsfree stereo speakers Emits stereo audio from your smartphone;...

  • Page 7: Installing A Sim Or Microsd Card

    CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. Charging the battery For initial use, you need to charge your smartphone for eight hours. After that you can recharge the battery as needed. Connect the AC adapter cord to the micro USB connector on your smartphone.

  • Page 8: Sim Card Lock

    1. Turn off the phone by pressing and holding the power button. 2. Open the cover and remove the battery as described in "Removing the battery" on page 3. Insert the SIM or microSD Card as shown. SIM1 4. Replace the battery and battery cover. MicroSD SIM2 Important: Turn off your phone before installing or removing the microSD Card.

  • Page 9: Using Your Smartphone

    Using your smartphone Turning on for the first time To turn on your smartphone for the first time, press and hold the power button until the screen turns on. You will then be asked to configure some settings before you can use your smartphone.

  • Page 10: Navigating Through Menus And Options

    Waking your smartphone If the screen is off and the smartphone does not react to any taps on the screen or front panel button, then it has been locked and is in sleep mode. Press the power button to wake your smartphone. Unlock your smartphone by sliding your finger from one side of the screen to the other (it works both ways).
  • Page 11 Scroll: To scroll up or down the screen, simply drag your finger up or down the screen in the direction that you want to scroll. Android keyboard This is a standard onscreen QWERTY keyboard that allows you to enter text. Tap and hold a key with numbers at the top to select alternative characters, such as letters with accents.

  • Page 12: Text Assistance

    Put your finger on the first letter of the word and draw a path from letter to letter, lifting up only after the last letter. Swype will insert spaces where necessary. Swype will usually add a double letter in a word when needed, but you can help Swype recognize you want a double letter by scribbling slightly or making a loop on the letter.

  • Page 13: The Home Screen

    The Home screen After rebooting, your smartphone will display the home screen. This screen gives you quick access to information and simple controls with widgets or shortcuts. These display information such as the time and weather, or provide additional controls and direct access to applications and other frequently used features of your smartphone.

  • Page 14: Personalizing The Home Screen

    The extended Home screen The Home screen extends to either side of the screen, giving you more room to add icons, widgets or features. To view the extended screen, slide your finger to the left or right. Personalizing the Home screen You may personalize your Home screen by adding or removing application shortcuts or widgets, and by changing the wallpaper.

  • Page 15: Changing The Wallpaper

    Resizing widgets Some widgets can be resized. As soon as you place a widget on the Home screen, you can resize it by dragging the corners. To resize a widget that is already on the Home screen, tap and hold the widget. Once the Remove icon appears, release the widget.
  • Page 16 Managing the lock screen Tap and hold any open area on the Home screen. Tap the Lock screen manager tab to turn on and off lock screen icons or change which lock screen icons appear. Changing home screen settings Tap and hold any open area on the Home screen. Tap the Home screen settings tab to modify sliding effects.

  • Page 17: Connection Icons

    This area contains a variety of icons to inform you of your phone’s status. The left side of the Notification area displays event icons that indicate a new event (such as a new message). The icons on the right side indicate signal strength, connection, battery status and the time.

  • Page 18: Notification Icons

    Battery icons Icon Description Icon Description Battery is very low Battery is partially drained Battery is low Battery is full Battery is charging Notification icons Note: Notification icons appear in different colors if you have two SIMs inserted. Icon Description Icon Description Alarm is set...
  • Page 19 Multitasking You can have multiple applications open at the same time. To open a new application, tap the home button to return to the Home screen, then start the new application. Tip: To prolong battery life, it is better to close an application when you’ve finished using it.

  • Page 20: Managing Contacts

    Managing contacts Managing your contacts Your smartphone features an address book that allows you to save contacts to either the internal memory or onto your SIM card. Open the Contacts application from the Application menu or tap from the Dialer to view your contacts. If you don’t have any contacts stored on your phone, you can import your Google account contacts, add a new contact or import contacts from your SIM or SD card.

  • Page 21: Making Calls

    Making calls This chapter shows you how to make phone calls, and the various options available to you during your call. Before making a call Check that the phone function is on before you make a call. You can confirm the phone status from the Notification area.
  • Page 22 1. The Notification area with the missed call icon. Open the Notification area and tap the missed call notification to display the missed call details. 2. The Phone icon (the number in the box is the number of missed calls). Tap Phone from either the Home screen or the Application menu to directly display the missed call details.

  • Page 23: The Voice Call Screen

    will be able to place the widget on your Home screen. Once placed, you will be able to select a contact to associate with that particular widget on your Home screen. The voice call screen Once you have dialed your number the voice call screen appears, which displays the number/contact you are talking to, the call duration and voice call options.

  • Page 24: Voice Call Options

    Voice call options Icon Description Place the call on hold. Mute a call. Speakerphone. Access the keypad while a call is in progress. Add a second call Saving a dialed number to contacts You can save a number you have dialed to your contacts for future use. 1.

  • Page 25: Internet Calling

    Internet calling You can place and receive Internet calls over wireless network. Adding an Internet calling account From the Home screen tap Phone to open the onscreen number pad. Tap the Menu button and tap Settings > Internet Call. Enable the Use Internet calling and tap Accounts.
  • Page 26 Important: Calling a phone number using Internet calling requires that your service provider supports it, and may incur additional charges. Please contact your service provider if you have any questions.

  • Page 27: Messaging

    Messaging This chapter shows you how to set up and use the Phone messages, Social messages and Social events functions of your smartphone. All SMS and MMS messages are accessed via Messaging. Messaging automatically arranges received and sent messages into threads. To access Messaging tap Messaging on the Home screen.

  • Page 28: Replying To A Message

    Replying to a message When a new text message arrives a message icon appears in the Notification area and the message icon at the bottom of the phone displays the number of unread text messages. Tap Messaging on the Home screen to view the message list or open the Notification area to see a summary of the message.
  • Page 29 Note: Downloads can take a long time, depending on your connection quality. If you reply or open another application, the download will be stopped. Important: You may be charged to download message content, especially if you are roaming. Please contact your provider if you have any questions. 3.

  • Page 30: Going Online

    Going online Browsing the Internet In order to browse the Internet with your smartphone, you must be connected to a data or wireless network. Using the browser Tap Browser on the Home screen to start browsing. To open a new website, tap the address box at the top of the page.

  • Page 31: Composing An Email

    If you did not enter your Gmail account address and password when you first started your phone, follow the on screen instructions. Composing an email 1. Make sure your smartphone is connected to a data or Wi-Fi connection. 2. From the Applications menu tap Email. 3.

  • Page 32: Maps, Navigation, Places And Latitude

    Important: Some applications may require payment before you can download them. You will need to have a Google Checkout account in order to pay for these applications, or a credit card number associated with your Google account. Uninstalling downloaded applications Once you’ve downloaded and installed an application, you may uninstall the application by tapping Settings from the Applications menu.

  • Page 33: Using The Camera

    Using the Camera Your smartphone features a digital camera mounted on the rear. This section will take you through all the steps in taking photos and videos with your smartphone. To activate the camera, tap Camera on the Home screen, or open the Applications menu and tap Camera.

  • Page 34: Taking A Photo

    Camera settings menu To adjust the settings, tap the settings button. The menu options are: Setting Description Store location Append GPS information to the photograph. Continuous shot Set the maximum number of continuous shots taken when tapping and holding the camera shutter button. Exposure Over- or under-expose the photo.

  • Page 35: Shooting A Video

    Note: Panoramic images work best with static outdoor scenes. Objects to close to the camera or large straight edges may confuse the detection process. Camcorder settings menu Select the camcorder from the camera mode. To adjust the settings, tap the settings button to adjust the Camera settings, set the Time lapse interval, add Silly faces, apply a Color effect, or set the White balance.

  • Page 36: Geotagging

    Geotagging Geotagging allows you to store the location where a photo or videa was taken right in the photo or video itself. For the geotag to display, pictures must be taken with Store Location activated in the camera settings. To view the geotag, open the picture in the Gallery. Tap and tap Show on map.

  • Page 37: Advanced Settings

    Advanced settings Putting your smartphone in Airplane mode You can enter Airplane mode (also known as flight mode) to turn off telephone and Bluetooth functions and use your smartphone as a handheld device during a flight. Check with your airline to make sure this is permitted onboard.

  • Page 38: Adjusting Bluetooth Settings

    Item Description More... Access additional connection settings: Airplane mode: Disable all wireless connections so you can safely use this device onboard an aircraft. VPN: Set up and manage Virtual Private Networks. Tethering & portable hotspot: Share your phone’s mobile data connection via USB or as a portable Wi-Fi hotspot.

  • Page 39: Selecting A Network

    Note: When your smartphone is serving as a Wi-Fi hotspot, you can’t use your phone’s applications to access the Internet via its Wi-Fi connection. Phone network settings In the Application menu tap Settings > More... > Mobile networks to adjust your network settings.
  • Page 40 You can also view and modify these settings manually through the Call settings screen. From the Home screen tap Phone to open the onscreen number pad. Tap the Menu button and choose Settings > Voice Call. Sound To adjust your phone’s sound settings, in the Application menu tap Settings > Sound.

  • Page 41: Connecting To A Pc

    Connecting to a PC If you wish to transfer information between the microSD Card in your phone and your computer, you can connect your phone to a PC using the supplied USB cable. Plug the USB sync cable into the micro USB connector on your smartphone.

  • Page 42: Fm Radio

    FM radio The FM radio allows you to listen to your favorite stations while on the move. Headphones must be inserted to the 3.5 mm jack as it functions as an antenna. You can access the radio by tapping FM Radio from the Application menu.

  • Page 43: Restoring To Factory Settings

    Closing an application To close an active application, in the Application menu tap Settings > Apps. Swipe over to the Running tab, then tap the program you wish to close. Select Stop to close the program. Uninstalling an application You can remove programs installed on your smartphone to free up extra storage memory.

  • Page 44: Accessories And Tips

    Accessories and tips This chapter shows you how to use accessories with your smartphone, as well as provide useful tips for when you are using your smartphone. Using the headset Your smartphone can be used with a compatible headset with built-in microphone for handsfree use when making calls.

  • Page 45: Appendix

    Appendix FAQ and troubleshooting This section lists frequently asked questions that may arise during the use of your smartphone, and gives easy answers and solutions to these questions. Aspect Question Answer Audio Why is there no If the headset is plugged into the device, sound coming from the speaker is automatically shut off.

  • Page 46: Other Sources Of Help

    Other sources of help For information on: Refer to: Up-to-date information regarding your www.acer.com smartphone mobile.acer.com Service enquiries www.acer.com/support Warnings and precautions • Do not use this product near water.

  • Page 47: Battery Information

    The battery can be charged and discharged hundreds of times, but it will eventually wear out. When the talk and standby times are noticeably shorter than normal, buy a new battery. Use only Acer approved batteries, and recharge your battery only with Acer approved chargers designated for this device.

  • Page 48: Additional Safety Information

    Warning! Batteries may explode if not handled properly. Do not disassemble or dispose of them in fire. Keep them away from children. Follow local regulations when disposing of used batteries. Additional safety information Your device and its enhancements may contain small parts. Keep them out of the reach of small children.

  • Page 49: Emergency Calls

    systems, electronic speed control systems, and air bag systems. For more information, check with the manufacturer, or its representative, of your vehicle or any equipment that has been added. Only qualified personnel should service the device, or install the device in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty that may apply to the device.
  • Page 50 5. DO NOT use or store your smartphone in any location that is dusty, damp or wet. 6. DO use a soft, damp cloth to clean your smartphone. If the surface of the screen becomes soiled, clean it with a soft cloth moistened with diluted window-cleaning solution. 7.

  • Page 51: Managing Your Sim Cards

    Managing your SIM cards If your phone detects a new SIM card, you will be asked to confirm the preferred SIM to use for each action. It indicates the following information: 1. The color used for each SIM card and its network name.
  • Page 52 Selecting which SIM to use when sending a text message If you have set Messaging to Always ask, you will be asked which SIM to use each time you send a text message. Enter the message and recipient information, then tap Send.

  • Page 53: Specifications

    Specifications Performance • MT6575M 1 GHz processor • System memory: • 512 MB of RAM • 4 GB of ROM • Android operating system Display • 3.5" HVGA LCD, capacitive touchscreen • 320 x 480 resolution Multimedia Formats supported: Type Formats Audio playback MP3, AMR...
  • Page 54 Expansion • microSD memory card slot (up to 32 GB) Battery • Rechargeable high density 1300 mAh Lithium-ion battery (replaceable) Note: Length of battery operation will depend on power consumption which is based on system resource use. For example, constantly using the backlight or using power-demanding applications will shorten battery life between charges.

  • Page 55: Safety

    Safety Battery information This product uses a Lithium battery. Do not use it in a humid, wet and/or corrosive environment. Do not put, store or leave your product in or near a heat source, in a high temperature location, in strong direct sunlight, in a microwave oven or in a pressurized container, and do not expose it to temperatures over 60 °C (140 °F).

  • Page 56: Disposal And Recycling Information

    Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit www.acer- group.com/public/Sustainability EEE yönetmeliğne uygundur It is compliant with EEE regulations.
  • Page 57 Wireless operation channels for different domains N. America 2.412-2.462 GHz Ch01 through Ch11 Japan 2.412-2.484 GHz Ch01 through Ch14 Europe ETSI 2.412-2.472 GHz Ch01 through Ch13 List of National Codes This equipment may be operated in the following countries: Country ISO 3166 Country ISO 3166...
  • Page 58 accessory and are not holding the phone at the ear, position the handset a minimum of 1.5 cm from your body when the phone is switched on. During use, the actual SAR level is usually much lower than the maximum value, because the mobile telephone works in different output levels.
  • Page 59 Certification logos To view the certification logos on your device: tap Settings > About phone > Legal information > Certification logo.
  • Page 60 Lithium battery warning ATTENZIONE! Rischio di esplosione della batteria se sostituita in modo errato. Sostituire la batteria con un una di tipo uguale o equivalente con- sigliata dalla fabbrica. Non disperdere le batterie nell’ambiente. VORSICHT! Explosionsgefahr bei unsachgemäßen Austausch der Bat- terie.
  • Page 61 The technical documentation relevant to the above equipment will be held at: Acer Incorporated 8F., No. 88, Sec. 1, Xintai 5th Rd., Xizhi Dist, New Taipei City, 22181, Taiwan Authorized person: Name: Harriot SL Lee For the addresses/telephone numbers of Acer service centers, please refer to the warranty card.

  • Page 62: End User License Agreement

    Sublicense or otherwise make the Software available to third parties, except that you may, after prior written notification to Acer, transfer the Software as a whole to a third party so long as you do not retain any copies of the Software and such third party accepts the terms of this Agreement.

  • Page 63: Privacy Policy

    Third Party Software in any manner that could interfere with any other party's use and enjoyment of the Third Party Services, or the services and products of Acer's licensors' or suppliers' third party licensors. Your use of the Third Party Software and Third Party Services is also subject to additional terms and conditions and policies which can be accessed through our global website.
