3.1.1 Maximum cable length for connecting interpreters desks LBB 3222/0x
The maximum length of the cables to connect the interpreters desks to the Integrus transmitter depends on the number of
interpreters desks. A leader cable connects the first interpreters desk to the transmitter. An extension cable may be needed
between the interpreters desks. The table below shows the maximum extension cable length (additional to the standard 3 m
cable) that can be used with different numbers of interpreters desks.
Number of interpreters desks LBB 3222/0x
Additional leader cable length between first
interpreter desk and transmitter
Additional extension cables lengths between
interpreters desks
Number of interpreters desks LBB 3222/0x
Additional leader cable length between first
interpreter desk and transmitter
Additional extension cables lengths between
interpreters desks

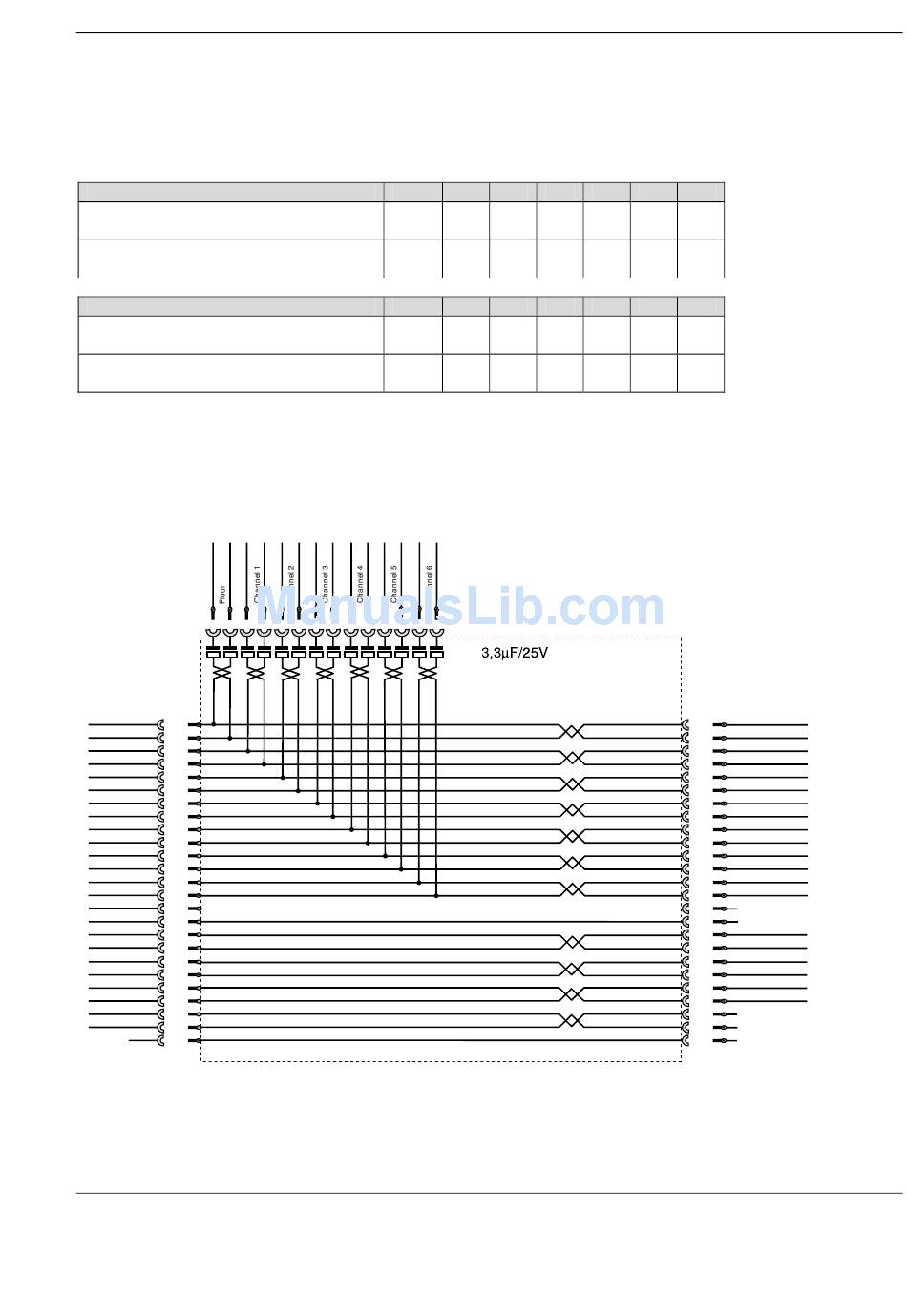

3.1.2 Recording the audio channels
To record the audio channels, a connection box can be inserted between the interpreters desks LBB 3222/0x and the
symmetrical audio input and interpreters module LBB 3422/1x. Such a connection box should be locally made. See Figure 3.3
for the wiring.
RECORDING EQUIPMENT
LBB 3422/10
1
Audio 1 input
14
4
Audio 2 input
18
2
Audio 3 input
16
5
Audio 4 input
17
7
Audio 5 input
19
8
Audio 6 input
22
6
Audio 7 input
20
11
Audio 8 input
23
9
Audio Comm
21
3
Audio AF
15
24
Supply (+12V)
25
12
Supply (- 12V)
13
Earth
10
Figure 3.3: Connection box for recording audio and language channels
BOSCH Security Systems B.V.| February 2003
INTEGRUS | LBB 3222/04 and LBB 3422/10
2 4 6
meter 100 50 35
meter 34 8 2.9
2 4 6
feet 328 164 115
feet 112 26 9.5
14 x
8 10 12
15 5 0
2.4 1.8 1
8 10 12
49 16 0
7.9 6.0 3.3
LBB 3222/04
1
OR Floor Channel
14
4
Channel 1
18
2
Channel 2
16
5
Channel 3
17
7
Channel 4
19
8
Channel 5
22
6
Channel 6
20
11
23 Busy in
9
Comm.
21
3
OR2 Auto Relay
15
24
Supply (+27V)
25
12 Ground
13
10 Earth
