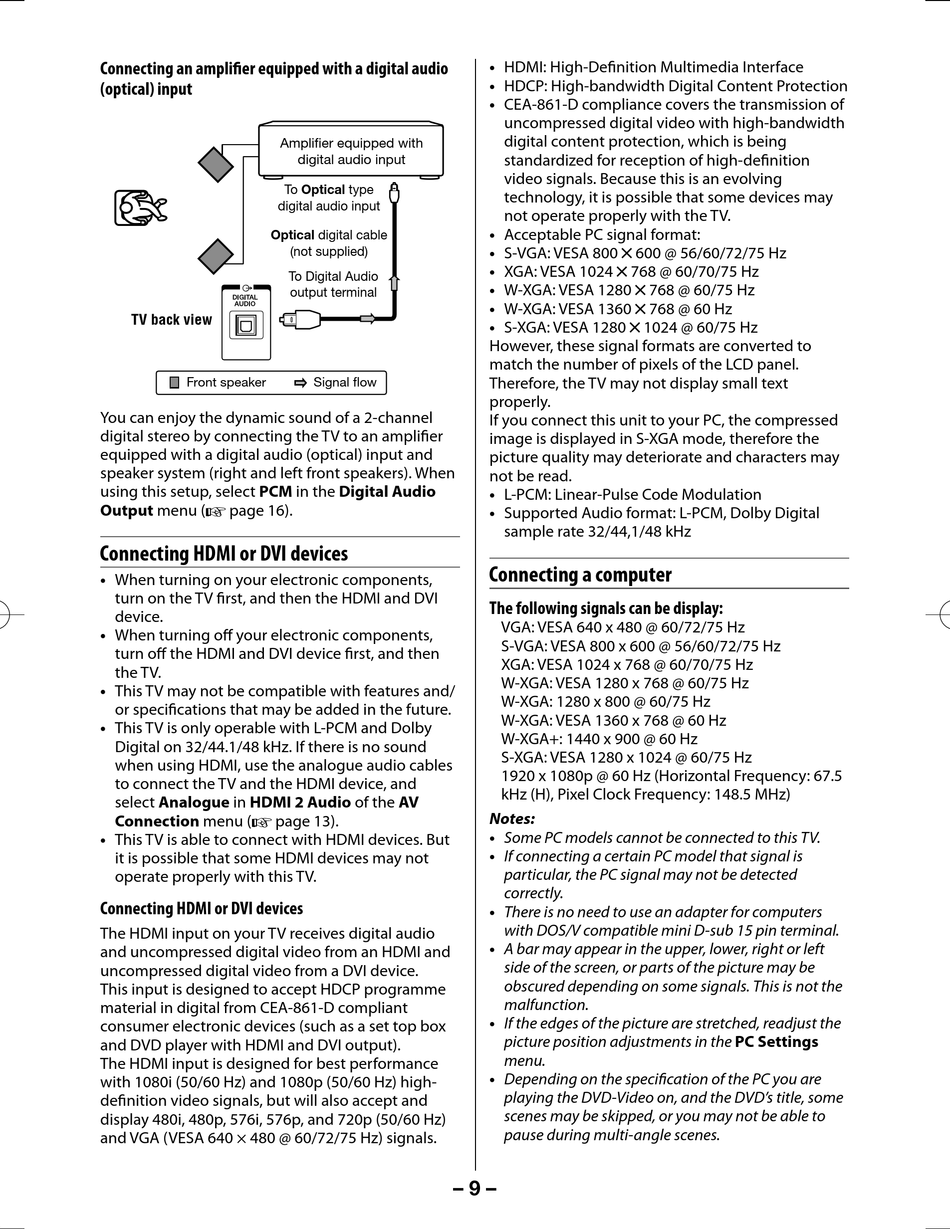

Connecting an amplifi er equipped with a digital audio
(optical) input
TV back view
Front speaker
You can enjoy the dynamic sound of a 2-channel
digital stereo by connecting the TV to an amplifi er
equipped with a digital audio (optical) input and
speaker system (right and left front speakers). When
using this setup, select PCM in the Digital Audio
Output menu (- page 16).

Connecting HDMI or DVI devices

• When turning on your electronic components,
turn on the TV fi rst, and then the HDMI and DVI
device.
• When turning off your electronic components,
turn off the HDMI and DVI device fi rst, and then
the TV.
• This TV may not be compatible with features and/
or specifi cations that may be added in the future.
• This TV is only operable with L-PCM and Dolby
Digital on 32/44.1/48 kHz. If there is no sound
when using HDMI, use the analogue audio cables
to connect the TV and the HDMI device, and
select Analogue in HDMI 2 Audio of the AV
Connection menu (- page 13).
• This TV is able to connect with HDMI devices. But
it is possible that some HDMI devices may not
operate properly with this TV.
Connecting HDMI or DVI devices
The HDMI input on your TV receives digital audio
and uncompressed digital video from an HDMI and
uncompressed digital video from a DVI device.
This input is designed to accept HDCP programme
material in digital from CEA-861-D compliant
consumer electronic devices (such as a set top box
and DVD player with HDMI and DVI output).
The HDMI input is designed for best performance
with 1080i (50/60 Hz) and 1080p (50/60 Hz) high-
defi nition video signals, but will also accept and
display 480i, 480p, 576i, 576p, and 720p (50/60 Hz)
and VGA (VESA 640 × 480 @ 60/72/75 Hz) signals.
Amplifier equipped with
digital audio input
To Optical type
digital audio input
Optical digital cable
(not supplied)
To Digital Audio
output terminal
Signal flow
• HDMI: High-Defi nition Multimedia Interface
• HDCP: High-bandwidth Digital Content Protection
• CEA-861-D compliance covers the transmission of
uncompressed digital video with high-bandwidth
digital content protection, which is being
standardized for reception of high-defi nition
video signals. Because this is an evolving
technology, it is possible that some devices may
not operate properly with the TV.
• Acceptable PC signal format:
• S-VGA: VESA 800 5 600 @ 56/60/72/75 Hz
• XGA: VESA 1024 5 768 @ 60/70/75 Hz
• W-XGA: VESA 1280 5 768 @ 60/75 Hz
• W-XGA: VESA 1360 5 768 @ 60 Hz
• S-XGA: VESA 1280 5 1024 @ 60/75 Hz
However, these signal formats are converted to
match the number of pixels of the LCD panel.
Therefore, the TV may not display small text
properly.
If you connect this unit to your PC, the compressed
image is displayed in S-XGA mode, therefore the
picture quality may deteriorate and characters may
not be read.
• L-PCM: Linear-Pulse Code Modulation
• Supported Audio format: L-PCM, Dolby Digital
sample rate 32/44,1/48 kHz

Connecting a computer

The following signals can be display:
VGA: VESA 640 x 480 @ 60/72/75 Hz
S-VGA: VESA 800 x 600 @ 56/60/72/75 Hz
XGA: VESA 1024 x 768 @ 60/70/75 Hz
W-XGA: VESA 1280 x 768 @ 60/75 Hz
W-XGA: 1280 x 800 @ 60/75 Hz
W-XGA: VESA 1360 x 768 @ 60 Hz
W-XGA+: 1440 x 900 @ 60 Hz
S-XGA: VESA 1280 x 1024 @ 60/75 Hz
1920 x 1080p @ 60 Hz (Horizontal Frequency: 67.5
kHz (H), Pixel Clock Frequency: 148.5 MHz)
Notes:
• Some PC models cannot be connected to this TV.
• If connecting a certain PC model that signal is
particular, the PC signal may not be detected
correctly.
• There is no need to use an adapter for computers
with DOS/V compatible mini D-sub 15 pin terminal.
• A bar may appear in the upper, lower, right or left
side of the screen, or parts of the picture may be
obscured depending on some signals. This is not the
malfunction.
• If the edges of the picture are stretched, readjust the
picture position adjustments in the PC Settings
menu.
• Depending on the specifi cation of the PC you are
playing the DVD-Video on, and the DVD's title, some
scenes may be skipped, or you may not be able to
pause during multi-angle scenes.
– 9 –
